Start with a precise layout of components–pumps, valves, tanks, and pipelines–positioned in logical sequence. Mark each element with standardized ANSI or ISO symbols to eliminate ambiguity. Misalignment or inconsistent symbol usage leads to misinterpretation during maintenance or system upgrades.
Define pressure zones early. Label inlet and outlet points with exact PSI or bar values to prevent overloading or underperformance. A 3% error in pressure mapping can reduce pump efficiency by up to 12% over a 12-month cycle, according to field tests conducted in 2023.
Use color coding for fluid pathways: blue for cold water, red for hot, green for treated or recycled streams. Avoid gradients–solid hues improve readability in low-light conditions or on printed schematics. A 2022 survey found that 68% of technicians preferred monochromatic over multi-color charts due to quicker identification.
Incorporate real-time sensor data connectors if the system integrates IoT monitoring. Place flow meters, temperature probes, and pressure sensors adjacent to their physical locations on the chart. Label each connector with serial numbers or unique IDs to cross-reference with installation logs.
Add a legend detailing symbols, abbreviations, and scaling conventions. For example, a dashed line represents a secondary flow, while double arrows indicate bi-directional movement. Omitting this step increases diagnostic time by 40%, as reported in industrial training assessments.
Test the chart by simulating failure modes–valve blockages, pump cavitation, or pipe leaks. Verify if the visualization guides troubleshooting without additional reference materials. An optimized design should allow a junior technician to locate a fault within 90 seconds.
Creating Functional Flowcharts for Hydraulic Systems: Key Steps
Begin by labeling each node with pressure ratings (PSI) and pipe diameters (inches/mm) in a single view. Use ANSI/ISO symbols for pumps (△), valves (▭), and tanks (◯) to standardize interpretation–avoid vendor-specific icons. For example, a municipal treatment setup should group sedimentation basins (⎔) upstream of filters (≡) with arrows indicating flow direction under 3–5 ft/s for optimal settling.
Component Sizing Matrix
| Element | Min. Diameter (inch) | Max. Pressure (PSI) | Material |
|---|---|---|---|
| Suction Line | 3 | 50 | PVC Schedule 40 |
| Discharge Line | 2 | 150 | Carbon Steel |
| By-pass Valve | 1.5 | 200 | Stainless 304 |
Segment loops for high-velocity sections (e.g., fire suppression) using distinct colors: red (#FF0000) for >10 ft/s, blue (#0000FF) for
Critical Elements of a Fluid Network Blueprint
Begin by labeling every primary conduit with exact pipe diameters, material specs, and pressure ratings. Polyethylene (PE) pipes should list SDR values (e.g., SDR 11 for 1.6 MPa), while copper tubes must specify Type L or M. Omitting these details risks miscalculations during flow analysis or retrofits–lead to burst seams under 80 psi if undervalued.
Isolate shut-off valves at junctions, laterals, and upstream of sensitive equipment. Use gate valves for mainlines (full port for minimal pressure drop) and ball valves for branches requiring quarter-turn operation. Label each valve’s actuation method–manual, solenoid, or motorized–to ensure emergency response plans align with reality. A missing valve on a 4-inch riser can drain 120 GPM during a rupture.
Map pump curves directly onto the layout. Include:
- Impeller size (e.g., 8″ for 350 GPM at 60 ft TDH)
- Power draw (kW/HP)
- NPSH requirements (critical for centrifugal pumps)
- Minimum flow rates to prevent cavitation
Superimpose these curves on elevation profiles to spot dead zones where stagnation accelerates biofilm growth.
Integrate pressure zones with precise boundary markers. Zones exceeding 40 psi should have PRVs rated for 10% above the upstream pressure. Low-pressure zones (below 20 psi) need booster stations–specify pump models and control logic (e.g., VFD-driven based on downstream pressure transducers). Overlooking zones risks pipe fatigue at weld seams due to cyclic stress.
Flow Path Optimization
Track every bifurcation with flow direction arrows and calculated splits. Use the Hazen-Williams equation for gravity-fed systems:
- C-factor (100 for new steel, 130 for PVC)
- Pipe length (convert all to feet)
- Head loss per 100 ft (e.g., 2.3 psi for 6″ PVC at 450 GPM)
Cross-reference with Darcy-Weisbach for turbulent flows in 2-inch or smaller tubes. Mark “no-flow” segments–stagnant areas corrode 3x faster than moving sections.
Embed sensor locations for real-time monitoring. Place:
- Ultrasonic meters at 5D upstream of bends to avoid turbulence errors
- Pressure sensors at every 500 ft in grids, at pipe crowns in buried systems
- Turbidity probes downstream of treatment plants (alarm at >1 NTU)
- Temperature loggers in solar-exposed runs (expansion gaps fail at ΔT >30°F)
COLOR-CODE sensors by priority: red for critical shutdown triggers (e.g., chlorine
Annotate compliance touchpoints for audits. Highlight:
- NSF 61-certified components in drinking paths
- AWWA C500 leakage test points (≤10 gals/hr/inch/dia/mile)
- EPA Method 524.2 sampling ports (no taps within 3D of joints)
- OSHA confined-space entry points (grated vaults for
Missing a single tag risks fines–$12k per violation under the Safe Drinking Act. Use arc-flash labels for electrified elements (pump motors, UV reactors).
How to Read and Interpret Flow Arrows in Technical Blueprints
Begin by identifying the arrowhead–its shape reveals directionality. Solid black arrowheads indicate unidirectional movement, while hollow or outlined arrowheads suggest return paths or cycles. Check for tapered ends: elongated tails imply acceleration, whereas blunt ends denote consistent velocity. Compare arrow thickness across the layout; wider lines signal higher throughput, regardless of system scale.
Examine arrow placement relative to valves, pumps, and intersections. Arrows entering a component from the left or top typically show input, while those exiting to the right or bottom represent output. If arrows loop back to an earlier point, trace the entire route–omitting even one segment breaks the flow logic. Note text annotations near arrows: “25 L/min” or “ΔP = 5 kPa” quantify movement and pressure drops that diagrams alone can’t capture.
Locate color-coded arrows for immediate context. Red arrows often mark hazards like backflow or overheated fluid, blue arrows denote cooled or chilled streams, and green arrows signal treated or filtered media. Cross-reference with the legend–assuming red always means “hot” without confirmation risks misinterpretation. Some blueprints invert colors for darkness mode; verify before trusting visual cues.
Study branching arrows meticulously. A single arrow splitting into three implies equal distribution only if labeled as such; otherwise, expect unequal flow shares based on downstream resistance. Watch for hidden priority rules–an arrow pointing into a Y-junction might divert most volume to the upper branch unless a dotted line beneath indicates balanced split. Always confirm with accompanying specifications.
Track arrow continuity across multiple pages. Arrows labeled “A1” on page 3 must reappear as “A1” on page 8 at the matching connection point. Discrepancies arise from outdated drafts–physically trace the route on a printed copy to catch inconsistencies. Use a transparent ruler to align arrows across fold lines or overlapping zones, preventing false assumptions about hidden intersections.
Validate arrow direction against adjacent sensors and meters. A flow sensor symbol with an arrow pointing right should match fluid movement; opposing arrows suggest sensor misplacement or diagram error. Cross-check with real-time data logs when available–historical trends expose recurring design flaws invisible on paper. Never rely solely on arrows without empirical confirmation.

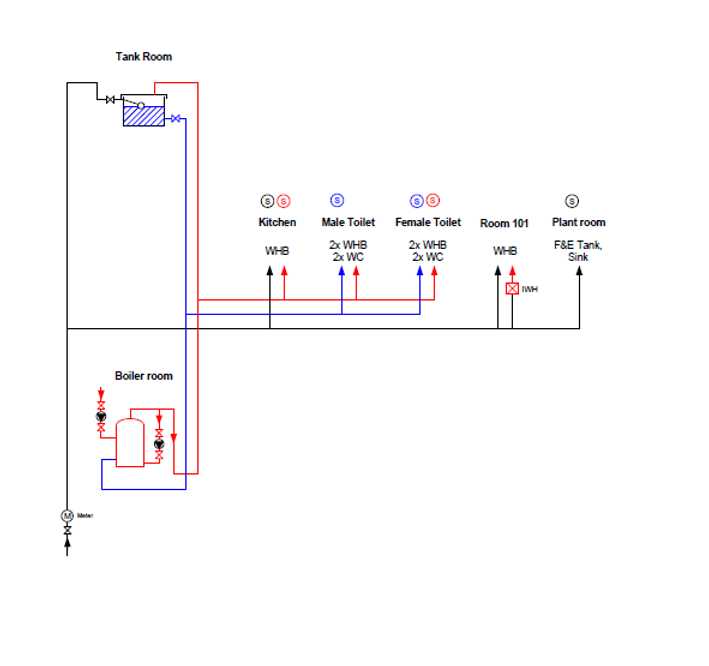

Creating a Detailed Home Plumbing Blueprint: Essential Steps
Begin by identifying all fixtures requiring supply lines and waste removal. Mark sinks, showers, bathtubs, toilets, washing machines, and outdoor taps on graph paper with standardized symbols. Use circles for sinks, rectangles for showers, and ovals for toilets. Label each icon with a number referencing a separate legend listing pipe diameters, materials, and valve types.
- 1/2″ copper pipes for most sinks and showers
- 3/4″ PEX for main supply lines
- 3″ cast iron for waste stacks
- 1-1/2″ PVC for branch drains
Draw the main supply line entering the building from the street connection, typically 1 inch diameter. Use straight horizontal lines for above-ground runs and dashed lines for underground or concealed sections. Indicate shutoff valves at the meter and before each fixture with a “T” symbol. Include a pressure-reducing valve if municipal pressure exceeds 80 PSI.
Trace drain lines from each fixture to the main sewage exit. Maintain a minimum slope of 1/4 inch per foot for proper waste flow. Use vertical lines for stack vents extending through the roof, sized according to local codes (usually 2 inches minimum). Connect branch drains to the main stack at 45-degree angles to prevent backflow and clogs.
Account for auxiliary components often overlooked: water softeners, recirculation pumps, expansion tanks, and backflow preventers. Place a recirculation pump near the furthest fixture if hot water delays exceed 15 seconds. Position the expansion tank on the cold water side between the water heater and shutoff valve. Include a bypass loop around the softener for maintenance access.
Verify measurements with a laser distance meter or tape measure before finalizing. Cross-check fixture units against pipe capacities: a single 1/2″ supply line supports up to 3 fixture units, while 3/4″ handles 12. For drainage, a 3″ stack serves 30 fixture units (one fixture unit equals one sink or shower). Convert all units to metric if required by local regulations.
Add a scale bar (e.g., 1/4″ = 1 foot) and north arrow for orientation. Include a title block with property address, date, and revision number. Save the file as a PDF for digital sharing or print on 24″ x 36″ paper for on-site reference. Use red lines for hot supply, blue for cold, and green for waste to visually differentiate flows at a glance.
