Start by locating the main junction box behind the rear storage compartment–this is where the battery cables, ignition wires, and sensor leads converge. Trace the red 8-gauge positive cable from the starter solenoid to the fuse panel; any corrosion here disrupts cranking. The yellow ECU power wire (pin A3) runs parallel–verify continuity with a multimeter (expected: 0.2 ohms or less).
Inspect the gray 4-pin stator connector near the flywheel; oil fouling here causes erratic tachometer readings. The black-white ground wire (from coil terminal 2) must be secured to engine block threads with dielectric grease to prevent stray voltage. Replace cracked insulation on the brown 16-gauge sender wire (leaving the oil tank) immediately–chafing risks ground loops that trigger false low-oil alarms.
Use the following voltage checks at key points under load (engine at 3,000 RPM):
- Battery terminals: 14.2–14.6V (alternator output)
- IGN coil connector: 0.4–0.6V (signal wire, pin B)
- Fuel pump relay: 12.4V (pink wire, pin 1)
Deviations above ±0.3V indicate faulty regulators or damaged connectors.
For troubleshooting sudden stalls, focus on the purple kill switch wire (terminating at the handlebar assembly). Splice failures here mimic ECU faults. The orange 18-gauge temp sensor wire (under the exhaust manifold) requires heat-resistant loom–standard sheathing melts at prolonged temperatures above 180°C.
Electrical Layout for Your 1996 Personal Watercraft: Hands-On Reference

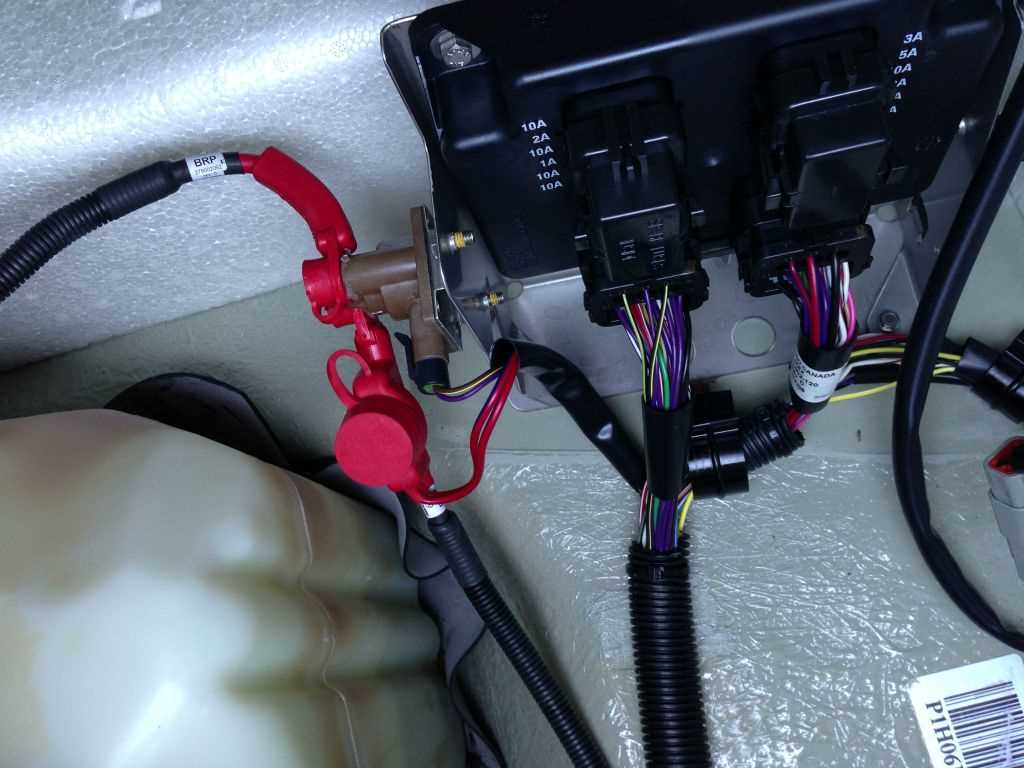

Start by locating the main fuse block beneath the front storage compartment–remove the snap-on cover to expose the 30A main fuse and two 15A secondary fuses. Label each wire with masking tape before disconnecting; red carries 12V ignition power, yellow feeds the fuel pump relay, and black-white grounds the instrument cluster. Trace the red wire from the fuse block to the ignition switch using a multimeter set to continuity mode–verify less than 0.5 ohms resistance before proceeding.
Check the stator output next. Disconnect the gray connector behind the engine’s left side panel, then probe the three pins: two thin wires (charging coils) should show 12–18V AC at 3000 RPM, while the thick orange wire (excitation circuit) must register battery voltage when the engine is off. If readings drop below 11V AC, inspect the flywheel air gap–adjust to 0.3–0.5mm if necessary–and clean corrosion from the rectifier’s heat sink fins with a wire brush.
Harness Repairs Without Factory Schematics
Splice damaged wires using marine-grade heat-shrink tubing; avoid solder alone–crimp first, then solder, and seal with adhesive-lined tubing. For intermittent faults, wiggle-test each connector while monitoring voltage: the tachometer sender (green-violet stripe) often fails where the harness bends near the engine mounts. Replace the entire pigtail if insulation cracks expose copper.
Test the emergency cut-off lanyard loop by jumping the white-red and brown wires at the handlebar switch–engine should stall within one second. Replace the switch if delay exceeds three seconds. Reconnect all bullet connectors using dielectric grease; never substitute automotive connectors–marine terminals resist saltwater corrosion only when zinc-plated.
Final step: validate the bilge pump circuit. The black-yellow wire must activate the pump within 10 seconds of water contacting the float switch. Bypass the float by momentarily grounding its blue wire; if the pump runs, clean the float switch’s stainless steel contacts with Scotch-Brite–oxide buildup causes false triggers.
Locating Critical Electrical Connections in the PWC’s Chassis
Trace the main harness bundle from the engine compartment forward–specifically the 12-pin rectangular connector near the ignition coil. This junction consolidates power distribution to the CDI unit, fuel pump, and stator. Label each wire with colored heat-shrink tubing matching the factory coding: red/white for constant 12V, black/yellow for ignition-switched, and white/red for sensor ground. Verify continuity with a multimeter before reconnecting; resistance above 0.5 ohms indicates corroded terminals requiring cleanup with electrical contact cleaner.
Inspect the smaller six-wire harness branching to the handlebar controls. The grey/red wire delivers throttle position signals to the ECM, while the brown/blue carries starter solenoid activation. Ensure these terminals are crimped securely–loose connections here mimic faulty throttle response. Replace any oxidized bullet connectors with gold-plated replacements to prevent voltage drop.
Check the dashboard cluster’s plug, focusing on the purple wire providing tachometer pulse data. A severed or frayed segment here causes erratic RPM readings. For ECM interfacing, the orange/black wire must maintain uninterrupted grounding through the engine block; bypass aftermarket grounding straps with 10-gauge copper wire if corrosion is present.
Step-by-Step Tracing of Ignition System Circuits for Classic PWC Models
Begin by locating the engine’s magneto assembly under the flywheel cover–remove the three 10mm bolts securing the housing. The three ignition coils (primary, trigger, and charge) attach directly to the stator plate; trace their leads outward. Use a multimeter in continuity mode to identify the pairings: the thickest gauge wire (12-14 AWG) from each coil connects to the CDI box via a black 4-pin connector. Label these Coil Output A, Coil Output B, and Coil Output C before detachment.
Follow the wiring harness from the CDI unit toward the handlebar cluster. The neutral safety switch (gray wire, 18 AWG) and the kill switch (red/white striped, 20 AWG) merge into a single 6-pin plug–verify connections against the following pinout:
- Pin 1: Purple (CDI power feed)
- Pin 2: Orange (stator trigger)
- Pin 3: Black/red (ignition ground)
- Pin 4: Gray (neutral switch)
- Pin 5: Red/white (kill circuit)
- Pin 6: Yellow/red (tachometer signal)
Test resistance between Pin 3 and chassis ground–readings above 0.2 ohms indicate corroded engine mount bolts requiring dielectric grease application.
Spark Plug Lead Verification
Disconnect the spark plug caps one at a time. Measure coil secondary resistance using a tested spark plug (NGK BR8ES recommended) as a probe: probe tip to cap should read 4,000–7,000 ohms. Capacitance discharge units typically fail when internal resistors exceed 10k ohms–replace caps showing erratic readings. Route plug wires away from exhaust manifolds; minimum clearance of 25mm prevents heat-induced misfires.
Reassemble the flywheel cover only after confirming all stator leads are seated in their rubber grommets–misalignment here causes intermittent ignition dropout. Torque the cover bolts to 9 Nm in a cross pattern. Perform a final system test by jumpering the kill switch terminals (Pin 5 to ground) and cranking the engine in 3-second bursts: healthy systems produce blue-white spark at the plugs. No spark? Isolate the CDI unit by swapping it with a known-good module before condemning the stator coils.
Common Electrical Faults and Schematic Fixes
First, inspect the ignition switch connections for corrosion or loose terminals. A multimeter should read continuity between pins 2 and 4 in the “ON” position. If resistance exceeds 0.5 ohms, clean contacts with 600-grit sandpaper and dielectric grease. Replace the switch if damage appears on the internal wafer contacts–visible as pitted or discolored spots.
- Starter solenoid clicks but engine fails to crank: Verify the small trigger wire (typically yellow/red) carries 12V during ignition. If voltage drops below 10V, trace back to the battery relay; oxidized fuse block terminals often cause this. Remove the relay and jump terminals 85 and 86–engine should crank if relay is faulty.
- Intermittent power loss: Examine the charging coil output–AC voltage should be 20-30V at 3000 RPM. Test with engine running, probes on stator leads (yellow pair). Below 18V indicates a failing stator; replace immediately to prevent battery drain.
- Fuel pump inoperative: Check the brown/white wire at the pump connector for 12V pulse within 1-2 seconds of ignition. No voltage? Test the ECU pin 12 for battery voltage–if absent, inspect the main harness for chafing near the engine mount, a known weak point.
For instrument cluster failures, focus on the violet/white wire supplying power. Measure voltage at the gauge cluster plug–should match battery voltage. If low, bypass the voltage regulator (brick-shaped, near the battery) with a direct 12V line; if gauges illuminate, replace the regulator. Always confirm ground integrity at the engine block (star washers prevent corrosion).
Persistent CDI failure often stems from improper grounding. Locate the black/yellow wire at the CDI box–it must register 5V amplitude rules out coil issues. Failed signals require stator replacement, not coil re-winding.
How to Locate and Test the Stator and Ignition System Wires on a Vintage Personal Watercraft
Begin by removing the seat and rear storage compartment to access the engine compartment. The stator wires are typically bundled in a harness near the flywheel, secured with zip ties or adhesive clips. Look for three thin wires–usually yellow, white, and black–exiting the crankcase cover. The yellow wires (often two) carry AC voltage for charging, while the white wire is the ignition trigger, and the black serves as ground. Trace these back to their connectors; corrosion or frayed insulation here is a common failure point.
To test the stator, set a multimeter to AC voltage (20V or higher range). With the engine off, disconnect the stator’s yellow wires from the regulator-rectifier. Connect the multimeter probes to the yellow wires–engine speed should produce readings between 12–25V AC at idle and 30–50V AC at higher RPMs. If voltage is absent or erratic, the stator may be shorted internally. For resistance checks, switch the multimeter to ohms (200Ω range): probe the yellow wires; readings should be 0.2–1.0Ω. Values outside this range indicate coil failure.
The ignition trigger wire (white) connects to the CDI module, located behind the engine cover near the battery. Disconnect the white wire from the CDI and test for continuity to ground–there should be none. If continuity exists, the CDI or associated harness is shorted. For voltage testing, reconnect the white wire and probe with the multimeter set to DC voltage (20V range) while cranking the engine. Healthy systems show brief 5–10V pulses during ignition firing. Absent or steady voltage suggests a faulty trigger coil or CDI failure.
Ground issues often masquerade as stator or CDI problems. Verify the black wire’s connection to the engine block using a multimeter in continuity mode. Probe between the wire and the block; a solid 0Ω reading confirms a good ground. Corrosion on mounting bolts or loose connections can cause intermittent firing. Clean contact surfaces with emery cloth and re-secure connections with dielectric grease to prevent future oxidation.
For CDI testing, inspect the module’s physical condition first–bulging capacitors, burn marks, or swollen casing signal replacement is needed. If the stator and trigger tests pass but ignition still fails, swap the CDI with a known-good unit. Cross-reference wire colors with the table below to avoid misconnections during reassembly:
| Wire Color | Function | Test Parameters | Failure Indications |
|---|---|---|---|
| Yellow (x2) | AC charging output | 12–50V AC (RPM-dependent) | No voltage or <0.2Ω resistance |
| White | Ignition trigger | 5–10V DC pulses (cranking) | No voltage or steady voltage |
| Black | Ground | 0Ω to engine block | Open circuit or >1Ω resistance |
If voltage tests confirm stator integrity but the system still malfunctions, inspect the regulator-rectifier. This component converts AC to DC and often overheats. Test for proper DC output (13.5–14.5V) at the battery while the engine runs at 3,000 RPM. Voltage outside this range or excessive heat (components too hot to touch) indicates failure. Replace it with an OEM or high-quality aftermarket unit, as inferior substitutes may not handle current loads reliably.
Harness integrity is critical–vibration and age degrade insulation. Wiggle-test each wire while monitoring voltage at the CDI during cranking. Voltage drops or spikes during movement reveal intermittent shorts. Repair frayed sections with marine-grade heat shrink tubing, soldered connections, and adhesive-lined crimps. Avoid electrical tape, which degrades under moisture and UV exposure. Re-seal connectors with silicone dielectric grease before reassembly to prevent water ingress.
Final validation requires an in-water test. Ensure all connections are secure, and the engine compartment is dry. Start the watercraft and monitor RPM stability. Surging or misfiring despite clean tests suggests hidden corrosion in connectors or an intermittently failing CDI. Swap components systematically until consistent performance is restored–repeating tests after each change isolates the root cause without guesswork.
