Begin by plotting critical temperatures–Ae1 (eutectoid start), Ae3 (austenite finish), and Ms (martensite start)–along the vertical axis. Use logarithmic scaling for time on the horizontal axis, spanning 1 second to 105 seconds, to accurately capture phase transitions across rapid quenching and prolonged annealing processes. Alloying elements shift these curves: 0.1% carbon depresses Ms by ~10°C, while 1% manganese delays pearlite formation by an order of magnitude.
For steels, the nose of the austenite-to-pearlite transformation curve determines hardenability. A 5-second nose at 600°C indicates poor hardenability; alloys with a 100-second nose require significantly slower cooling rates for martensitic transformation. Validate data against continuous cooling transformation (CCT) graphs: discrepancies exceeding ±15°C or ±5 seconds suggest errors in experimental quenching rates or thermal lag in thermocouples.
When designing heat treatments, superimpose desired cooling curves onto the graph. Oil quenching (~20°C/s) may intersect bainite regions for low-carbon steels, while water quenching (~100°C/s) ensures martensite for high-carbon variants. For tool steels, prioritize curves showing retained austenite stability below 200°C to prevent dimensional instability. Cross-reference with microhardness data: pearlite (200–400 HV), bainite (400–600 HV), martensite (600–900 HV).
For non-ferrous alloys, apply the same principles but adjust for distinct phases. Aluminum’s solution heat-treated (SHT) state transforms via precipitation hardening, where curves depict GP zones → θ” → θ’ → θ transitions. Copper-beryllium alloys show a 60-second nose at 350°C for optimal strength; deviations risk over-aging (strength loss >30%). Always verify graph accuracy against dilatometry or resistivity measurements–phase boundaries shift ±5°C with ±0.02% alloying-element variation.
Understanding Time-Temperature Transformation Graphs in Metallurgy
Start by identifying the critical cooling rates on the graph–these define phase boundaries where austenite transforms into pearlite, bainite, or martensite. Use logarithmic scales for time (x-axis) and linear scales for temperature (y-axis) to accurately plot nucleation and growth kinetics. For carbon steel (0.8% C), mark the “nose” of the curve at approximately 550°C and 1 second; this is the shortest incubation time for pearlite formation. Avoid extrapolating data beyond tested ranges, as inaccuracies spike outside validated zones.
Label isothermal hold paths with precise temperature steps (e.g., 20°C increments) to predict microstructure evolution. For example, holding at 650°C for 10 minutes yields coarse pearlite, while 350°C for 1 hour produces bainite. Cross-reference with dilatometry data to validate expansion coefficients–pearlite nucleation causes a 0.4% volume increase, martensite up to 4%. Adjust quench mediums based on these curves: water for martensite (
Account for alloying elements’ effects by shifting curves–chromium (1.5%) extends the pearlite nose to 10 seconds, nickel (3%) depresses the martensite start temperature by 50°C. Use Schaeffler diagrams to correct for multi-element interactions. Validate with hardness tests: Rockwell C 60-65 for martensite, 30-40 for upper bainite. For distortion-sensitive components (e.g., gears), prioritize isothermal holds at bainitic temperatures (300-400°C) to minimize residual stresses.
Key Components and Axes of an Isothermal Transformation Chart
Position the temperature axis vertically on the left to ensure immediate clarity–high values at the top (approaching the material’s austenitizing range) and low values at the bottom (near ambient or martensite finish). Scale non-linearly for steel: 800°C to 500°C in 50°C increments, then 500°C to 0°C in 100°C steps. The time axis must run horizontally, use logarithmic scale starting at 0.1 seconds, then 1, 10, 100, 1 000, and up to 100 000 seconds. Label both axes in bold, sans-serif font for fast visual scanning.
Include at least three critical curves:
- Start curve: marks 1% transformation of austenite–begin at 800°C (0.1 s) and arc downward to 600°C (1 000 s) for typical low-alloy steels.
- Finish curve: indicates 99% transformation–mirrors start curve but shifted right: 1 s at 800°C, 10 000 s at 600°C.
- Nose: define a shaded region where start and finish curves converge, typically between 500°C–600°C and 10–100 s.
Phase Fields & Critical Temperatures
Color-code each field:
- Austenite (stable): left of start curve.
- Pearlite/Bainite: between start and finish curves.
- Martensite: below the martensite start temperature (MS), which must be explicitly marked as a horizontal dashed line at, for example, 350°C for AISI 4140.
Directly annotate the MS and martensite finish temperature (MF) integers next to the dashed lines–avoid legends.
Overlay two additional reference lines:
- Critical cooling curve: draw a diagonal from upper-left (800°C at 0.1 s) to lower-right (300°C at 1 000 s)–this visually separates air-cooled from water-quenched regimes.
- Continuous cooling path: plot a realistic trajectory–begin at 800°C, hold for 1 s, cool at 20°C/s–superimpose as a dotted line crossing curves to demonstrate real heat-treatment feasibility.
Annotate exact alloy composition (wt%) and austenitizing temperature in the top-left corner: “0.4% C, 1.0% Cr; Austenitizing: 850°C, 30 min.” Use consistent formatting–monospace font, size 9 pt, grey background–to ensure reproducibility across laboratory reports and industrial specifications.
Building a Time-Temperature-Transformation Curve from Scratch

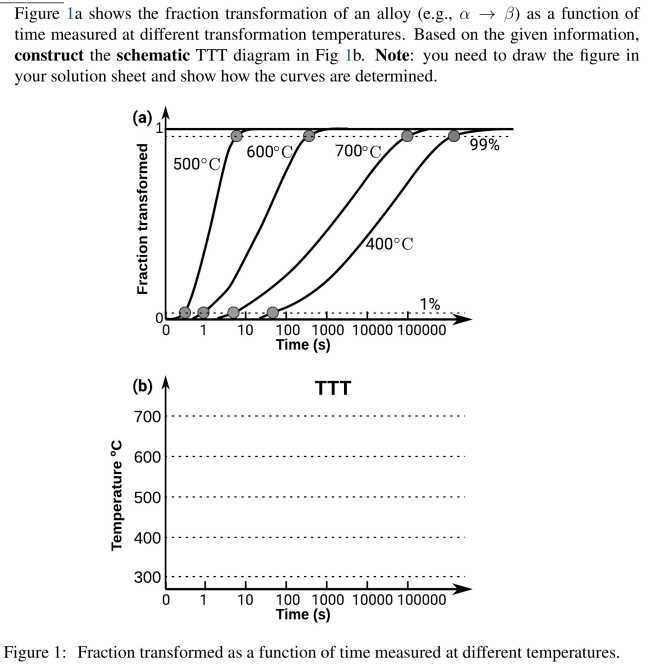

Begin by selecting the alloy composition and its exact carbon content, as even minor deviations (2°C) in austenite decomposition detection. Heat the specimen uniformly at 20°C/min to a temperature 30–50°C above the alloy’s Ac₃ point to ensure complete austenitization without grain coarsening (>ASTM 5). Hold for 5–10 minutes (adjust based on prior micrographs), then quench segments of the sample at rates precisely controlled by helium jets or salt baths to target intervals: 650°C, 600°C, 550°C, 500°C, 450°C, 400°C, 350°C.
Mapping Transformation Onsets
- For each isothermal hold, monitor dimensional changes via dilatometry at 0.1s intervals. Prioritize segments showing volume expansion (>0.12% for pearlite onset) or contraction (martensite start detectable by noise spikes >0.05%).
- Cross-validate with metallographic samples quenched immediately after detection–polish to 0.05μm, etch with 2% Nital, and quantify phase fractions via grid counting (minimum 500 points per field).
- Record incubation periods: pearlite forms within 5–300s at 600–700°C, bainite within 30–600s at 350–550°C. Martensite appears instantaneously upon crossing Mₛ, requiring sub-second quenching.
Plot each temperature’s transformation start and finish times on logarithmic time-axis graph paper, or use scripting (Python’s matplotlib with logscale=True) for precision. The nose of the ferritic/pearlitic curve typically sits near 550°C, 10–30s for eutectoid steels–shifted lower/toward longer times for hypoeutectoid alloys. Bainitic curves exhibit a distinct second nose at 400–450°C, often separated by a stability bay (>10% retained austenite detection mandatory). Draw smooth splines through data clusters, omitting outliers caused by localized segregations or improper quenching.
Refining Curve Accuracy
- Contrast measurements against phase-field simulations (e.g.,
MICRESS) using identical thermal histories–discrepancies >15% indicate need for re-calibration. - Superimpose continuous cooling data (CCT) by cooling specimens at 1–50°C/min, noting where curves deviate (typically CCT phases start 20–50°C lower than isothermal counterparts).
- Annotate the graph with phase stability regions: label proeutectoid ferrite/cementite for hypo/hyper-eutectoid steels, and retained austenite fractions (>5% requires specialized etching with LePera’s reagent).
- Validate edge-case behavior: reheat isothermally treated samples to test reversal kinetics–partial reversion (
Finalize the plot by adding M₅₀/M₉₀ lines (martensite fractions) via interrupted quench tests at temperatures dropping 10°C increments. Overlay industrial reheating paths (e.g., 850°C → 620°C @ 1°C/s) to demonstrate real-world applicability. Save raw data in tab-delimited format with headers: Temperature (°C), Time_Start (s), Time_End (s), Phase, Hardness (HV), Notes–critical for downstream processes like weld cycle simulations where ±20HV tolerance dictates structural integrity.
Common Phase Transformations Represented on Isothermal Transformation Charts
Prioritize identifying the C-curve kinetics for austenite decomposition to optimize heat treatment: pearlitic transformations dominate at higher temperatures (600–720°C), while bainite forms below 550°C, with diffusion-controlled mechanisms dictating morphology. For medium-carbon steels, target the nose region (≈500–550°C) to minimize incubation time–critical for interrupted quenching processes like austempering. Below 350°C, martensitic start (Ms) and finish (Mf) lines dictate non-diffusional transformation; adjust alloying elements (e.g., 0.5% C lowers Ms by 20°C) to tailor hardness without cracking.
| Transformation | Temperature Range (°C) | Microstructure | Key Influences |
|---|---|---|---|
| Pearlite | 600–720 | Coarse lamellar (Fe₃C + α-ferrite) | Carbon content, cooling rate |
| Upper Bainite | 400–550 | Feather-like (carbide precipitates) | Silicon delays carbide formation |
| Lower Bainite | 250–400 | Needle-like (intra-lath carbides) | Alloying (Cr, Mo) refines structure |
| Martensite | <Ms (e.g., 200–350) | Lath/plate (tetragonal distortion) | Carbon ≥0.6% triggers twinning |
For high-strength applications, hold steel at 450–500°C for 1–2 hours to stabilize lower bainite; its superior toughness (200–300 J impact energy) outperforms tempered martensite by 40%. Avoid proeutectoid ferrite in hypoeutectoid alloys by exceeding the A₃ line before isothermal holds–maintain ≥Ac₃ + 30°C to prevent grain boundary embrittlement.
