Begin by identifying the primary power feed–a thick yellow wire–at the rear of the factory stereo harness. This line carries constant 12V and must connect directly to the fused ignition source before branching to auxiliary components. Failure to properly secure this connection risks draining the vehicle’s battery within hours.
The illumination circuit, typically a thin orange wire with a white stripe, regulates dashboard brightness synchronization. Attach this to the corresponding pin on the aftermarket unit’s wiring harness to ensure dimming behaves consistently with the instrument cluster. Ignoring this step causes glare during night driving.
Locate the speaker outputs–distinct pairs of wires per channel: front left (light green/white), front right (dark blue/white), rear left (tan/black), and rear right (dark blue/black). Each pair includes one solid-color feed and one striped ground. Mismatching these will invert polarity, degrading audio clarity and spatial imaging.
Verify the ground connection, usually a black wire terminating near the stereo mounting bracket. Secure it with a star washer to bare metal, ensuring minimal resistance. Poor grounding introduces static, distortion, or unit malfunction. Use dielectric grease on connections prone to moisture in older vehicles.
The antenna trigger, a blue wire, activates the power antenna mast or amplifier when the system powers on. If replacing an OEM unit with a non-amplified model, leave this disconnected to prevent unnecessary current draw. Conversely, aftermarket amplifiers require this signal for proper functionality.

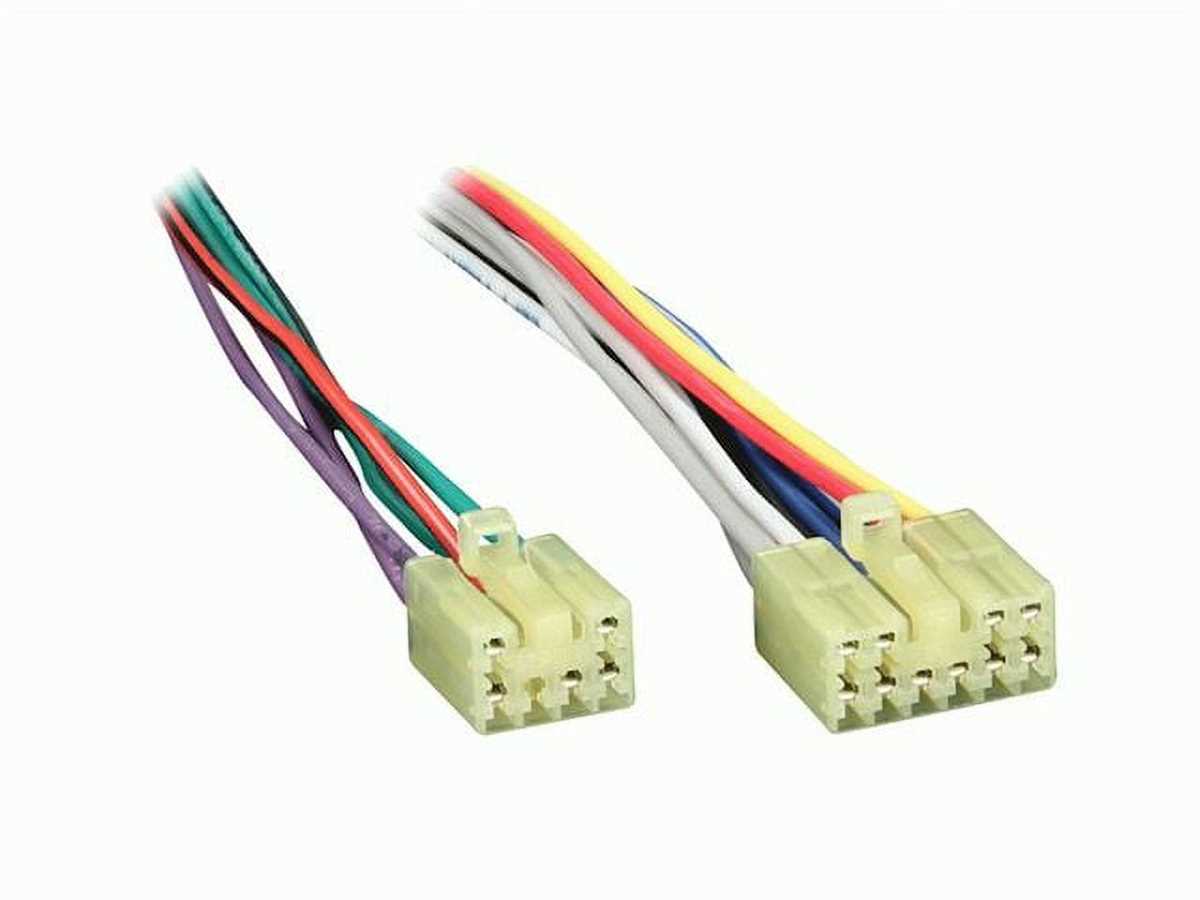

Consult the vehicle-specific harness adapter before cutting any wires–common aftermarket adapters for this generation include Metra 70-8114 or Scosche TOT01. These adapters preserve steering wheel controls, factory amplifier integration, and chime functions without splicing. Bypass them only if installing a fully custom setup.
Aftermarket Audio System Hookup Guide for Pre-2002 Pickup Models
Locate the factory harness behind the dashboard’s lower trim panel on the driver’s side. The connector uses a 14-pin configuration: pins 1–4 (red, yellow, black, green) handle constant, switched, and ground power; pins 5–8 (white, gray, purple, blue) route front-left, front-right, rear-left, and rear-right speaker outputs; pin 9 (orange) carries illumination dimming; pin 10 (pink) delivers the antenna trigger. Clip the new unit’s harness to these leads with crimp connectors–no soldering needed.
Identify the Bose amplifier ignition wire–it sits on pin 12 in gray/red stripe–if retaining the stock amplifier. Bypass by connecting the head unit’s blue/white remote lead directly to the factory speaker wires for full sound control. Verify all splices with a multimeter set to 20V DC: 12V constant on the yellow, 0V ground on the black, and intermittent 12V on the red when ignition is on.
Attach RCA cables from the new deck’s 4V pre-amp outputs to a line-level converter if adding subwoofers. Trim excess wire length to prevent signal interference; keep RCA runs under 18 inches from the head unit. Secure grounds to bare metal chassis points away from fuel lines–sand the mounting surface to eliminate paint for proper conduction.
Match speaker polarity consistently across all four channels. Factory wiring often reverses front-right polarity–test by briefly tapping the positive lead to the battery’s positive terminal while listening for the coil’s outward movement. If the cone pulls inward, swap the wires at the harness.
Override the stock theft-deterrent feature by disconnecting the violet/white data line (pin 14) if the aftermarket unit displays “ERR.” This line links to the ECU; removing it won’t affect drivability but stops error prompts. Reconnect aftermarket security wiring to the same pin if adding a remote start system.
Adjust the equalizer settings on the new unit: set subwoofer output to 80Hz with a 12dB slope, disable bass boost, and lower treble to -2dB to compensate for the pickup’s metallic cabin acoustics. Reinstall the trim panels loosely during testing–listen for rattles before final fastening.
Label each connection with masking tape and document resistance readings: front door speakers should measure 4 ohms at 1kHz, rear coaxial 6 ohms. Store the schema inside the fuse box cover for future reference.
Finding the OEM Audio Connector in Your Early 2000s Pickup

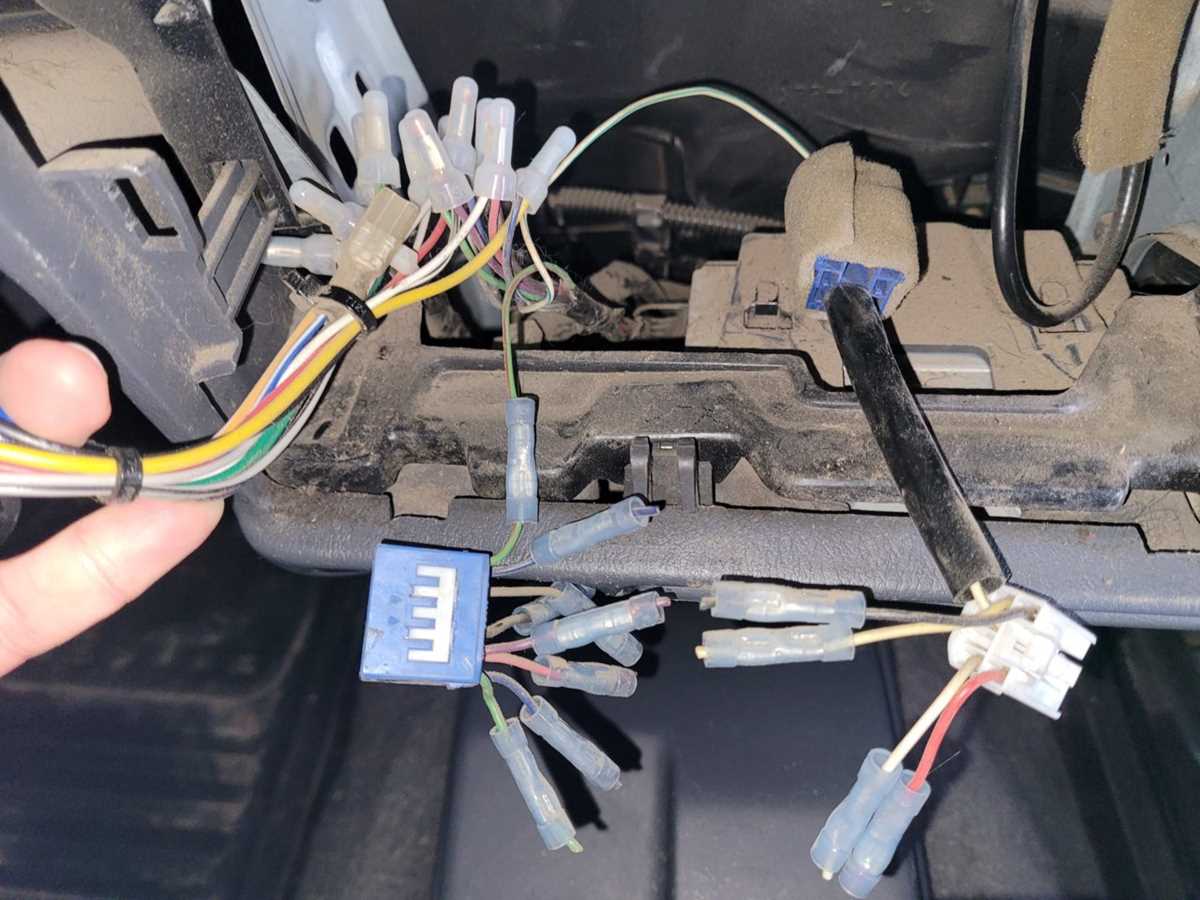

Start by removing the lower dashboard trim panel directly beneath the head unit. Use a flat trim tool to pry the panel free–it snaps into place without screws. Behind this panel, you’ll find the factory harness neatly tucked against the firewall, secured with a white plastic clip. The connector uses a 20-pin plug with distinct color-coded wires: solid blue (power antenna), red/white (constant 12V), and yellow/black (illumination).
If the harness isn’t immediately visible, check the passenger-side footwell. Some models route the cables behind the kick panel, requiring removal of the side air vent and glove box for full access. The harness may also be bundled with climate control wiring–separate it carefully to avoid damaging the brittle plastic tabs.
Locate the ground wire (typically black) attached to a screw near the gear selector. This is critical for static-free audio and proper amplifier function. If your model includes a factory amp (common in extended cabs), the harness splits into two connectors–one for the head unit, the other for the amp beneath the front passenger seat. Follow the thickest bundle of wires to identify the correct plug.
For precision, match the pinout to a reliability-tested reference before splicing. Missed connections or reversed polarity can fry the onboard computer or trigger error codes. Keep a multimeter handy to verify voltage on the ignition-switched (red) and constant power (yellow) lines before attaching aftermarket equipment.
Step-by-Step Color Code Guide for Pickup Audio System Connections
Disconnect the vehicle’s battery negative terminal before handling any electrical connectors to prevent short circuits or damage. Locate the factory harness behind the stereo unit–it typically contains a 14-pin plug with wires organized by function. Use a multimeter set to DC voltage (20V range) to verify each lead’s purpose by probing with the ignition in the accessory position.
Match each wire to its standardized color scheme below. Dark blue with a white stripe carries amplified audio for rear speakers, while solid dark blue delivers power to the antenna. Gray wires parallel brown leads as right-channel outputs, with their striped counterparts handling the negative signal. Avoid splicing into the yellow cable unless installing a memory-retention module–this line provides constant 12V power to retain preset stations.
| Wire Color | Function | Key Notes |
|---|---|---|
| Yellow | Battery (constant power) | Preserve existing connections |
| Red | Ignition (switched power) | Activate only when key is turned |
| Black | Ground | Attach to chassis for optimal conductivity |
| Dark Blue | Antenna power | Max 300mA current draw |
| Dark Blue/White | Rear speaker (+) | 4-8Ω impedance required |
| Gray | Right front (+) | 20W RMS minimum handling |
| Gray/Black | Right front (-) | Polarity must align with speakers |
Critical Installation Checks
Test each connection with the stereoscopic system temporarily powered on. Confirm no popping noises occur during idle–this indicates a faulty ground or reversed polarity. For amplified setups, route the orange/white illumination wire separately to avoid interference with dimming functions. Use heat-shrink tubing on all splices to prevent corrosion from moisture exposure over time.
Verify the purple and purple/black wires are isolated if not connecting a subwoofer–these outputs carry low-level signals prone to picking up alternator whine. If retrofitting a modern head unit, use an adapter harness to bridge the factory plug with aftermarket connectors; avoid cutting original wires whenever possible. Reconnect the battery only after double-checking all splices for stray strands that could cause shorts.
Splicing Factory Harness to Modern Head Unit Without Specialized Interfaces
Begin by locating the vehicle’s original audio loom behind the dash cluster–typically a 16-pin white connector for early models. Use a multimeter set to continuity mode to verify each wire’s function before cutting. The primary feed (yellow, 12V constant) and switched power (red, ignition-controlled) must match the aftermarket unit’s requirements; confirm with a test light before making permanent connections.
Ground the new system directly to the chassis using an 18-gauge or thicker wire, avoiding the factory harness’s existing ground lead to prevent interference. Scrape paint or corrosion from the mounting point to ensure a clean contact surface. Twist the ground wire tightly with the new head unit’s black lead and secure with a ring terminal crimped at least twice for durability.
For speaker outputs, strip ¼ inch of insulation from each factory wire (front left positive: light green; front right positive: violet; rears follow a similar color-coding). Match these to the aftermarket unit’s corresponding outputs by gauge–use butt connectors for solid joints, then seal with adhesive-lined heat shrink to prevent moisture ingress. Avoid soldering unless in a controlled environment, as excessive heat can damage nearby components.
If the vehicle includes an external amplifier (often indicated by thicker speaker wires or a separate remote turn-on lead), splice the aftermarket unit’s blue/white remote wire to the factory amp trigger (usually blue) to maintain power on/off synchronization. Without this connection, the new system may draw excessive current or fail to activate properly.
To preserve dashboard illumination, locate the dimmer feed (typically gray with a colored stripe) and connect it to the new unit’s orange or orange/white wire. Test functionality by adjusting the dashboard brightness control–if the aftermarket display flickers or fails to dim, reverse the polarity or add a resistor (1k–2.2k ohms) in series to stabilize the signal.
Steering wheel control integration requires identifying the data bus or resistor ladder signals in the original harness. For analog systems, use a multimeter in resistance mode to measure button presses–common values range from 0 to 5k ohms. Map these readings to the aftermarket unit’s interface inputs or consider a standalone module if the signal type is incompatible.
When splicing, group wires by function and secure them with zip ties every 4–6 inches to prevent strain on connections. Route harnesses away from sharp edges, moving parts, or heat sources like exhaust manifolds. Label each connection with masking tape or a label maker for future troubleshooting–ambiguity here leads to hours of diagnostic frustration.
After completing all splices, power the vehicle and verify all functions: power, ground, speakers, illumination, and accessory triggers. If any channel lacks output, recheck polarity and continuity. For persistent issues, introduce a noise filter (4-gauge capacitor) on the power feed to suppress alternator whine or engine interference.
