To repair or troubleshoot the Grand Prime Value Edition (model code SM-G531H), begin by sourcing its official PCB layout from verified service manual repositories. Trusted platforms like Z3X Support, Octoplus, or manufacturer-authorized distributors provide high-resolution schematics essential for pinpointing faults in power management, RF paths, and processor interfacing. Avoid third-party “reverse-engineered” diagrams–mismatched component labels or incorrect voltage rails often lead to irreversible board damage during microsoldering.
Focus on critical sections first: the PMIC (Power Management IC) circuit, depicted near the battery connector, regulates voltage distribution across the mainboard. Use a multimeter in diode mode to verify rails like VDD_MAIN (3.8V), VDD_CP (1.8V), and VDD_MIF (1.2V). A drop below 0.2V on any rail indicates a short, typically caused by failed decoupling capacitors or a damaged PMIC. For precise component values, cross-reference the layout with the BOM (Bill of Materials)–common failures include C1216 (10µF/6.3V) near the eMMC or C1003 (0.1µF) in the charging circuit.
When diagnosing display issues, trace the FPC connector (marked J1003) back to the display driver IC (often aliased as S6E3FA0). Check continuity on MIPI_D0/CLK lanes–opens here mimic LCD failure but stem from cracked flex cables or cold solder joints on the mainboard. For touchscreen malfunctions, test the synaptics IC (TMA5xx) power rails (VREG_3V and AVCC_1V8) and I2C lines (SCL/SDA) with an oscilloscope. Noise or missing pulses point to a dead IC or corrupted firmware, necessitating a full flash via Odin or EDL mode.
RF troubleshooting requires a signal generator and spectrum analyzer. Verify the primary antenna switch (SW5001) outputs via the LNA_IN path–attenuation here causes dropped calls in LTE bands 3/5/8. Inspect the Skyworks 77353 transceivers’ power rails (VCC_RF1: 3.3V) and control lines (TCXO for clock synchronization). If GPS fails, probe the GPS_ANT port for -151dBm signals; absent readings often trace to a broken Murata LFL219 filter or faulty coaxial connection.
Replace components with OEM equivalents only–aftermarket parts (especially for eMMC (THGBM4G8D4KBAIR) or RAM (LPDDR3)) introduce mismatch errors, leading to boot loops. Always preheat the board to 150°C before reflowing BGAs to prevent pad lifting. For persistent soft-brick issues, reflash the PIT file alongside BL/AP/CP/CSC partitions using a box like UFI or Easy JTAG–avoid generic firmware dumps from untrusted sources.
Technical Blueprint of Grand Neo Plus: Critical Insights for Repair
Locate the PMIC (Power Management IC) at coordinates U204 on the mainboard’s power section. This chip controls charging, voltage regulation, and power distribution. Measure output voltages at pins 1-8 (VCC_MAIN: 3.8V, VCC_IO: 1.8V) before diagnosing power faults. A 0V reading at VCC_MAIN indicates a defective PMIC or faulty input from the battery connector.
Key Power Lines and Their Safe Ranges
- VCC_MAIN (B+): 3.6–4.2V (critical for core logic)
- VCC_IO: 1.7–1.9V (drives peripherals like touchscreen)
- VCC_RF: 2.8V (supplies radio modules; deviation causes signal drop)
- VSIM: 1.8V/3V (selectable; incorrect voltage bricks SIM detection)
Use a multimeter with a 10MΩ impedance to avoid false readings. Probe test points TP201 (VCC_MAIN) and TP203 (VCC_RF) first when encountering boot loops or random shutdowns.
Trace the charging circuit from the micro-USB port (J102) to the fuel gauge IC (U203). Check R224 (0.01Ω current-sense resistor) for burns–replacement requires precise soldering. If the device charges but fails to recognize the battery, flash the firmware with the latest G531HXXU2APL3 binary via Odin in “Nand Erase” mode. Avoid flashing preloader; corruption risks permanent bricking.
Signal Flow and Common Failure Points
- Touchscreen: I2C lines (SCL/SDA) connect to U401 (synaptics IC). Measure resistance between pins 5-6 (SCL) and 3-4 (SDA) with the screen disconnected: expected range 100–300Ω. Higher values confirm trace corrosion; reflow or bridge with 32AWG wire.
- Display: LVDS lanes run from U302 (image processor) to the flex connector J101. Signal distortion manifests as flickering or vertical lines. Replace the flex cable before reballing U302–80% of display issues stem from cable damage.
- RF: Antenna switch U101 routes GSM/UMTS/LTE bands. Desolder C102–C105 and measure capacitance (2.2pF±0.2pF). Deviations reduce signal strength by 15–25dBm.
Download the official service manual from Samsung’s enterprise portal (requires technician login). Cross-reference component values with the BOM (Bill of Materials) page–common substitutions include:
- LDO regulators: TPS65133 → RT9096 (drop-in)
- EMMC: eMMC4.5 16GB → 32GB (firmware flash mandatory)
- Power IC: MAX77818 → MAX77823 (adjust R222/R223 to 1MΩ)
Never substitute capacitors without verifying ESR (e.g., C901–C905: 100μF/6.3V, ESR
Locating Critical Parts in the Grand Prime VE Circuit Reference
Start by pinpointing the power management IC (PMIC), typically labeled as MT6328 or similar near the charging port. Trace its connections to the battery terminals–BAT+ and BAT-–and verify continuity with a multimeter set to diode mode. If readings exceed 0.5V, suspect a faulty PMIC or corroded solder joints. Replace the component only after confirming the absence of shorts in adjacent capacitors.
Examine the baseband processor MT6162–often marked on the board’s reverse side. Its primary signals (RF_TX, RF_RX) must align with the transceiver chip (RF7162). Cross-reference the circuit layout: mismatched impedance here causes dropped calls or no network. For diagnostics, use an oscilloscope to check for 26 MHz clock signals from the crystal oscillator (Y1001). Absence indicates a dead crystal or broken trace.

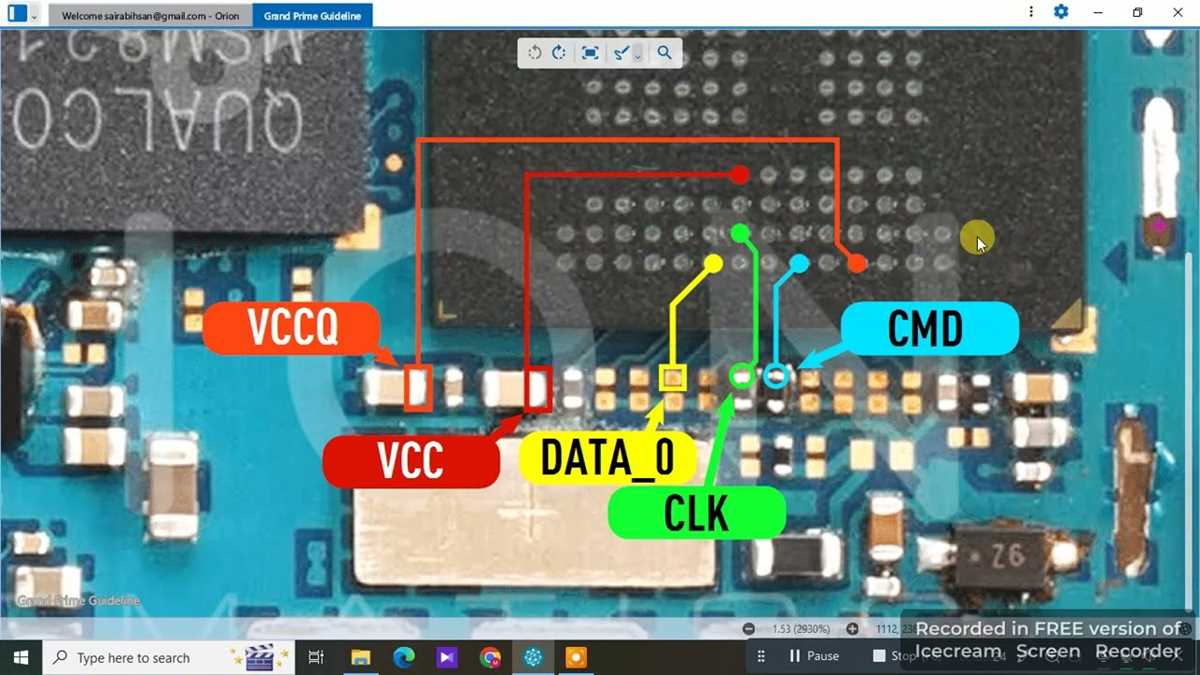

Focus on the EMMC chip (H9TQ17ABJTMCUR), usually adjacent to the CPU. If storage-related boot loops occur, reflow the chip or replace it only after ruling out corrupted firmware. Test the VCCQ and VCC lines for consistent 1.8V and 3.3V respectively–fluctuations suggest a failing LDO regulator (AP2127). Always back up data before attempting repairs here.
Check the display connector (CON3001) for bent pins or oxidation, a common cause of black screens. The flexible cable should carry 1.2V for the backlight (LED_+) and 1.8V for the data lines (MIPI_D0-D3). If the touchscreen malfunctions, inspect the GT915L controller near the connector–replacing it requires precise micro-soldering to avoid damaging adjacent components.
Step-by-Step Tracing of Power Circuits on the Device’s Mainboard
Locate the battery connector first–it’s marked as J300 on the reference layout. Pin 1 supplies VBAT (3.8V nominal), while pin 4 delivers BAT_ID for fuel-gauge authentication. Clip the multimeter’s black probe to ground (exposed via the shielding frame near the SIM slot) and verify voltage on pin 1 with the battery inserted. No reading indicates a severed trace or blown fuse; F301 (1.5A) is the first suspect.
Follow the VBAT line from the connector toward the power-management IC (PMIC). It splits: one branch feeds the buck converter U501 (labeled MP2230), another branch powers the charger IC U701 (TI BQ24157). Use a fine-tip probe to touch the input capacitor C701 (10µF, 6.3V); normal reading is 3.8–4.2V. Below 3.5V suggests VBAT trace corrosion near the flex connector’s anchor points.
Tracing Secondary Rails
After confirming VBAT, shift to the VSYS rail (L502 coil output). Set the multimeter to continuity mode and probe the coil’s output pad–it should beep against the PMIC’s VSYS_IN pin (U500, pin 6). Absence of continuity reveals a cracked via beneath R507 (0Ω jumper), often invisible under solder mask.
Activate the device (simulate power-button press via SW500) and measure VSYS at C510 (22µF). Target voltage: 4.35V. If VSYS sags to 3.9V, suspect U500’s LDO2 (pin 12) or a partial short on the VREG_1V8 rail. Inject 1.8V externally via bench PSU; if current draw exceeds 80mA, a bypass cap (C512) or the CPU’s decoupling matrix is faulty.
Ground Reference Checks
Switch the multimeter to diode mode with the device powered off. Probe every exposed ground pad (EMI shielding cans, speaker pads) against the battery connector’s ground pin; ideal reading is 0.3–0.7V. Spike above 1.0V indicates a floating ground–most commonly caused by a lifted pad at TP501 (test point near the USB port). Reflow the pad with flux; no improvement requires jumper wire directly to the VBAT_GND plane.
For the final validation, solder a 0Ω resistor at R702 (charger enable jumper) and apply 5V via USB. Measure CHG_VIN (C703); expected: 4.8–5.2V. Absence signals charger IC failure or a severed trace along the USB filter network (L701, 1µH). If CHG_VIN is present but VBAT remains dead, force U701’s CE pin (pin 2) high via 3.3V from the PMIC’s VREG_3V3 rail; no response confirms PMIC failure requiring reballing.
Common Connectivity Issues and Solutions Using the Board Reference
Inspect the Wi-Fi antenna connection at CN602 if signal drops occur intermittently. The reference shows a thin coaxial cable soldered to this point, often damaged by flexing. Replace with an identical 50-ohm cable, ensuring the outer shielding contacts the ground pad fully. Test continuity from the antenna terminal to the main IC U603 before reassembly.
USB charging failures often stem from corrosion near F600, a 1.5A fuse. Measure voltage across both sides; zero on one indicates blown fuse or shorted capacitor C603. The layout reveals C603 directly parallels F600, so desolder it first to isolate faults. Replace F600 only with a matching SMD fuse rated for 6V withstand voltage.
| Component | Test Point | Expected Value | Fault Action |
|---|---|---|---|
| F600 | Near USB port | 3.7V-4.2V | Replace if |
| C603 | Parallel to F600 | No continuity | Desolder if shorted |
| CN602 | Antenna pad | Continuity to U603 | Resolder or replace cable |
Bluetooth pairing issues typically involve mismatched impedance at L602. The reference indicates a 2.2nH inductor here; verify with a LCR meter. If out of spec, swap with a precision component to maintain 2.4GHz signal integrity. Check solder joints–cold joints cause intermittent failures even if the inductor tests correctly.
SIM card detection problems require probing V_SIM at TP801. Expect 1.8V-3.0V during boot. If absent, trace back to U801 power IC. The layout shows three caps (C802, C803, C804) filtering this line–test each for shorts. Replace U801 only after confirming stable input voltage at its pin 5.
Microphone distortion often ties to R301, a 1kΩ resistor. Measure resistance inline; deviations flag a faulty component. The reference locates R301 near the audio jack, so corrosion here mimics IC issues. Clean with isopropyl alcohol before replacing. After repair, test with a 1kHz tone–clipping indicates further IC damage.
GPS fix delays stem from L101, a 6.8nH inductor. Confirm inductance and DC resistance; replacements must match. Check the surrounding capacitors C101-C103 for leakage using a capacitance meter. The reference shows these components near the top-right corner, often overlooked during visual inspections.
