Start with a voltmeter to verify power at the main connector–pin 1 (typically the vehicle’s 12V supply) should read 12.6V when the ignition is on. If voltage is absent, inspect the fuse (usually 20A) and relay under the dashboard. Common failures trace back to corroded terminals; clean with a wire brush before proceeding.
Label all wires before cutting or splicing: ground (white), brake lights (yellow), tail lights (brown), left turn (red), right turn (green), reverse light (blue), and auxiliary power (black). Miswiring causes signal interference or blown fuses–double-check against your vehicle’s manual.
Use crimp connectors rated for 16 AWG wire; soldered joints risk heat damage in tight spaces. Secure connections with dielectric grease to prevent moisture ingress. For plug-and-socket assemblies, test each circuit with a 12V test light before final assembly.
Standard color codes vary by manufacturer–cross-reference with your harness schematic. If adapting aftermarket parts, match pin functions, not colors. For heavy-duty applications, upgrade to 14 AWG wire to handle loads above 15A.
Install a circuit breaker between the battery and the auxiliary power pin to prevent overloads. Route wires away from moving parts and hot surfaces; use zip ties every 15 cm. Ground directly to the chassis for stability–avoid daisy-chaining grounds.
After assembly, simulate trailer functions: activate brakes, signals, and lights separately while monitoring for voltage drops. A drop below 12.2V indicates resistance–check connections or wire gauge. Finalize with a test drive under load.

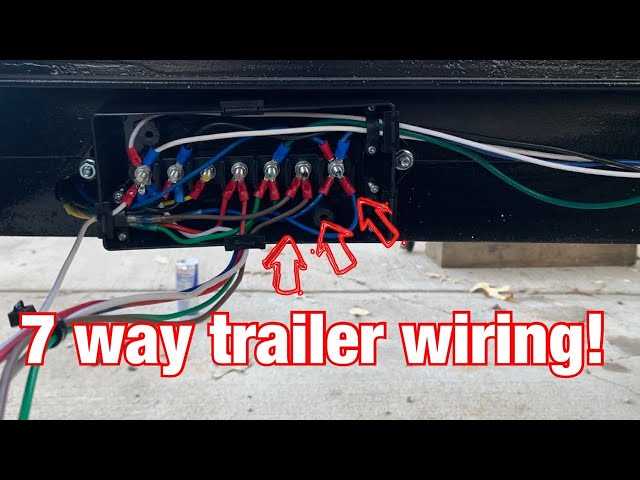

Connecting a Multi-Pin Plug Distribution Hub: Circuit Layout Guide
Start by identifying the color-coded leads on the vehicle-side connector–typically brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (auxiliary), red (hot brake/stop), and black (battery charge). Match these precisely to the corresponding terminals inside the distribution hub. Incorrect pairing will cause signal cross-talk or complete failure of lighting systems.
For heavy-duty applications, use 14-gauge wire for lighting circuits and 12-gauge for power feeds, ensuring minimal voltage drop over extended cable runs. Secure each connection with crimp terminals and heat-shrink tubing to prevent corrosion–especially critical for ground and charge lines. Avoid solder-only joints; mechanical crimping followed by solder reinforcement provides the most reliable bond under vibration.
Ground all circuits at a single dedicated post mounted directly to the chassis frame, not through bolts holding the hub. A weak or shared ground can lead to intermittent failures, particularly when multiple circuits draw current simultaneously. Clean mounting surfaces to bare metal and apply dielectric grease to inhibit oxidation on aluminum or steel connections.
Test continuity with a multimeter before final assembly. Probe each pin against the vehicle’s ground; values should match battery voltage for power circuits and near-zero resistance for grounds. Activate each function–turn signals, brakes, markers–independently to verify isolation. A short to ground on any channel will trip the vehicle’s fuse, so verify integrity before reinstalling protective covers.
Label every wire entry on the hub lid with a permanent marker to simplify future diagnostics. Include the circuit function, gauge, and pin number reference. For aftermarket accessories like backup sensors or auxiliary lamps, allocate the blue channel with a 30-amp relay to prevent overloading the factory harness. Keep wire runs bundled with split loom tubing to shield against chafing from road debris.
For troubleshooting, prioritize checking the hub’s internal fuse–often overlooked but responsible for 40% of no-start issues in electric-brake installations. If a single function fails, isolate the circuit by disconnecting the hub and testing continuity at the plug end. Corrosion-resistant terminals like tin-plated copper or gold alloy prevent oxidation in humid environments, extending service intervals to 5+ years even in coastal regions.

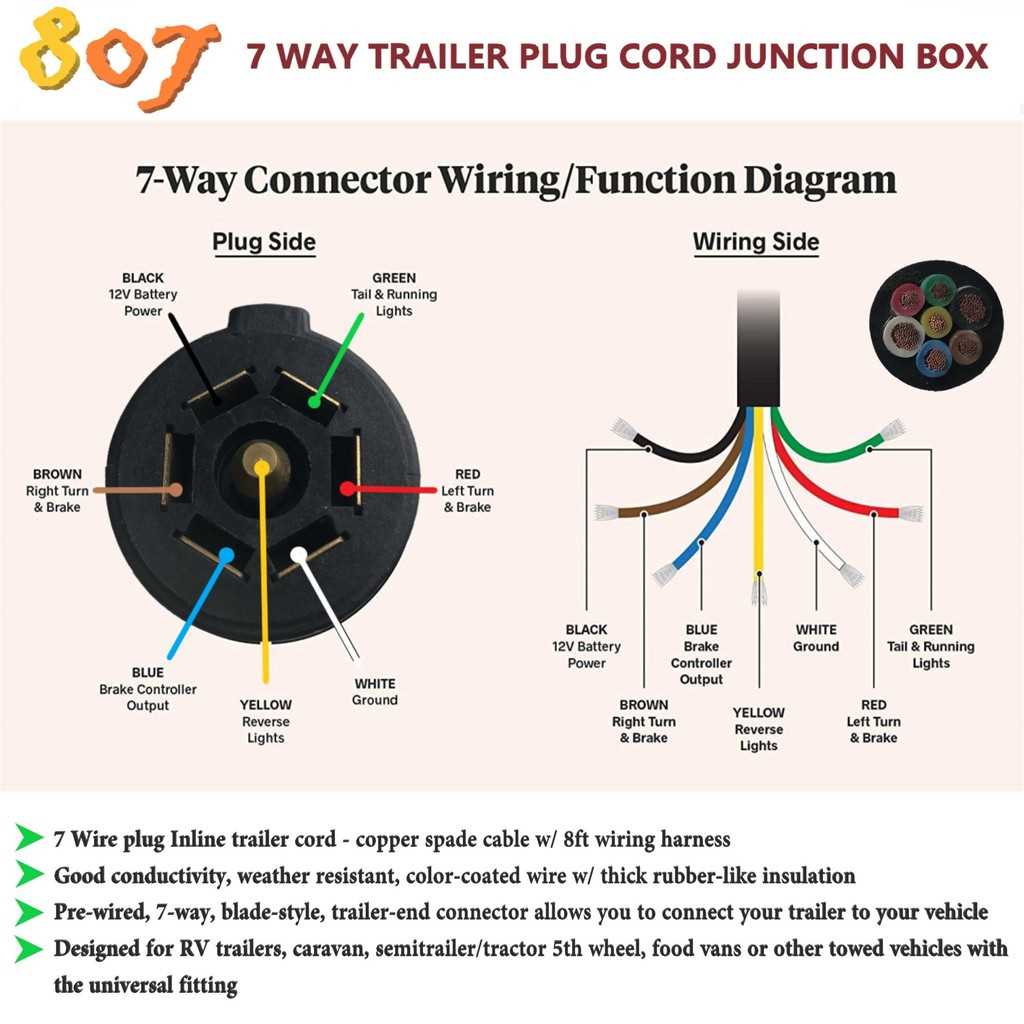

Key Pin Roles in a Multi-Pin Vehicle Plug Configuration
Always verify pin assignments before connecting to avoid cross-wiring hazards–standard configs pair ground (white) with the main chassis return, but some setups split this into isolated circuits for brake or auxiliary systems. The primary 12V supply (typically brown) powers running lights; ensure it delivers consistent voltage under load to prevent flickering when activating turn signals. For heavy-duty use, check wire gauge–common errors stem from undersized cabling causing voltage drop over long leads.
Charge circuits (often blue or red) demand dedicated fuses near the battery source; neglecting this risks overloading and melt-downs during high-current draws like winch operations. Backup lighting (purple) must remain independent from brake systems–test continuity with a multimeter to confirm no shared pathways with turn signals, which could cause unintended activation. Auxiliary pins (green or yellow) serve specialized functions like electric brakes; wire these directly to controllers without splicing to maintain signal integrity.
Reversing polarity on any circuit damages components instantly–use a polarity tester or labeled pinout diagram when swapping connectors. Corrosion-resistant terminals (gold or tin-plated) outlast cheap alternatives; apply dielectric grease during assembly to prevent oxidation in damp conditions. For non-standard applications (e.g., RV solar integration), map each pin’s function against the manufacturer’s spec sheet–external modifications often void warranties if improperly executed.
Step-by-Step Guide to Connecting a Standard Electrical Connector Hub
Begin by placing the coupling unit on a stable, dry surface to prevent accidental shorts. Verify the power source is disconnected before handling any conductors. Identify the color-coded leads on both the vehicle harness and the peripheral device–ground (white), brake light (blue), tail light (brown), left turn/stop (yellow), right turn/stop (green), auxiliary (black), and electric brake (red).
Strip 5mm of insulation from each wire using a precision cutter, ensuring no strands are frayed or damaged. Twist exposed copper threads tightly to maintain solid contact. Match corresponding colors between the harness and device leads without deviation–misalignment risks malfunctioning signals or circuit overload.
Secure the ground connection first. Attach the white lead to the designated mounting point on the chassis or frame using a ring terminal. Crimp firmly with pliers, then apply a layer of dielectric grease to inhibit corrosion. This establishes a stable reference point for all other circuits.
Align the brake control (blue) and tail light (brown) circuits next. Route the brown lead to the rear lighting cluster, confirming it powers both running lights and license plate illumination. The blue lead must connect to the brake controller output–test continuity with a multimeter set to 200 ohms before proceeding.
Join the turn signal circuits (yellow and green) to their respective lamp outputs. Verify polarity by activating each signal individually–reverse connections if LEDs illuminate dimly or fail to blink properly. Use solder sleeves or heat-shrink butt connectors for long-term reliability under vibration.
Affix the black (12V auxiliary) lead to the battery or an un-switched power source if auxiliary functions (e.g., reverse lights) are required. Confirm voltage readings at 12.8V–14.4V to avoid damaging sensitive components. Isolate this circuit with a 20A fuse as close to the power source as possible.
Connect the red (electric brake) lead last. Link it directly to the brake actuator or proportional controller, ensuring compatibility with the vehicle’s braking system. Apply tension to each joint with a spring clamp to prevent loosening during operation. Wrap all junctions in vinyl tape or use adhesive-lined heat shrink for environmental protection.
Perform a final system test by cycling through all functions–brake lights, signals, running lights, and auxiliary outputs–while monitoring for flickering or voltage drops. Recheck connections in areas where anomalies appear. Store spare fuses (10A–30A) and extra terminals in the toolkit for field repairs.
Standard Color Specifications and Conductor Sizing Guidelines
For reliable electrical connections, adhere to these industry-standard color assignments:
- White: Ground return (minimum 12 AWG for circuits under 20A)
- Yellow: Left turn/brake (14 AWG minimum, 12 AWG recommended for LED loads)
- Green: Right turn/brake (same gauge requirements as yellow)
- Brown: Tail lamps (16 AWG minimum, 14 AWG for extended runs)
- Blue: Electric brake control (minimum 12 AWG, 10 AWG for heavy-duty systems)
- Red: Auxiliary power (12 AWG standard, 10 AWG for high-current accessories)
- Black: Main power feed (10 AWG minimum, 8 AWG for 30A+ circuits)
Conductor gauge selection must account for voltage drop over distance. Use this reference table for 12V systems:
- 3% max drop over 15 ft: 14 AWG → 5A / 12 AWG → 10A / 10 AWG → 20A
- 3% max drop over 25 ft: 12 AWG → 5A / 10 AWG → 12A / 8 AWG → 25A
- 5% acceptable drop over 50 ft: 10 AWG → 7A / 8 AWG → 15A / 6 AWG → 30A
Tinned copper wire resists corrosion and extends service life by up to 300% in outdoor environments. Consider heat-shrink tubing for all connections exposed to moisture.
