To repair or modify this entry-level phone from the early 2000s, obtain its original service manual. The circuit layout reveals a minimalist design optimized for cost and durability, featuring a single-layer PCB with through-hole components for ease of manufacturing. Key subsystems include the TI TMS320C54x DSP core handling baseband processing, paired with a Philips PCF50601 power management IC that regulates voltage for the display, keypad, and SIM interface.
Power distribution is centralized around two primary rails: VBAT (3.6V) for the main supply and VCORE (1.8V) for the processor. The charging circuit relies on a bipolar transistor (marked SOT-23) and a Schottky diode (BAS16) to prevent backflow, while thermal protection is managed by a simple NTC thermistor near the battery contacts.
Signal paths are straightforward–I/Q modulation occurs between the RF transceiver (Si4201) and the antenna matching network, using discrete inductors and capacitors for impedance tuning. The flash memory (AMD Am29LV800B) stores firmware and user data, interfacing with the DSP via an 8-bit parallel bus. For troubleshooting, focus on short circuits in the power rails or degraded solder joints on the keypad connector, common failure points after drops.
For advanced modifications, note the unpopulated pads near the SIM holder–these expose GPIO pins from the power IC, potentially usable for custom hardware. Always verify component values against the BOM before replacement; aftermarket parts often deviate in tolerance, especially capacitors in the RF section. Use a digital oscilloscope to confirm clock signals at 13 MHz (TCXO) and 32.768 kHz (RTC) before diagnosing software issues.
Electrical Blueprint of a Classic Mobile Handset
Begin by locating the power management IC (N2200) at coordinates C3-D4 on the board layout. This chip regulates charging, battery communication, and voltage distribution to subsystems. Check pin 5 (VBAT) for a steady 3.6V output when the device is active–deviations below 3.3V indicate a faulty PMIC or degraded battery contacts. Use a multimeter with a 10kΩ impedance setting to avoid false readings from parasitic loads. Replace the IC if leakage currents exceed 5mA during standby.
Examine the RF transceiver block (D4800) near the upper-right edge of the PCB. Key test points include:
| Pin | Signal | Expected Voltage (V) |
|---|---|---|
| 12 (VCC_RF) | RF Power Supply | 2.8 ± 0.1 |
| 19 (TX_I/Q+) | Transmit Data Line | 1.2 (peak) |
| 25 (RX_I/Q-) | Receive Data Line | 1.0 (peak) |
Measure these with an oscilloscope–absence of signal on TX_I/Q+ during dialing suggests a dead transmitter. Swap D4800 if power consumption drops below 40mA during transmission (typical: 120-150mA).
Trace the baseband processor (D2800) interconnects for cold solder joints, particularly at the BGA grid under the chip. Reflow with a hot-air station set to 280°C, focusing on pins connected to the flash memory (D3000). Use flux core solder (Sn63/Pb37) for repairs–lead-free alternatives require 20°C higher temperatures and risk lifting pads. Verify functionality by monitoring UART debug output on pins 102 (TX) and 103 (RX) at 115200 baud; garbled output confirms corrupted firmware, necessitating a full erase/rewrite via JTAG (pins 15-20).
Inspect the LCD connector (X2700) for bent pins–common failure point causing white screens. Clean contacts with isopropyl alcohol (99%) and a soft brush; avoid cotton swabs as fibers may lodge in the connector. Test backlight driver (V2208) by measuring voltage across C2205: 0V indicates a shorted transistor, 12V suggests open circuit. Replace V2208 if forward voltage exceeds 0.7V at 10mA test current. For keypad issues, check FPC connector (X5000) continuity–resistance above 2Ω signals oxidation; apply contact cleaner and reseat the ribbon cable firmly.

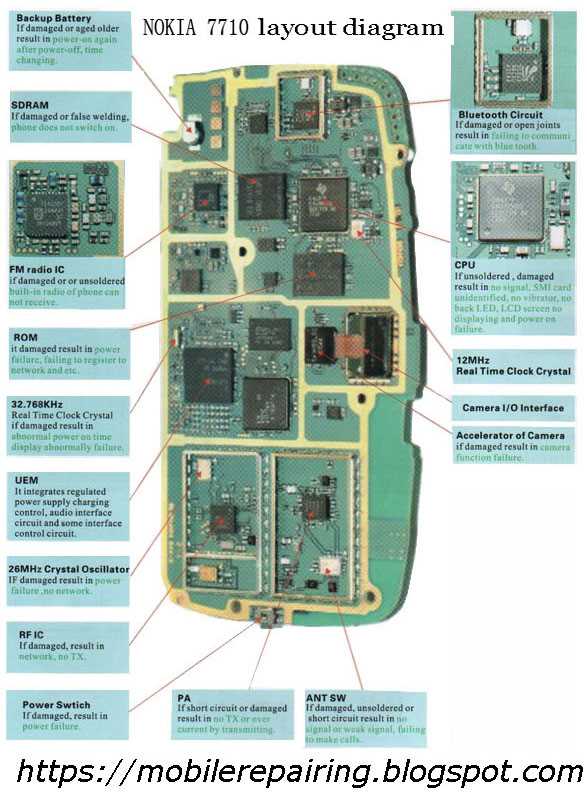

Identifying Key Components in the Mobile Device PCB Layout
Locate the central processing core near the battery connector–typically a BGA package labeled as the application processor. This component integrates the baseband functions, memory interfaces, and peripheral controls. Verify its presence by tracing the power supply lines: look for a cluster of decoupling capacitors (0402 or 0603 case sizes) surrounding it, each rated at 0.1µF to 10µF. These capacitors stabilize voltage rails and filter high-frequency noise, ensuring signal integrity during RF transmission and reception.
Power Management and RF Front-End Analysis
Examine the power management IC (PMIC) adjacent to the processor–it regulates multiple voltage domains, including the core, I/O, and memory supplies. Use a multimeter in continuity mode to confirm connections between the PMIC and the charger IC, identifiable by its distinct MOSFET array and inductor coil. For RF sections, spot the PA (power amplifier) module near the antenna pad; it’s often shielded and paired with low-pass filters (marked as small SMD components with part numbers like “L0xx” or “F0xx”). Check for via stitching around these components to ground planes, critical for reducing electromagnetic interference.
Identify the flash memory and RAM modules–usually stacked or placed side-by-side–as they require direct communication with the processor. Probe the data lines (typically 16-32 pins) for consistent voltage levels (±5% of Vcc) to avoid corruption during read/write cycles. If troubleshooting, prioritize the reset circuit: locate the dedicated supervisor IC (often labeled “MAX809” or similar) connected to the processor’s reset pin, ensuring clean transients during power-up sequences.
Step-by-Step Tracing of Power Delivery Networks on Mobile Device Blueprints
Locate the battery connector labeled J1 or VBATT on the PCB layout–this marks the origin of the power rail. Measure voltage at pin 1 (positive terminal) using a multimeter set to DC 10V range; expected values range between 3.6–4.2V for lithium cells. Trace the copper pour from the battery connector to the input of the PMIC (power management IC), typically identified by a higher pin count (48+ pins) and thermal pad. Verify continuity with a continuity tester–resistance below 0.5Ω confirms intact routing.
- Check for decoupling capacitors near the PMIC input; C23 (10µF, 6.3V X5R ceramic) and C37 (1µF, 10V X5R) must be soldered to the power line.
- Identify inductor L5 (1µH, 2A saturation) on the buck converter output–measure voltage drop across it (should not exceed 50mV under load).
- Follow the output net to the main processor’s core rail (labeled VCORE); probe for 1.8V ±5% during active state.
- Inspect diode D5 (SS14, Schottky) for reverse leakage–excessive forward voltage drop (>0.3V) indicates deterioration.
- Test the enable pin (EN) of the buck converter; it must toggle between 0V (off) and 3.3V (on) via GPIO from the CPU.
Tracing Signal Pathways Between CPU and Screen in Circuit Blueprints
Begin by identifying the processor’s display interface pins–typically labeled LCD_DATA[0..X], LCD_CS, LCD_RS, and LCD_R/W. These lines form the primary communication channel between the central controller and the screen module, often routed via a flex connector or direct solder points on the board layout.
Locate the control signals first: chip select (CS), register select (RS), and read/write (R/W). These dictate whether the screen is receiving commands (RS=0) or pixel data (RS=1). Verify their connection to the controller’s dedicated GPIO or memory-mapped I/O ports, as these dictate the data flow’s direction and timing. Missing or swapped traces here will cause blank screens or scrambled output.
Follow the data bus–usually 8, 12, or 16 bits wide–from the processor to the screen driver IC or directly to the display glass. Look for series resistors (commonly 0Ω or small-value for impedance matching) or decoupling capacitors (typically 0.1µF) near the screen’s power pins. These components stabilize signals but can also introduce voltage drops if corroded or improperly selected.
Check for enable lines (e.g., LCD_EN or DISP_ON)–these toggle the screen’s active state. A missing or floating enable signal keeps the display dark. Trace this line back to its source, often a dedicated pin on the controller or a power management IC (PMIC), to rule out power rail issues or firmware misconfiguration.
Common Pitfalls in Signal Routing
Inspect ground loops–especially on compact designs where return paths may merge with other circuits. Poor grounding manifests as flickering, ghosting, or random noise. Ensure the screen’s ground plane connects directly to the processor’s reference point, not through thin traces prone to inductive noise.
Verify clock signals (if applicable), typically labeled LCD_CLK or SCLK. These synchronize data transfer and are critical for timing accuracy. Slow or jittery clocks cause vertical bands or frozen frames. Use an oscilloscope to confirm stable waveforms, especially if the screen relies on serial interfaces like SPI or I²C.
Last, cross-reference the screen’s datasheet–if available–with the PCB traces. Manufacturers often omit internal connections in blueprints, showing only input pins. If traces lead to a flex cable or connector, measure continuity from the processor to the screen module itself. Cold solder joints under connectors are frequent failure points, disrupting even a correctly routed signal path.
Flash Memory and RAM Signal Paths in Mobile Hardware Blueprints
Trace power rails feeding NAND chips first–most layouts label them VCC, VCCQ, or VMEM. Measure voltage stability at pinouts: 1.8V±5% for low-power variants, 2.8V±10% for older models. Deviations indicate faulty decoupling caps or corroded vias near the memory controller.
Examine address/data line grouping: 16-bit buses typically cluster signals in pairs (A0-A15, D0-D15), while 32-bit buses use interleaved layouts. Probe each trace with a logic analyzer–stuck-at faults often occur on A7-A9 due to electrostatic discharge during disassembly. Check termination resistors on high-speed lines (22Ω–47Ω); absence causes signal reflection.
Locate the memory controller’s CE# and OE# pins–these gate data flow. On-board oscillators should output 32.768 kHz for standby mode and 13 MHz for active operation. Verify clock signals with a frequency counter; jitter above 20 ps disrupts EEPROM writes. Reball suspected controller ICs using SAC305 solder; avoid lead-free alloys on legacy boards.
Test RAM chips via boundary scan if JTAG pads exist. Required signals:
- TDI/TDO: Serial data path
- TMS: Mode select
- TRST#: Reset line (active low)
- VREF: Reference voltage (usually 0.5×VDD)
Shorted TRST# lines prevent initialization; inject 10 kΩ pull-up resistors if traces are damaged.
Isolate flash memory corruption sources:
- Power cycling during writes → implement 30 μs delay between operations.
- Voltage spikes → add TVS diodes (P6KE20CA) across VMEM rails.
- Thermal throttling → monitor die temperature with a K-type thermocouple; overheating (>85°C) triggers automatic bad-block marking.
Replace failed NAND blocks manually:
Grounding Pitfalls
Differential noise between VSS (core) and VSSIO (I/O) exceeding 20 mV causes false reads. Route star-ground topologies from the main regulator to memory modules; avoid daisy-chaining. Capacitor placement: 0.1 μF MLCCs within 2 mm of each VCC pin, 10 μF tantalums near power sources.
Firmware Recovery Workflow
Recover corrupt firmware via ISP:
