Use a 5V power supply rated for at least 500mA per active segment driver to prevent voltage drops under full brightness. Connect VCC to the positive rail and ground both the driver’s GND and your microcontroller’s reference point to the same power rail–floating grounds cause flickering. Keep traces between the controller and driver under 10cm; longer runs introduce noise.
Wire the data pins in fixed order: DIN on the first driver links to your microcontroller’s MOSI, then chain subsequent drivers via DOUT. Clock all devices with a single SCK line shared across the entire assembly. Leave load pin (CS) separate if driving multiple units–activate each sequentially by toggling CS low during transmission. Add a 100nF decoupling capacitor directly across VCC and GND on each driver to filter high-frequency spikes.
Set intensity via software register 0x0A (0–15 scale), where 1–3 suits indoor use and 10+ compensates for ambient light. Disable unused segments by sending 0x00 to registers 0x01–0x08. For cascaded setups, address each module by sending 16 bits per driver: the first 8 bits target a single module, the next 8 hold display data. Repeat this pattern across all devices in a single SPI transaction to avoid bus conflicts.
Use a current-limiting resistor (typically 10–25kΩ) between VCC and ISET to cap peak segment current at 20–30mA. Omit the resistor if driving low-power SMD elements under 5mA per segment. Verify segment polarity before soldering; reversing anode/cathode connections renders the array dark despite correct code. For robust thermal management, affix driver ICs to a grounded copper pad or small heatsink if running at 80% brightness for extended periods.
Building a Cascadable 8×8 Display Driver Setup
Start with a 3-wire SPI interface: DIN on pin 1 routes data vertically through each segment, CS (pin 12) gates transfers, and CLK (pin 13) synchronizes at 10 MHz. Keep wiring under 10 cm; exceeding this risks signal skew between adjacent drivers.
Power sequencing drastically impacts stability. Apply V+ (pin 4) first–minimum 4.0 V for bright segments–then bring DOUT (pin 24) high before latching the next chip. Drops below 3.8 V cause flicker; use 0.1 µF decoupling caps per device, placed adjacent to pins 4 and 9.
Component Pairing Guide
| Device Count | Resistor (Ω) | Current (mA) | Segment Brightness (%) |
|---|---|---|---|
| 1 | 10 k | 40 | 95 |
| 5 | 4.7 k | 60 | 85 |
| 8 | 2.2 k | 80 | 70 |
Avoid daisy-chaining beyond 8 devices; thermal dissipation per unit exceeds 250 mW. For larger arrays, split SPI buses and mirror commands across separate microcontroller ports.
Refresh timing directly affects perceived uniformity. Set scan rate to 800 Hz–any slower introduces visible flicker, any faster risks ghosting between rows. Disable internal decode (register 0x09 = 0x00) for pixel-level control.
Test each module before integration. Send a single row-of-dots pattern; verify dot intensity across all columns. Inconsistent illumination indicates a faulty bond wire or improper decoupling. Replace any module showing deviations over 10%.
Fault Isolation Steps
Rapid debugging:
- Check CS pulse width–minimum 50 ns.
- Confirm DOUT-to-DIN continuity between modules.
- Measure V+ ripple–target
- Scope CLK duty cycle–maintain 45–55%.
Required Components for a Display Driver Grid Configuration
Start with a 8×8 dot array module (common cathode, 3mm pitch) as the visual output–ensure it matches 64-pixel resolution for seamless cascading. Pair it with a shift register controller (16-pin, 5V, SPI-compatible) to manage multiplexing; verify current ratings (≥320mA per segment) to avoid thermal overload during prolonged use. Include limiting resistors (20-50kΩ) between the controller’s segment outputs and display pins to stabilize brightness consistency across all columns–values outside this range risk flickering or dimming. A decoupling capacitor (0.1µF ceramic) soldered between VCC and GND near the IC prevents voltage spikes, while a bulk capacitor (10µF electrolytic) handles transient loads during matrix refresh cycles. For signal integrity, use twisted-pair ribbon cable (24-28 AWG) for data lines (DIN, CLK, LOAD) if wiring exceeds 10cm; shielded cables are optional but reduce EMI in noisy environments.
Auxiliary Parts for Reliable Operation
For power distribution, a 5V linear regulator (e.g., 7805) or buck converter (LM2596) ensures clean input (7-12V DC) with ≥1A capacity–avoid USB power without current limiting. Add inline fuse holders (500mA) on the input line to protect against short circuits, especially if driving multiple cascaded units. For development, include female headers (2.54mm pitch) to prototype without soldering, but swap for permanent through-hole joints in final builds to reduce contact resistance. To debug, keep a logic-level LED indicator (3mm, 2mA) on the CLK line to confirm signal activity without oscilloscope access. Store unused modules in static-shield bags with moisture absorbers; exposed PCBs corrode within weeks in humid climates.
Step-by-Step Wiring Guide for the Display Driver and Dot-Grid Module
Align the input pins of the first 8×8 dot-grid panel to the control chip’s output terminals in strict sequence. Pin DIN (data in) connects to the chip’s DOUT only if chaining multiple panels–otherwise, link it directly to the microcontroller’s MOSI. CLK (clock) requires a stable 10 MHz signal from the MCU’s SCK pin, while CS (chip select) must toggle low during data transmission. Ensure power rails match: VCC to 5V DC, with a 100nF decoupling capacitor soldered as close as possible to the driver’s power pins to prevent voltage spikes.
For the dot-grid’s row/column mapping, verify its common cathode or anode configuration–most modules use row-anode, requiring sink currents from the driver’s segment outputs. Wire segments (SEG A-G, DP) to the corresponding columns, and digits (DIG 0-7) to rows. Misalignment here causes mirrored or inverted displays. Use a logic analyzer to confirm data pulses if the grid fails to light, checking for signal integrity at each connection point. Ground all unused pins to reduce noise interference, especially in multi-module setups.

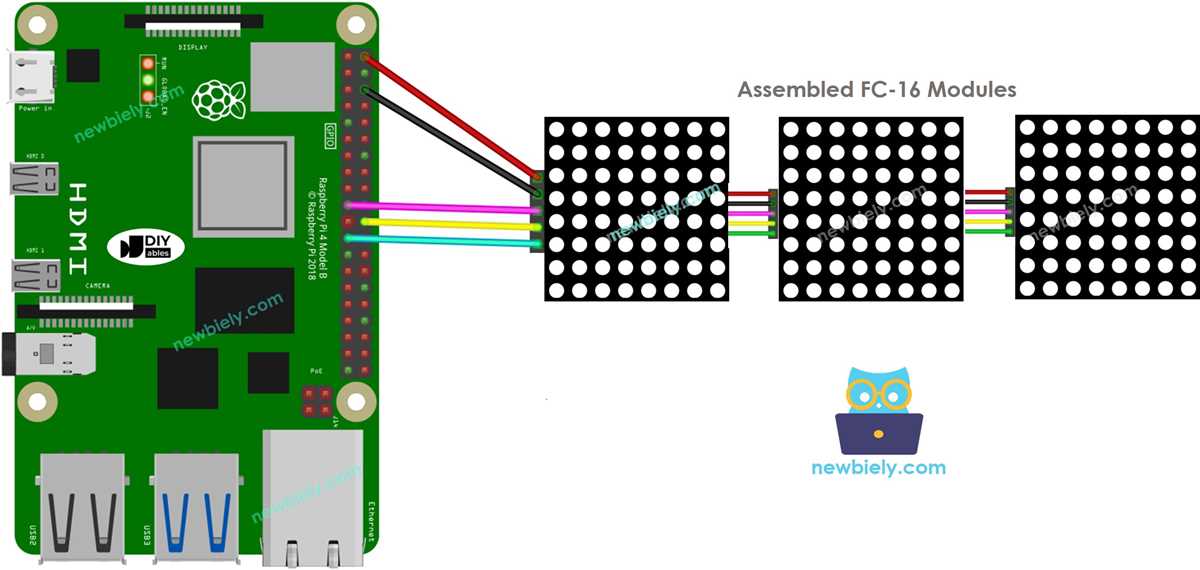

Test the wiring with a baseline program sending a single lit pixel across each axis before refining animations or text scrolls. Faulty connections often manifest as dim rows, flickering, or dead zones–address these by reflowing solder joints and verifying signal paths with a multimeter in continuity mode. For extended arrays, daisy-chain modules by connecting the first’s DOUT to the next’s DIN, ensuring uniform brightness via consistent power distribution and separate ground loops for each module.
Power Supply Considerations for Stable Display Panel Operation
Use a regulated 5V DC power source with a current rating at least 20% higher than the combined load of all segments. For a typical 8×8 grid driven by cascaded controllers, each module may draw up to 150mA at full brightness. A single 2A supply can reliably drive up to 8 modules without voltage drop issues, provided wiring resistance stays below 0.1Ω per 10cm. Exceeding these parameters risks flickering or unexpected shutdowns during peak load.
Incorporate bulk capacitance (470μF–1000μF) across the power rails at the entry point of each panel cluster. Locate the capacitor physically closer to the driver IC than the power connector to suppress transient spikes during on-off transitions. Smaller decoupling caps (0.1μF) should sit adjacent to every chip’s VCC/GND pins to filter high-frequency noise from switching activity.
For panels exceeding 4 cascaded units, route power traces in a star configuration instead of daisy-chaining. A central distribution hub fed by thick (20–24 AWG) copper wires minimizes IR drop, ensuring uniform illumination across the entire array. Measure voltage at the farthest node under full load; if it sags below 4.75V, increase wire gauge or reduce segment count per string.
Select switching regulators over linear counterparts for wall-powered installations. A buck converter with 85%+ efficiency reduces heat buildup and delivers consistent 5V even under fluctuating input (7–12V). Avoid cheap eBay modules with poor transient response; verified designs like the LM2596 or MP2307 maintain tight regulation during dynamic content changes, preventing dimming artifacts.
Battery-operated deployments demand deeper scrutiny. Alkaline cells droop rapidly under sustained current, so lithium-ion (18650) or LiPo packs win for portable builds. Ensure a protection circuit prevents overdischarge below 3.0V/cell; most driver chips latch up if VCC dips momentarily, requiring manual reset. Add a resettable fuse (e.g., 1.1A) to guard against short circuits from faulty segments.
Ground loops introduce subtle display errors, especially in multi-panel setups. Dedicate a single ground reference point where all signal returns and power grounds converge, then star-route wires outward. Avoid sharing logic ground with high-current return paths; noise coupling from segment rows can corrupt data lines, causing erratic shifting or ghosting.
Thermal derating affects long-term reliability. A panel drawing 1.2A at ambient 25°C sees internal resistance rise ~10% per 10°C above 40°C. Ventilation slots or forced air extend operational ceiling beyond 60°C, but passive cooling suffices if airflow is unrestricted. Monitor driver junction temperature via built-in thermal shutdown thresholds (typically 125°C); exceeding these triggers automatic dimming to protect the array.
