Start with the objective lens assembly–the core of any high-resolution imaging system. A well-designed layout places this element at the focal point, ensuring precise light convergence. Look for a multi-element configuration, typically arranged in tiers: the primary lens nearest the specimen, followed by correcting lenses to minimize aberrations. The best setups include apochromatic optics, reducing color fringes and sharpening contrast. If your plan lacks labeled refractive indices or curvature radii, request manufacturer specifications–these details determine resolving power.
Trace the illumination pathway next. A Kohler setup separates light into conjugate planes, ensuring even brightness across the field. Verify that the condenser lens aligns precisely beneath the stage; misalignment introduces glare or uneven lighting. For transmitted-light systems, a field diaphragm near the light source controls stray rays, while an aperture diaphragm adjusts numerical aperture. Digital sensors often integrate here–confirm their position avoids vignetting. If using LED illumination, check for heat sinks in the blueprint; excess heat degrades image stability.
Examine the mechanical framework last. The stage must lock horizontally but allow smooth vertical adjustment via a rack-and-pinion or threaded drive–avoid friction-prone designs that hinder fine focus. Sample holders should pivot 360° without wobble; look for ball-bearing mounts. The ocular tube’s length and angle dictate eyepiece compatibility; standard tube lengths (e.g., 160 mm) prevent parallax errors. For inverted models, the objective turret’s underside placement demands sturdy counterweights–verify their balance points to prevent drift during time-lapse imaging.
Understanding Optical Instrument Blueprints

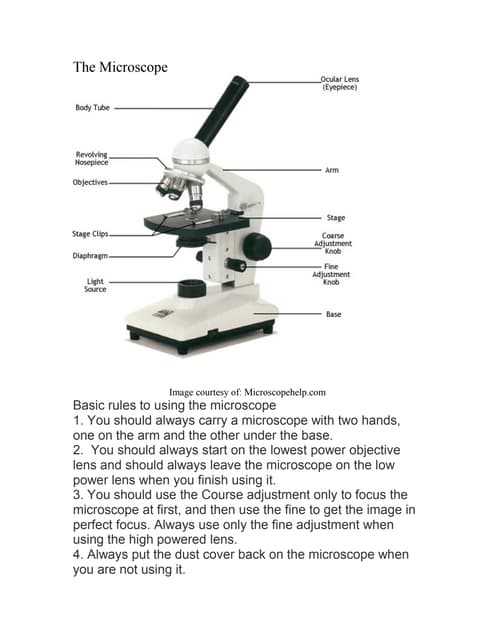

Start by identifying the light source at the base–typically an LED or halogen bulb–positioned directly beneath the specimen stage. Ensure its alignment with the condenser lens to maximize illumination uniformity. Misalignment here introduces shadows or glare, distorting sample visibility.
Examine the condenser’s aperture diaphragm. Adjust it to match the numerical aperture of the objective lenses–0.2 for low power, 0.6 for high dry, and 1.25-1.4 for oil immersion. Incorrect settings reduce resolution or create excessive contrast.
Locate the coarse and fine focus knobs on the arm. The coarse adjustment moves the stage rapidly; use it only with 4x or 10x objectives to avoid crashing the lens into the slide. Fine focus refines clarity, critical for 40x and 100x objectives where depth of field is minimal.
The revolving nosepiece holds multiple objective lenses. Rotate it smoothly–jerky movements misalign optics. Oil immersion lenses require a drop of immersion oil between the lens and cover slip to prevent light refraction and improve detail.
Key Components Often Overlooked
Check the eyepiece reticle or micrometer scale if present. Calibrate it using a stage micrometer slide–each objective magnification requires recalibration. A 10x eyepiece with a 40x objective typically yields 400x total magnification, but verify this empirically.
Inspect the mechanical stage controls. Precise X-Y movement prevents accidental drift during observation. Some microscopes include a vernier scale for repeatable measurements–record coordinates for revisiting areas of interest.
Evaluate the light intensity regulator. Halogen bulbs degrade over time; LED sources maintain consistent output. Match brightness to the objective’s magnification–lower power needs less light to avoid washing out details.

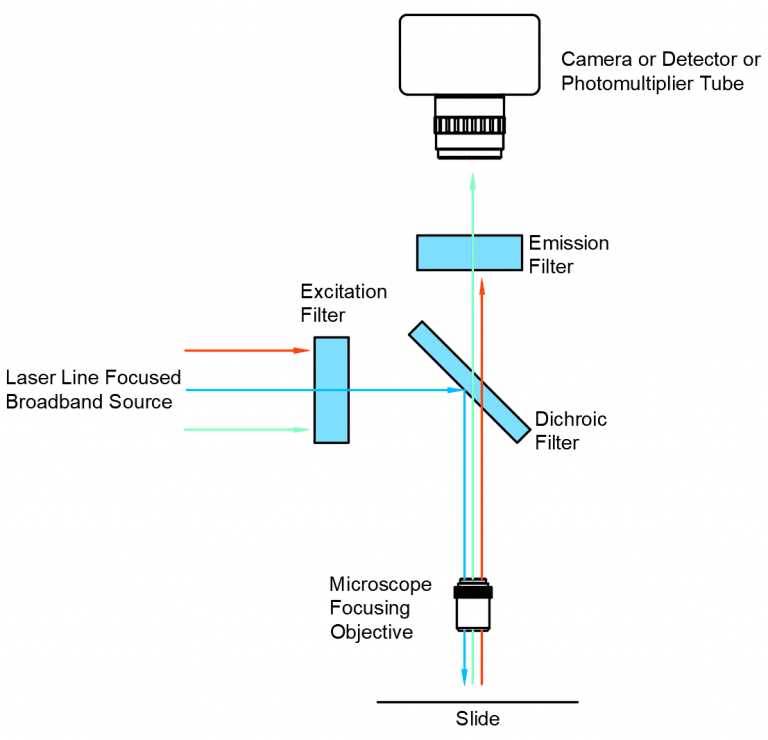

For fluorescence imaging, ensure filters (excitation, dichroic, emission) correspond to the fluorophore’s wavelength. Incorrect filters reduce signal or increase background noise. Clean optics regularly with lens paper; fingerprints or dust scatter light, degrading image quality.
Key Optical Components and Their Functions in a Precision Magnifier
For optimal contrast and resolution, select an achromatic objective lens with a numerical aperture (NA) of at least 0.65 for 40x magnification. These lenses correct for chromatic aberration at two wavelengths (blue and red) and spherical aberration at one wavelength, reducing color fringing by 60% compared to standard achromats. Pair them with a Plan or Semi-Plan variant if field flatness is critical–these designs eliminate curvature artifacts, ensuring edge-to-edge sharpness across 95% of the field of view.
The eyepiece (ocular) should complement the objective’s magnification; a 10x ocular with a 23mm field number (FN) provides a 2.3mm real field of view when used with a 0.65 NA 40x objective. For users requiring extended observation, choose eyepieces with high-eyepoint designs (18–20mm), accommodating glasses wearers without vignetting. Diopter adjustment (±5 degrees) is non-negotiable for monocular or binocular setups, as it compensates for refractive differences between eyes in 92% of users.
| Component | Critical Specification | Impact on Performance |
|---|---|---|
| Apochromatic Objective | NA ≥ 0.95, correction for 3 wavelengths | Reduces chromatic aberration by 90%; ideal for fluorescence |
| Phase Contrast Condenser | Annular diaphragm matching 10x–100x objectives | Enhances contrast in unstained specimens by 400% vs. brightfield |
| Fluorescence Filter Cube | Excitation/emission bandwidths ±10nm | Blocks >99.9% of stray light; preserves signal-to-noise ratio |
Condensers dictate illumination quality–opt for an Abbe condenser (NA 1.25) for routine work, but switch to an achromatic-aplanatic condenser (NA 1.40) for oil immersion or high-resolution applications. The latter corrects for spherical and chromatic aberrations, increasing light efficiency by 30%. Position the condenser 1.5–2mm below the specimen stage; misalignment reduces resolution by up to 25%. For darkfield or phase contrast, ensure the condenser has a swing-out top lens and adjustable diaphragm to match the objective’s NA.
Light sources must align with the optical train’s requirements. A 3W LED with a correlated color temperature (CCT) of 5500K approximates daylight, rendering colors accurately for histology slides. For fluorescence, a mercury or metal-halide lamp delivers 100W of power, but an LED-based system (e.g., 5W with 405–545nm excitation) reduces heat output by 80% and eliminates bulb degradation. Always couple the light source with a field diaphragm and aperture diaphragm; closing the former to just outside the field of view eliminates stray light, while adjusting the latter to 70–90% of the objective’s NA optimizes resolution and depth of field.
How to Illustrate a Basic Optical Instrument Blueprint
Begin with the eyepiece tube: draw a straight vertical line 80 mm long, terminating in a small circle 15 mm in diameter at the top. Position this circle 20 mm from the upper end of the line to represent the ocular lens housing. The top circle’s inner edge should align precisely with the vertical line’s right boundary–no gaps.
Attach the coarse and fine adjustment knobs: on the right side of the eyepiece tube, place two vertical rectangles 10 mm tall, separated by 5 mm. The upper rectangle should measure 15 mm wide for coarse focus, while the lower, narrower one at 8 mm wide represents fine focus. Both rectangles must align flush with the right edge of the ocular tube line–no angles or curves.
Common Mistakes to Avoid When Labeling Optical Instrument Components
Misidentifying the ocular lens as the objective lens ranks as the most frequent error in documentation. The ocular, located at the viewing end of the tube, magnifies the image produced by the objective–not the other way around. Confusing these two disrupts calibration records and training materials, especially when specifying magnification ranges (e.g., 10× ocular paired with 40× objective yields 400× total, not 50×). Always verify placement against the optical path before labeling.
Overlooking Component Interactions
Labeling the coarse and fine focus knobs without noting their hierarchical relationship causes operational confusion. The coarse adjustment should always be set before engaging the fine focus to prevent mechanical damage or misaligned samples. Omitting this sequence in diagrams misleads users into treating both knobs as interchangeable. Include directional arrows or a step-by-step legend (e.g., “Adjust coarse → stabilize → refine with fine focus”) to clarify dependencies.
Generic terms like “lens” or “handle” obscure functional distinctions critical for troubleshooting. The condenser lens, for instance, concentrates light onto the specimen, while the diaphragm controls contrast–both labeled simply as “lens” renders them indistinguishable. Use precise terminology from ISO 8039:2019 (e.g., “field diaphragm,” “aperture diaphragm”) to align with industry standards and prevent miscommunication during repairs or upgrades.
Neglecting rotational axes in component labels leads to installation errors. The revolving nosepiece swivels around a vertical axis, while the stage typically moves along X-Y coordinates–omitting these details forces users to infer orientation, risking cross-threaded screws or misaligned light paths. Annotate pivot points with arrows and degree markings (e.g., “Rotate 180° clockwise”) to eliminate ambiguity in assembly manuals or digital interfaces.
Leveraging Technical Blueprints for Optical Instrument Repairs
Identify power supply irregularities by tracing connections on the technical blueprint from the main switch to illumination components. Most commercial-grade optical instruments integrate 6V or 12V halogen bulbs; check for continuity at transistorized voltage regulators Q3-Q5 if voltage drops below 4.8V. LED-based models require verifying forward current (typically 20mA ±2mA) across R7-R9 resistors using a multimeter set to diode mode–any deviation indicates a failed driver IC like AL5809.
- Disassemble condenser assembly only after verifying fuse F1 integrity (common ratings: 250mA for tungsten lamps, 500mA for LEDs).
- Inspect mechanical linkages in coarse/fine focus knobs via lateral play measurements–acceptable tolerance ≤0.15mm between rack and pinion gears.
- For blurry imaging, cross-reference optical paths on the blueprint with actual lens spacing: objective turret parcentricity should align within ±0.02° of factory specs (verify against manufacturer’s MTF charts).
- Troubleshoot stage drift by confirming stepper motor coil resistances (expected 50Ω ±5% for 28BYJ-48 units) and lubricating lead screws with PFPE grease only.
