Start by identifying the coil inputs on the control module–usually two points marked for voltage supply (often 12V or 24V). Connect the positive feed directly to one terminal, while the second should link to the manual trigger. The trigger’s other side ties back to ground or the negative supply line. Confirm polarity before energizing to prevent damage to the internal circuitry.
Next, locate the common, normally open (NO), and normally closed (NC) contacts. The common terminal serves as the pivot, switching between NO and NC based on coil activation. Wire your load–an appliance, lamp, or motor–to the common and either the NO or NC terminal depending on desired default state. Always match current ratings: a 10A module won’t handle a 20A load safely.
Add a protective element in series with the manual trigger if operating inductive loads like solenoids or motors. A flyback diode (1N4007) across the coil prevents voltage spikes, while a snubber circuit (RC pair) across contacts reduces arcing. Test continuity with a multimeter in resistance mode before applying power–open or shorted paths indicate wiring errors.
For momentary control, wire the manual trigger as a push-button. For latching operation, use a toggle or rocker type. Never exceed the module’s listed switching frequency: typical automotive-grade variants handle 10-20 operations per minute, while industrial units tolerate 100+ cycles depending on coil resistance and contact material.
Label every lead at both source and destination. Use heat-shrink tubing for strains exceeding 0.5A to insulate exposed conductors. Mount the module on a non-conductive surface (fiberglass or ABS) away from heat sources–coil dissipation ranges 1.5–3W, potentially raising local temperatures above 60°C under sustained use.

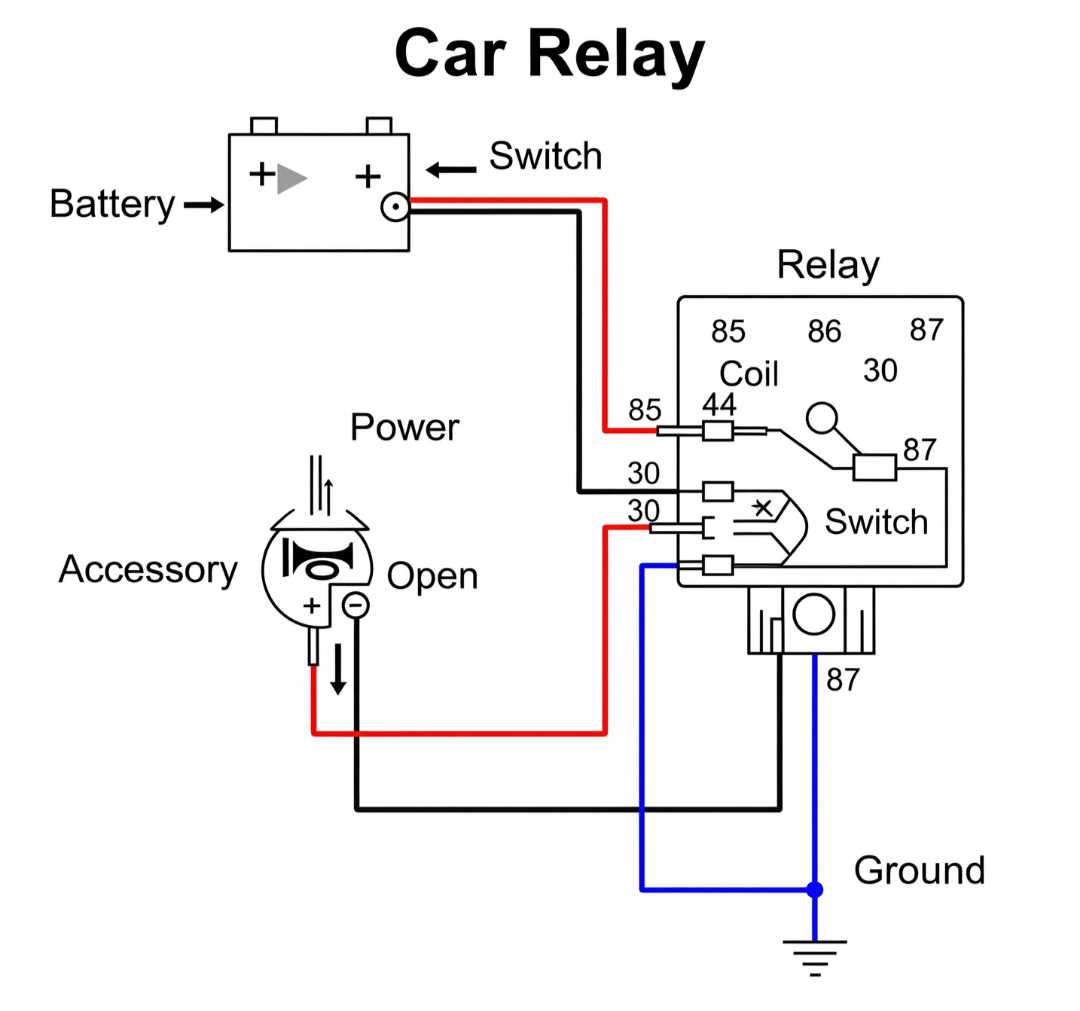

Connecting a Five-Contact Control Module with a Manual Trigger
Start by identifying the common, normally open, and normally closed contact points on your electromagnetic device. Label each terminal clearly–typically numbered 85, 86, 30, 87, and 87a–to prevent misconnections that could damage components or create hazardous shorts.
Attach the power source’s positive lead to terminal 30, ensuring the wire gauge matches the expected load (minimum 18 AWG for 10A circuits). Use a inline fuse rated 10-15% above the circuit’s maximum current draw to protect against overloads.
The activation coil requires two connections: link one side (86) directly to the live supply through a momentary on-on toggle or push-button, while grounding the opposing side (85) to complete the circuit. Avoid permanent connections to prevent continuous coil energization, which wastes power and shortens lifespan.
For the output, route terminal 87 to your load–motor, light, or solenoid–keeping runs as short as possible to minimize voltage drop. If using the second output (87a), ensure it remains disconnected unless needed for fail-safe operations, as it bridges the load even when the unit is inactive.
Polarity matters when dealing with DC loads: confirm the direction of current flow matches the device’s specifications to avoid reversed operation or damage. For inductive loads, add a flyback diode across the coil terminals (cathode to positive) to suppress voltage spikes during deactivation.
Test the setup with a multimeter before full activation: verify 12V across the coil when the trigger is pressed and continuity between the common and active output. If voltage drops below 11V under load, upgrade wires or check for corroded connections.
Document the exact layout, including wire colors and terminal positions, to simplify troubleshooting. Store spare 20A blades and terminal boots on-site for quick repairs, especially in high-vibration environments where connections loosen over time.

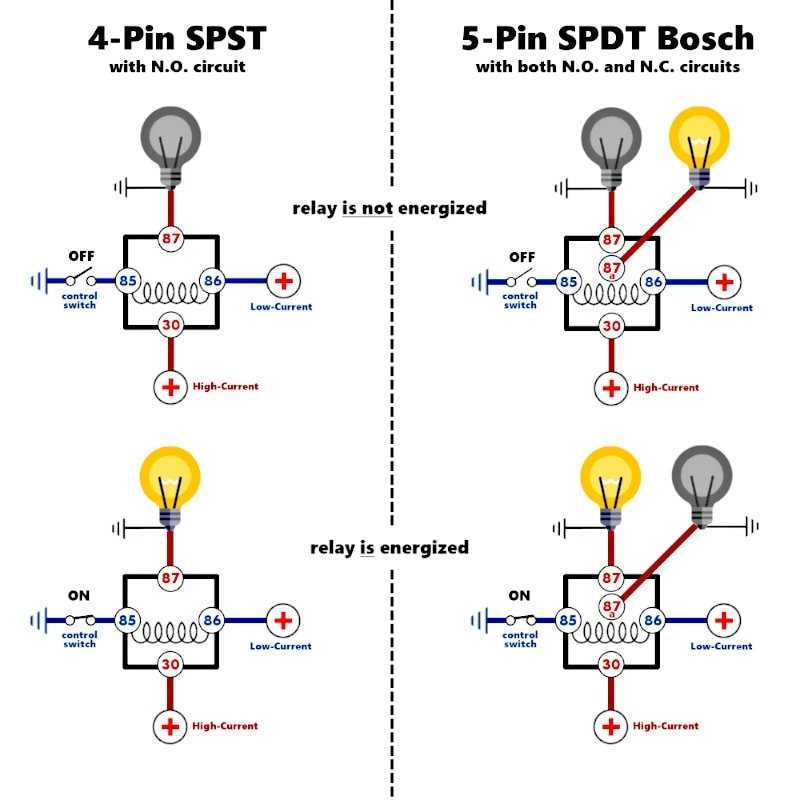

Mastering the 5-Terminal Electromagnetic Controller Layout and Purpose
Always label each terminal before installation–confusion between the control contacts (typically numbered 85 and 86) and load contacts (30 and 87) can disrupt circuit operation or damage components. The fifth connector (87a), found in changeover models, stays closed until energized, serving as a failsafe path; verify its function with a multimeter at 12 volts DC to confirm continuity in the resting state.
Apply heat-shrink tubing or dielectric grease to protect the coil terminals (input/output sides) from moisture and corrosion, especially in automotive or outdoor applications. Use spade connectors sized for 2.8mm or 4.8mm terminals to ensure secure mechanical grip–loose connections generate resistance, overheating risks, and intermittent faults. For high-current loads (exceeding 20A), route the power feed directly from the battery using 10-gauge wire or thicker, bypassing fragile fuse boxes or shared circuits.
Critical Load Management
Never energize the control side without a load connected–unintended arcing at the 30/87 contact pair can weld contacts shut or degrade their plating over time. Test response time by monitoring the audible click; delays beyond 20 milliseconds may indicate insufficient coil voltage (target 10–14V) or inadequate current (standard: 150–200mA). Replace any unit where contact resistance exceeds 0.1 ohms under load, measured across 30 and 87 with a 10A current draw.

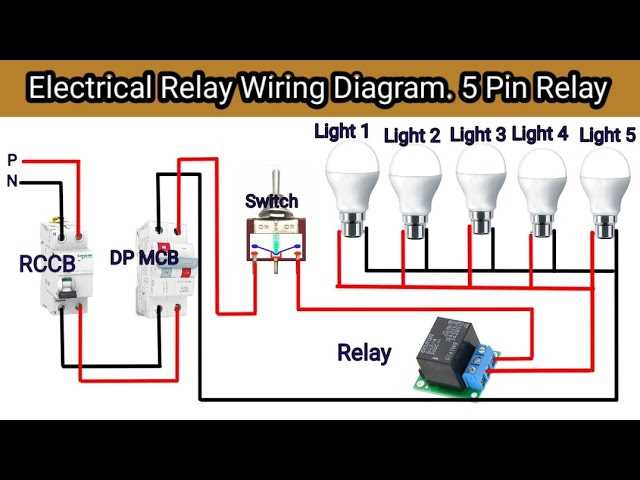

Step-by-Step Guide to Connecting a 5-Terminal Control Module with a Toggle Device
Begin by gathering all required tools: a multimeter, insulated crimp connectors, strippers, a soldering iron (optional), and 14-16 AWG electrical cable. Identify the terminal assignments on the control module–typically, two are load outputs, two are coil activators, and one is a common feed. Verify these assignments with the manufacturer’s documentation to prevent misconnections.
Disconnect the power source before handling any circuits. Strip 5-7 mm of insulation from the ends of the cables, ensuring clean, undamaged conductors. If using crimp connectors, slide them onto the stripped ends and compress with the appropriate tool. For soldered joints, apply flux, heat the connection, and secure with rosin-core solder for a durable bond.
Attach the toggle device to the coil activator points of the control module. One coil terminal connects directly to the power source, while the other links to the toggle’s output. The toggle’s input receives constant voltage, enabling manual activation. Use the multimeter in continuity mode to confirm the toggle’s function before integrating it into the circuit.
Route the common feed terminal to a stable voltage supply–this could be a battery, fuse box, or dedicated power distribution block. Ensure the voltage matches the module’s specifications (usually 12V or 24V). Avoid daisy-chaining feeds from other components to prevent voltage drops under load.
Connect the load outputs to the device being controlled, such as headlights, fans, or motors. Match the cable gauge to the anticipated current draw: 14 AWG for up to 15A, 12 AWG for 20A. Secure all connections with heat-shrink tubing or electrical tape to prevent short circuits. For high-current applications, consider adding a fuse inline with the load circuit to protect against overloads.
Test the assembly in stages. First, verify power at the common feed terminal. Next, confirm voltage at the coil activator terminals when the toggle is engaged. Finally, check the load outputs for correct operation. If the device fails to activate, use the multimeter to probe each segment of the circuit, starting from the power source and working toward the load.
For prolonged reliability, anchor cables to prevent vibration-induced fatigue, especially in automotive or industrial settings. Label all connections for future maintenance. Periodically inspect for corrosion, especially at ground points or in humid environments, and reapply dielectric grease to terminals if necessary.
Choosing the Right Wire Gauge and Fuse for Controlled Electrical Loops
For 12V automotive applications, use 16 AWG copper conductors for loads up to 10A and 14 AWG for currents between 10-15A. Measure the expected current draw precisely–calculate using Ohm’s Law if values aren’t labeled. Overestimating by 20% accommodates voltage drops over long runs (e.g., 16-foot cables). Solid-core copper outperforms stranded alternatives in fixed installations due to lower resistance, but stranded wire resists vibrations better in mobile setups.
Fuse selection hinges on wire ampacity and load type. Install a fuse rated 15-25% above the conductor’s capacity–never exceed the wire’s maximum rating. For inductive loads (motors, solenoids), derate the fuse by 20% to prevent nuisance trips during startup surges. Blade fuses (ATC/ATO) dominate modern designs; Cartridge fuses suit high-current legacy systems. Always position the fuse within 7 inches of the power source to protect the entire circuit path.
Wire Gauge Quick Reference
- 18 AWG: ≤7A (signal leads, LEDs)
- 16 AWG: 7-10A (standard accessory circuits)
- 14 AWG: 10-15A (headlights, cooling fans)
- 12 AWG: 15-20A (high-draw components)
- 10 AWG: 20-30A (winches, amplifiers)
Voltage drop becomes critical over distance. A 3% drop is acceptable for resistive loads (lamps, heaters); keep it under 1% for sensitive electronics (GPS, ECUs). Use VD = (2 × L × I × R) / 1000 to calculate–which requires the conductor’s resistance per 1000 feet (e.g., 16 AWG = 4.09 Ω). For 24V systems, halve the current draw before applying the formula. Terminate connections with crimped terminals and heat-shrink tubing to prevent corrosion-induced resistance increases.
Common Fuse Types and Their Applications
- Micro2 (5A-30A): Compact modules with built-in fuses ideal for dash-mounted controls.
- Midi (40A-120A): Heavy-duty fuse blocks for main battery isolators.
- Glass Tube (1A-20A): Obsolete but found in vintage equipment; replace with equivalently rated blade fuses.
- ANL/Class T (50A-500A): High-amperage protection for inverters and alternator feeds.
Tinning stranded wires prevents oxidation but adds resistance–avoid it unless soldering connections. For aluminum conductors (rare in aftermarket systems), multiply the calculated ampacity by 1.58 to account for higher resistivity. Always verify fuse ratings against manufacturer specifications for components like compressors or hydraulic pumps, which may require slow-blow fuses to handle brief inrush currents up to 10× their steady-state draw.
