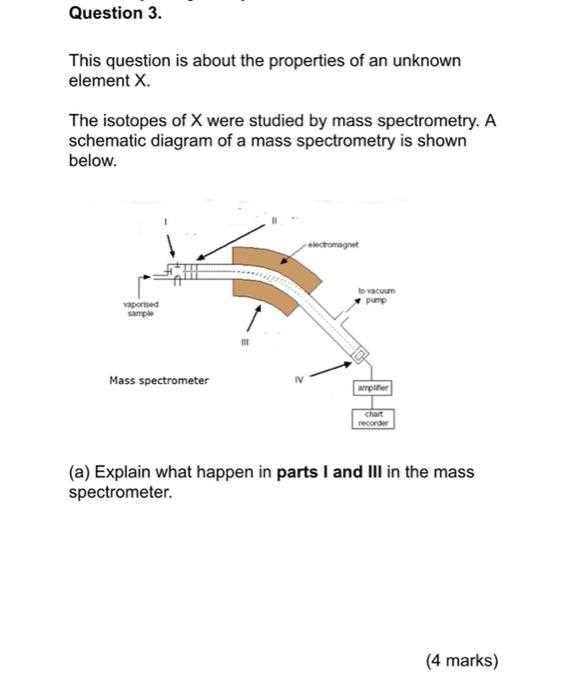

Begin by identifying the core components in the instrument layout: the ion source, analyzer, detector, and data system. Each segment must be clearly labeled with its operational role–focus on how ions transition between these stages. For instance, the ion source generates charged particles, while the analyzer separates them based on their mass-to-charge ratio (m/z). Use distinct symbols or color-coding to differentiate these regions, ensuring immediate recognition during troubleshooting or explanation.
Prioritize accuracy in depicting the ion path. Misalignment in the flow can lead to errors in interpretation, particularly in tandem setups where fragmentation occurs. The detector’s placement should reflect real-world configurations–modern designs often integrate electrostatic lenses or magnetic sectors, which refine ion trajectories before detection. Include annotations for critical parameters like vacuum levels or voltage gradients, as these directly impact signal resolution.
Simplify complex stages without omitting essential details. For example, when illustrating ionization methods (e.g., electron impact vs. electrospray), use standardized icons: a lightning bolt for electron impact or a droplet symbol for electrospray. This avoids ambiguity while preserving technical depth. Avoid generic shapes–instead, tailor visuals to reflect specific instrument models, such as quadrupole vs. time-of-flight analyzers, which behave differently under identical conditions.
Ensure the representation accounts for calibration steps. Label reference compounds or internal standards if the setup includes quantitative analysis. Highlight points where interference might occur, such as matrix effects in liquid chromatography-coupled systems, and suggest mitigation strategies (e.g., collision-induced dissociation). The goal is to create a functional blueprint, not just a static image.
Visualizing Ion Analysis Workflows

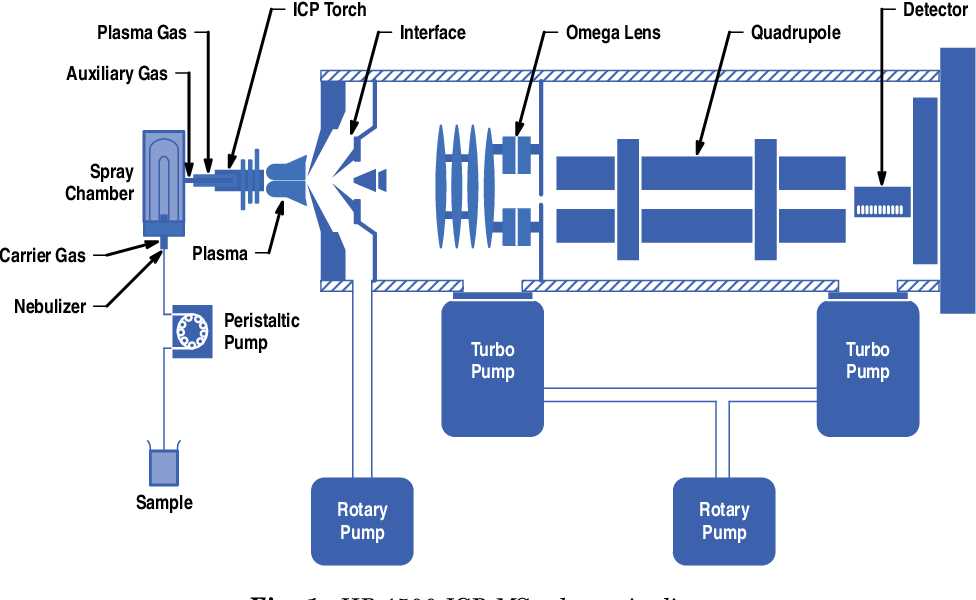

Begin by mapping the sample introduction system with precision–label the inlet (e.g., electrospray ionization or MALDI) and adjacent vacuum interface. Include critical pressure zones: atmospheric (1–760 Torr), intermediate (10-2–10-6 Torr), and high-vacuum (10-8 Torr). Specify pump types (turbo, diffusion, or scroll) at each stage, noting their throughput in L/s.
Detail the ion optics path using a segmented layout:
- Source lens: Voltage range (-5 kV to +5 kV), function (focus/fragment)
- Skimmer cones: Angle (60–90°), orifice diameter (0.5–2 mm)
- Quadrupole/ion trap: RF frequency (0.5–3 MHz), amplitude stability (±0.1%)
- Collision cell: Gas type (Ar, N2), pressure (0.1–10 mTorr), energy (5–200 eV)
For the detector, differentiate between electron multipliers (gain: 103–108) and Faraday cups (resolution: 1 mV). Add a sidebranch showing time-of-flight (TOF) reflectron geometry, marking flight tube length (1–2 m) and delay extraction parameters (50–200 ns). Annotate mass resolution (R = 10,000–100,000) above the TOF section.
Include a dashed line connecting the analyzer to a data acquisition block. List acquisition modes–full scan (m/z 50–2000), selected ion monitoring (SIM), and MS/MS–with cycle times (0.1–2 s). Specify ADC bit depth (16–24 bit) and sampling rate (1–5 GHz). Add a legend explaining color-coding: red for high-energy pathways, blue for low-energy, yellow for neutral losses.
Attach calibration curves for two reference compounds below the diagram–one volatile (perfluorotributylamine, PFTBA, m/z 69, 131, 219) and one polar (polyethylene glycol, PEG, m/z 100–1000). Indicate tolerance (±0.1 Da) and frequency of calibration (pre-run/post-run). Embed scale bars for magnetic sector instruments: radius (0.3–1 m), field strength (0.5–1.5 T).
Place a dashed box around the entire workflow labeling safety interlocks–vacuum failure sensors, high-voltage cutoffs (threshold: 20% above setpoint), and exhaust vents (minimum 50 L/min). Add a QR code linking to a 3D animation of ion trajectories through the optics, specifying frame rate (30 fps) and interactive controls (zoom, rotate, energy slider +20/-80 eV).
Critical Elements of an Analytical Instrument Blueprint
Begin with the ion source–select between electron impact, electrospray, or matrix-assisted laser desorption based on the sample’s volatility and molecular weight. Electron impact excels for small, stable compounds under 1000 Da, achieving ionization efficiency above 80% but risking fragmentation. For proteins or polymers, electrospray generates multiply charged ions, preserving structural integrity, while MALDI minimizes degradation for biomolecules over 10,000 Da. Match the technique to the analyte’s polarity and thermal stability to avoid signal suppression or irreproducible spectra.
The mass analyzer acts as the instrument’s core, dictating resolution, speed, and accuracy. Time-of-flight (TOF) units measure flight time over 1–2 meters, resolving peaks 0.01 Da apart but requiring precise timing electronics. Quadrupole filters offer ruggedness and cost-effectiveness, isolating ions within 0.1–0.3 Da windows, though sacrificing high-mass accuracy. For unambiguous identification, Fourier-transform ion cyclotron resonance or Orbitrap platforms achieve sub-ppm mass accuracy but demand cryogenic components or ultra-high vacuum systems (10-10 mbar). Prioritize resolution needs–targeted analyses tolerate lower specs, whereas unknowns demand ppm-level precision.

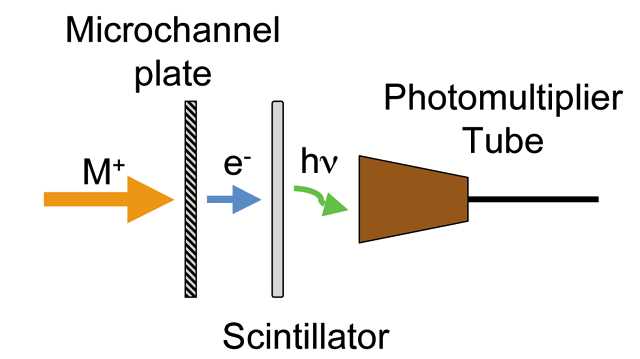

Detector choice impacts sensitivity and dynamic range. Electron multipliers amplify signals by 106–108 but degrade under prolonged exposure to alkali metals. Faraday cups resist contamination but lack amplification, limiting detection to nanomolar concentrations. For trace-level work, Daly detectors combine photomultipliers with post-acceleration voltages (3–10 kV), achieving femtomolar limits in hydrocarbon matrices. Ensure compatibility with the mass range: microchannel plates excel below 2000 Da, while discrete dynode setups handle heavier ions without saturation.
Step-by-Step Ionization Process in Visual Workflow
Begin by selecting an ionization technique tailored to the sample’s volatility and polarity. For volatile compounds, electron impact (EI) at 70 eV is optimal, generating reproducible fragment patterns. High-energy electrons collide with neutral molecules, ejecting an electron to form positively charged ions. Ensure the ion source operates at 10-6 to 10-7 Torr to minimize collisions that could neutralize ions before detection.
For non-volatile or thermally labile samples, electrospray ionization (ESI) or matrix-assisted laser desorption/ionization (MALDI) are superior. In ESI, a high-voltage (3–5 kV) needle nebulizes the sample into charged droplets, which shrink as solvent evaporates until Coulombic repulsion triggers ion release. Maintain a flow rate of 1–10 µL/min and use nitrogen as a nebulizing gas to stabilize droplet formation. MALDI requires a UV-absorbing matrix (e.g., α-cyano-4-hydroxycinnamic acid) to co-crystallize with the sample; a 337 nm nitrogen laser ablates the matrix, transferring energy to the analyte for ionization.
Critical Parameters for Ion Stability
Control the ion source temperature to prevent thermal degradation. For EI, 150–250°C is standard, while ESI operates near ambient conditions to avoid denaturing biomolecules. In atmospheric pressure ionization (API) methods like ESI, desolvation gas (typically nitrogen at 300–400°C) ensures complete solvent evaporation. For MALDI, laser fluence must exceed the matrix’s threshold (106–107 W/cm²) but avoid oversaturation, which reduces ion yield. Calibrate the laser pulse energy and repetition rate (3–20 Hz) based on sample homogeneity.
Ion transmission efficiency hinges on the interface between the source and analyzer. In quadrupole systems, lenses focus ions using RF/DC voltages (e.g., 1–10 MHz RF amplitude), while time-of-flight (TOF) analyzers accelerate ions with a pulsed electric field (10–20 kV). For ESI-TOF, optimize the skimmer voltage (50–200 V) to minimize metastable ion fragmentation during transfer. In ion trap systems, helium damping gas (10-3 Torr) thermalizes ions, improving trapping efficiency by up to 90%.
For multi-stage ionization (e.g., tandem MS), precursor ions are isolated via collision-induced dissociation (CID). Adjust collision energy (10–100 eV for low-energy CID) to fragment ions without complete dissociation. Higher energies (keV range) suit electron transfer dissociation (ETD), where radical anions (e.g., fluoranthene) donate electrons to multiply charged peptides, yielding c/z-type fragments. Use a collision gas like argon or nitrogen at 10-3 Torr for efficient energy transfer.
Validate ionization consistency by monitoring key metrics: ion current intensity, signal-to-noise ratio, and mass accuracy. For ESI, adduct formation (e.g., [M+H]+, [M+Na]+) can be suppressed by adding 0.1% formic acid. In MALDI, inhomogeneous crystallization leads to hotspots; mitigate this by pipetting sample-matrix mixtures in 1 µL droplets and drying under vacuum. Regularly clean the ion source to prevent contamination, which reduces sensitivity by 30–50% over time.
Depicting Analyzers in Ion Detection Flowcharts
Label analyzer segments with precision tolerances (±0.01 Da) and transmission efficiency (≥95%) in the first column of a component table. Below the table, use arrows with 45° angled pointers (1.5 pt stroke) to trace ion paths from the source exit slit to the detector entrance window, marking collision-cell pressure zones (1×10-3 Torr) in shaded rectangles.
| Analyzer Type | Resolution (FWHM) | Mass Range (Da) | Ion Path Visual |
|---|---|---|---|
| Quadrupole | 1,000 | 50–2,000 | Parallel rods (2.5 mm diameter, 150 mm length) |
| Time-of-Flight | 20,000 | 10–50,000 | V-shaped flight tube (2.1 m, 12° drift angle) |
| Orbitrap | 100,000 | 50–6,000 | Concentric electrodes (30 mm outer diameter) |
Apply stippled fill (30% opacity, 0.5 mm dot pitch) to distinguish RF-only multipole guides; reserve solid outlines for DC-scanned quadrupoles. Add a legend box (lower right) with hex color codes (#3A80D4 for ions, #F7B267 for neutral losses) and scale bars (1 cm = 0.2 m/z drift length).
Key Annotations for Analyzer Sections
Position circles (3 mm radius) at all ion beam waists to indicate Einzellens voltage nodes (typically –90 V to +110 V). Under each circle, print the analyzer-specific operating parameter–RF amplitude (Vp-p), flight length (mm), or trapping field frequency (kHz)–using monospace font (Courier New, 9 pt). For hybrid systems, overlay dashed squares (5 mm sides) around ion trapping regions, linking outer corners to adjacent analyzers with dotted lines (0.75 pt stroke).
