Begin with a single-pole toggle for basic setups. Place it between the power source and the load–typically a lamp or appliance–ensuring the live wire (14 AWG for 15A systems) connects to the common terminal. Ground the device to a neutral bus if working in a metal box. For rooms where safety is critical, such as bathrooms or kitchens, use a ground-fault circuit interrupter (GFCI) upstream. This protects against moisture-related hazards by cutting power within milliseconds of detecting leakage currents as low as 4-6 mA.

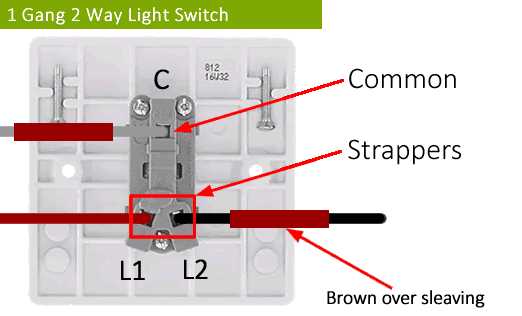

For multi-location control, employ three-way or four-way mechanisms. Wire the first three-way device with travelers–two separate conductors running between units–allowing toggles at both ends to operate the same load. Label traveler wires distinctly (e.g., red and black) to avoid confusion during installation. In four-way configurations, sandwich the device between two three-way units. This setup suits stairwells or large rooms requiring switches at multiple entry points. Always verify continuity with a multimeter before energizing the system.
For dimming or variable output, integrate a TRIAC-based controller. Pair it with compatible LED bulbs rated for low-voltage dimming (e.g., 120V AC, 20-100% range). Avoid mixing non-dimmable loads, as this causes flickering or premature failure. Check the controller’s wattage rating–most handle 40-600W, but high-load applications (e.g., workshops) may require a magnetic low-voltage (MLV) unit. Wire the controller in series with the load, ensuring the neutral bypasses the switching element to maintain consistent power delivery.
To automate or add remote operation, use a solid-state relay (SSR) or smart module. SSRs handle inductive loads (e.g., motors) without arcing, switching up to 40A at 240V with a control signal as low as 3V DC. For home networks, opt for Wi-Fi or Zigbee-enabled devices (e.g., Shelly, Sonoff) that integrate with hubs like Home Assistant or Alexa. Flash custom firmware (e.g., Tasmota) for local control, bypassing cloud dependencies. Always isolate high-voltage lines from low-voltage signals using optocouplers or physical barriers.
For outdoor or industrial environments, deploy weatherproof enclosures with NEMA 4X or IP66 ratings. Use conduit (PVC or EMT) for wiring runs exceeding 6 feet, bonding all metallic components to the grounding system. In high-temperature zones (e.g., near ovens), select devices with thermal cutouts or ceramic bases. Test all connections under load for at least 15 minutes before finalizing the setup–voltage drops or overheating indicate loose terminals or undersized conductors.
Understanding Control Path Schematics for Power Systems
Begin by identifying the power source and load components before sketching the control path. Use a multimeter to verify voltage levels at key points–input terminals should match the supply rating (e.g., 120V AC for residential setups, 24V DC for low-voltage systems). Label each conductor with its function: live (hot), neutral, or ground, using color-coded wiring (black/red for live, white for neutral, green/yellow for ground) to prevent misconnections.
For single-pole control paths, place the activation mechanism between the power source and the appliance. A double-pole variant should isolate both live and neutral lines for safety. Below is a comparison of common configurations:
| Configuration | Use Case | Advantages | Limitations |
|---|---|---|---|
| Single-Pole | Basic on/off control | Simple wiring, low cost | No neutral isolation |
| Double-Pole | High-power devices | Full circuit isolation | Complex wiring |
| Three-Way | Multi-location control | Flexible access points | Requires traveler wires |
Ensure the activation device’s current rating exceeds the load’s maximum draw. For inductive loads (e.g., motors, transformers), add a snubber network–typically a resistor-capacitor pair (e.g., 100Ω + 0.1µF)–across the terminals to suppress voltage spikes. Failing this, premature wear or arc faults may occur.
Mount components on a non-conductive panel (e.g., phenolic or fiberglass) and secure with strain relief clamps to prevent wire fatigue. For enclosed setups, use weatherproof junction boxes (NEMA 4X) and seal gaps with silicone to block moisture ingress. Test continuity with a megohmmeter (>1MΩ between conductors) before energizing.
For dimming or speed control, replace binary activators with solid-state modules (e.g., TRIAC-based for AC, MOSFET for DC). Wire these downstream of the main protector, ensuring the module’s voltage/current specs align with the connected device. Follow manufacturer torque specs when tightening terminals–over-tightening deforms threads, while under-tightening risks loose connections.
Troubleshooting Common Issues
If the path fails to complete, check for open circuits using a test lamp. Start at the protector: probe both terminals–if lit, the issue lies downstream. For intermittent operation, inspect for loose crimps or oxidized contacts; clean with a wire brush and reapply antioxidant paste. Replace defective activators if resistance exceeds 5Ω when engaged.
Decoding Fundamental Control Device Symbols in Schematics

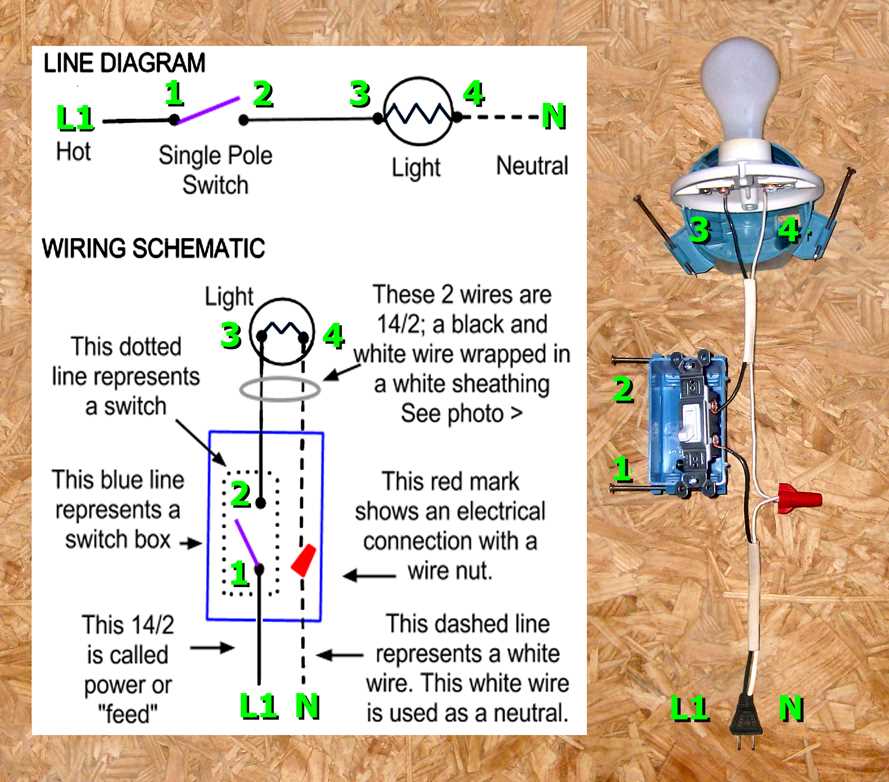

Start by identifying the most common toggles: a simple break in the line with two terminals represents a single-pole, single-throw (SPST) activator, while a line branching into two paths indicates a single-pole, double-throw (SPDT) variant. The SPST cuts or completes one path, whereas the SPDT reroutes current between two outputs–look for a lever or arrow marking the movable contact. Dual-pole configurations show parallel lines, each with their own breaks; these handle separate pathways simultaneously, doubling the isolation.
The presence of a dotted or dashed line around symbols hints at mechanical linkage between multiple devices, meaning their states change in unison. Watch for auxiliary features like spring-loaded contacts (depicted by a curved line next to the lever) or normally closed (NC) vs. normally open (NO) positions; NC closes the path when unactuated, while NO remains open until triggered. Color-coding isn’t standardized, but some schematics use red for NO and blue for NC–always cross-reference with the legend if available.
For momentary actuators, a small “T” perpendicular to the contact line distinguishes push-button types from maintained toggles; these revert to their default state when released. Multi-position selectors display rotary contacts as arcs or circles with tap points, while relays add a coil symbol (a rectangle with internal lines) near the switch to indicate electromagnetic operation. Commit core shapes to memory: circles for buttons, rectangles for relays, and zigzags for resistors–this baseline accelerates recognition in complex layouts.
How to Install a Basic Control for a Single Light Fixture
Cut the power at the breaker before handling any wires. Verify absence of voltage with a non-contact tester–hold it near each conductor to confirm. Strip 1/2 inch of insulation from the ends of the hot (black) and neutral (white) conductors if they aren’t already exposed. For a standard toggle device, connect the incoming hot wire to the brass-colored terminal screw on the side marked “common” or “line.” Loop the wire clockwise around the screw to ensure tight contact when tightened. The outgoing hot wire to the luminaire attaches to the remaining brass terminal–loop and secure it identically.
Ground Connection and Mounting
Join the bare copper or green ground wires together using a wire nut–wrap the nut clockwise until snug, then tug each wire to test security. If the device has a green grounding screw, attach one ground wire to it before joining the bundle. Position the mechanism into the junction box so no bare conductors are exposed outside the insulated housing. Secure it with the provided mounting screws, ensuring it sits flush against the wall. Fold excess wire back into the box neatly, avoiding sharp edges that could damage insulation.
Restore power at the breaker once the cover plate is installed. Toggle the device to confirm the luminaire turns on and off reliably. If flickering occurs, recheck wire connections–loose terminals are the most common failure point. For rooms with moisture exposure (bathrooms, basements), use a cover plate rated for wet locations to prevent corrosion of internal contacts over time.
Common Pitfalls in Multi-Location Control Setups
Reversing the traveler wires between the auxiliary and main controllers causes the system to function unpredictably–lights may toggle correctly from one position but fail from another. Test continuity with a multimeter before securing connections; mismatched terminals often lead to intermittent failures or complete inoperability. Label each conductor during disassembly to prevent confusion during reassembly, especially in older installations with faded or missing markings.
Incorrect neutral handling ranks as a critical error. Some configurations require a shared neutral for both controllers, while others mandate separate returns–consult the manufacturer’s wiring guidelines for the specific model. Omitting grounding or connecting it to a terminal designed for load output creates safety hazards, including potential shock risks or fire damage in damp environments. Always verify the load capacity of the control devices against the fixture’s wattage; exceeding limits degrades performance and shortens lifespan.
Determining Power Needs for Control Mechanism Layouts
Start by measuring the maximum current draw of each connected device in amperes (A). For resistive loads like incandescent bulbs, use the formula: P = I × V, where P is power in watts (W), I is current, and V is voltage. Most household appliances list their power rating on labels–sum these values, then divide by the system voltage (typically 120V or 240V) to find the total current. Add a 20% safety margin to prevent overheating; for example, a 15A nominal load should use a 18A rated component.
For inductive loads (motors, transformers), account for inrush current, which can exceed steady-state draw by 5–10×. Check manufacturer specifications–some list both running and starting amps. Use these guidelines:
- Motors ≤1 HP: Assume 6× steady-state current for 0.5 seconds.
- Motors >1 HP: Use 8–10× for 1–3 seconds.
- Electronic ballasts: 1.5× steady-state current.
Select a control device with a current rating at least 125% of the sum of all inductive inrush values. For mixed loads, use the higher multiplier between resistive and inductive calculations.
Verify voltage drop across the entire path–especially for long wire runs. The formula VD = 2 × L × I × R / 1000 (where L is wire length in feet, I is current, R is resistance per 1000 feet) gives drop in volts. Aim for ≤3% drop; for 120V systems, this means ≤3.6V. Use thicker gauge wires (e.g., 12 AWG instead of 14 AWG) if calculations exceed this threshold. Below is a quick reference for copper wire:
- 14 AWG: 2.5Ω/1000 ft at 75°C
- 12 AWG: 1.6Ω/1000 ft at 75°C
- 10 AWG: 1.0Ω/1000 ft at 75°C
