Begin by isolating temperature gradients at different altitudes–specifically the lapse rate–when assessing how air masses interact. A vertical profile graph with data points at 50-meter intervals reveals critical transitions where rising parcels either accelerate or stall. Use dry adiabatic (1°C per 100m) and moist adiabatic (0.6°C per 100m) reference lines as benchmarks; deviations from these indicate turbulence or stratification.

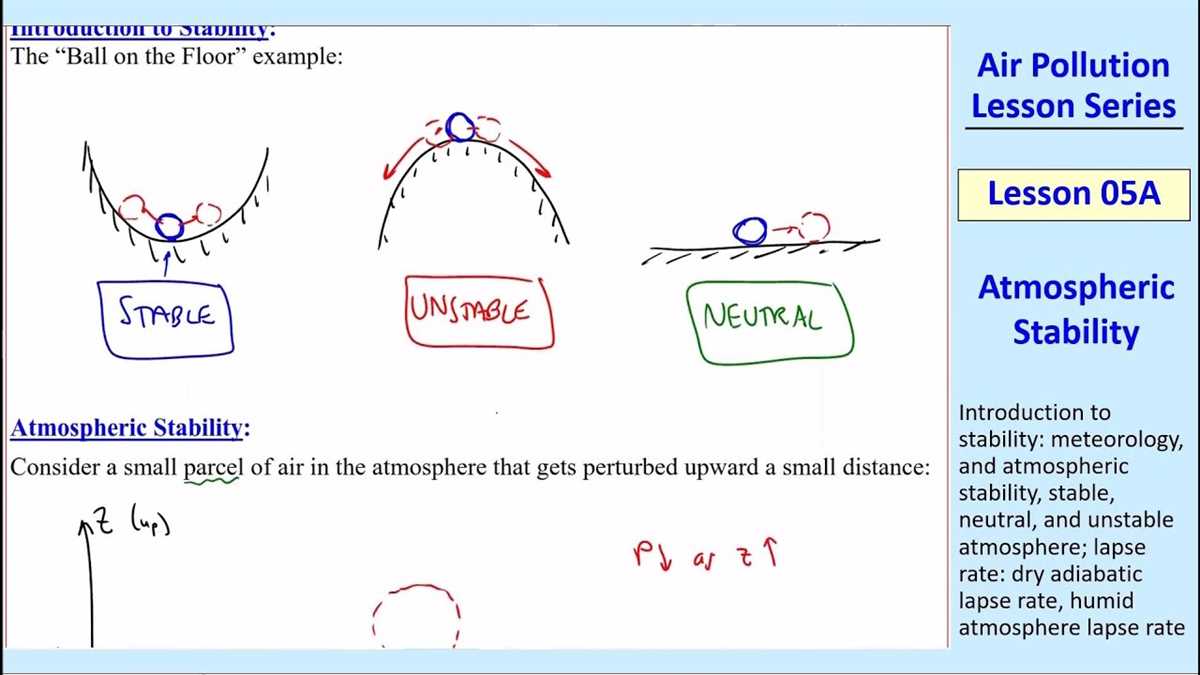

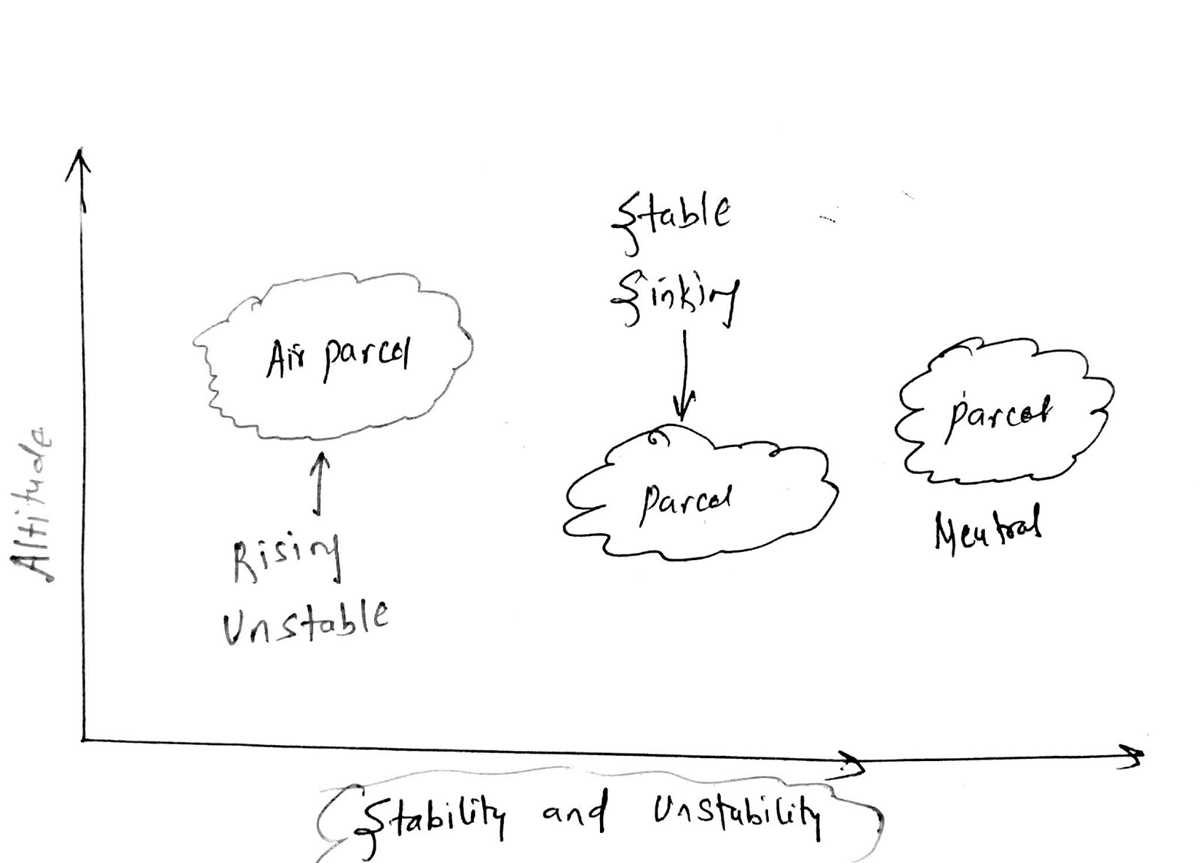

Critical thresholds appear where the environmental lapse rate intersects these adiabats. When the observed rate exceeds the dry adiabat, expect unstable conditions–convective uplift dominates, often forming cumulus clouds or thunderstorms. Conversely, if the observed rate is less than the moist adiabat, the layer resists vertical motion (stable), likely trapping pollutants or fog near the surface. Mark these zones with distinct shading on your plot.
Inversions demand particular attention. A temperature increase with height (negative lapse rate) creates a capping effect, suppressing dispersion. Measured inversions below 500m correlate with poor air quality in urban areas; track their depth and intensity using radiosonde data. For operational forecasting, overlay wind shear vectors: crosswind components >5 m/s per 100m often disrupt layered stability, introducing mixing.
Classify stability states using the Pasquill-Gifford scale (A-F). Categories A (extremely unstable) and F (very stable) correspond to lapse rates >1.5°C/100m and
For rapid assessment, deploy a sling psychrometer at two heights (e.g., 1m and 4m). A dew point spread difference >2°C between heights signals stable stratification; equal spreads favor mixing. Cross-verify with surface heat flux data: positive values (upward heat flow) align with unstable states, while negative values confirm trapping layers. Use these metrics to adjust dispersion models for accuracy.
Visualizing Air Layer Behavior: Key Patterns

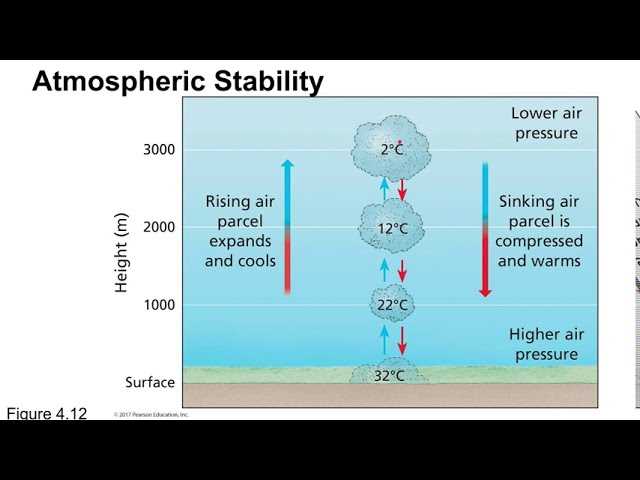

Start by sketching a vertical profile with temperature on the x-axis and altitude on the y-axis. Plot three distinct curves: dry adiabatic lapse rate (DALR), moist adiabatic lapse rate (MALR), and environmental lapse rate (ELR). The DALR shows a consistent 9.8°C per 1000 meters, while the MALR varies between 4-7°C depending on humidity. Compare these to the ELR–when ELR lies between DALR and MALR, conditions favor trapped vertical movement, suppressing turbulence. For accurate analysis, use radiosonde data at 00:00 and 12:00 UTC to capture diurnal shifts.
Label critical zones: absolute instability emerges when ELR exceeds DALR, creating plume-like updrafts; conditional occurs between DALR and MALR, requiring saturation triggers. Inversions–where temperature rises with height–form stable “lids” (e.g., nocturnal radiation inversions at
Practical Application for Forecasting
Use this framework to predict pollutant dispersion: stable layers (inversions) concentrate contaminants within 200-500m, while unstable profiles (ELR > DALR) disperse them above 1500m. Overlay wind vectors–shear turbulence dominates >10m/s at inversion tops. For aviation, mark clear-air turbulence zones where ELR steepens abruptly (typical near jet streams). Test your chart against METAR reports: a sudden dew point drop with height signals dry-air entrainment, confirming stable stratification.
Core Elements of a Vertical Profile Illustration
Begin by plotting the temperature lapse rate as the primary vertical axis, ranging from surface level to the tropopause. Use 6.5°C per kilometer as the standard reference for a neutral profile, with deviations marking unstable (steeper) or inversive (shallower) conditions. Indicate key altitudes–ground, 850 hPa, 500 hPa–where gradient shifts influence plume behavior. Annotate critical thresholds: dry adiabatic lapse rate (9.8°C/km) for unsaturated air and moist adiabatic lapse rate (~5°C/km) for saturated layers. Include wind speed isotachs at 30-meter intervals to visualize shear effects on pollutant dispersion.
Meteorological Layer Annotations
Overlay boundary layer depth using radiosonde-derived mixing height data, typically extending 1–2 km above ground under sunny conditions but collapsing below 500 meters at night. Mark turbulence intensity zones with dashed lines: “mechanical” near the surface (0–200 m), “convective” during daytime heating (200–1500 m), and “residual” above. For inversions, specify types–radiation (clear nights), frontal (warm air advection), or subsidence (high-pressure systems)–using color-coded bars. Add relative humidity contours at 20% intervals to highlight saturation points where fog or cloud formation alters stability.
Integrate plume rise equations (e.g., Briggs’ formula) by depicting buoyant column trajectories for point-source emissions. Calculate terminal rise height using: ΔH = 1.6 * F^(1/3) * u^(-1) * x^(2/3) for neutral conditions, where F = buoyancy flux (m⁴/s³) and u = wind speed (m/s). Superimpose three scenarios–looping (unstable), coning (neutral), and fanning (inversion)–with labeled dispersion coefficients (σ_y, σ_z) derived from Pasquill-Gifford classifications. Include temperature anomaly profiles from microwave radiometer data to validate model predictions.
How to Interpret Lapse Rate Curves in Vertical Profile Charts
Start by comparing the environmental temperature gradient against the dry adiabatic rate (DAR) of 9.8°C per 1000 meters and the moist adiabatic rate (MAR), which averages 6°C per 1000 meters but varies with humidity. A curve steeper than the DAR indicates an unstable layer–air parcels accelerate upward once displaced. If the curve aligns closely with the MAR, the layer is conditionally unstable, requiring saturation to trigger vertical motion. Flat or inverted sections reveal stable layers, suppressing turbulence.
Identify critical altitudes where curves intersect key reference lines:
| Intersection Type | Implication | Typical Altitude Range |
|---|---|---|
| DAR cross | Free convection onset | 1500–3000 m |
| MAR cross | Cloud development threshold | 500–2000 m |
| Inversion layer | Pollution trapping, suppressed mixing | Surface–1200 m |
Use skew-T log-P charts for precise analysis: plot the rawinsonde data alongside the reference adiabats, noting deviations greater than 2°C as significant. For operational use, flag layers where the gradient exceeds 11°C/km (absolute instability) or remains within 2°C/km of the MAR for prolonged stretches (conditional instability).
Building a Layered Air Flow Classification Chart
Begin with a vertical axis marked in 100-meter increments (0–1500 m) to represent altitude. Label each segment with temperature lapse rates: dry adiabatic (9.8°C/km), moist adiabatic (~5°C/km), and inversion conditions (≥0°C/km). Plot these lapse rates as distinct colored lines–solid for dry, dashed for moist, and dotted for inversion–against the altitude grid. Overlay observational data: radiosonde profiles at 00Z and 12Z, and surface wind speeds in 2 m/s bins (0–2, 2–4, 4–6 m/s) as horizontal bars at the base. Use symbols–triangles for daytime solar radiation (strong/weak/none), circles for nighttime cloud cover (clear/partial/overcast)–to denote modifying factors. Cross-reference the lines and symbols to assign Pasquill-Gifford classes (A–G) via the intersection of lapse rate, wind speed, and insolation/cloudiness.
- Measure ambient temperature at 2 m and 200 m using calibrated thermistors (±0.1°C accuracy). Calculate the actual lapse rate: (T₂₀₀m – T₂m) / 198 m. Compare against the plotted standards to determine proximity to neutral, unstable, or stable stratification.
- Record wind speed at 10 m with a 3-cup anemometer (averaged over 10-minute intervals). Apply logarithmic wind profile corrections for roughness length (z₀ = 0.1 m for grassland; z₀ = 1.0 m for urban areas): u(z) = u₁₀ * [ln(z/z₀) / ln(10/z₀)]. Adjust symbols to reflect corrected speeds.
- Classify daytime solar radiation using a pyranometer (W/m²): strong (>800), weak (100–800), none (2 km), partial (base 1–2 km), overcast (base
- Match the highest-resolved lapse rate segment with wind speed and modifier symbols to assign the final class. Example: dry adiabatic lapse + 3 m/s wind + strong insolation = Class B (highly turbulent). Validate with on-site turbulence measurements (sonic anemometer ε > 0.1 m²/s³ for Class A; ε
Common Errors in Vertical Air Layer Plotting
Assigning incorrect lapse rates to inversion layers ranks as the most frequent mishap–mixing dry adiabatic (9.8°C/km) with environmental values or mislabeling nocturnal radiative cooling as 15°C/km when actual measurements rarely exceed 5°C/km. Always cross-check rawinsonde data against local diurnal cycles; urban heat islands can suppress inversions by 2-3°C, while rural sites typically show sharper gradients. Overlooking humidity effects compounds the error: wet-bulb temperature drops at 6°C/km in saturated air, not the standard dry rate.
Avoid plotting wind shear discontinuities at arbitrary altitudes–most models default to 500m intervals, yet boundary layer transitions often occur at 100-200m near urban canopies. Verify shear layers against lidar backscatter profiles; a 0.5m/s velocity jump between 120m and 180m signals mechanically driven mixing, not ambient stratification. Ignoring terrain slopes distorts profiles further: a 5° incline reduces effective inversion depth by 30%, requiring elevation-adjusted lapse rate corrections in hilly regions.
