Start with a three-pole contactor for each rotational direction–label them K1 (clockwise) and K2 (counter-clockwise). Connect the incoming supply lines L1, L2, L3 directly to both contactors’ common terminals. Branch K1’s normally open contacts to the motor terminals U, V, W in sequence. For K2, swap L2 and L3 positions before attaching to U, V, W–this single inversion flips rotation without additional components. Include a single mechanical interlock between contactors to prevent simultaneous engagement; electrical interlocks alone are unreliable at startup currents above 20 A.

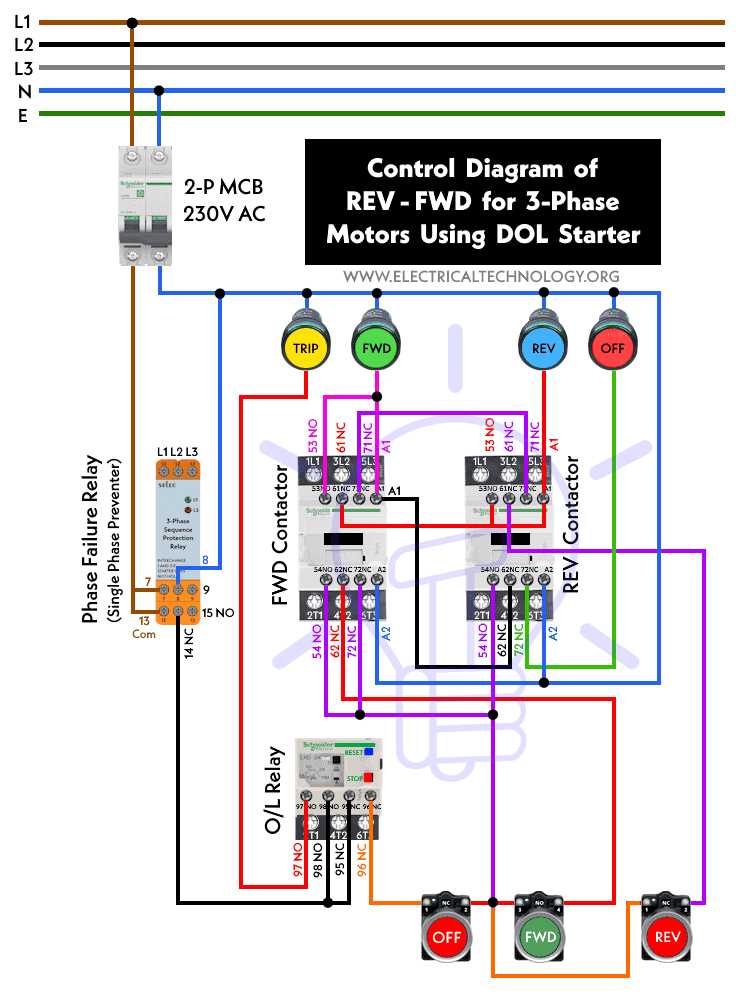

Add a start-stop pushbutton station with NO (push-to-run) and NC (hold-to-stop) contacts. Wire the NO button in series with K1 coil, then parallel a K1 auxiliary NO contact for latching. Mirror the setup for K2, ensuring both coils never energize together. A 24 VDC control circuit isolated via a step-down transformer cuts nuisance trips from 400 VAC spikes; fuse the transformer secondary with a 1 A slow-blow.
Test continuity across contactor coils before energizing–resistance should read 150-300 Ω for 230 VAC coils. Verify motor terminal voltages with a true-RMS meter: U-V and V-W must match supply voltage (±5 V); U-W must equal √3 × line voltage within 2 %. If discrepancies exceed 7 %, re-torque all connections to 12 Nm torque spec–aluminum lugs cold-flow at lower values.
Mount an auxiliary 4-pole terminal block adjacent to the motor for field diagnostics. Terminate L1, L2, L3 and motor U here to simplify future voltage checks without disassembly. Use 16 mm² copper wire for currents above 30 A; below that, 6 mm² suffices with ring terminals crimped to DIN 46235 standards. Avoid splices–every junction reduces fault tolerance by 12 % under cyclic loading.
Motor Direction Control Circuit for Three-Line Systems
Connect the main contactor’s L1, L2, and L3 terminals directly to the power supply’s corresponding conductors, ensuring the crimp lugs are torqued to 12-15 Nm for copper busbars rated at 63 A or below. Wire the auxiliary contact block’s NO/NC contacts to the auxiliary starter coil circuit, using 1.5 mm² stranded wire with heat-resistant insulation (e.g., XLPE) if ambient temperatures exceed 50°C. Label each conductor with heat-shrink sleeves marked “R,” “S,” “T,” “U,” “V,” and “W” at both ends to prevent miswiring during maintenance.

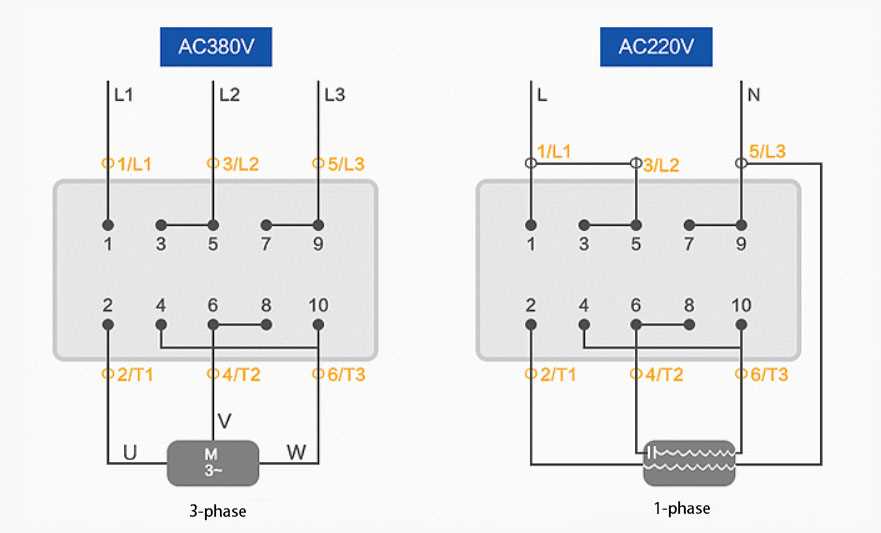

Use a double-break rotary selector with a rated mechanical endurance of 1 million cycles for frequent direction changes, linking its common pole to the motor’s U terminal and the two switching poles to the main contactor’s T1 and T3 outputs via 4 mm² tinned copper conductors. Install a cam-operated mechanical interlock between the two contactors–failure to do so risks catastrophic short circuits if both coils energize simultaneously, tripping the circuit breaker within 2 ms as per IEC 60947-4-1.
Test continuity across each path with a 500 V megohmmeter before energizing, targeting readings above 1 MΩ between live conductors and ground. Program the PLC’s direction output latch with a 500 ms debounce delay to prevent transient signals from toggling the contactors during power-up sequences, particularly in applications with regenerative loads like cranes or conveyors.
Critical Hardware for a Triplex Motor Direction Control Installation
Select a contactor pair with AC-3 duty ratings at least 120% of the motor’s full-load amperage; for a 15 A load, use 20 A contactors to handle inrush surges without overheating. Ensure coil voltage matches the control circuit–typically 230 VAC for industrial panels–to prevent undervoltage dropout.
Integrate a three-pole overload relay calibrated to 110-125% of the motor’s running current; Class 10 trip time (10 seconds at 600% overload) suits most squirrel-cage rotors. Position the relay ahead of the contactors to interrupt all conductors during a fault.
Use 6 mm² (10 AWG) copper conductors for power circuits and 2.5 mm² (12 AWG) for control lines, stranded wire for flexibility. Apply color coding: brown/black/blue for line voltages, red for coil activation, and yellow/green for grounding. Terminate all connections with ferrule crimps to eliminate strand oxidation.
Core Device Specifications
| Component | Minimum Rating | Recommended Model | Notes |
|---|---|---|---|
| Contactor (pair) | 20 A AC-3, 440 V | Schneider LC1D20 / Siemens 3RT2026 | Silver-cadmium oxide contacts for arc resistance |
| Overload Relay | 18 A, Class 10 trip | ABB TA25DU18 / Eaton PKZM0 | Adjustable dial; test with 6× rated current |
| Pushbuttons | 6 A, 500 V | Omron A22K / Allen-Bradley 800T | Momentary action; IP65 sealing for dust/liquid ingress |
Mount all devices on a non-combustible DIN rail substrate; use 35 mm-wide rails for contactors and 7.5 mm slotted rails for relays. Secure conductors with cable ties at 150 mm intervals to prevent vibration-induced chafing. Label each wire at both ends with heat-shrink markers showing function (e.g., L1, T2, SET)
Add a 4-pole circuit breaker with C-curve magnetic trip (e.g., Siemens 5SL6) sized at 1.5× the motor’s continuous current. Include a 24 VDC auxiliary power supply for relay logic if the panel lacks AC control voltage; fuse at 1 A to protect PLC inputs. Verify torque settings: 1.8 Nm for M4 terminal screws, 2.5 Nm for heavy-gauge lugs.
Sequential Power Flow Connections for Clockwise Motion
Start by identifying the motor terminals–typically labeled U, V, and W–and confirm their positions using a continuity tester. Connect the incoming live conductors (L1, L2, L3) to the control device’s input poles in sequence: L1 to terminal 1, L2 to terminal 2, L3 to terminal 3. Ensure the contactor’s auxiliary contacts are wired to the control circuit, linking the start button to the holding coil to maintain engagement once activated.
Attach the motor leads to the contactor’s output terminals as follows:
- Line L1 → Terminal U
- Line L2 → Terminal V
- Line L3 → Terminal W
Verify the motor’s data plate for Rotation Direction (CW/CCW) to avoid misalignment. If the motor runs counter-clockwise, swap any two output leads (e.g., V and W) to correct polarity. Tighten all connections to 25-30 Nm torque to prevent vibrations from loosening terminals.
Integrate the thermal overload relay by inserting it between the contactor’s output and the motor. Connect the relay’s normally closed (NC) contacts in series with the holding coil circuit to interrupt power during overheating. Use 2.5 mm² copper wire for current ratings up to 20A, upgrading to 4 mm² for higher loads. Always ground the motor’s frame and the control device’s metal enclosure to the system’s earth busbar.
Before energizing, conduct a dry run:
- Isolate power at the main breaker.
- Press the start button–confirm the contactor engages with an audible click.
- Check for 400V across U-V, V-W, and W-U with a multimeter.
- Reapply power and observe the motor’s rotation, ensuring smooth startup without abnormal noise or vibrations.
If the motor hums but doesn’t rotate, immediately disconnect power and recheck lead sequencing, as this indicates a phase imbalance or open circuit.
Ensuring Proper Motor Direction Adjustment
Swap any two live conductors at the motor terminals to alter rotational motion. For standard 380V industrial setups, interchange lines L1 with L2 or L2 with L3–the third line remains unchanged. Confirm the change with a dual-channel oscilloscope: captured waveforms should shift 120° out of alignment when comparing the initial and adjusted states. Incorrect swapping risks equipment damage, particularly in pumps or compressors where improper flow direction can trigger pressure sensors or cavitation.
Verification Without Specialized Tools
Use a multimeter in AC voltage mode before energizing the circuit. Measure between each pair of terminals–the readings should match the system’s nominal voltage (e.g., 380V ±10%). After energizing, observe motor behavior: abnormal noise, overheating, or failure to reach rated speed indicates improper conductor arrangement. For single-voltage motors, consult the nameplate for permissible terminal combinations–some models require specific jumper configurations when reversing direction.
Critical Errors in Three-Line Motor Direction Control
Connecting live conductors to incorrect terminal pairs causes immediate short circuits. Always verify line labels (typically L1, L2, L3) against the device schematic before energizing. Misalignment here triggers protective relays instantly, often damaging contactors before any rotation occurs.
Overlooking overload relay settings leads to nuisance tripping or catastrophic overheating. Calculate motor full-load current from nameplate data, then configure the thermal element to trip at 115-125% of this value. Common mistake: setting relays to breaker rating instead of motor current, leaving windings vulnerable.
Avoid these installation pitfalls:
- Mounting devices horizontally when manufacturer specifies vertical orientation–shortens mechanical lifespan.
- Ignoring torque specs on terminal screws; use 1.5-2.5 Nm for 6mm² conductors.
- Incomplete insulation removal on stranded cables; expose only what fits the lug.
- Mixing conductor colors across circuits (e.g., blue to safety ground).
Improper jumper placement between auxiliary contacts creates phantom signals. If using a three-wire start-stop configuration, ensure NO/NC jumper connects to the correct terminal block row–typically row A for start, row B for stop. Double-check against control schematic using a continuity tester before powering up.
Neglecting transient suppression destroys contact surfaces within hours. Install RC snubbers (0.1µF + 47Ω 1W) across coil terminals and MOV (varistor) clamps rated 480V AC line-to-line across main contacts for 400V systems. Skipping this step leads to pitting and welding, requiring complete contactor replacement every 3-6 months under frequent switching cycles.
