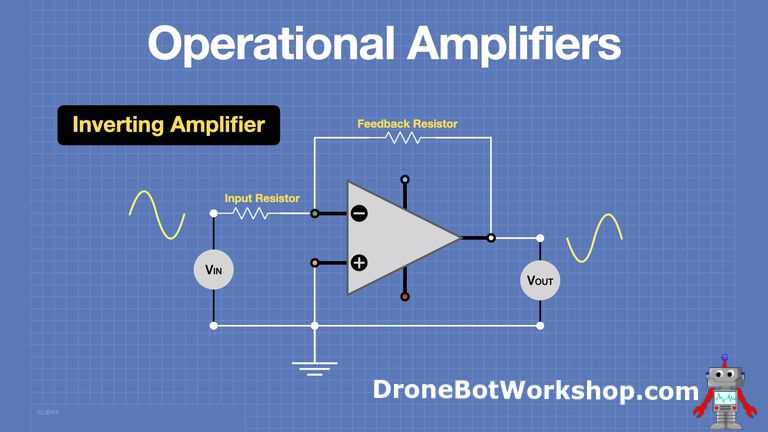

The core of any voltage-flipping configuration hinges on precise resistor placement and ratio selection. For a standard single-stage reversal unit, connect the feedback resistor between the output and the negative input terminal while grounding the positive input. A 10 kΩ input resistor paired with a 100 kΩ feedback resistor yields a tenfold gain inversion with minimal phase shift up to several hundred kilohertz. Adjust these values proportionally to scale gain while maintaining stability–values below 1 kΩ risk loading effects, whereas ratios exceeding 100:1 may introduce unwanted noise amplification.
To ensure linear operation, use a dual-supply voltage within ±5 V to ±15 V of the component’s rated range; single-supply designs require a virtual ground at half the supply voltage. Bypass capacitors (0.1 µF ceramic) placed within 5 mm of the power pins suppress high-frequency oscillations. For transient response improvements, add a small compensation capacitor (1–10 pF) in parallel with the feedback resistor. Avoid tantalum capacitors in critical paths–their high equivalent series resistance degrades frequency performance.
When prototyping, verify the input impedance of the reversal stage meets source requirements; a high-impedance sensor (e.g., a photodiode) pairs well with a 1 MΩ input resistor, whereas low-impedance sources (e.g., audio signals) benefit from 1–10 kΩ inputs to prevent signal attenuation. For mixed-signal applications, shield analogue traces from digital clock lines to reduce crosstalk–separate ground planes and minimizes return paths.
Key Components of a Negative Gain Signal Processor Layout
Begin by placing a precision voltage follower at the non-inverting terminal–ground it directly to eliminate common-mode errors. For the feedback network, choose resistors with a tolerance of 1% or tighter: a 10 kΩ input resistor paired with a 100 kΩ feedback resistor delivers a gain of –10, while minimizing thermal drift. Ensure the input resistor’s value equals the equivalent impedance of the signal source to prevent loading effects; mismatch here degrades linearity by up to 2% even with ideal components.
Critical Layout Practices
Route the feedback path as a continuous trace, avoiding vias and sharp corners that introduce parasitic capacitance–keep the trace width at least 0.5 mm and maintain a 2 mm clearance from digital lines to suppress coupling. Decouple the power pins with 0.1 µF ceramic capacitors placed within 5 mm of the device; add a 10 µF tantalum capacitor 20 mm away for low-frequency stability. Ground the bypass capacitors via thick traces (1.5 mm minimum) to a dedicated analog ground plane, separated from digital return paths to prevent switching noise from modulating the output.
Test for slew-rate limitations by applying a 1 Vpp, 10 kHz sine wave; an ideal gain stage will settle within 1 µs with less than 5 mV overshoot. If ringing exceeds 10%, reduce the feedback resistor by 20% or insert a 22 pF capacitor in parallel to the resistor to dampen high-frequency poles. For rail-to-rail output devices, verify the input common-mode range extends to within 1.5 V of either supply–exceeding this window collapses the gain to unity and introduces crossover distortion up to 30 mV peak-to-peak.
Key Components and Their Roles in the Signal-Reversal Gain Stage
Select a precision feedback resistor with a tolerance of 1% or better to minimize gain drift–values between 10 kΩ and 100 kΩ strike the best balance between noise immunity and input loading. Pair it with an input resistor whose ratio precisely defines the closed-loop voltage magnification factor; for instance, a 10 kΩ input resistor matched with a 100 kΩ feedback resistor delivers a gain of -10, ensuring both predictability and repeatability.
The signal input resistor must withstand the full input voltage swing without saturating, typically requiring a power rating of ¼ W or higher for most low-frequency applications. For high-impedance sensors, reduce its value to below 1 kΩ to prevent excessive loading, while for low-impedance sources, aim for 10 kΩ or above to avoid excessive current draw that could distort the source signal.
Power Supply and Decoupling Essentials
Bypass each power rail with at least two ceramic capacitors–one 0.1 µF placed as close as possible to the chip’s supply pins to filter high-frequency noise, and another 10 µF electrolytic or tantalum capacitor positioned a few millimeters away for low-frequency stability. Dual-supply configurations demand symmetric rails (±5 V to ±15 V); exceeding ±18 V risks internal junction breakdown, while voltages below ±3 V degrade linearity.
Grounding paths should converge at a single point near the feedback network to prevent ground loops; any stray inductance between the ground reference and the chip’s negative pin will introduce parasitic oscillations. For breadboard setups, use short, thick wires (22 AWG minimum) to reduce resistance-induced errors, especially at high gains where even milliohm variations skew performance.
Stability and Compensation Techniques
Place a small capacitor (1–10 pF) in parallel with the feedback resistor to dampen high-frequency phase shifts; this compensates for the internal pole of the active element and prevents ringing, though excessive capacitance reduces bandwidth. If overshoot exceeds 5% on step responses, iteratively increase this value in 1-pF increments until transient behavior stabilizes.
For unity-gain configurations, ensure the feedback resistor equals the input resistor (e.g., 10 kΩ both) to maintain -1 gain, but add a 22 pF compensation capacitor across the feedback resistor to counter the increased phase margin vulnerability. Verify stability by applying a 1 kHz square wave at 1 Vpp–output settling time should remain under 5 µs with no visible overshoot past 2%.
Thermal drift dominates long-term errors; choose metal-film resistors for the input and feedback networks to hold temperature coefficients under 50 ppm/°C. Avoid carbon-composite resistors, which exhibit coefficients above 200 ppm/°C and introduce nonlinearities under 0.1% of the nominal gain–critical in instrumentation where 1 mV accuracy is required.
Step-by-Step Assembly of the Signal Modifier on a Prototype Board
Begin by placing the voltage converter IC into the center of the board, ensuring pin 1 aligns with the marked notch or dot. Connect the non-inverting input (pin 3) to the reference node using a 10 kΩ resistor, then ground this node with a direct wire to the negative rail. For the feedback path, attach a 100 kΩ resistor between the output (pin 6) and the inverting input (pin 2); this sets the gain ratio. Insert a 1 kΩ resistor from the input signal source to pin 2–verify the component values against the chosen gain requirement before proceeding. Use short, straight jumper wires to minimize parasitic capacitance and loop area.
| Component | Value | Board Node |
|---|---|---|
| Resistor (input) | 1 kΩ | Between signal source and pin 2 |
| Resistor (feedback) | 100 kΩ | Between pin 6 and pin 2 |
| Resistor (reference) | 10 kΩ | Between pin 3 and ground |
| Capacitor (decoupling) | 0.1 µF | Between positive and negative supply rails, near IC |
Power the rails with ±12 V from a dual supply or battery pack, confirming polarity with a multimeter (red probe to positive, black to negative). Route the positive lead to the top bus and the negative lead to the bottom bus. Bridge the IC’s positive supply pin (pin 7) to the top bus and the negative supply pin (pin 4) to the bottom bus using jumper wires. Add a 0.1 µF ceramic capacitor across the supply pins to filter noise–place it within 2 cm of the IC for best results. Apply the input signal only after verifying all connections with a continuity tester to avoid damaging the components.
Calculating Resistor Values for Targeted Signal Scaling and Source Matching
Begin by defining the required voltage ratio (Av) between output and input. For a standard feedback configuration, Av equals the negative ratio of feedback resistance (Rf) to input resistance (Rin): Av = -Rf/Rin. Prioritize standard resistor values from E96 or E48 series to minimize deviation from calculated specs. Example: for Av = -10 and Rin = 10 kΩ, Rf should be 100 kΩ; verify closest standard values 97.6 kΩ or 102 kΩ to stay within 2.4% tolerance.
Input loading directly impacts signal integrity–match Rin to the source’s internal resistance (Rs) for maximum power transfer or set Rin ≥ 10×Rs to reduce loading error. Higher Rin values decrease DC offset errors but raise thermal noise contributions. Balance trade-offs: choose Rin between 1 kΩ and 100 kΩ to keep noise under 10 nV/√Hz while preserving bandwidth. For low-level sensors (Rs ≤ 1 kΩ), amplify early with Rin ≅ Rs to maximize SNR.
Thermal Noise and Bandwidth Constraints
The noise gain (1 + Rf/Rin) scales proportionally with Rf; select physically smaller resistors to curb voltage noise (en ∝ √R). Favor metal-film resistors over carbon types–temperature coefficients below 50 ppm/°C ensure stability across -40°C to +125°C. Bandwidth rolls off at |Av|×GBW/π; for 1 MHz GBW and Av = -20, expect usable bandwidth ≲ 15.9 kHz. Adjust resistor pairs iteratively if phase margin dips below 45°.
Differential impedance balancing prevents common-mode drift: keep stray capacitance (Cstray) below 5 pF by maintaining symmetrical Rf-Rin trace lengths on PCB. If Cstray exceeds limit, add a small (5–20 pF) feedback capacitor to restore phase margin. For precision applications, pair a trimmer (5–20 kΩ) in series with Rf to null offset voltages down to 100 µV. Validate resistor ratios using 6½-digit DMM–the tolerance stack-up should not exceed 0.1% of target gain.
High-gain scenarios (>100) demand sub-1 kΩ resistor values to avoid slew-rate saturation. Example: Av = -200 with Rf = 200 kΩ and Rin = 1 kΩ risks clipping at inputs above 50 mV. Shorten Rf to 20 kΩ and increase Rin to 100 Ω–this preserves gain while boosting full-power bandwidth. Cycle power after soldering to prevent thermal EMF drift from influencing measurements.
