Step-by-Step Guide to Drawing a Blinking LED Schematic Circuit

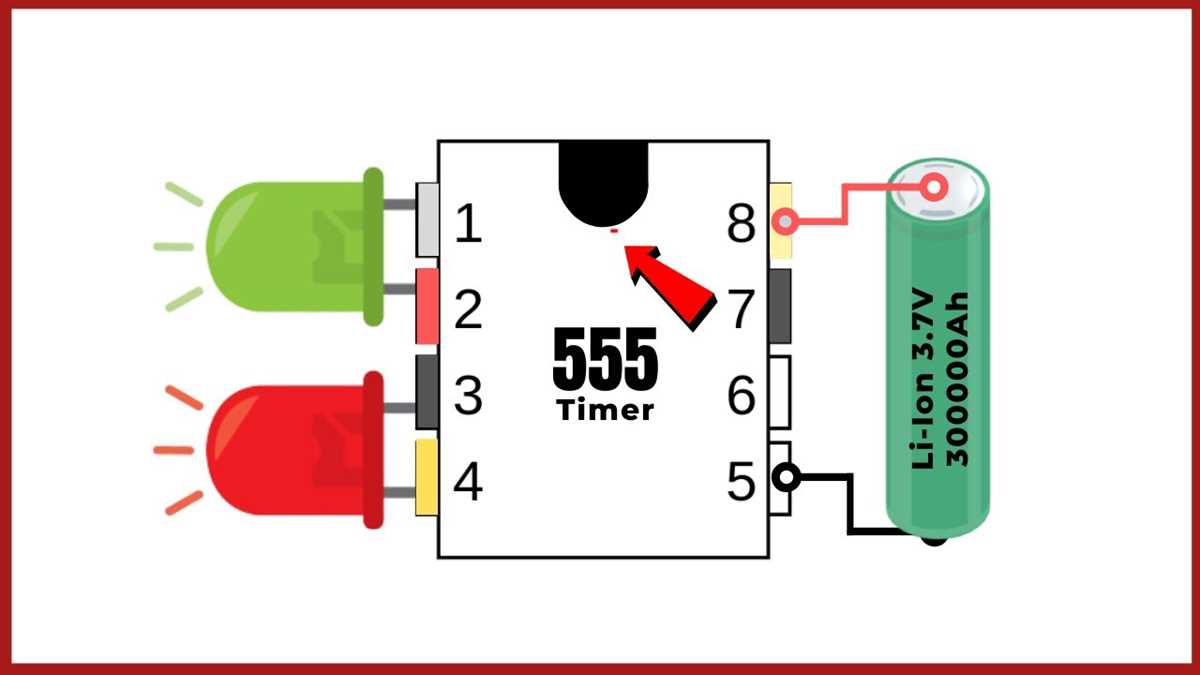

1 draw the schematic diagram of the blinking led

Begin with a microcontroller like ATtiny85 or STM32, selecting any GPIO pin rated for current up to 20mA–check the datasheet for precise limits. Connect a 220-470Ω resistor in series with the light-emitting component to prevent burnout; omit this only if the pin has built-in pull-down protection. For polarity-sensitive elements, ensure the anode (+) aligns with the pin’s output side, while the cathode (−) grounds through the resistor.

Set the chosen output line to low by default using `DDR` (data direction register) for AVR or `pinMode` in Arduino-compatible environments. Implement a state-toggle routine in software: alternate the line between high and low at intervals of 500-1000ms using `digitalWrite(HIGH/LOW)` or direct register manipulation (`PORTB ^= (1

For standalone operation without a programmer, add a reset circuit: a 10kΩ pull-up resistor on the reset pin plus a momentary push button to ground. Eliminate parasitic capacitance by shortening wiring runs and avoiding high-frequency switching near analog components. Test initial functionality under nominal voltage (3.3V–5V); brownouts below 2.7V require brown-out detection enabled in fuse bits.

Troubleshoot flicker or inactivity by confirming:

  • Resistor value doesn’t drop voltage below the diode’s forward threshold (typically 1.8V–3.3V).
  • Clock source matches configured fuse values–internal RC oscillators drift significantly.
  • Sleep modes disabled or properly configured, as they override GPIO outputs.

Measure current consumption during operation; excessive draw points to incorrect load calculations or floating inputs.

Creating a Circuit Layout for a Pulsing Indicator

Begin by mapping components on paper first: list a 555 timer IC, a 470Ω resistor, two 1kΩ resistors, a 10µF capacitor, a 100µF capacitor, and a standard light emitter. Arrange them in this sequence: connect the timer’s pin 8 to the positive rail, pin 1 to ground, pin 4 to the positive rail through a 1kΩ resistor, and pins 2 and 6 together linking to the negative rail via the 10µF capacitor. Join pins 2-6 to the positive rail with the second 1kΩ resistor. Attach the 470Ω resistor between pin 7 and the emitter’s anode, then ground the cathode directly. Add the 100µF capacitor across the emitter’s anode and cathode for smoothing.

Key Connections to Verify

  • Power rail voltage must match the IC’s requirements–5V for standard timers.
  • Shorting pins 2 and 6 enforces astable mode; confirm no stray solder bridges.
  • Emitter current should stay below 20mA; recalculate resistor if exceeding.
  • Polarity on both capacitors must align–reverse bias risks permanent failure.
  • Trace loops tightly to reduce noise; long leads distort pulse timing.

Transfer to a breadboard precisely: mirror each link with identical component placement. Power the circuit and measure pin 3’s output–expect a square wave between 0.5Hz and 2Hz if values match. Adjust the 10µF capacitor down to 1µF for faster flashes or up to 220µF for slower cycles. Secure connections with a multimeter before soldering final prototype.

Selecting Optimal Parts for a Pulsing Light Indicator Build

Opt for a microcontroller with low power consumption and sufficient GPIO pins. ATtiny85 operates at 1.8–5.5V, draws 200µA in active mode, and provides five I/O pins–ideal for compact designs. STM32L0 series lowers current to 130µA/MHz while offering timers for precise delay control. Avoid Arduino Uno if space is limited: its 16MHz ATMega328P consumes 10mA idle.

Match resistor values to your emitter’s forward voltage. A standard 5mm red GaAs diode drops 1.8–2.2V; pair with a 330Ω resistor at 5V for 10mA current, balancing brightness and longevity. Blue or white emitters require 3.0–3.6V, demanding 150Ω at 5V to prevent thermal runaway. Verify specs with a multimeter–tolerance swings of ±10% on resistors can shift current ±1mA.

Choose capacitors based on smoothing needs. A 10µF electrolytic across power input filters noise in breadboard prototypes, while tantalum types shrink footprint for PCB layouts. For MCU bypass, 0.1µF ceramic placed within 2mm of VCC/GND pins suppresses transients–critical when dimming via PWM.

Step-by-Step Microcontroller and Indicator Light Integration

1 draw the schematic diagram of the blinking led

Select a current-limiting resistor between 220Ω and 1kΩ based on the light-emitting component’s forward voltage (typically 1.8V–3.3V) and your microcontroller’s output pin drive strength (often 5V or 3.3V). A 470Ω resistor works reliably for most 5V setups with red or green indicators. Calculate exact values using Ohm’s law: R = (Vsupply – Vforward) / Idesired, where Idesired is 10–20 mA.

Connect the resistor’s first terminal directly to the microcontroller’s GPIO pin–avoid intermediate wiring to reduce stray capacitance. Solder or use a breadboard with short, thick traces (minimum 0.5 mm width) to handle momentary current spikes up to 30 mA without voltage drop. Polarity-sensitive emitters require alignment: the cathode (shorter leg, flat side) must face ground; reversing polarity risks permanent damage below 5V reverse voltage thresholds.

Verifying Power Delivery Before Signal Activation

Before enabling the GPIO, measure the supply rail with a multimeter: fluctuations exceeding ±5% indicate insufficient decoupling. Place a 0.1 µF ceramic capacitor as close as possible to the microcontroller’s power pins–this stabilizes transient loads during emitter switching. If the voltage dips below Vforward + 0.2V during initial tests, increase capacitor value to 1 µF or add a secondary 10 µF electrolytic for low-frequency noise suppression.

Program the microcontroller to toggle the pin at 0.5–2 Hz for visual confirmation without overheating the emitter. Use non-blocking delay functions (e.g., millis() in Arduino) to maintain responsive processing during toggling. Monitor the junction temperature with a thermal probe: sustained currents above 25 mA demand heatsinking–attach a small copper pad or thermally conductive adhesive to the emitter’s base if surface temperature exceeds 60°C.

Troubleshooting Erratic Behavior

If flickering occurs without programmed toggling, check for floating inputs by adding a 10 kΩ pull-down resistor to the GPIO pin. Oscilloscope readings should show sharp rise/fall edges (

Calculating and Positioning a Load-Protection Resistor for Indicator Circuits

Place a fixed-value resistor in series with your light-emitting component to prevent excess current flow. A typical red indicator requires 1.8–2.2 V forward voltage; most logic outputs supply 3.3–5 V. Subtract the diode’s drop from the supply level, then divide by 0.01–0.02 A–common target currents–to determine minimum resistance. Example: (5.0 V − 2.0 V) / 0.02 A = 150 Ω; round up to the nearest standard value, 160 Ω or 180 Ω.

Select carbon-film or metal-film resistors rated for ≥ ¼ W dissipation. Power dissipation equals current squared times resistance: 0.02 A² × 160 Ω ≈ 64 mW, well within ¼ W tolerance. Higher-wattage resistors add thermal mass without functional benefit.

  • Resistor leads connect cathode terminal of the emitter to ground line.
  • Alternative placement: link resistor from power rail to anode, cathode directly to ground–ensures identical current limiting.
  • Avoid paralleling multiple diodes without individual resistors; slight voltage differences cause uneven brightness.

Omitting the resistor invites immediate failure–forward current spikes beyond 20 mA melt bond wires inside standard 3 mm or 5 mm indicators. Peak pulsed current should never exceed 100 mA, even briefly.

Reference E12 or E24 series standard values: 100 Ω, 120 Ω, 150 Ω, 180 Ω, 220 Ω, 270 Ω, 330 Ω, 470 Ω, 560 Ω, 680 Ω, 820 Ω. Use the closest match ≥ calculated minimum.

Variable brightness demands: integrate a potentiometer; first resistor still mandatory to protect the adjustable element. Example: 100 Ω fixed + 1 kΩ potentiometer in series yields 1.1–10 Ω range, covering 2–18 mA output.

  1. Measure supply voltage precisely–tolerances of ±5 % occur on cheap wall adapters.
  2. Measure diode forward voltage drop with multimeter diode test mode.
  3. Recalculate target resistor value if either measurement differs from assumed values.
  4. Solder resistor close to the emitter anode to minimize stray inductance.

Environmental factors alter resistor behavior. Ambient temperature above 50 °C reduces carbon-film tolerance by 1 %/°C. For outdoor units, switch to metal-film types with ±1 % tolerance or better.

Setting Up Timing Mechanisms for Periodic Light Control

Start by selecting a microcontroller with built-in timer modules–AVR ATmega328P, STM32F103, or PIC16F877A offer hardware-based timing accuracy crucial for consistent pulse intervals. Avoid software delays alone; they waste CPU cycles and introduce drift under varying loads.

Configure timer registers for CTC (Clear Timer on Compare Match) mode. For an ATmega328P at 16MHz, set TCCR1B |= (1

Microcontroller Timer Register Prescaler Values Clock Formula (Hz)
ATmega328P TCCR1B 1, 8, 64, 256, 1024 F_CPU / (Prescaler * (1 + OCR))
STM32F103 TIM_CR1 1–65536 72MHz / (Prescaler * AutoReload)
PIC16F877A T1CON 1, 2, 4, 8 F_OSC / (4 * Prescaler * (65536 – TMR1))

For STM32, enable Timer2 in APB1 clock configuration. Set ARR (Auto-Reload Register) to 7199 and prescaler to 9999 for a 1Hz output (72MHz / (9999 + 1) / (7199 + 1) ≈ 1Hz). Use CubeMX or HAL_TIM_Base_Init() for register setup, avoiding manual bit manipulation unless optimizing for minimal code.

Avoid blocking functions like delay() in Arduino. Instead, implement millis() for non-blocking checks:

unsigned long previousMillis = 0;
const long interval = 500;
void loop() {
if (millis() - previousMillis >= interval) {
previousMillis = millis();
digitalWrite(pin, !digitalRead(pin));
}
}

This frees the processor for concurrent tasks while maintaining timing precision.

Calibrate timing for low-power applications. Use watchdog timers (WDT) on AVR or low-power timer modes on STM32. Example for ATmega328P: WDT prescaler = 2048 yields ~2 seconds (set WDTCSR |= (1

For precise synchronization across multiple outputs, cascade timers. On STM32, link TIM2 and TIM3 via internal triggers. Configure TIM2 as master (MMS = 010 for update event) and TIM3 as slave (SMS = 110 for external clock mode). Adjust ARR values to phase-shift outputs by 90° or 180° for sequential toggling.

Validate timing with an oscilloscope or logic analyzer. Measure rising/falling edges to confirm jitter
