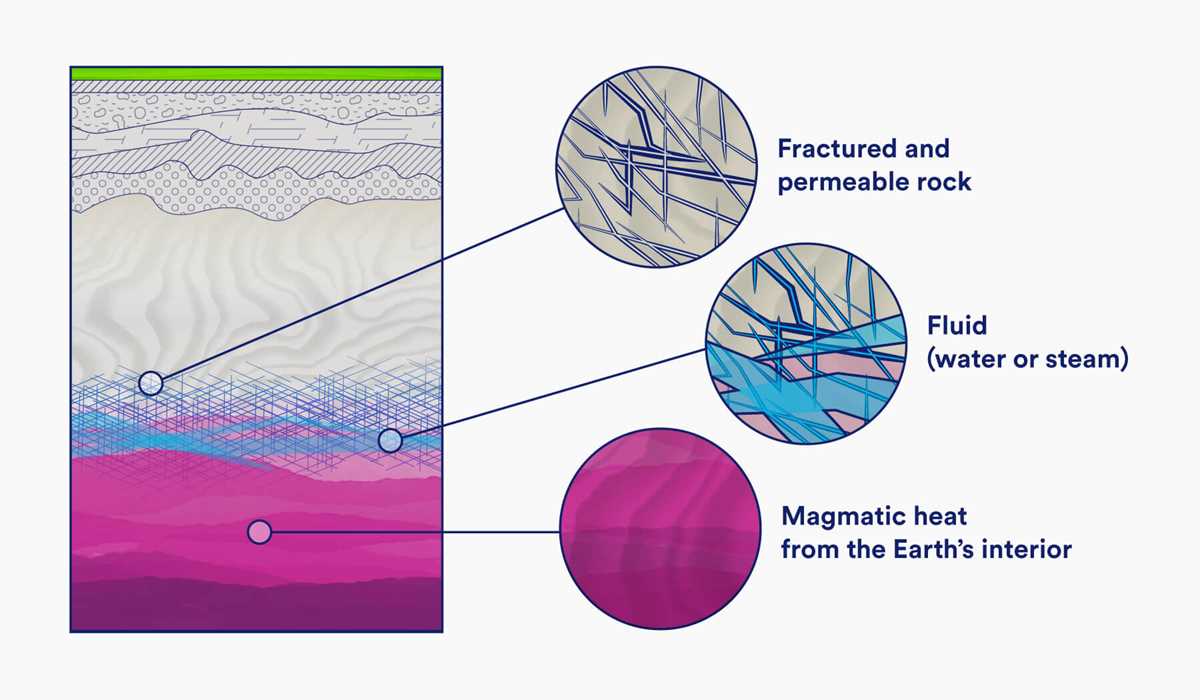

Start by mapping shallow intrusive bodies–typically 5–10 km deep–where latent heat transfer peaks. Andesitic-dacitic plutons release 1–3 MW/km² during crystallization, sufficient to drive convection cells in overlying fractured rock. Thermal gradients exceed 100 °C/km within 2 km of the contact, forcing meteoric water downward at velocities up to 10⁻⁷ m/s. Hotter, buoyant magmatic fluids then rise through preferential channel networks: steep fault zones and intercalated permeable layers in volcaniclastics.
Identify two-phase zones where boiling occurs. At pressures 50–150 bar (depths ~1–3 km), CO₂ and H₂S exsolve, forming gas caps that amplify vertical pressure gradients. Chloride complexes–dominantly FeCl₂, CuCl, ZnCl₃⁻–remain dissolved until temperature drops below 350 °C at elevations near the paleo-water table. Metal precipitation peaks where steam condensation fronts intersect cooled host rock, depositing chalcopyrite and pyrite in mm-scale veinlets over 10⁴–10⁵ years.
Calibrate permeability models using drill-core data: matrix values range 10⁻¹⁸–10⁻¹⁵ m² in intact volcanic sequences, while major fault zones reach 10⁻¹³ m². Hydraulic head measurements confirm upward fluid fluxes 10⁻⁸–10⁻⁶ m/s above magmatic chambers, sufficient to sustain low-sulfidation epithermal veins. Integrate δ¹⁸O, δD ratios to distinguish meteoric (–10‰) from magmatic (+6–+9‰) fluid end-members; mixing zones typically span 200–400 m vertical extent.
Simulate transient events: dikes inject 1 km³ of magma in weeks, raising adjacent temperatures by 200 °C within months. Thermal pulses trigger episodic brine expulsion, creating porphyry copper cores when halite-undersaturated fluids (30–60 wt% NaCl eq.) interact with brittle-ductile transitions. Monitor He³/He⁴ ratios (>5 Ra) as tracers of deep mantle contributions–critical for distinguishing arc-related hydrothermal cells from rift-driven systems.
Visualizing Subsurface Fluid Interactions in Volcanic Environments
To accurately depict fluid pathways in an active geothermal field, integrate pressure-temperature gradients with mineralogical zones in a cross-sectional model. Use the following baseline parameters for high-enthalpy reservoirs: depth intervals of 500–2500 m, temperature ranges of 200–400°C, and fluid compositions with Na-Cl dominant brines (104–105 mg/kg TDS). Map these against a lithological profile that includes caprock (andesitic tuff), reservoir (fractured dacite), and heat source (quartz-diorite intrusion). Apply color gradients for fluid saturation–cool blues for meteoric recharge zones, transitioning to reds near magmatic conduits–with vector arrows scaled to Darcy flux (0.1–10 m/year). Overlay isotopic data (δ18O, δD) to distinguish juvenile waters from meteoric inputs, using proportional circles sized by concentration.
| Zone | Rock Type | Temperature (°C) | Fluid Type | Key Minerals |
|---|---|---|---|---|
| Upflow | Propylitic-altered andesite | 300–380 | Hyper-saline brine | Epidote, chlorite, quartz |
| Conduit Margin | Silicified breccia | 250–350 | Vapor-dominated | Pyrite, enargite, alunite |
| Recharge | Argillic-altered tuff | 150–220 | Dilute groundwater | Kaolinite, smectite, calcite |
Annotate the model with fault damage zones–vertical structures 50–200 m wide–showing enhanced permeability (k = 10-13–10-15 m2) relative to host rock (k = 10-17 m2). Include two-phase flow regions where steam separates from liquid (typically at ~3 km depth), marking them with dashed isotherms (235°C for pure water). For epithermal gold-silver systems, add sulfide precipitation fronts using geochemical thresholds: 1–10 ppb Au for boiling zones, coinciding with abrupt decreases in Fe/Mn ratios. Validate the model against borehole data using geothermometers (quartz conductive vs. Na-K-Ca) and adjust isotherm spacing to reflect convective upwelling rates (~1–10 cm/year).
Dynamic Feedbacks Between Fluid Chemistry and Structure
Scale the model to field observations by correlating vein densities with fluid inclusion homogenization temperatures. In high-sulfidation settings, draw sharp boundaries between vuggy quartz (pH 34S from -5 to +20‰) with trace element profiles (As/Cu ratios), highlighting areas of abrupt compositional change as potential ore deposition sites. Where available, incorporate real-time microseismic data to demarcate fracture networks activated by fluid overpressure, using event density to infer hydraulic brecciation thresholds.
Critical Elements of Volcanic Fluid Circuits in Vertical Profile
Begin by identifying the magma chamber at depths of 5–15 km, where silicate melt pools under pressures exceeding 1.5 GPa–this reservoir acts as the thermal and chemical engine for the entire process. Trace upward zones where fractional crystallization segregates mafic minerals (olivine, pyroxene) from residual fluids enriched in H₂O, CO₂, S, Cl, and metals (Cu, Au, Mo). These fluids accumulate in apical cupolas, forming high-salinity brines (≥50 wt% NaCl equivalent) distinguishable from lower-density vapors by fluid inclusion analyses.
Observe the carapace above the chamber–a brittle-ductile transition zone (3–7 km depth) where exsolved volatiles induce hydraulic fracturing. Pervasive microseismicity (M600°C.
Characterize the epithermal zone (0.5–2 km depth) by steep thermal gradients (>100°C/km) where ascending fluids mix with meteoric waters. This interaction triggers precious-metal precipitation via boiling and sulfidation reactions; Au and Ag deposit as electrum in quartz-adularia veins at 200–300°C, while Cu forms chalcopyrite in deeper, higher-temperature assemblages. Monitor alteration halos: illite-smectite transitions mark fluid pathways, with propylitic alteration (chlorite, epidote) extending laterally for kilometers around the core.
Map the vapor plume reaching near-surface environments–sometimes producing fumaroles with temperatures of 200–800°C and gas compositions dominated by H₂O (90%), CO₂ (8%), and traces of H₂S, SO₂, and HCl. These emissions alter host rocks to kaolinite, alunite, and opaline silica, creating diagnostic white mica halos visible in hyperspectral imagery. In active volcanoes, measure discharge rates (e.g., 200–500 kg/s at White Island) to quantify metal fluxes: Au outputs can exceed 1 g/day from high-temperature vents.
Isolate the boiling zone (100–300 m depth) where adiabatic expansion causes rapid mineralization. Use fluid inclusion decrepitation techniques to identify abrupt salinity drops from ~40 to
Examine the water table interaction layer (0–50 m depth) where oxidized groundwater overprints earlier hydrothermal minerals. Jarosite and goethite replace sulfides, forming gossans with residual Au concentrations of 0.5–2 g/t–viable for supergene enrichment processes. Ground-penetrating radar can identify these interfaces, showing sharp dielectric contrast between altered bedrock and unconsolidated cover.
Model heat flow using borehole temperature logs: conductive gradients in quiescent systems average 30°C/km, whereas active circuits exhibit localized anomalies (>200°C/km) above fluid conduits. Deploy MT (magnetotelluric) surveys to image electrical resistivity lows (
Integrate stable isotope data (δ¹⁸O, δD, δ³⁴S) to constrain fluid origins: meteoric inputs show δD values of -120‰, whereas magmatic fluids cluster near -40‰. Sulfur isotopes reveal Rayleigh fractionation, with δ³⁴S shifting from +5‰ (deep, reduced) to -15‰ (near-surface, oxidized)–this pattern confirms metal sourcing from depth rather than wall-rock leaching.
Tracing Fluid Flow in Subvolcanic Illustrations
Start by locating high-permeability zones–fault intersections, brecciated veins, or fractured aureoles–marked by abrupt color gradients in temperature or alteration maps. These corridors often align with isotopic tracers (18O/16O, 87Sr/86Sr) showing sharp shifts, confirming fluid-rock interaction. Cross-reference with mineral assemblages: propylitic halos (chlorite, epidote) signal distal flow, while potassic cores (biotite, K-feldspar) pinpoint upflow conduits. Depth trends matter–shallow pathways (5 km) host garnet or tourmaline.
Key Indicators to Verify Pathways
- Pressure signatures: Fluid inclusion homogenization temperatures (Th) exceeding 400°C indicate overpressured, magma-proximal conduits; Th
- Geophysical anomalies: Magnetotelluric surveys highlight low-resistivity (
- Chemical zoning: Arsenopyrite-pyrite boundaries in cross-sections delineate redox fronts; arsenic-rich rims mark descending fluids, sulfur-enriched cores indicate ascending plumes.
- Structural alignment: Stress-field reconstructions using conjugate vein sets should match inferred permeability trends; misalignment suggests post-mineralization fault reactivation.
Combine these datasets with fluid flux calculations (from quartz dissolution textures or adularia overgrowth rates) to quantify flow velocities. Discard ambiguities–pathways must satisfy >3 independent proxies (e.g., Th + alteration + structure) to qualify as robust.
Building a Visual Model of Ore-Forming Fluid Pathways
Begin by mapping the magmatic chamber at a depth of 5–15 km, using concentric zones to reflect thermal gradients. Outer zones should show temperatures of 300–400°C, tapering inward to 700–900°C at the core. Label lithostatic pressure curves (2–4 kbar) along the chamber’s flanks.
Draw fracture networks above the chamber roof, extending 2–5 km upward. Use angular lines for brittle faults and wavy patterns for ductile shear zones. Annotate fluid inclusion data: saline brines (30–60 wt% NaCl eq.) dominate deeper fractures, while vapor-rich fluids (5–20 wt%) occupy shallower conduits.
Position a meteoric water reservoir at 1–3 km depth near the model’s margins. Indicate mixing zones where downward-percolating fluids intersect rising magmatic exsolutions. Mark oxygen isotope shifts (δ18O +6 to +12‰) to track fluid-rock interactions.
Layering Mineral Precipitation Sequences
Overlay alteration halos in graduated colors: early potassic zones (orthoclase-biotite) closest to the heat source, followed by phyllic (sericite-pyrite) at intermediate distances, and outer propylitic (chlorite-epidote) halos. Use dashed lines to show temporal progression–potassic first, propylitic last.
Place sulfide minerals in concentric banding. Quartz-molybdenite veins occupy central positions, grading outward through pyrite-chalcopyrite, sphalerite-galena, to distal cinnabar-realgar assemblages. Annotate homogenization temperatures: 350–450°C for Mo, 250–350°C for Cu-Zn,
Fluid Dynamic Indicators
Add boiling horizons where vapor bubbles separate from liquid. Use upward-pointing arrows to show steam ascent and downward curls for condensate return. Note pressure drops (50–150 bars) at these interfaces, driving metal deposition. Include fluid inclusion salinity jumps: 30→15 wt% NaCl eq. across boiling levels.
Sketch convection cells along permeable fault planes. Upflow zones should align with highest metal concentrations; downflow areas show barren, altered rock. Label stable isotope fronts: δD shifts from -50‰ (magmatic) to -120‰ (meteoric) at mixing boundaries.
Incorporate exhumation markers: erosional unconformities cutting the upper 1–2 km of the model. Show vein truncations and overprinting relationships to illustrate multiple fluid pulses. Use cross-cutting dates: U-Pb zircon (12–8 Ma) for early intrusions, Ar-Ar sericite (6–4 Ma) for late-stage alteration.
