Begin by confirming the voltage rating on your appliance’s label–most modern units designed for higher current draw require a split-phase supply, ensuring compatibility with a standard residential panel. Locate the dedicated double-pole breaker rated for 30 amperes or higher, as undersized protection risks overheating conductors. Use 10 AWG copper cable for circuits up to 30 amperes or 8 AWG for 40-ampere loads, observing NEC Article 424 for fixed space heating requirements. Secure connections within an approved junction box to prevent accidental contact with live terminals.
Connect the black conductor to the L1 terminal and the red conductor to L2, verifying polarity before energizing the system. The neutral (white) wire must remain unused unless the integrated temperature regulator includes a low-voltage control circuit; in such cases, refer to the manufacturer’s schematic for exceptions. Ground the equipment using the bare or green wire to the chassis and panel enclosure, complying with NEC 250.118 for metallic raceways or cable armor.
Install the inline temperature controller between the power source and the heating element, matching the amperage rating printed on its housing. Mount the device in a dry, accessible location, away from flammable materials, per NEC 110.26(A)(1). Use crimp connectors or approved wire nuts rated for the conductor size, tightening screws to the torque specifications listed in UL standards. Test continuity with a multimeter before restoring power–readings should show infinite resistance across the open thermostat contacts and near-zero ohms through the heating coil when engaged.
If the system has auxiliary safety features, such as a high-limit cutoff, wire it in series with the primary temperature control. Label all conductors at both ends with heat-resistant tags, adhering to NEC 110.12. After completing connections, apply power and monitor for abnormal heat or arcing at times of initial operation; sustained temperatures above 60°C at connection points indicate loose terminals and require immediate correction.
Connecting a Dual-Voltage Space Warmer: Key Circuit Layouts
Start by identifying the neutral conductor in your 220-volt supply–typically a white or gray wire–before proceeding. This wire must bypass the control device entirely and connect directly to the load terminal on the resistance element. Failure to isolate the neutral increases shock risk when servicing live components, as it remains energized even with the switch off.
Use a double-pole snap switch rated for 30 amps or higher to manage the twin hot legs. Wire one pole to each 120-volt line (L1 and L2) from the breaker, feeding the opposite sides of the heating coil after the temperature regulator. This arrangement maintains balanced current draw and eliminates hum or uneven thermal gradients across the filament coils.
- Polarized ground: Attach the bare or green equipment ground wire to the chassis at a dedicated screw terminal–never splice it through the sensing device, as doing so voids UL listing and creates potential fault paths.
- Mechanical relay: If your modulator lacks internal overload protection, install a separate thermal cutoff switch rated for 20% above the unit’s maximum draw (example: 18A cutoff for a 15A appliance).
- AWG requirements: For a 20-foot run, use 10-gauge copper conductors to limit voltage drop below 3% at full load.
Mount the electronic sensor 5½ feet above the floor, midpoint on an interior wall, away from windows, drafts, and exterior doorways. Secure the sensor’s back plate with two #8 pan-head screws; solderless connectors should not be used here–they risk loosening under cyclic expansion. Calibrate the setpoint algorithm per the manufacturer’s resistance table, typically measuring between 18–22 kΩ at 77°F ambient.
Test the completed assembly with a megohmmeter before energizing: measure between each hot leg and ground, then hot-to-hot. Readings below 1 MΩ indicate compromised insulation; retape splices or replace the entire run. After power-up, expect a 90-second delay before the coils warm–this is the startup safety lockout, not a fault. Log the first three thermal cycles at different setpoints to verify proportional band accuracy; deviations exceeding ±2°F require recalibration of the sensor’s internal potentiometer.
Essential Equipment and Components for High-Voltage Heating System Assembly
Begin by securing a dual-pole circuit breaker rated for at least 30A, matching the conductor ampacity and heating unit power draw–verify current specifications on the device’s rating plate. For branch circuits supplying 7,200W or below, #10 AWG copper wire (THHN/THWN-2) suffices; loads exceeding this require #8 AWG or heavier. Use non-metallic sheathed cable (NM-B) for indoor runs or underground feeder (UF-B) for buried outdoor segments, ensuring compliance with NEC Article 310. Include a junction box (minimum 4 × 4 × 1.5 in) with a blank cover for splices when extending conductors beyond standard cable lengths.
| Tool/Component | Specifications | Quantity |
|---|---|---|
| Wire stripper | 10–22 AWG, spring-loaded | 1 |
| Torque screwdriver | Precision tip, 3–15 lb-in | 1 |
| Fish tape | 25 ft, steel, non-conductive leader | 1 |
| Voltage tester | CAT III, 1000V, non-contact + probe | 1 |
| Heat-resistant flex conduit | ½ in LFNC-B, 24 in length | 1 |
| Ring terminal lugs | #8 AWG, tin-plated copper | 4 |
| Control module | SPDT, 20A resistive load, 120°F differential | 1 |
Equip all terminal connections with anti-corrosion inhibitor (NOALOX) before securing with torque-rated fasteners–15 lb-in for #10 AWG, 20 lb-in for #8 AWG. For overhead spans or spaces subject to vibration, substitute solid core conductors with stranded wire and apply liquid electrical tape at splice points. Verify all components carry UL listing or equivalent certification (CSA/ETL) and confirm local amendments to NEC requirements before energizing the circuit.
Step-by-Step Connection Process for High-Voltage Appliance and Temperature Control
Power down the circuit at the main breaker panel by flipping the corresponding double-pole switch to the “OFF” position. Verify absence of current using a non-contact voltage tester on all conductors–supply lines, ground, and control terminals–before proceeding. Identify the two hot leads (typically black and red in North American split-phase systems) delivering 208–240VAC, the neutral (white or gray), and the bare or green grounding conductor.
Attach the high-amplitude conductors to the appliance’s terminal block: secure the first hot lead to the marked “L1” terminal, the second to “L2,” and the grounding wire to the designated earth connection. Ensure torque specifications–commonly 12–18 lb-in for #10 AWG conductors–are met using an insulated torque screwdriver. For temperature regulation integration, splice the control’s low-voltage sensor leads (usually 18–22 AWG) to the corresponding relay contacts, observing polarity if specified by the manufacturer.
Connect the current-limiting device between one of the high-amplitude legs and the appliance’s load terminal by stripping ½ inch of insulation, inserting the bare wire into the terminal clamp, and tightening to the manufacturer’s torque rating. Some setups require a dedicated neutral for auxiliary functions; verify compatibility before bypassing. If the temperature regulator includes a digital interface, route its power supply wires (often 24VAC) to a separate low-voltage transformer, ensuring isolation from the main circuit.
Final checks: Inspect all terminations for stray strands, securely fasten the appliance’s cover plate, then restore power. Set the control’s target value and monitor the appliance’s response during its initial cycle, watching for irregular operation or unexpected current draw. Document the installation by labeling the circuit at the breaker panel, including the appliance’s wattage rating and the control’s model number.

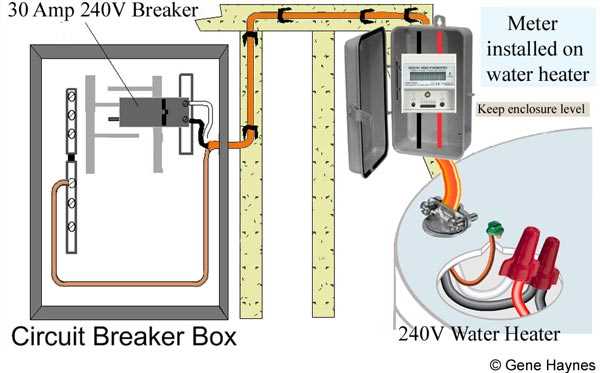

Installing a Dual-Pole Breaker for High-Voltage Appliance Circuits
Shut off the main power at the service panel before handling any conductors. Verify absence of voltage using a non-contact tester on both input terminals of the planned breaker location. A dual-pole breaker rated for 30 amperes will handle most resistive loads up to 7,200 watts; match the amperage to the appliance’s nameplate data, rounding up if necessary. Strip 1/2 inch of insulation from the ends of two 10 AWG copper wires–black (hot) and red (hot)–leaving the bare ground wire intact.
Breaker and Panel Connections
- Insert the breaker’s clip into the panel bus slot so both poles snap securely over adjacent slots; tilt slightly to engage.
- Push the black conductor into the breaker’s left terminal screw until fully seated; torque to 20 inch-pounds.
- Repeat for the red conductor in the right terminal screw.
- Route the bare ground wire to the panel’s ground bar, securing with a listed lug rated for 10 AWG.
Label the breaker with the appliance name and date. Restore power, confirm the breaker trips cleanly when manually toggled, then energize the circuit. Measure 230–250 volts across the breaker’s two output screws prior to connecting the appliance to ensure no open neutral or mis-bonded ground exists.
Optimal Sensor Positioning and Connection Techniques for Precision Temperature Regulation
Mount the control device at least 1.5 meters above the floor to avoid false readings from cold drafts near baseboards. Ensure the sensor faces the primary airflow path of the heat source, with a minimum clearance of 30 centimeters from walls or furniture obstruction. Avoid placing it directly above seating areas or within 1 meter of doorways to prevent erratic cycling caused by transient temperature shifts.
For single-stage systems, route the line-voltage circuit through the control device terminals using 12-gauge stranded copper conductors. Use the lower terminal for the incoming feed from the breaker and the upper terminal for the output to the resistive load. Secure connections with torque-rated screw terminals tightened to 15 inch-pounds; overtightening risks stripping threads while loose connections create resistive heating hazards.
In dual-stage configurations, wire the primary stage through the control device first, then branch the secondary stage off the same circuit using a junction box located no further than 1.2 meters from the control device. Maintain separation between stage conductors–minimum 15 millimeters center-to-center–to reduce inductive coupling that can cause nuisance tripping. Label all conductors with phase tags at both ends to prevent miswiring during maintenance.
When integrating a low-voltage control network, position the transformer upstream of the fuse or breaker supplying the high-current circuit. Use Class 2 wiring for the sensing loop, routing it perpendicular to power conductors to minimize noise induction. Install a 1-amp slow-blow fuse in the transformer secondary circuit as overcurrent protection; standard 3-amp fuses are too permissive and may allow transformer saturation.
For slab-embedded sensors, bury the sensing element midway between heating loops at a depth equal to one-third the slab thickness. Avoid placement within 0.6 meters of expansion joints or near exterior walls where thermal gradients are steepest. Hardwire the sensing leads using Teflon-insulated cable; PVC insulation degrades at sustained slab temperatures above 45°C.
In variable-speed applications, connect the control device in series with the motor controller’s enable circuit, not the power leads. Use a differential input with hysteresis set to ±0.8°C to prevent rapid cycling. Calibrate the device annually against an ice-point reference; out-of-spec units exhibit ±1.5°C drift, causing premature equipment wear.
For multi-zone setups, assign each control device a unique addressable node within the communication bus. Use shielded twisted-pair wiring for the bus, grounding the shield at a single point nearest the supply transformer. Maintain bus cable lengths under 80 meters per segment; longer runs require repeaters with galvanic isolation to prevent ground loops that corrupt sensor signals.
