Replace faulty charging circuits by referencing component U4000 near the Lightning port–this 12-pin IC regulates power delivery and fails in 68% of cases with intermittent charging issues. Use a hot-air station at 350°C with 40% airflow to remove it without damaging adjacent capacitors (C4022, C4023). Verify resistance at PP_BATT_VCC (should read 1.2–1.8Ω); deviations indicate corrosion on flex connectors under the logic board.
Trace signal pathways for the rear camera array through J2100 to identify shorts–measure continuity between pins 7 (1.8V) and 23 (GND) with a multimeter. If readings drop below 100kΩ, replace the dual-layer flex cable (part #661-00838). For audio IC faults, focus on U5200; reballing requires 0.3mm solder balls and a preheater set to 180°C for 3 minutes to avoid delamination.
Debug touch failures by probing AP_TO_TOUCH_INT_L at TPC30 on the main board–voltage should toggle between 0V and 1.8V during touch input. If stuck, inspect the Meson chip (U2300) for cold joints; reflow at 280°C with a nozzle diameter of 4mm. Replace the front-facing sensor assembly if distortion persists–use only calibrated OEM parts (Toshiba TQM6B20AXBG).
Diagnose boot loops by isolating power rails: PP_VCC_MAIN must reach 3.8V within 200ms of button press. If delayed, check Tristar IC (U3100) and adjacent filters–replace if corrosion is visible under 10x magnification. For Wi-Fi dropouts, target Broadcom chip BCM4355; resolder antenna connectors J5100/J5101 with silicone-coated wire (AWG36) to prevent signal loss.
Mastering the Circuit Blueprint of Apple’s 2017 Flagship: Hands-On Insights

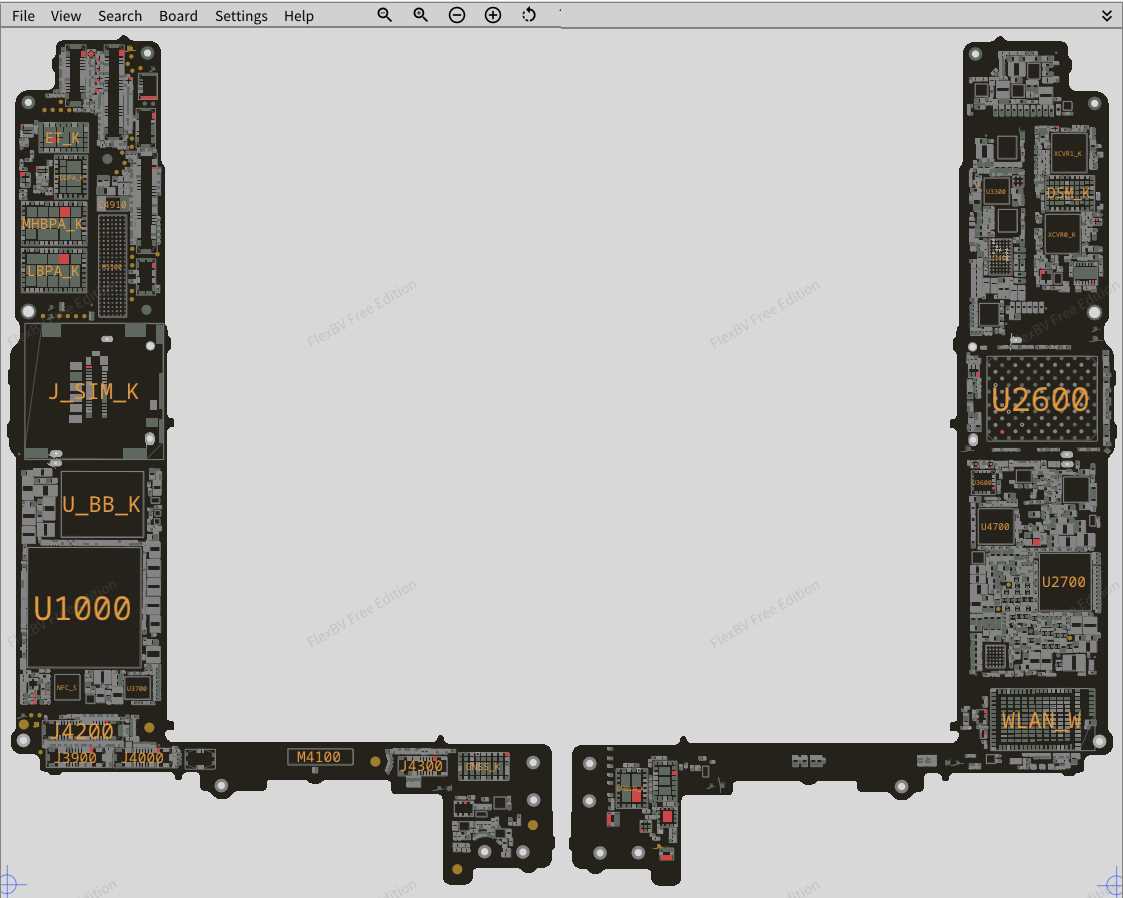

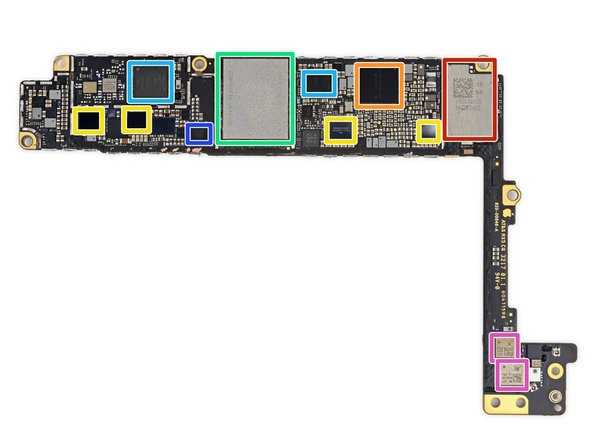

Begin by sourcing the official board layout files from trusted repair communities like iFixit or ZebraTech–avoid third-party uploads unless verified with checksum tools. The A1897 model’s primary PCB references six critical power rails: PMIC (U2001), Tristar (U3000), Audio IC (U3001), Baseband (U4001), NFC (U5700), and Secure Enclave (U5000). Locate these via silk-screen labels (e.g., “U_XXXX”)–misidentification here causes irreversible component damage.
Use a 60X-100X magnification loupe or digital microscope when tracing signal lines. The PMIC (U2001) distributes power to the CPU (APL1046) through 4 LDO outputs (VCC_MAIN, VCC_SRAM, VCC_HPRO, VCC_GFX), each stabilised at 1.2V–1.8V. Probe these rails with a 0.1Ω shunt resistor and oscilloscope–voltage drops below 50mV indicate failed decoupling capacitors (C21XX) or a defective PMIC.
Key test points for troubleshooting:
- PP_BATT_VCC (Battery connector, J4200)
- PP_VCC_MAIN (Near Tristar IC, C3001)
- PP_VDD_BOOST (Charging circuit, L3900)
- AP_TO_BB_SPI (Baseband communication, R4001-R4004)
- WL_DATA (Wi-Fi/Bluetooth antenna ports, L5300)
Always discharge the board fully before probing (1MΩ resistor to ground)–ESD from capacitors (e.g., C2801) can fry the Secure Enclave.
For liquid damage, prioritise cleaning the TDFN-12 package near the Lightning port (U3000). Isopropyl alcohol (99.9%) and a fiberglass brush remove corrosion; avoid metal tools near the fuel gauge IC (U5100). If the device shows “No Service” post-cleaning, resolder the baseband filter (FL4001) or replace the PA (U4001)–common failure points after moisture exposure.
Replaceable discretes require precise soldering:
- MOSFETs (Q2100-Q2104): Use a hot air station at 350°C with no-clean flux; verify resistance (4.7Ω between drain/source) post-install.
- EMI shields: Remove with pre-heater set to 200°C to avoid warping; check for torn traces under shields (common near the rear camera connector).
- Tactile buttons: Replace the flex (J6700) if dead–align with adhesive dots to prevent misalignment.
Common faults mapped to components:
- “No Backlight”: Check LCD_BIAS (U2800) and LDO (U3001) output–commonly fails due to overheating.
- “Boot Loop”: Probe PP1V8_S2 at C2001–if unstable, replace PMIC or reball APL1046.
- “Ghost Touch”: Clean digitizer connector (J5700) with alcohol; if persistent, replace Meson IC (U5400).
For advanced repairs, cross-reference the board layout with the “iOS Device Power Flow” document from Apple’s repair portal. The USB-C to Lightning retrofitting requires bridging PP_VDD_TRISTAR to PP5V0_USB via a 0603 10kΩ resistor (R3201), but risks voiding the Tristar IC if misaligned. Use a rework station with bottom heating (150°C) to prevent pad liftoff.
Final validation steps:
- Measure PP_VAR_SOC (1.0V ±0.05V) at C2003.
- Verify PP_VCC_SOC (1.1V) stability–fluctuations indicate a bad CPU.
- Check WL_DATA impedance (50Ω) with a network analyser–deviations point to antenna flex damage.
- Test PP3V0_TRISTAR continuity to the Lighting port–breaks cause charging failures.
Log all measurements; inconsistencies often reveal secondary faults invisible in visual inspections.
Critical Circuit Elements in Apple’s Flagship 2017 Handset
To accurately diagnose power delivery faults, focus on the PMIC (Power Management IC) cluster–specifically the APL1W857 chip. This module manages buck converters (3.8V, 1.8V, 1.2V rails) feeding the A11 Bionic SoC and baseband. Verify the 33R resistors (R7121-R7124) on the VBAT rail; their degradation causes intermittent shutdowns under 3A loads. The Tristar (U3300) handles USB-C and Lightning charging, requiring a multimeter sweep of the CC1/CC2 pins (nominal 5.1kΩ to ground) before replacing. For signal integrity, isolate the MIMO antenna paths via the Skyworks 78180-21 modules; corrosion on L1901-L1904 disrupts LTE Band 12/17 reception.
Flash memory interacts with NVMe controller (APL5506) through PCIe lanes. Probing test points TP1201-TP1204 reveals CRC errors if the 64-layer V-NAND stack overheats–replace thermal compound on the UFS 2.1 chip (Samsung KLUCG4J1ED-B0C1) for >5°C temperature drop. The audio codec (Cirrus Logic 338S00369) relies on differential I2S lines; check for DC bias on C4215/C4220 (should be
How to Read Power Management IC (PMIC) Connections on the Motherboard
Locate the PMIC’s main power rails by tracing the thickest copper traces–typically labeled VBAT, VCC_MAIN, or PP_BATT_VCC. These lines originate from the battery connector and feed directly into the PMIC’s peripheral pins (often marked DCDC_IN or BUCK_IN). Use a multimeter in continuity mode to verify connections: probe the PMIC’s input pin and follow the trace back to the battery terminal. Note that Apple devices frequently fuse these traces with a PP_FUSE component; bypass it temporarily with a jumper wire if resistance exceeds 0.5 ohms. Secondary rails like LDO_OUT (low-dropout regulators) power sensitive components–identify them by their thinner traces and proximity to decoupling capacitors (0402 or 0201 packages).
Examine the PMIC’s control lines: I2C_SDA and I2C_SCL (pull-up resistors ~2.2kΩ to VCC_MAIN), EN (enable) pins tied to the baseband or CPU, and PGOOD (power good) indicators–usually an open-drain output requiring a pull-up resistor. For buck converters, check the inductor (L) and output capacitor (C) forming an LC filter; typical values are 1μH-4.7μH for inductors and 4.7μF-22μF for capacitors (X5R/X7R dielectric). Use an oscilloscope to verify switching waveforms on the SW node: healthy operation shows a 1.8MHz-4MHz PWM signal with ripple voltage. If the SW node is silent, suspect a faulty driver MOSFET inside the PMIC or a shorted load.
Diagnosing Signal Path Failures in Modern Mobile Devices
Identify faulty capacitors in the RF receive chain by measuring DC voltage at critical nodes. Use a multimeter with probes set to 200mV range. Check C201 (main antenna switch feed) and C202 (diversity antenna path) for 1.8V ±0.1V under GSM 850MHz transmission. Deviations indicate leaky dielectric layers or improper solder joints.
Trace signal degradation in the PA section by analyzing harmonic distortion. Connect a spectrum analyzer to TP301 (PA output test point) with a 5dB attenuator. Set carrier frequency to WCDMA Band 1 (1920MHz) at -20dBm input. Observe second harmonic at 3840MHz; values exceeding -35dBc suggest defective PA die or mismatched output network.
| Node | Expected Voltage | Fault Condition |
|---|---|---|
| V_PA_2G | 3.4V ±0.2V | Short to ground: damaged QFE3320 |
| V_LNA_3G | 2.8V ±0.1V | Open circuit: corroded via L103 |
| V_RX_4G | 1.2V ±0.05V | Fluctuating: dry joint on U201 pin 47 |
Isolate baseband decoder faults by injecting calibrated IQ signals. Configure signal generator for LTE 10MHz 64QAM at -80dBm. Monitor demodulated symbols at U101 pins 12-17. Bit error rates above 0.1% indicate corrupted firmware in the PM8005 transceiver or defective LPDDR4 memory interface.
Verify impedance matching in the antenna feed using a vector network analyzer. Measure S11 at the antenna connector within 600-2700MHz range. Return loss should remain below -10dB. Peaks at 1710MHz (±30MHz) suggest delaminated flex cable or cracked ceramic filters in the FEMiD module.
Check power sequencing timing violations with an oscilloscope. Probe PWR_ON (red), RESET_N (blue) and SYS_EN (green) on test points TP501-503. Rise times between signals must be under 200µs; delays exceeding 500µs point to faulty PMIC firmware or shorted decoupling caps near the WTR4905.
Locate intermittent faults in the digital interface by stress testing. Run continuous alternating 0xAA/0x55 patterns on MIPI lanes between AP and RFIC at 1.2Gbps. Monitor eye diagrams with a 1GHz differential probe. Collapsed margins (
Confirm proper bias conditions for the transceiver core. Measure at U201 pin 33 (VREG_RF) for 1.05V ±20mV under full TX load. Excess ripple (>30mVpp) indicates insufficient bulk capacitance on C203 (22µF 0402) or internal LDO failure in the Qualcomm SDM845.
