Start by locating the factory harness behind the dashboard’s lower panel. Disconnect the negative battery terminal first to prevent shorts–this step prevents blown fuses or damaged modules. The main wiring bundle splits into three key sections: power (red, yellow, and orange cables), speaker outputs (gray, white, purple, and green pairs with striped grounds), and antenna control (blue). Label each wire with tape before cutting to avoid confusion during installation.
Use a multimeter to verify voltage. The red wire (constant 12V) and yellow wire (switched 12V) must show readings between 11.5–14.5V when the ignition is on. If voltage drops below this range, check the fuse box under the driver’s side dash–corrosion on fuse #15 (10A) often causes intermittent power loss. Ground connections (black) should register less than 0.5 ohms; sand the mounting point if resistance is higher to ensure reliability.
Avoid splicing into the OEM harness unless necessary. Instead, match the pins from your aftermarket unit’s adapter to these colors:
- Front Left: White (+), White/Black (-)
- Front Right: Gray (+), Gray/Black (-)
- Rear Left: Green (+), Green/Black (-)
- Rear Right: Purple (+), Purple/Black (-)
Illumination control (orange) dims display brightness when headlights activate–tap into this wire if your new unit lacks automatic dimming.
Test speaker polarity before finalizing connections. Play a bass-heavy track and ensure cones move outward on all channels; reversed polarity causes weak output. If static persists, inspect the in-line noise filter (mounted near the firewall) for cracked casings or loose crimps. Replace with a 2A ferrite core suppressor if necessary.
Electrical Connections for Your Crosstrek Audio System Installation
Begin by locating the factory harness behind the dashboard near the central console. The connector typically contains 12–16 wires, each color-coded for specific functions. Use a multimeter to verify voltage on the power wires–yellow should carry constant 12V, red supplies switched power, and black serves as ground.
Identify the speaker outputs by tracing wires from the original unit to the door panels and rear deck. Front left tweeter often uses violet/white for positive and violet/black for negative; rear right woofer follows green/white and green/black. Avoid splicing directly–match each wire to the aftermarket connector using Posi-Taps or solder for durability.
For steering wheel control compatibility, integrate an ASWC-1 adapter between the factory harness and new head unit. Connect the adapter’s red wire to constant power, purple to ignition-switched, and ground the black. Program the module via the manufacturer’s app to assign functions to each button press.
| Wire Color | Function | Voltage (Key On) | Connection Tip |
|---|---|---|---|
| Yellow | Main power | 12V | Fuse inline, 10A |
| Red | Accessory | 12V | Reuse factory fuse box slot |
| Black | Ground | 0V | Chassis bolt near console |
| Blue/White | Antenna trigger | 12V | Connect to powered antenna or amplifier |
If installing amplification, route the blue/white remote turn-on wire to the amp’s control input. Run RCA cables from the head unit to the amplifier–front left (white), front right (gray), rear left (green), rear right (purple). Use shielded cables to minimize interference, securing them away from power wires and ignition coils.
Test dimmer functionality by connecting the orange illumination wire to the vehicle’s lighting circuit. Voltage should drop to ~1V when headlights are active. For parking brake detection, splice the pink safety wire to the parking brake switch–this prevents video playback while driving unless bypassed with a 200Ω resistor.
Secure all connections with heat shrink tubing or electrical tape, then bundle wires with zip ties every 6 inches. Route harnesses along existing factory clips to avoid rattling or pinching. Before finalizing the dash reinstallation, verify all functions–volume, balance, fader, and mode changes–without engine noise interference.
Troubleshooting Common Issues
Static during engine cranking indicates poor grounding–relocate the ground wire to a bare metal chassis point, scraping off paint or rust. If USB ports don’t charge, check the red/white wire for 5V; some models require a fuse upgrade to 15A. Bluetooth pairing failures often stem from incorrect antenna connections–ensure the blue coaxial cable is fully seated into the new unit’s port.
Finding the Stock Audio Connector in Your Vehicle
Start by removing the lower dashboard panel beneath the climate controls. Use a plastic pry tool to gently release the clips securing the panel–there are five clips along the bottom edge and two on each side. This exposes the back of the head unit and the bundled cables behind it.

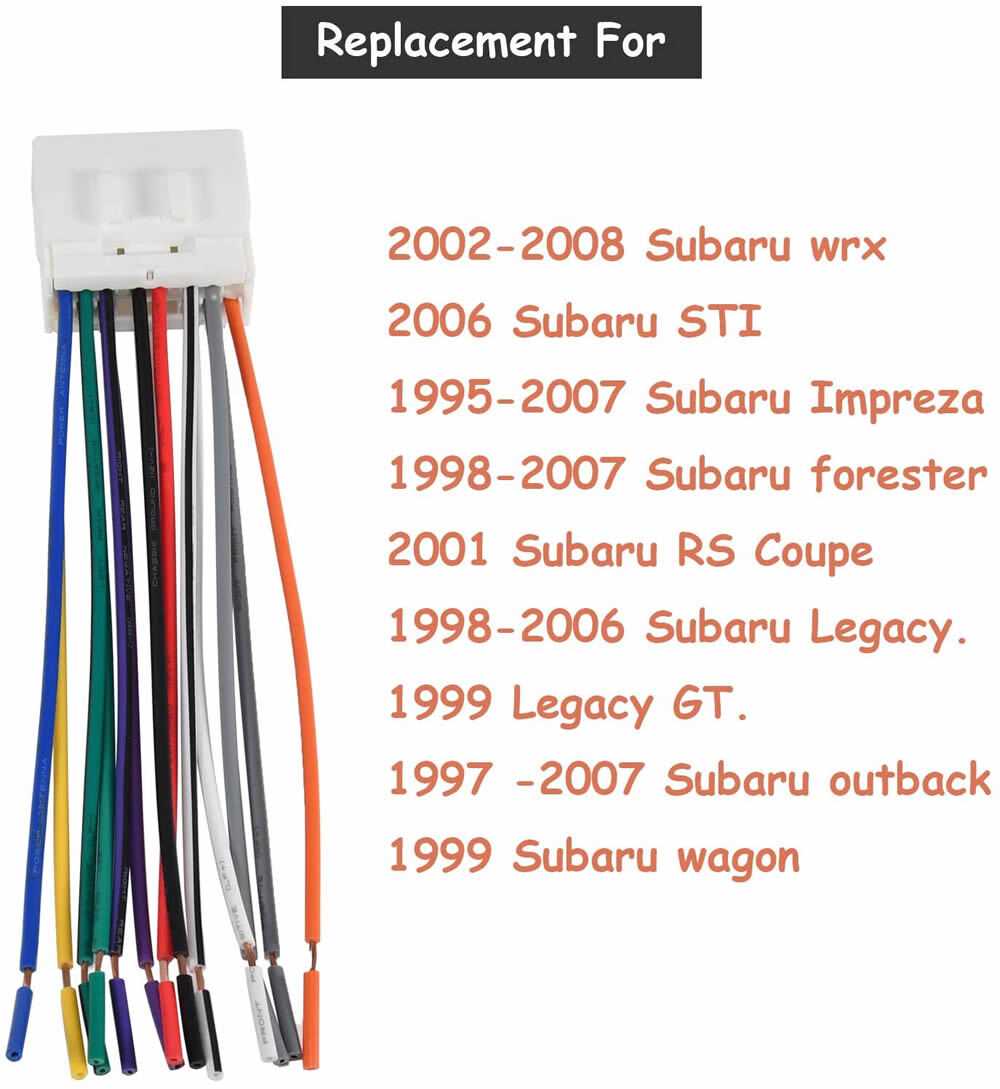

The factory harness is a white 16-pin plug directly attached to the rear of the infotainment module. Trace the bundled wires downward–they route through a plastic channel before splitting into individual connectors for power, speakers, and antenna. Follow this channel to locate the splice points if modifications are needed.
For vehicles with the premium sound option, an additional brown 22-pin amplifier connector will be present above the main harness. This connector handles rear speakers and subwoofer outputs. Verify the presence of this plug before attempting any upgrades to avoid mismatched connections.

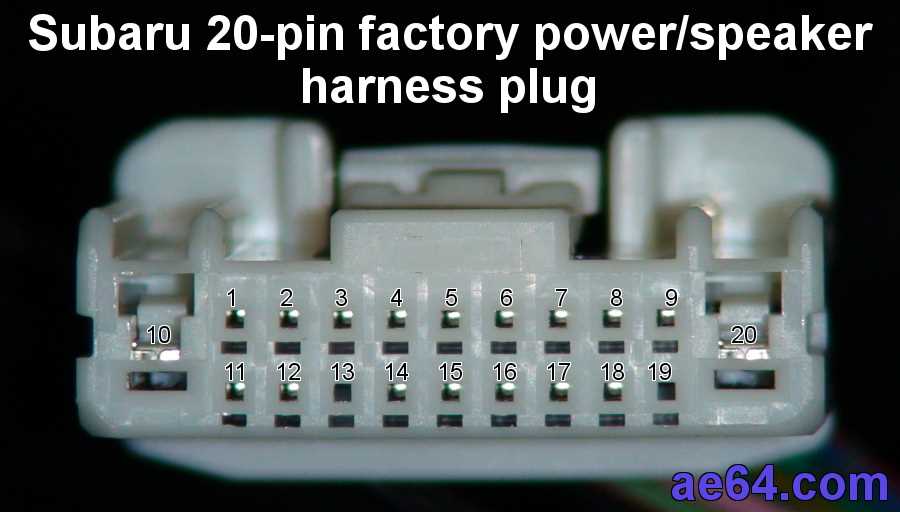

Key identifying features of the main connector include a square locking tab on the top and numbered terminals inside. Pin assignments are standardized: constant power (red, pin 10), switched power (yellow, pin 12), ground (black, pin 9), and speaker wires (pins 1-6 and 13-16). Use a multimeter to confirm voltages before disconnecting.
The speaker wires follow this color pattern: front left (+) white, front right (+) gray, rear left (+) green, rear right (+) purple. Corresponding negative leads have a black stripe. Aftermarket adapters like Metra 70-8113 or Scosche SU20RB are designed to interface directly with this configuration without cutting.
If replacing the head unit, remove the factory bracket by unscrewing two Phillips screws at the top of the module. The harness and antenna cable will remain attached–transfer these to the new unit’s adapter before securing it in place. Ensure all connections are tight and recheck for loose wires before reinstalling the dashboard panel.
Standardized Cable Hues in the Audio Head Unit Circuit
Locate the yellow conductor–this carries constant 12V power from the battery and must connect first to maintain memory settings. Pair it with black (ground) to complete the primary circuit; incorrect grounding risks intermittent operation or fuse failure. For switched power, identify the red wire, which activates only when the ignition is on–swap this with yellow for aftermarket units requiring constant power.
Speaker Connections and Accessory Signals
Front left positive: gray; front left negative: gray with black stripe–polarity must match factory standards to prevent phase cancellation. Rear speakers use violet (positive) and violet/black (negative) for right, and green (positive) with green/black (negative) for left. Auxiliary outputs, typically orange or orange/white, provide illumination for dash integration–cross-check with a 12V test light to confirm voltage before connecting aftermarket lighting kits.
For steering wheel control adapters, pinpoint the light blue wire (data bus) and validate signal continuity with a multimeter–resistance above 10 ohms indicates corrosion or damaged terminals. The pink wire (reverse signal) engages the backup camera or navigation override; bypass this if not required, but ensure no short circuits occur when splicing into telematics systems.
Step-by-Step Guide to Safely Extracting the Factory Head Unit
Disconnect the vehicle’s negative battery terminal first. Locate the 10mm bolt securing the terminal clamp and loosen it with a socket wrench. Wait at least 5 minutes before proceeding–this prevents any electrical shorts that could damage internal components during removal.
Remove the trim surrounding the audio system. Use a plastic trim removal tool to pry off the upper dash panel. Insert the tool at the seam near the air vents, then work along the edges in small increments to release the clips. Avoid metal tools; they can scratch surfaces or damage retaining clips.
- Start from the bottom edge of the panel, near the hazard button.
- Slide the tool upward 1-2 inches at a time, feeling for resistance from each clip.
- Once loose, gently pull the panel forward to detach the wiring harness for the climate controls.
Locate the mounting brackets holding the head unit. Most models use four screws–two at the top, two at the bottom–secured with 8mm bolts. Remove these with a magnetic-tip screwdriver to avoid dropping fasteners into the dash cavity. If screws are stuck, apply penetrating oil and wait 30 seconds before retrying.
Pull the unit outward slowly once screws are removed. Disconnect the antenna cable by pressing the release tab on its plug–pull straight out, not at an angle. For the main harness, squeeze the locking tabs on each connector while pulling them apart. Label each plug with masking tape if reinstalling later.
- Grip the head unit firmly at the sides, not the front panel.
- Rock it side-to-side slightly if resistance is felt–some clips may still be engaged.
- Tilt the unit downward to access rear connections if needed.
- Store removed fasteners in a small container to prevent loss.
Inspect the wiring harness and surrounding area before closing. Check for loose strands, corrosion, or damaged pins on connectors. If any wires appear frayed, wrap them with electrical tape or use heat-shrink tubing. Reconnect the battery terminal only after ensuring all tools and hands are clear of metal surfaces.
