Begin by identifying the core components in the optical path of a Fourier-transform infrared (FTIR) system. The interferometer–typically a Michelson design–must include a beam splitter, moving mirror, fixed mirror, and a precise alignment mechanism. Place the beam splitter at a 45-degree angle to the incident radiation; this ensures efficient division of the beam into two orthogonal paths with minimal energy loss. Position the moving mirror on a high-precision motorized stage capable of sub-micron displacements, as spectral resolution directly depends on the mirror’s travel distance.
Label all critical elements with exact specifications: the beam splitter should be constructed from potassium bromide (KBr) or zinc selenide (ZnSe) for mid-infrared transparency, while the detector–preferably a mercury cadmium telluride (MCT) type–must be cooled to liquid nitrogen temperatures to reduce thermal noise. Include the source, usually a globar emitting broad-spectrum IR radiation, and note its temperature (typically 1200–1500 K) to ensure consistent output. Mark the sample compartment with dimensions and material compatibility, emphasizing the need for purging dry air or nitrogen to eliminate atmospheric water and CO₂ interference.
Use distinct line styles to differentiate signal paths: solid lines for optical beams, dashed for electrical connections, and dotted for reference axes or alignment guides. Annotate the interferogram axis with time or mirror displacement units, and the resulting spectrum with wavenumber (cm⁻¹) values, ensuring the x-axis spans at least 4000–400 cm⁻¹ for full mid-IR coverage. Indicate the apodization function applied during Fourier transformation–common options include triangular, Happ-Genzel, or Norton-Beer–to clarify how spectral resolution and signal-to-noise trade-offs are managed.
Ensure the diagram accounts for real-world constraints: specify the minimum detectable absorbance (typically 10⁻⁴–10⁻⁵ AU) and dynamic range (3–4 orders of magnitude) of the detector. Highlight the role of the reference laser (often a HeNe at 632.8 nm) for precise mirror positioning, and include its path in a contrasting color to avoid confusion with the IR beam. If representing a portable or attenuated total reflectance (ATR) configuration, add a diamond crystal or zinc selenide prism with annotated incidence angle (usually 45°) and penetration depth (~1–2 µm) to convey sampling limitations.
For quantitative analysis, overlay the diagram with expected spectral features: mark characteristic peaks for functional groups (e.g., C=O at 1700 cm⁻¹, O-H at 3400 cm⁻¹) and their typical bandwidths. Include a calibration curve or Beer-Lambert law reference if the goal is concentration quantification. If the visualization includes data processing steps, separate the raw interferogram, phase correction, and final absorbance spectrum into distinct subplots to illustrate the transformation workflow.
How an Interferometer-Based Spectroscopy Layout Works
Begin by ensuring the beam splitter in your infrared setup divides the incoming light into two equal-intensity paths–one toward a fixed mirror, the other toward a movable one. The standard zinc selenide or potassium bromide splitter reflects 50% of the beam while transmitting the remainder; deviations beyond ±2% reduce signal accuracy. Position the movable mirror with micrometer precision–shifts of just 0.1 micrometers alter interference patterns detectable in measurements. Align both mirrors perpendicular to the optical path using a helium-neon laser for initial calibration; misalignment angles exceeding 0.1° introduce phase errors that distort spectral resolution.
- Source stability: Use a globar (silicon carbide) or mercury arc lamp emitting 1.2–25 µm wavelengths. Operate the globar at 1100°C ±10°C to maintain consistent radiance; temperature fluctuations degrade signal-to-noise ratios.
- Detector selection:
- Mercury cadmium telluride (MCT): 2–16 µm, detectivity of 1×1010 cm·Hz1/2/W.
- Deuterated triglycine sulfate (DTGS): 1.5–25 µm, slower response but no cooling required.
- Sampling techniques: For transmission, ensure sample thickness is <10 µm for solids or use potassium bromide pellets compressed at 10,000 psi. For reflectance, employ a specular accessory with gold-coated mirrors (98% reflectivity) at 45° incidence.
Match detectors to wavelength ranges:
Critical Adjustments for Optimal Performance
Avoid interference fringes caused by parallel surfaces–tilt samples or windows by 5° when possible. Replace beam splitter substrates every 12–18 months; environmental contaminants (e.g., water vapor, hydrocarbons) degrade ZnSe coatings. Purge the optical path with dry nitrogen (≤5 ppm H2O) to eliminate atmospheric CO2 and water absorption bands near 2350 cm-1 and 3400 cm-1. For rapid-scan mode, synchronize mirror velocity with ADC sampling–target 1.6 cm/s for 4 cm-1 resolution. Verify alignment weekly using polystyrene film (ASTM E1421); peak positions should replicate reference spectra within ±0.5 cm-1.
Critical Elements of an Infrared Optical Bench Layout
Position the interferometer at the core of the system–ensure it uses a beamsplitter optimized for mid-infrared transparency (typically KBr or ZnSe) with a surface flatness of λ/10 or better. Select a moving mirror assembly with a linear travel range of at least 5 cm and positional accuracy under 1 nm, driven by a voice coil or piezoelectric actuator. Mount the fixed mirror at a precisely calibrated angle, offset by 90° relative to the beamsplitter to eliminate phase errors during signal recombination. Incorporate a HeNe reference laser (632.8 nm) aligned collinearly with the IR beam path, using its fringes for precise mirror position sampling–the laser’s stability must stay within 0.01 cm⁻¹ over the scan duration.
- Source: Use a silicon carbide globar operating at 1100–1300 K, emitting blackbody radiation peaking near 2000 cm⁻¹; ensure thermal insulation to prevent stray radiation reaching the detector.
- Detectors: Employ a liquid-nitrogen-cooled MCT (mercury-cadmium-telluride) detector for high sensitivity in the 4000–400 cm⁻¹ range; alternate with a DTGS detector if cost constraints apply, accepting a 10× reduction in signal-to-noise ratio.
- Optics: Install off-axis parabolic mirrors (f/4 or faster) with gold coatings to maximize reflectivity (>98% at 10 μm); avoid refractive elements to minimize chromatic aberration across the broad spectrum.
- Purge system: Enclose the entire beam path in a dry nitrogen or CO₂-free air purge (≤10 ppm H₂O) to eliminate atmospheric absorption bands around 3500–4000 cm⁻¹ and 1300–1800 cm⁻¹.
- Data acquisition: Configure an ADC with 24-bit resolution sampling at ≥20 kHz to capture interferogram peaks without aliasing, synchronizing with the HeNe laser fringe count for accurate wavenumber calibration.
Decoding Optical Pathways in Infrared Spectroscopy Layouts

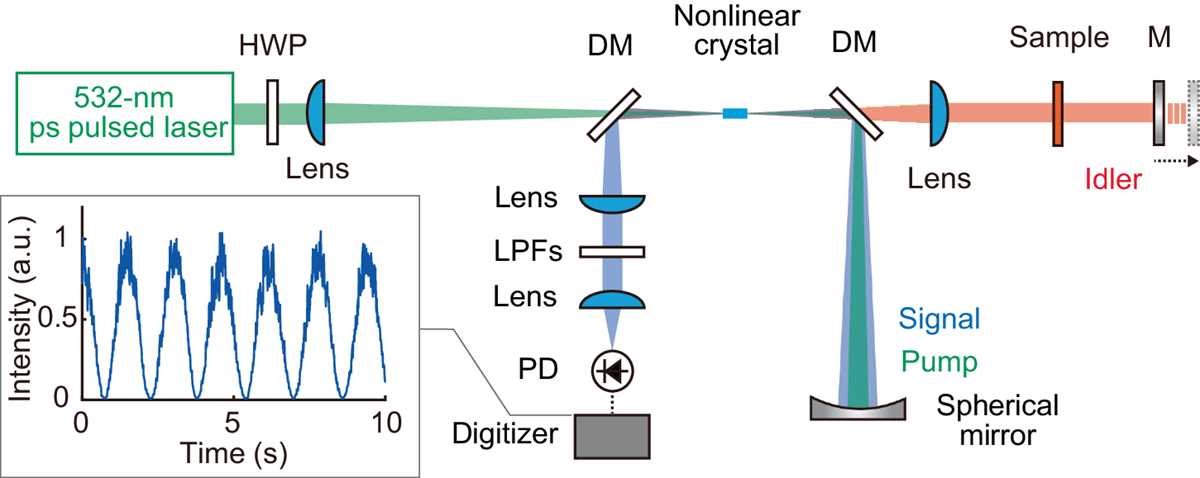

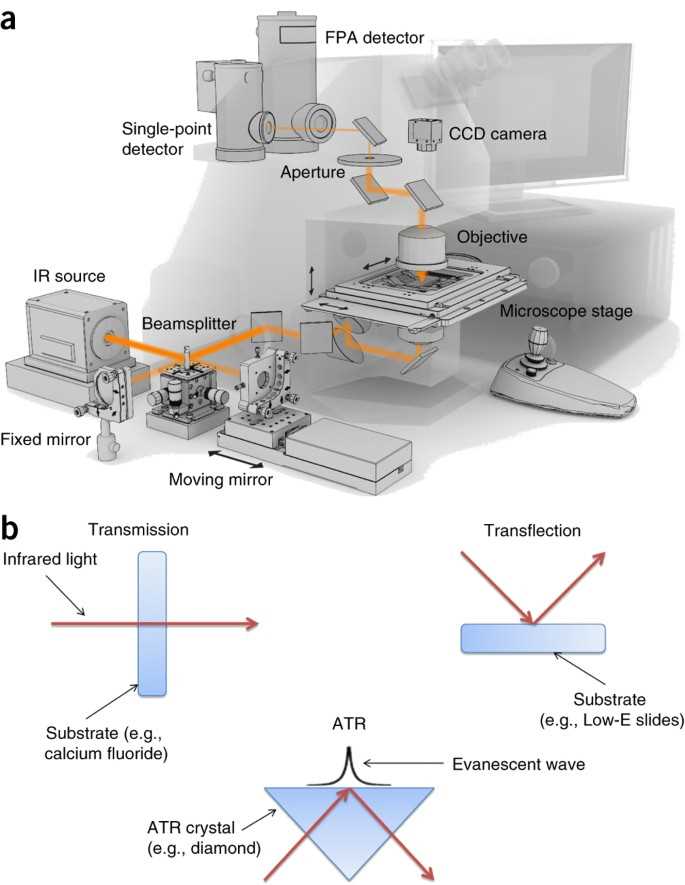

Identify the light source first–typically a mid-IR emitter like a Globar or laser. Trace its beam through the interferometer assembly: the beam splitter divides it into two orthogonal paths, each reflecting off a fixed and movable mirror respectively. Calculate path differences between reflected beams; constructive/destructive interference patterns at the detector directly encode spectral data. Verify mirror alignment tolerances–deviation beyond ±0.1λ (λ=HeNe reference) corrupts interferogram fidelity.
Examine sampling interfaces–transmission, reflectance, or attenuated total reflectance (ATR) modules–and note how optical trains redirect beams. In transmission mode, position samples perpendicular to the incident beam; ensure purge chambers eliminate atmospheric CO₂/H₂O absorption bands intersecting at 2350 cm⁻¹ and 3700 cm⁻¹. For ATR, confirm crystal contact angles (45° ZnSe/Diamond) to prevent evanescent field decay beyond 2 micrometers penetration depth.
Locate the detector–typically DTGS (room temperature) or MCT (liquid N₂ cooled) units. Confirm detector responsivity bands match spectrometer range (e.g., MCT cutoff at 700 cm⁻¹ vs. DTGS at 400 cm⁻¹). Check optical filters: long-pass filters at 4000 cm⁻¹ block high-order diffraction artifacts, while notch filters center on 632.8 nm HeNe laser frequency for precision sampling intervals.
Validate auxiliary optics: apodization functions (Hamming, Norton-Beer) applied during Fourier transform suppress Gibbs ringing artifacts from abrupt interferogram truncation. Ensure mirror velocity calibration–constant velocity (±0.1%) yields linear sampling intervals critical for accurate Fast Fourier Transform execution. Monitor laser fringe contrast ratios (>100:1) to detect misalignments or beam splitter delamination.
Step-by-Step Signal Processing Flow in Infrared Spectroscopy Visual Models
Begin by verifying the interferometer’s optical alignment before acquiring raw data. Misalignment introduces phase errors, which distort absorption peaks. Use a reference laser (e.g., He-Ne at 632.8 nm) to confirm mirror positioning–deviations beyond ±0.1% of the optical path difference degrade resolution. Adjust beam splitters dynamically if temperature fluctuations exceed 0.2°C, as thermal expansion shifts the zero-path point.
Collect the interferogram with a detector sensitive to mid-infrared wavelengths (e.g., DTGS or MCT). Set acquisition parameters to match sample characteristics: for solids, use 1 cm⁻¹ resolution with 16 scans; for gases, increase resolution to 0.5 cm⁻¹ and scans to 128. Overlap scans by 25% to reduce noise–co-adding insufficient scans produces artifacts resembling weak absorption bands. Record baseline spectra under identical conditions to normalize intensity variations.
Apply apodization functions prior to Fourier transformation. Triangular apodization suppresses side lobes but broadens peaks; Norton-Beer weak or strong functions offer sharper resolution at the cost of increased noise. For gaseous samples, use boxcar apodization–its minimal side lobes preserve narrowband features. Execute phase correction using Mertz or Forman methods to eliminate asymmetric peaks. Mertz requires fewer computations but is sensitive to high-frequency noise; Forman is more robust for low-SNR signals.
Post-transformation, remove atmospheric interference by subtracting water and CO₂ spectra. Use spectral subtraction with a scaling factor between 0.85–1.15–values outside this range indicate incomplete subtraction or oversaturation. Apply baseline correction via polynomial fitting (order ≤4) or adaptive smoothening. Polynomials work well for flat baselines, while asymmetric least squares handle sloped or curved baselines without distorting peak intensities.
Quantify features using integrated area or peak height. For multicomponent analysis, employ multivariate calibration (PLS or PCR) with cross-validation. Limit latent variables to ≤10 to avoid overfitting. Validate spectra against reference standards–deviations >2% in peak position suggest instrument drift or sample contamination. Store processed data in NetCDF or JCAMP-DX formats to preserve metadata, including resolution, apodization, and detector parameters.
