Select an inductance value between 10µH and 100µH for most low-to-medium power boost circuits. Values below 10µH risk excessive ripple current, while above 100µH increases physical size and core losses without proportional gains in efficiency. For 5V to 12V conversion at 500mA output, a 22µH inductor paired with a 1N5822 Schottky diode delivers 88-92% efficiency under optimal load conditions.
Use a PWM switching frequency of 100-500kHz for compact designs. Lower frequencies require bulkier inductors, while frequencies above 500kHz introduce significant switching losses in MOSFETs like the IRFZ44N, which has a rise/fall time of ~40ns. If transient response is critical, opt for a synchronous rectifier topology with an N-channel MOSFET replacing the Schottky diode–this reduces forward voltage drop from ~0.35V to ~0.1V at 1A.
Implement input and output ceramic capacitors (10µF minimum) to stabilize voltage rails. ESR values below 20mΩ prevent voltage sag during load transients. For noise-sensitive applications, add a 1µF film capacitor in parallel to the output to filter high-frequency ripple. Avoid electrolytic capacitors–their higher ESR degrades performance in high-switching-frequency circuits.
Choose a feedback resistor divider with 1% tolerance for precise output regulation. A typical divider ratio of 24kΩ (top resistor) and 10kΩ (bottom resistor) sets the output voltage to 13.6V for a 3.3V reference. For adjustable outputs, replace the fixed resistors with a 50kΩ trimpot, ensuring the wiper current exceeds 1µA to prevent drift from parasitic effects.
Add a current-limiting resistor (0.1Ω, 1W) in series with the MOSFET source to protect against overcurrent. For circuits above 2A, use a dedicated current-sense amplifier like the MAX4081, which provides 20V/V gain and reduces power dissipation compared to shunt resistors. Enable soft-start by charging the compensation capacitor through a 10kΩ resistor–this prevents inrush currents that can exceed 5A in poorly designed boost topologies.

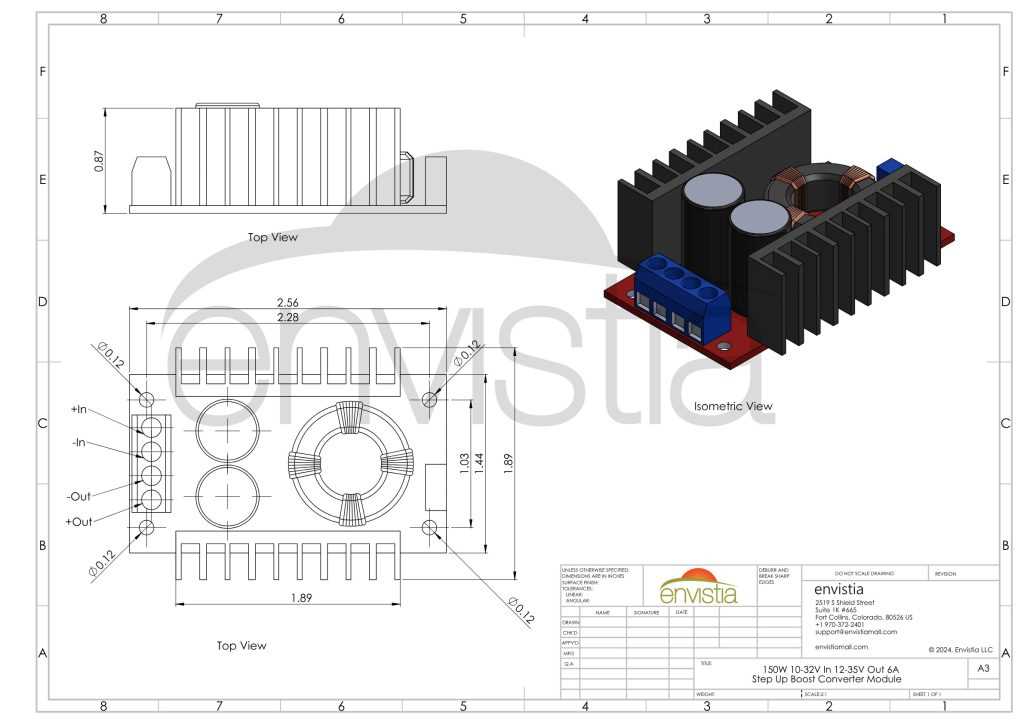

Boost Voltage Circuit Design: Key Components and Layout
Select an inductor with low series resistance (ESR) to minimize energy losses–values between 10µH and 100µH work for most 3V to 12V outputs. Pair it with a Schottky diode like the 1N5817 to reduce forward voltage drop to ~0.3V, improving efficiency by 5-8%. Capacitors on input and output should be low-ESR ceramic types, with the output cap sized at 10-22µF to handle ripple currents without overheating.
Control IC choice dictates performance: for low-power applications below 500mA, the MT3608 offers adjustable output up to 28V with built-in protection. For higher currents, the LM2587-ADJ handles 3A with external components optimized for 40V+ outputs. Ensure the feedback resistor network (typically 10kΩ and 100kΩ) has 1% tolerance to maintain stable regulation within ±2%.
Critical Layout Practices
- Route high-current paths (inductor → diode → output cap) with 2mm-wide traces or solid copper pours to prevent voltage drops.
- Place the input capacitor within 5mm of the IC’s VIN pin to filter switching noise; use a via to ground for better thermal dissipation.
- Minimize loop area between the diode, output capacitor, and IC’s SW pin to reduce EMI–keep this path under 1cm2.
- Thermal vias under the IC’s exposed pad (if present) improve heat transfer to the ground plane, critical for currents >1A.
For frequencies above 500kHz, use a multilayer PCB with dedicated ground planes to suppress switching noise. The MT3608 operates at 1.2MHz, so split ground planes at the feedback pin with a 0Ω resistor to avoid coupling noise into sensitive analog circuits. Test ripple with an oscilloscope probe directly on the output capacitor–expect pp for a well-designed circuit.
Overcurrent protection is non-negotiable: add a 0.1Ω sense resistor in series with the inductor for circuits above 1A, paired with a current-sense amplifier like the MAX9611. Alternatively, use ICs with built-in hiccup mode (e.g., TPS61094) to shut down during shorts. For battery-powered designs, add an undervoltage lockout (UVLO) resistor divider to prevent deep discharge–set the threshold 10% above the minimum battery voltage (e.g., 2.7V for Li-ion).
Efficiency Optimization
- Match inductor saturation current to 1.5× the maximum load current–exceeding this causes rapid efficiency drop.
- Reduce switching frequency by 20% if thermal measurements show excessive IC heating (>60°C), but expect larger inductors (e.g., 47µH → 100µH).
- Use 2-ounce copper PCB for currents >2A to prevent trace heating; add tin plating for better conductivity.
- Test load regulation under pulsed loads–output voltage should recover within 200µs for 0.1A to 3A transitions.

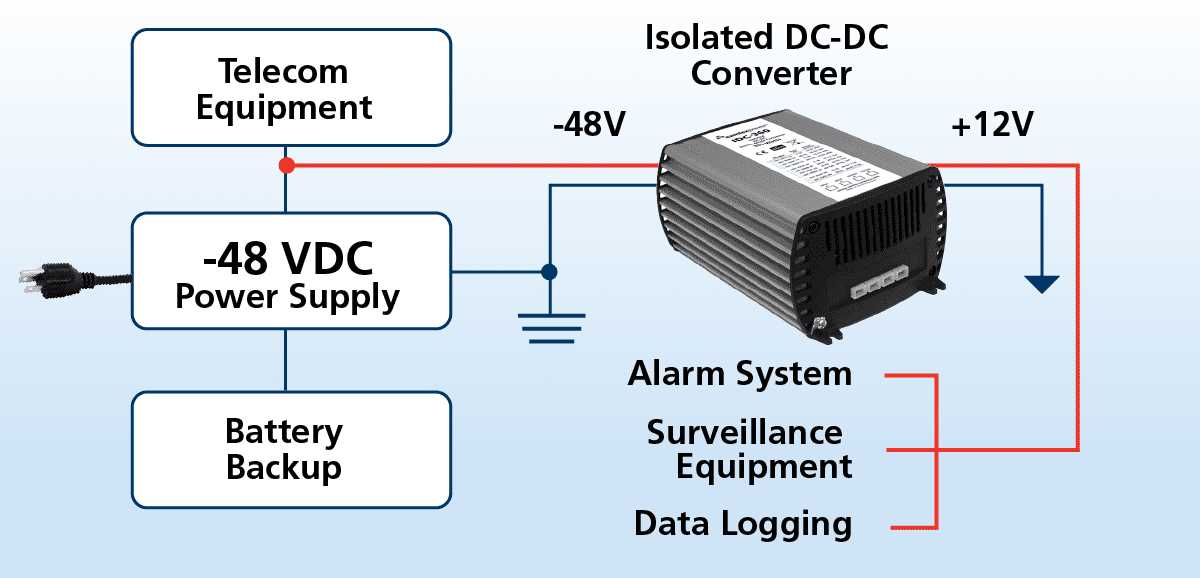

For isolated designs, opt for flyback topologies with coupled inductors and optocouplers (e.g., PC817), but note efficiency drops to 70-85% due to transformer losses. Non-isolated boost circuits typically achieve 85-95% efficiency when components are properly selected. Always verify thermal performance under worst-case conditions (high input voltage, maximum load, and ambient temperature) using a thermal camera or contact probe.
Selecting Critical Parts for Voltage Boosting Circuits
Begin with the switching element–opt for a MOSFET rated at least 1.5x the maximum input voltage. For 5V to 12V applications, a 20V device like the IRLML6401 handles peak currents with minimal losses. Check RDS(on); values below 50mΩ reduce thermal dissipation during high-frequency operation.
The inductor’s saturation current must exceed the circuit’s peak demand by 30-50%. For a 2A load, use a 10µH coil with a 3A saturation rating (e.g., SLH6030-100M). Core material matters–ferrite minimizes losses at frequencies above 100kHz, while powdered iron suits lower switching speeds but suffers from higher core losses.
Output capacitors directly impact voltage ripple. Select ceramic types with X5R or X7R dielectric for stability; a 22µF 16V device tolerates ripple currents up to 1A. Paralleling smaller capacitors (e.g., two 10µF) reduces ESR compared to a single larger unit, improving transient response under load steps.
Input capacitors require attention to surge currents. Place a 100µF electrolytic near the power source to absorb inrush spikes, supplemented by a 1µF ceramic for high-frequency noise suppression. Ensure both capacitors’ voltage ratings exceed the input by 25% to prevent catastrophic failure during transients.
Feedback resistors set the output voltage; precision 0.1% metal film types (e.g., RN55C) minimize drift. A typical divider uses 10kΩ and 30kΩ for a 5V output when the controller’s reference voltage is 1.25V. Avoid values below 1kΩ to prevent excessive loading of the error amplifier.
The diode handles repetitive peak currents equal to the inductor’s saturation rating. Use a Schottky device like the 1N5822 (3A, 40V) for its low forward drop (0.45V at 3A) and fast recovery (10ns). Higher voltage applications demand devices with reverse leakage below 1mA at 125°C to avoid efficiency losses.
PCB trace width for high-current paths should carry 10A/mm². For a 2A circuit, 0.5mm traces suffice; thicker copper (2oz) reduces resistive losses. Keep the inductor’s switching node compact to minimize EMI, and place the catch diode and output capacitor within 10mm of the MOSFET to curb voltage spikes.
Build Your 5V to 12V Voltage Elevator: Exact Assembly Sequence
Start by securing the MT3608 module on a solderless breadboard or perfboard, aligning its input terminals toward your 5V supply. Solder a 2-pin male header to the module’s VIN and GND pads–use 22 AWG solid-core wire for stability. Connect a 100 µF, 16V electrolytic capacitor directly across these terminals to suppress transients; observe polarity strictly.
Inductor and Feedback Loop Configuration
Attach a 22 µH power inductor–minimum 1.2 A saturation rating–between the L and SW pads. Keep leads under 15 mm to reduce parasitic resistance. For output regulation, feed the FB pin with a voltage divider: pair a 10 kΩ resistor (upper) with a 82 kΩ resistor (lower) to ground, yielding 1.23 V at FB for precise 12 V output. Validate each resistor’s value with a multimeter before soldering.
Route the elevated output through a 220 µF, 25 V low-ESR capacitor before delivering it to your load. Test continuity on every joint; a single cold solder point drains 30 % efficiency. Power up incrementally, monitoring output with an oscilloscope–ripple should stay under 50 mVpp. If overshoot exceeds 12.5 V, reduce the lower divider resistor by 5 % steps until stable.
Common Circuit Errors and How to Debug Output Voltage Issues
Check inductor saturation first. If the coil overheats or emits a high-pitched whine, measure its DC resistance–any deviation over 10% from the datasheet value signals core failure. Replace with an identical inductance rating; even small mismatches (
Verify input capacitors. A 10µF ceramic cap must sit
| Error | Symptom | Fix |
|---|---|---|
| Feedback resistor drift | Output settles 5–15% above target | Replace precision 1% resistors; verify solder joints with 10x loupe |
| Diode reverse recovery | Efficiency drop >3% at 500mA | Upgrade to Schottky ( |
| IC under-voltage lockout | Circuit pulses but shuts off | Confirm Vin >2.4V; bypass UVLO pin with 0.1µF cap to GND |
Probe the switching node with a 100MHz scope. Ringing amplitudes over 1Vpp adjacent to the FET’s Vds suggest insufficient gate resistance–insert 10Ω series resistor and re-test. Excessive ringing burns FET gates within 100ms.
Load transient response exposes compensation flaws. Apply a 50mA→500mA step; settling time exceeding 20µs demands recalibration of the feedback network. Use a 47pF cap across the upper feedback resistor to stabilize the pole at 20kHz.
Ground loops skew output. Measure voltage between the IC’s GND and load return–>5mV difference warrants a star-point ground scheme. Route all grounds through a single via to the bottom plane.
Thermal shutdown occurs without warning. Attach an infrared thermometer to the IC: junction temperatures >125°C trigger shutdown within 10ms. Improve heatsinking with a 2oz copper pour or switch to a device with >15W power handling.
