Begin with a zoned detection strategy–divide facilities into risk-specific sectors. High-hazard areas (e.g., server rooms, chemical storage) require addressable smoke sensors with dual-wavelength optical detection, while low-risk zones (e.g., corridors) can deploy standard ionization detectors for cost efficiency. Ensure each zone is mapped to a dedicated control panel with redundant power supplies (minimum 24-hour battery backup) to mitigate single-point failures.

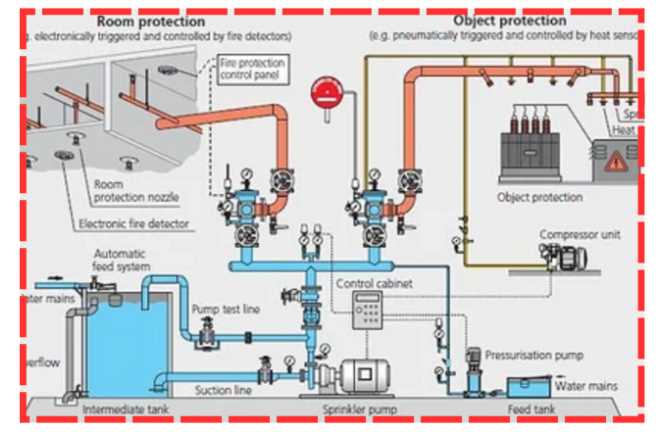

Integrate pre-action sprinkler networks for spaces with high-value assets. Unlike wet-pipe systems, these require two-step activation: smoke detection triggers a solenoid valve to flood the piping, followed by thermal element breakage (74°C/165°F) to release suppressants. This dual-lock mechanism reduces accidental discharges by 98% in environments like data centers, where water damage is catastrophic. For server farms, combine clean-agent suppression (FM-200 or Novec 1230) with cross-zoned alarms–avoid relying solely on CO₂ due to oxygen-depletion risks in occupied areas.
Deploy heat-sensitive cables (linear detectors) along conveyor belts, cable trays, and ceiling plenums. These provide early-warning detection (reacting at 57°C/135°F) before flaming combustion, critical for industrial facilities where smoldering fires (e.g., dust accumulation) precede ignition. Pair with video smoke detection (VSD) in large open spaces–cameras with infrared analytics achieve sub-30-second response times, outperforming traditional point detectors in high-ceiling warehouses.
Mandate fail-safe valve configurations for all suppressant lines. Use normally closed valves that open only upon electrical signal or manual pull stations, preventing false activations. For gas-based systems, incorporate pressure-switch monitoring with end-of-line resistors to detect leaks–even a 5% agent loss triggers immediate fault alerts. In hospitals and labs, isolate suppression zones with shut-off dampers to contain agent spread and protect sensitive equipment.
Validate designs through computational fluid dynamics (CFD) modeling. Simulate smoke propagation, sprinkler coverage, and agent dispersion under worst-case scenarios (e.g., adjacent room fires, HVAC failure). Adjust nozzle placement based on velocity profiles–misaligned sprinklers can create dry spots where flames persist. For multi-story buildings, use stairwell pressurization to maintain 50 Pa minimum differential, preventing smoke infiltration during evacuation.
Key Elements of a Safety Setup Layout

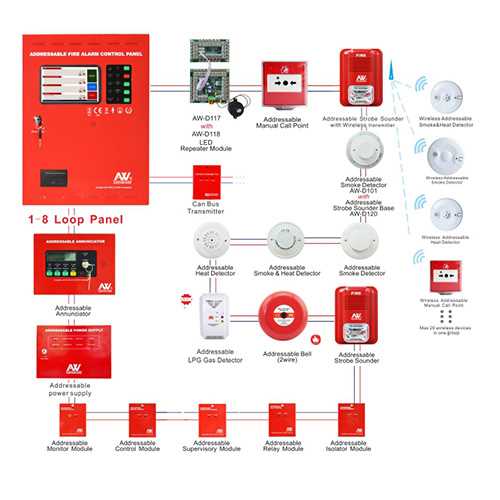

Place heat detectors at 5-meter intervals in high-risk zones like kitchens and server rooms, ensuring they sit no further than 1.5 meters from walls. Smoke sensors must cover 60 m² per unit, reducing spacing in corridors to 4 meters for linear detection paths. Use addressable models for pinpoint accuracy–each node links to a central control panel via a Class A loop, preventing signal loss if a single cable fails.
Water-based suppression requires calculating pipeline pressure drops before installation. A 100 mm main line delivers 1,200 L/min at 12 bar; branches should taper to 50 mm with flow rates adjusted downward by 30% to maintain velocity. Install isolation valves every 25 meters and drain points at low levels to flush sediment. Dry pipe configurations need nitrogen pressurization at 1.5 bar above system pressure to prevent false trips in freezing environments.
- Gas suppression (e.g., FM-200) demands 10% concentration for Class A hazards, releasing within 10 seconds to extinguish flames before oxygen depletion. Cylinder banks must align with room geometry–mount horizontally for ceiling heights under 2.7 meters, vertically if taller. Vents equal to 2% of room volume prevent overpressure; test annually for agent purity.
- Electrical wiring for alarms should follow NFPA 72 standards: 18 AWG for notification circuits, 12 AWG for power supply lines, with conduit bends limited to 90° and a maximum of 4 per run. Grounding rods spaced 3 meters from the main distribution panel reduce interference spikes.
- Emergency power supplies require 24-hour backup capacity; lithium-ion batteries last 12 years but need monthly impedance checks. Diesel generators must synchronize with the grid within 10 seconds–test under load quarterly with a 3-minute cooldown between startups.
Integrate control logic with building management via BACnet or Modbus protocols. Each zone’s sensor data should update every 2 seconds; critical alerts prioritize SMS and email with a 5-second delay. Programmable relays handle higher loads–use 10 A contacts for pumps, 5 A for valves, and fuse each circuit at 150% of expected current draw.
Markup layouts using standardized symbols: blue triangles for detectors, red dashed lines for piping, and orange rectangles for control panels. Label each component with ID codes matching as-built documentation–include voltage ratings, pressure limits, and inspection dates. For high-rise structures, color-code riser diagrams by floor (e.g., green for levels 1–10, yellow for 11–20) to simplify troubleshooting.
Conduct hydrostatic tests on piping at 1.5× working pressure for 2 hours; check for leaks with soap solution if pressure drops exceed 2%. Simulate system activation monthly: trigger alarms, verify signal paths, and confirm water flow rates match hydraulic calculations. Replace agents like clean gases every 5 years–track expiration via RFID tags to automate compliance reporting.
Critical Elements for an Emergency Safety Plan Blueprint
Begin by integrating detection hardware at strategic points: ionization detectors for rapid-flame alerts (ideal for clean-burning liquids/gases), photoelectric sensors for smoldering threats (minimum 85% accuracy in particulate-rich environments), and combined units with CO monitoring for mixed-risk zones. Position devices at 7.5-meter intervals in corridors and within 5 meters of high-value assets, ensuring dual-path redundancy where combustible materials exceed 10 kg/m². Label each node with unique identifiers (e.g., FD-COR-03-ZoneB) tied to a centralized control panel via shielded 18 AWG copper wiring rated for 600V.
Include suppression mechanism specifications in tabular format for clarity:
| Mechanism Type | Activation Trigger | Discharge Coverage | Maintenance Cycle |
|---|---|---|---|
| Wet pipe sprinklers | Thermal fusible link (74°C) | 12 m² per head | Quarterly pressure checks |
| Pre-action valves | Dual: smoke + manual pull | Variable (zone-based) | Biannual trip testing |
| Gas-based (FM200) | Electronic controller (VdS-approved) | 48 m³ per cylinder | Annual weight verification |
| Aerosol generators | Optical or heat sensors | 100 m³ per unit | Self-test every 30 days |
Illustrate power supply pathways with fail-safe contingencies: primary feed from a dedicated circuit breaker (minimum 20A), backed by UPS units (30-minute runtime at full load) and emergency generators. Distinguish between low-voltage (24V DC for control panels) and high-power lines (480V AC for pumps/compressors) using color-coded tracing–red for life-safety circuits, blue for non-critical auxiliaries. Specify manual release points adjacent to exits, clearly marked with photoluminescent signage exceeding ISO 16069 visibility requirements (20 meters in 2 lux conditions).
Best Practices for Marking and Wiring Safety Signal Devices in Technical Plans
Assign each component a unique alphanumeric code matching industry standards–NFPA 72 for North America or EN 54 for Europe. Detectors should follow the format DA-XX (e.g., DA-01 for smoke, DA-02 for heat), while notification appliances use NA-XX (NA-01 for horns, NA-02 for strobes). Control panels and modules carry CP-XX and MD-XX respectively. Avoid generic labels like “Detector 1” to prevent confusion during installation or maintenance.
Use color-coded lines for wiring representations: red for power, blue for signaling, green for supervisory circuits, and yellow for trouble circuits. Specify wire gauge directly on the connection path–e.g., 18 AWG for most devices, 14 AWG for control panels. Indicate voltage drop calculations if runs exceed 100 meters, noting requirements for thicker cables or repeater modules to maintain signal integrity.
Group related devices into zones with clear boundaries. Label zones numerically (Zone 1: Main Hall) and ensure each detector or appliance within a zone references its zone number on the plan. For multi-story buildings, prefix zones with floor numbers (e.g., 3-05 for Zone 5 on the third floor). Add a legend in the corner of the plan with zone descriptions, device types, and their corresponding codes.
Show power connections with polarity markers (+/-) and distinguish between AC (120V/240V) and DC (24V) sources. Isolate low-voltage wiring from high-voltage lines by spacing them at least 5 cm apart on the plan or using separate layers if digital. For end-of-line resistors, mark their exact resistance values (typically 4.7 kΩ) and location–usually at the last device in a circuit to enable supervision.
Include wire termination details at control panels and junction boxes. Use terminal block numbers (TB1-1, TB1-2) and specify if connections require soldering, crimping, or screw terminals. For addressable loops, list device addresses in sequence (e.g., Address 1: DA-01, Address 2: DA-03) and verify no duplicates exist within the same loop.
Add annotations for special cases: “Duct detector–requires 24V auxiliary power,” “Waterflow switch–short delay to avoid false alarms,” or “Beam detector–align transmitter and receiver within 3 mm tolerance.” For emergency voice systems, label audio paths with speaker wattage (25W @ 8Ω) and amplifier channel assignments.
Cross-reference the plan with a bill of materials listing each device’s model number, manufacturer, and approvals (UL, FM, CE). Add a revision history block noting date, changes, and approver initials. For international projects, include dual-unit measurements (metric and imperial) and translate critical labels into the local language without omitting technical details.
