Start by identifying the fuse box under the driver-side dashboard–pin 18 supplies power to the stereo harness. Trace the violet/white wire from the harness to the C2 connector; this line carries constant 12V. The orange/light blue stripe leads to the ignition-controlled feed, while the black wire grounds to the chassis near the kick panel. Mistaking these can trigger a blown fuse or dead display.
Remove the center console by unscrewing the two 8mm bolts beneath the climate controls. The factory wiring bundle is tucked behind the HVAC housing; peel back the plastic sheath to expose the ISO connector. Pinouts follow a standardized 16-pin layout: pins 4-8 handle speaker outputs, with front-right positive on pin 5 (gray). Reversing polarity will cause phase cancellation.
Test continuity with a multimeter before reconnecting–resistance should read below 4 ohms per channel. If replacing the head unit, match the aftermarket adapter’s wiring to the vehicle’s harness using a Metra 70-1776 or equivalent. Avoid splicing solid-core wires; use crimp connectors rated for 20A. Secure all joints with heat shrink tubing to prevent corrosion.
For models with the premium audio option, the amplifier sits behind the rear seat cushion. Disconnect the battery before unplugging the 22-pin harness to reset the theft-deterrent system. The amplifier’s remote turn-on wire (blue/white) must sync with the new receiver–failure to connect will mute audio even if power is present.
Guide to Electrical Connections for Early 2000s Compact Car Audio Systems
Locate the factory harness behind the head unit–it’s typically a 12-pin connector with color-coded leads. The yellow wire delivers constant 12V power, critical for memory retention; splice it directly to the aftermarket harness without cutting to avoid voltage drop. The red (switched 12V) and black (ground) must align precisely–crossing them risks frying the unit’s circuitry. For vehicles with automatic antennas, the blue/white striped wire triggers power; tie this to the new radio’s corresponding lead or the antenna will fail to extend.
Speaker outputs use a unique pairing: front left (gray/light blue) and front right (white/orange), with rear channels in violet/dark blue (left) and green/yellow (right). Resist the temptation to daisy-chain these; each wire carries distinct impedance ratings. Use a multimeter to verify polarity before connecting–reversing these will invert stereo imaging and degrade soundstage. Factory amplification, if present, requires bypassing by cutting the inline resistor on the orange/black speaker lead, otherwise bass response will be anemic.
Handling Steering Wheel Controls and Auxiliary Features
The light green/red wire manages steering wheel buttons–preserve this connection if integrating an aftermarket adapter. For vehicles equipped with premium sound, the purple/gray wire routes to the amplifier; disconnecting it without proper load simulation can trigger fault codes. Clock functionality draws power from the pink/orange wire–ensure this stays live to prevent resets after ignition cycles. CD changers, if installed, rely on the brown/white data bus; removing it may disable the entire entertainment stack.
Subaru-to-Mazda adapters won’t fit–this model uses a proprietary ISO-style plug with offset pins. Crimping new connectors requires specialized terminals; soldering is riskier but yields lower resistance. Always wrap splices in adhesive-lined heat shrink to prevent corrosion, especially in regions with high humidity. If retaining the stock unit, the beige/black wire (dimmer input) must stay intact to sync dashboard illumination with the headlight switch.
For aftermarket installations, the purple/white wire (speed-sensitive volume) should be capped unless the new system supports GALA input. Ignoring this can cause abrupt volume spikes at highway speeds. The tan/yellow wire (mute) engages when the phone rings–if no hands-free kit is present, ground this wire to prevent erratic behavior. Always test parasitic draw after installation; a single misrouted wire can drain the battery within 24 hours.

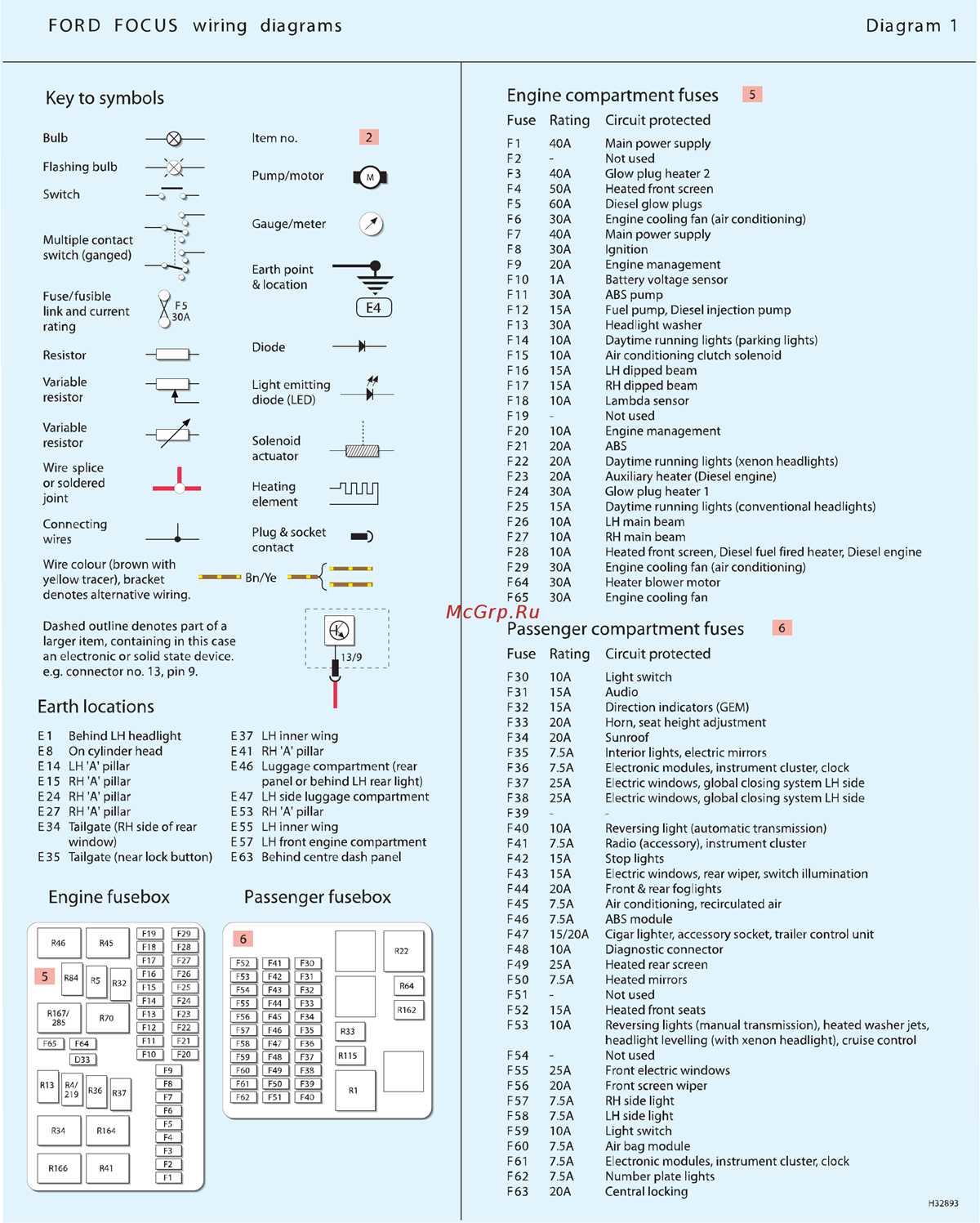

Fuse ratings matter: the red circuit is 10A, while the yellow demands 15A–the original harness includes fuses inline with each feed. Upgrading power wires to 16-gauge OFC copper minimizes signal loss but requires rerouting through the firewall to avoid chafing. Never use T-taps; they corrode over time and introduce electrical noise that manifests as static or whine in the audio signal.
Pinpointing the Right Electrical Adapter for Your Vehicle’s Audio System
Locate the original harness behind the factory head unit–it uses a 10-pin rectangular connector with a distinct keyed notch on the right side when viewed from the rear. Mismatched adapters often lack this notch or have incorrect pin spacing, leading to power failure or speaker silence.
Verify the color code sequence before installation: white/black (left front +), gray/black (right front +), green/black (left rear +), violet/black (right rear +), with matching solid colors serving as ground returns. Rear units may use an 8-pin configuration, omitting the harness ground and illumination wires.
Third-party adapters frequently omit the illumination wire (orange/white), causing dashboard dimmer controls to malfunction. Check for this circuit if your replacement unit loses brightness synchronization with the instrument cluster.
Adapter Cross-Reference
| Manufacturer Part Number | Compatibility Notes | Pin Count |
|---|---|---|
| Metra 70-1771 | Standard aftermarket fit; requires manual illumination wire splice | 10 |
| Axxess AX-FD01 | Includes pre-terminated illumination circuit | 10 |
| Scosche FD10RB | Reverse-polarity protection; verify ground pin integrity | 10 |
| PAC SNI-2 | OEM integration with steering wheel controls | 8 |
Harnesses for sedan models integrate an additional gray/red wire (antenna motor), absent in hatchback configurations. For units with built-in satellite tuning, confirm the presence of a 12V memory wire (yellow) or risk losing preset stations during power cycles.
If static persists through all speakers after connection, probe the brown/orange wire (amplifier trigger) with a multimeter–it should register 12V during audio playback. Absence of voltage indicates a fuse blow at position #40 (10A) under the passenger-side fuse box.
Diagnostic Quick Checks
Use a continuity tester between the harness connector’s metal housing and chassis ground–resistance should not exceed 0.5 ohms. Higher readings point to corrosion at the battery negative terminal or a compromised ground strap near the driver’s side kick panel.
For vehicles equipped with premium audio packages, locate the 18-gauge violet wire (speed-sensitive volume compensation)–this interfaces with the vehicle’s speed sensor and must be bridged to the aftermarket unit’s pink/black input or volume adjustments will erratically swing at highway speeds.
Decoding Vehicle Audio Connector Color Standards and Terminal Layouts
Begin by identifying the 12-pin ISO harness connector at the rear of the OEM sound system. Pin 1 (yellow) supplies constant 12V power, while pin 2 (red) delivers accessory voltage triggered by the ignition. Ground connections occupy pins 3 (black) and 4 (brown). Speaker outputs follow: front left positive (pin 5, white), front left negative (pin 6, white/black), front right positive (pin 7, gray), front right negative (pin 8, gray/black). Rear channels use pin 9 (green) for positive and pin 10 (green/black) for negative.
Antenna activation requires pin 11 (blue/white) with a 12V signal when the audio unit powers on. Illumination control is handled via pin 12 (orange) receiving variable voltage from dashboard dimmer circuits. Verify polarity before connecting aftermarket amplifiers–reversing leads distorts audio or damages components. Use a multimeter to confirm voltage levels; factory harnesses may degrade over time, causing intermittent failures.
Adapter looms often mislabel wires–match colors precisely rather than trusting printed identifiers. Common aftermarket adapters bundle speaker wires into twisted pairs (e.g., solid color for positive, stripe for negative), but OEM harnesses may separate them completely. Bridging incorrect terminals risks short circuits; isolate leads with electrical tape if bare wire joints are unavoidable. For vehicles with factory amplifiers, additional pins may appear–consult specific build sheets if the system includes subwoofer outputs.
Dual-lock connectors (if present) require firm insertion until a click confirms engagement. Partial connections introduce resistance, degrading sound quality. When upgrading to higher-wattage systems, replace thin gauge wires with 16- or 14-AWG equivalents to prevent voltage drop. Cap unused pins to avoid moisture intrusion, which accelerates corrosion. In models with steering wheel controls, a dedicated data bus (typically pink or purple) carries button signals–severing this line disables remote functionality.
Fuse protection is critical–locate the inline fuse on the constant power wire near the battery; a blown fuse suggests a short, often traced to grounded speaker terminals. Test each wire individually before finalizing connections, as splice points are failure-prone. For retained accessory power (RAP) systems, ensure the accessory wire remains live briefly after key-off to allow graceful shutdown of audio components. Factory wiring diagrams list wire gauges, but physical examination reveals insulation thickness to confirm current capacity.
Color consistency simplifies troubleshooting–standardized schemes exist but vary by manufacturer region. For instance, European models may use green for right rear positive, while other markets assign it to front right. Always cross-reference with a known-good connector or harness chart. If retrofitting a navigation system, separate power feeds (switched and unswitched) prevent draining the battery. Twist power and ground wires together to reduce electrical noise interference.
