To accurately depict a brewer’s yeast model, begin by demarcating the cellular boundary with a double-layered lipid membrane. Place the cell wallperiplasmic space between membrane and wall; this narrow region contains enzymes critical for nutrient breakdown.
Center the nucleus as a circular organelle housing linear DNA in chromatin form. Indicate the nucleolus as a denser sub-region responsible for ribosome synthesis. Position the endoplasmic reticulum (ER) adjacent–rough ER studded with ribosomes, smooth ER involved in lipid metabolism. Highlight the Golgi apparatus as stacked discs, marking its role in post-translational protein modification.
Scatter mitochondria as oval structures with inner folded cristae; note their dual-membrane system and genetic autonomy. Include vacuoles–large, centralized storage compartments–for nutrient and waste sequestration. Add peroxisomes as small, single-membrane vesicles containing oxidative enzymes, particularly catalase for detoxifying hydrogen peroxide.
For metabolic pathways, trace arrows from glucose uptake at the membrane through glycolysis in the cytoplasm, then into mitochondria for the Krebs cycle and electron transport chain. Label ATP synthase complexes on the inner mitochondrial membrane to illustrate proton-driven ATP generation. Annotate the actin cytoskeleton–filamentous networks–supporting cell shape, motility, and organelle distribution.
Use distinct color-coding: blue for structures involved in protein synthesis (ER, Golgi, nucleus), red for energy production (mitochondria), green for storage and detoxification (vacuoles, peroxisomes), and gray for structural components (cell wall, cytoskeleton). Avoid shading; opt for clear, unbroken outlines to maintain clarity at print resolution.
Visual Representation of Baker’s Yeast Cellular Structure
Start by identifying key organelles in a simplified cell illustration: nucleus, mitochondrion, vacuole, endoplasmic reticulum (ER), Golgi apparatus, and cell wall. Label each component with concise descriptors–avoid overloading the drawing with text. Use proportionate sizing: the nucleus should occupy ~10% of the cell volume, mitochondria ~5-8%, and the vacuole up to 30% in mature cells. Color-code structures for clarity: blue for aqueous compartments (cytoplasm, vacuole), red for membrane-bound organelles, and green for carbohydrate-rich regions (cell wall, glycogen stores).
Include a cross-sectional view highlighting the plasma membrane’s asymmetric lipid bilayer (~7-9 nm thick) with embedded proteins like porins (e.g., Fps1) and nutrient transporters (Hxt family). Mark the mannoprotein layer (~100-200 nm) on the outer cell wall surface–this is critical for flocculation and pathogen interactions. For the ER, distinguish between smooth (sterol synthesis) and rough (ribosome-bound, ~50% of total protein synthesis) regions. Add a 100-200 nm bud scar label to show reproductive sites, noting chitin (~2% of cell wall dry weight) localization.
- Nucleus: 1.5-2 µm diameter, enveloped by a double membrane with ~100 nuclear pores/µm². Note the nucleolus (~0.5 µm) for rRNA synthesis.
- Mitochondria: 0.5-1 µm long, tubular network (~10-20% of cell volume). Indicate cristae density variation under glucose repression (few cristae) vs. glycerol growth (~5x increase).
- Vacuole: Dynamic size (0.5-5 µm), central in older cells. Label acid hydrolases (e.g., Pep4) and storage functions (amino acids, polyphosphate).
- Peroxisomes: 0.2-0.5 µm, mark catalase (Cta1) and fatty acid β-oxidation enzymes. Indicate pexophagy under nitrogen starvation.
Annotate metabolic pathways directly on the diagram where possible. Show glucose uptake via Hxt transporters, followed by glycolytic flux through the cytosol (label key enzymes: Hxk1, Pfk1, Pyk1). Overlay the mitochondrion with electron transport chain complexes (I-IV) and ATP synthase (~100-200 copies/cell). Highlight the Crabtree effect by linking high glucose concentrations to respiratory repression. Include a small inset for the diauxic shift, depicting Snf1 kinase activation during glucose depletion.
Add a 3D perspective cutaway for the cell wall, depicting its layered organization:
- Innermost chitin-glucan layer (~50 nm, 20% β-1,3-glucan, 1-2% chitin).
- Middle glucan layer (~100 nm, β-1,6-glucan cross-links).
- Outer mannoprotein layer (~150 nm, ~40% protein, heavily glycosylated).
Specify cell wall porosity (~40-60 kDa exclusion limit) and turgor pressure (~0.6 MPa).

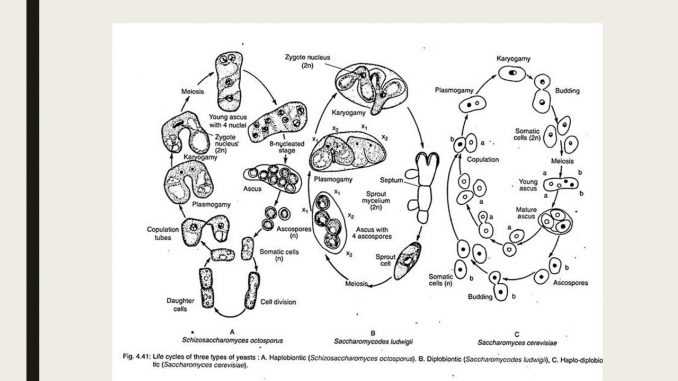

For budding reproduction, illustrate these sequential stages:
- Selection of bud site (polarized actin cables, Cdc42 GTPase).
- Initial bud emergence (chitin ring at base).
- Isotropic growth (G1 phase, Cln1/2-Cdc28 activation).
- Apical expansion (polarized secretion, exocyst complex).
- Cytokinesis (actomyosin ring contraction, septum formation).
- Scar formation (chitinase-mediated separation).
Include critical dimensions: mother-bud axis length (~4-6 µm), bud size at cytokinesis (~2-3 µm), and neck diameter (~1 µm).
Common Pitfalls in Yeast Cell Illustrations
Avoid these recurrent errors:
- Depicting static mitochondria–highlight their fusion/fission dynamics (Fzo1, Dnm1).
- Omitting peroxisomes (critical for methanol/oleic acid metabolism).
- Underrepresenting the vacuole’s role in ion homeostasis (e.g., V-ATPase, Ca²⁺/H⁺ exchangers).
- Ignoring cortical ER (~30% of total ER, associated with plasma membrane).
- Misplacing ribosomes: ~80S (cytosol), ~70S (mitochondrial matrix).
Use vector-based software (e.g., Inkscape, Adobe Illustrator) for scalability. Export final diagrams at ≥300 dpi for publication-quality prints. For interactive versions, embed hyperlinks to databases (e.g., SGD, YeastMine) for protein localization data.
Core Cellular Features of Yeast for Illustrative Representations
Prioritize accuracy in depicting the cell wall and plasma membrane by allocating 30% of the visual space. The cell wall, composed of β-glucan (50-60%) and mannoproteins (40%), must show its layered structure: an outer mannoprotein-rich layer, a middle β-1,3-glucan network, and an inner chitin (1-3%) base. The plasma membrane beneath should visualize ergosterol (15-20% of lipids) and integral membrane proteins like Pma1p, critical for proton transport. Misrepresenting these proportions–such as exaggerating chitin thickness beyond 3%–will distort functional understanding of osmotic resistance and nutrient transport.
Integrate organelles with precise spatial relationships. The nucleus occupies 5-10% of cell volume and should be offset toward the bud site during division, with visible nuclear pores (10-20 per µm²) and a single nucleolus (30% of nuclear area). Mitochondria, forming 10-15% of cell volume, must appear as a tubular network–never as isolated spheres–with cristae density reflecting respiratory state. ER and Golgi, less than 5% of volume, require distinct labeling: rough ER near the nuclear envelope, Golgi stacks adjacent but physically separate.
Highlight localization-dependent structures: bud scars (chitin rings, 0.3-0.5 µm width) must appear exclusively on mother cells post-division, while birth scars lack chitin. Storage carbohydrates–trehalose granules (up to 15% dry weight) and glycogen (10%)–should be sized relative to growth phase (log-phase: 2-5 granules; stationary: 10+). Peroxisomes (0.5-1 µm diameter) proliferate during fatty acid metabolism but vanish in glucose-rich media. Omit vacuoles if illustrating exponential growth; when included (stationary phase), show their acidic interior and fusion dynamics with autophagic vesicles.
Step-by-Step Guide to Illustrating a Yeast Cell with Key Components
Begin with an oval outline (3–5 µm in diameter) using light pencil strokes to define the cell boundary. Sketch a secondary inner layer 20–50 nm thick along the perimeter to represent the cell wall–label it immediately with a horizontal arrow pointing outward. Add a plasma membrane directly beneath, distinguished by a thinner, undulating line (7–10 nm). Mark the nucleus as a circular region (1–2 µm) near the center, enclosing a denser nucleolus (0.3–0.5 µm) with dotted texture; connect both labels with diagonal arrows. Position the mitochondrion (0.5–1 µm) along the inner curve of the cell, using an irregular oval with cristae indicated by two parallel inner lines–avoid perfect symmetry.
Place vacuoles (0.5–3 µm) as transparent circles in the posterior third; use faint dashed borders for younger cells, solid for mature. Add the endoplasmic reticulum (ER) as a ribbon-like network branching from the nuclear envelope–rough ER with small dots (ribosomes), smooth ER as clean lines. Position Golgi bodies (0.3–0.8 µm) adjacent to the ER as stacked crescents; label their cis (receiving) and trans (discharging) faces with short arrows. Highlight bud scars (if illustrating division) as raised rings on the cell surface–two or three suffice, spaced evenly–with the label pointing perpendicular to the wall. Use contrasting line weights: light for internal components, bold for boundaries. Finalize with ink, erasing guide lines only after all labels are affixed.
Common Errors in Yeast Cell Illustrations
Oversimplifying the bud scar pattern leads to false representations. A single, uniform ring around the cell surface misrepresents the irregular, overlapping nature of real bud scars. Individual scars vary in size and shape, often clustering near previous sites rather than forming an orderly sequence. Include at least 3-5 distinct, asymmetrically spaced scars per cell to reflect empirical observations under fluorescence microscopy.
Misplacing organelles is a frequent oversight. The nucleus rarely occupies a central position in actively growing cultures–it typically shifts toward the budding site during division. Mitochondria form dynamic, branched networks, not static ovals. The vacuole, often depicted as a single large structure, actually fragments into multiple smaller compartments during logarithmic growth. Verify organelle positioning against time-lapse imaging data from yeast GFP-tagging studies.
Ignoring cell cycle stages produces generic, inaccurate models. Budding cells differ radically from non-budding ones in organelle distribution and cytoskeletal organization. A G1-phase yeast lacks visible spindle pole bodies, while S-phase cells display duplicated but unseparated SPBs. Use phase-specific references: images of synchronized cultures labeled with cell cycle markers like tubulin or histone tags.
Overemphasizing symmetry skews biological relevance. Yeast cells exhibit clear polarity, with the bud emerging at a site predetermined by cortical landmarks. The mother-daughter axis defines asymmetric organelle inheritance–older mitochondria remain in the mother while ER tubules accumulate in the bud. Annotations should highlight these gradients, not balance them artificially.
- Incorrect scaling distorts key relationships. A 5μm diameter cell cannot accommodate 2μm organelles without spatial conflict. Real measurements: nucleus ~1.5μm, vacuole ~2μm in mature cells, individual actin patches
- Neglecting cytoskeletal elements removes functional context. Actin patches dictate bud site selection, while microtubules guide nuclear movement. Omitting these structures eliminates mechanics of division. Reference cytoskeletal inhibitors studies to ensure accurate filament positioning.
- Using arbitrary colors creates confusion. Fluorescent tags like GFP, mCherry, or CFP have specific emission profiles–mimicking these with random palettes obscures experimental data interpretation. Restrict illustrations to validated color schemes from published imaging protocols.
Static representations fail to capture temporal dynamics. Yeast metabolism, organelle inheritance, and membrane trafficking occur on sub-second scales. Incorporate directional arrows or sequential panels to show processes like vesicle transport along actin cables or vacuole fusion events. Annotate time scales based on FRAP or live-cell microscopy experiments.
