Begin by locating the 12V DC positive lead from your vehicle’s fuse block or auxiliary power source–typically a yellow or red wire rated for at least 10A. Attach this to a momentary toggle or rockerswitch with a built-in LED indicator (SPST, 12V, 20A minimum). Use a crimp-on butt connector or solder joint for the connection, then insulate with heat-shrink tubing to prevent corrosion from road debris or humidity.
From the switch’s output terminal, run a 14-gauge marine-grade wire (tinned copper) directly to the motor relay’s coil terminal (85 if using a standard Bosch-style 5-pin relay). Ground the opposite coil terminal (86) to the chassis using a star washer and M6 stainless steel bolt–scrape off paint or coating at the grounding point for a solid connection. For noise suppression, add a 1N4007 diode across the coil terminals (cathode to 85, anode to 86) to absorb voltage spikes when the circuit de-energizes.
The relay’s common contact (30) must connect to the vehicle’s positive bus via a 30A fuse or circuit breaker–place this within 7 inches of the power source to comply with ABYC/NFPA standards. Route the normally open contact (87) to the fluid mover’s positive terminal through a 40A ANL fuse if the device draws over 15A continuous. For dual-speed setups, wire a double-pole relay (DPST) with separate outputs: 87 for low flow (e.g., 3GPM) and 87a for high flow (6GPM+), controlled by a two-position selector switch.
Test the assembly with a multimeter before finalizing connections. Set the meter to continuity mode and verify zero ohms between the switch input and relay coil (energized state) and infinite resistance (de-energized). Probe the relay’s 30 and 87 terminals to confirm 200mV or less drop under load–excessive voltage loss indicates undersized wiring or poor crimps. For installations in unsealed compartments, encase splices in dielectric grease and cover with waterproof heat-shrink (adhesive-lined). Label all wires with Mil-Spec heat-shrink markers (e.g., “PWR-12V-IN,” “MTR-OUT-HI”) for future troubleshooting.
How to Connect Your Recreational Vehicle Fluid Movement Control
Begin by locating the power source–a 12V battery or fuse panel–to ensure direct current without voltage drops. Measure the distance between the control device and the motor; use marine-grade 14-gauge cable for runs under 10 feet and 12-gauge for longer stretches to prevent overheating.
Identify the positive and negative terminals on the motor assembly. Connect the red (positive) lead from the control mechanism to the motor’s corresponding terminal using a crimped butt connector, then heat-shrink to seal against moisture. Ground the black (negative) lead to the vehicle’s chassis near the motor, scraping away paint or corrosion for a solid electrical bond.

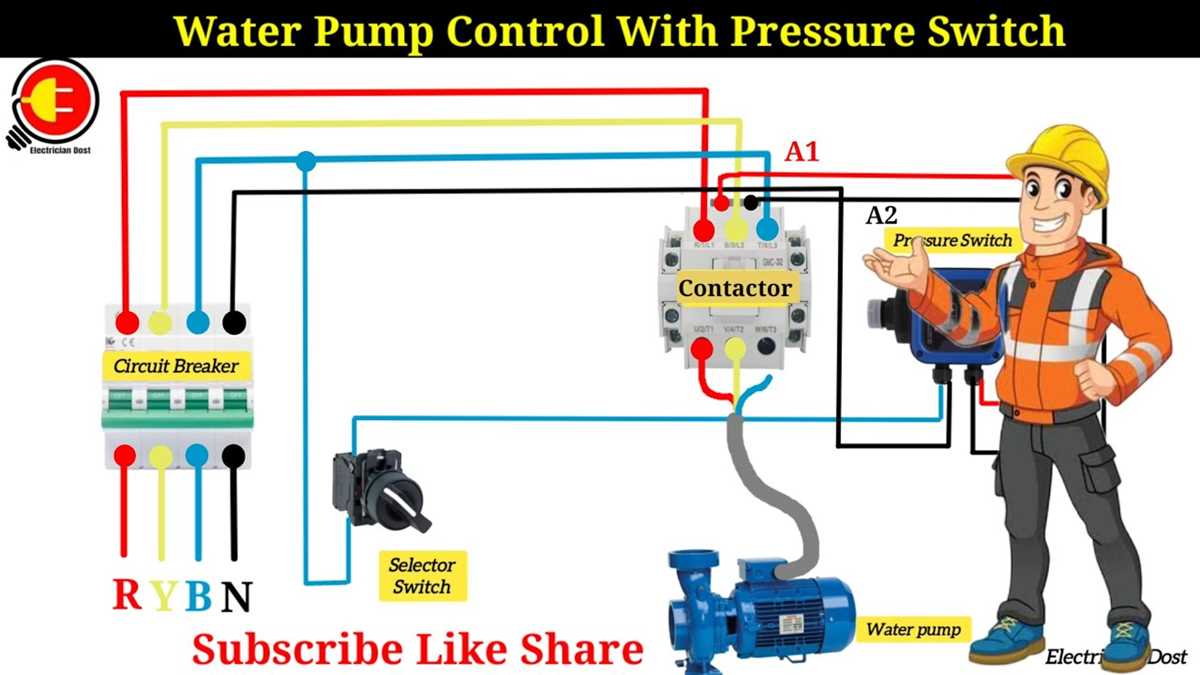

Install a 10-amp fuse within 7 inches of the power source to protect the circuit. If the system includes an accumulator, integrate a pressure-sensitive cutoff–a normally open relay wired in series–to halt operation when tank levels reach 40 PSI, preventing cycling. Verify connections with a multimeter set to DC voltage; probe the motor terminals while activating the control to confirm 12V±0.5V.
For dual-control setups (interior/exterior access), run parallel circuits from a common power feed, using a three-position toggle to isolate or combine operation. Label each wire at both ends with heat-shrink tubing markers (e.g., “MTR+”, “GRD”) to simplify future troubleshooting. Avoid daisy-chaining; instead, branch from the main feed at a terminal block mounted on a non-conductive panel.
Test the system under load before finalizing. Fill the holding tank to 75% capacity and monitor for leaks around connectors or abrupt stops–indicators of loose wiring or faulty relay contacts. If voltage drops below 11.8V during start-up, upgrade the cable gauge or relocate the power source closer to the motor to reduce resistance.
Document the layout with a sketch showing wire colors, lengths, and termination points. Photograph connections before enclosing them in a waterproof junction box, then store the diagram inside a labeled Ziploc bag under the driver’s seat for reference during repairs or upgrades.
Identifying Correct Conductors for Your Mobile Living Supply System
Locate the main power feed first by checking the distribution panel. Most recreational vehicles use a dual-color cable–typically red and black–to deliver current from the battery. The red conductor carries positive charge, while the black serves as ground. Verify polarity with a multimeter set to DC voltage; expect 12V between these lines when active.

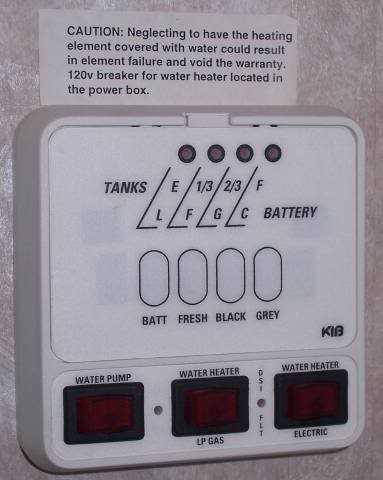

Inspect the control mechanism’s terminals if manual operation is present. A rocker or toggle often has three connection points: common, normally open, and normally closed. Label these immediately upon exposure to avoid confusion during reassembly. Use a continuity tester to confirm which terminal pairs complete the circuit in each position.
- Common terminal: Usually center or marked with a distinct symbol.
- Normally open: Only energized when engaged.
- Normally closed: Always live unless triggered.
Trace the auxiliary sensor line if pressure regulation is automated. A thin blue or yellow wire typically links the sensor to the relay. Disconnect this conductor before testing propulsion resistance to isolate potential shorts. Reconnect after confirming integrity to restore automated cutoff functionality.
Color Coding Reference by Manufacturer
Brands diverge in their harness schemes, but common patterns exist:
- Forest River: Orange (hot lead), white with stripe (return), purple (sensor input).
- Winnebago: Brown (primary), tan (secondary), gray (signal).
- Thor: Dark green (power), light green (ground), pink (override).
Splice temporary jumpers only if original conductors show wear. Use 16-gauge marine-grade copper wire with crimp connectors sealed in heat-shrink tubing. Avoid twisting strands together–this invites corrosion and intermittent failures under vibration.
Check for inline fuses near the power source. Standard ratings range from 5A to 15A, with 10A being most common. Replace blown fuses with exact amperage; undersized replacements risk overheating, while oversized options remove critical protection. Confirm fuse holder polarity–center tab is usually positive.
Document all connections with photographs before disassembly. Label conductors using masking tape and indelible marker, noting both origin and destination points. Store visual records in a dedicated folder on a durable flash drive kept with onboard manuals. This prevents guesswork during future maintenance or troubleshooting.
Troubleshooting Mismatched Conductors
If voltage drops below 11V under load, inspect for:
- Loose terminal connections–tighten with needle-nose pliers.
- Corroded splices–abrade with emery cloth, apply dielectric grease.
- Undersized wire gauge–upgrade to 14-gauge for runs exceeding 10 feet.
- Faulty battery–test specific gravity or replace if plates show sulfation.
Step-by-Step Installation Guide for a 12V Recreational Vehicle Fluid Transfer Activation Unit
Locate the electrical panel in your mobile housing unit and identify the 12V fuse block. Use a multimeter to verify the circuit delivers consistent voltage–measure between 12.6V and 13.8V under load. If readings fluctuate or drop below 11.9V, inspect the battery connections for corrosion or loose terminals before proceeding.
Disconnect the negative terminal of the power source to prevent short circuits during assembly. Strip ¼ inch of insulation from each end of a 14-gauge red conductor and a 14-gauge black conductor. Secure the red wire to the positive output on the fuse block using a crimp connector or solder, ensuring a gas-tight bond to avoid resistance buildup.
| Component | Wire Gauge | Minimum Bend Radius | Termination Type |
|---|---|---|---|
| Power input (positive) | 14 AWG | 1.5x cable diameter | Ring terminal |
| Ground return | 14 AWG | 1.5x cable diameter | Spade or ring |
| Load output | 12 AWG | 2x cable diameter | Butt splice |
Attach the black conductor to a clean, unpainted chassis ground point using a star washer to penetrate surface oxidation. Route both wires along existing harness channels, securing them every 8–10 inches with nylon clamps to prevent vibration-induced chafing against sharp edges or moving parts.
Install the activation module in a dry, ventilated compartment accessible for future servicing. Mount it vertically if space allows, as horizontal placement can trap moisture near electrical contacts. Connect the red wire to the module’s input terminal marked “+,” tightening the screw to 3–4 inch-pounds of torque to avoid stripping.
Run a 12-gauge output conductor from the module’s “Load” terminal to the fluid transfer device. Splice this wire using heat-shrink butt connectors filled with dielectric grease to block moisture ingress. Tape the joint with high-temperature vinyl electrical tape, overlapping each wrap by 50% to form a watertight seal.
Reconnect the negative terminal and restore power. Cycle the activation unit five times, checking for erratic behavior–delays, humming, or sparks indicate a loose connection or improper gauge. Measure current draw at the first activation; typical values range between 4–7 amperes for standard recreational vehicle transfer devices. If readings exceed 8 amperes, inspect for binding impellers or faulty seals.
Critical Errors to Sidestep When Hooking Up Your Recreational Vehicle Fluid Handler Controller
Skipping polarity checks during installation causes immediate component failure. Most onboard fluid movers operate on 12V DC, requiring strict adherence to positive and negative terminals. Reverse the leads, and you’ll fry the internal mechanism faster than you can diagnose the problem. Always verify terminal markings before making connections – a multimeter in continuity mode saves costly replacements.
Ignoring fuse protection invites electrical fires. The circuit demands a correctly rated fuse, typically 10-15 amps for standard setups, placed within 7 inches of the power source. Skimp on this, and a short circuit will melt wiring insulation before you notice smoke. Use AGU or blade-style fuses matching your vehicle’s existing panel for consistency.
Overlooking vibration-proof mounting leads to premature wear. The actuator–in most cases a diaphragm or impeller type–generates subtle but constant movement. Secure it with rubber grommets or foam padding to absorb shocks. Hard-mounting directly to rigid surfaces transfers vibrations, loosening connections and cracking solder joints over time.
Connection Pitfalls That Cause Silent Failures
Twisting bare wires instead of using crimp connectors guarantees corrosion. Moisture infiltrates exposed strands within weeks, creating resistive oxide layers that disrupt current flow. Marine-grade butt connectors, heat-shrunk and sealed, outlast all other methods. For extra security, apply dielectric grease before crimping.
Assuming all toggle activators are interchangeable misleads DIYers. Momentary rocker types differ from latching variants–confusing them results in either continuous operation (draining batteries) or no response when expected. Check the manufacturer’s specs: some integrate LED indicators requiring separate power lines, while others rely on passive illumination.
Neglecting ground path quality amplifies electrical noise. A weak ground–like connecting to a painted chassis–introduces voltage fluctuations that erratically trigger pressure sensors. Sand down the contact point, use a star washer, and secure it with a dedicated bolt near the battery’s negative post for a clean reference.
Long-Term Reliability Blunders
Taping joints with electrical tape alone invites failure. UV degradation and adhesive breakdown expose conductors within months. Solder joints provide mechanical strength but still need heat-shrink tubing for insulation. For critical circuits, combine solder, heat-shrink, and self-fusing silicone tape for triple-layer protection.
Forgetting to test the system under load masks latent issues. Run a flow cycle while monitoring voltage drop–any dip below 11.8V indicates undersized wiring or poor connections. Use a clamp meter to measure actual amperage draw; discrepancies reveal hidden corrosion or partial shorts before they escalate.
