Start by locating the central fuse block beneath the dashboard–this cluster houses critical connections for lighting, ignition, and auxiliary systems. Pinouts for the 3200-series harness follow a color-coded standard: red with a white tracer powers the headlight switch, while brown with black stripe grounds the taillights. Use a multimeter set to 20V DC to verify voltage at each terminal before reassembly; inconsistent readings often trace back to oxidized contacts at the bulkhead connector near the firewall.
Focus on the alternator wiring first. The exciter wire (dark blue with a yellow stripe) must deliver 12V to the voltage regulator when the engine turns. If voltage drops below 0.8V at idle, inspect the stator windings for corrosion or frayed insulation. Soldering damaged wires with 60/40 rosin-core solder and heat-shrink tubing prevents future resistance buildup. Avoid twisting strands–this introduces signal noise in sensitive circuits like the fuel gauge sender.
Trace the brake light circuit separately. The stop lamp switch, mounted above the brake pedal, operates on a hydraulic pressure mechanism. A failed switch often mimics wiring issues; test by applying direct 12V to the switch terminals–if lights illuminate, replace the switch. For rear lighting, note that the left and right assemblies share a common ground via a braided strap secured to the frame rail. Corrosion here escalates voltage drop; clean with a wire brush and apply dielectric grease during reinstallation.
Replace original fusible links with modern blade fuses rated 5A above stock amperage. The main battery feed (typically purple with a white stripe) should route through a 30A fuse before branching to the ignition switch. Document every modification; older schematics omit aftermarket additions like air conditioning or trailer brakes, which draw power from non-labeled harnesses. Photograph connections before disassembly–later models often reuse connector plugs with swapped pin assignments.

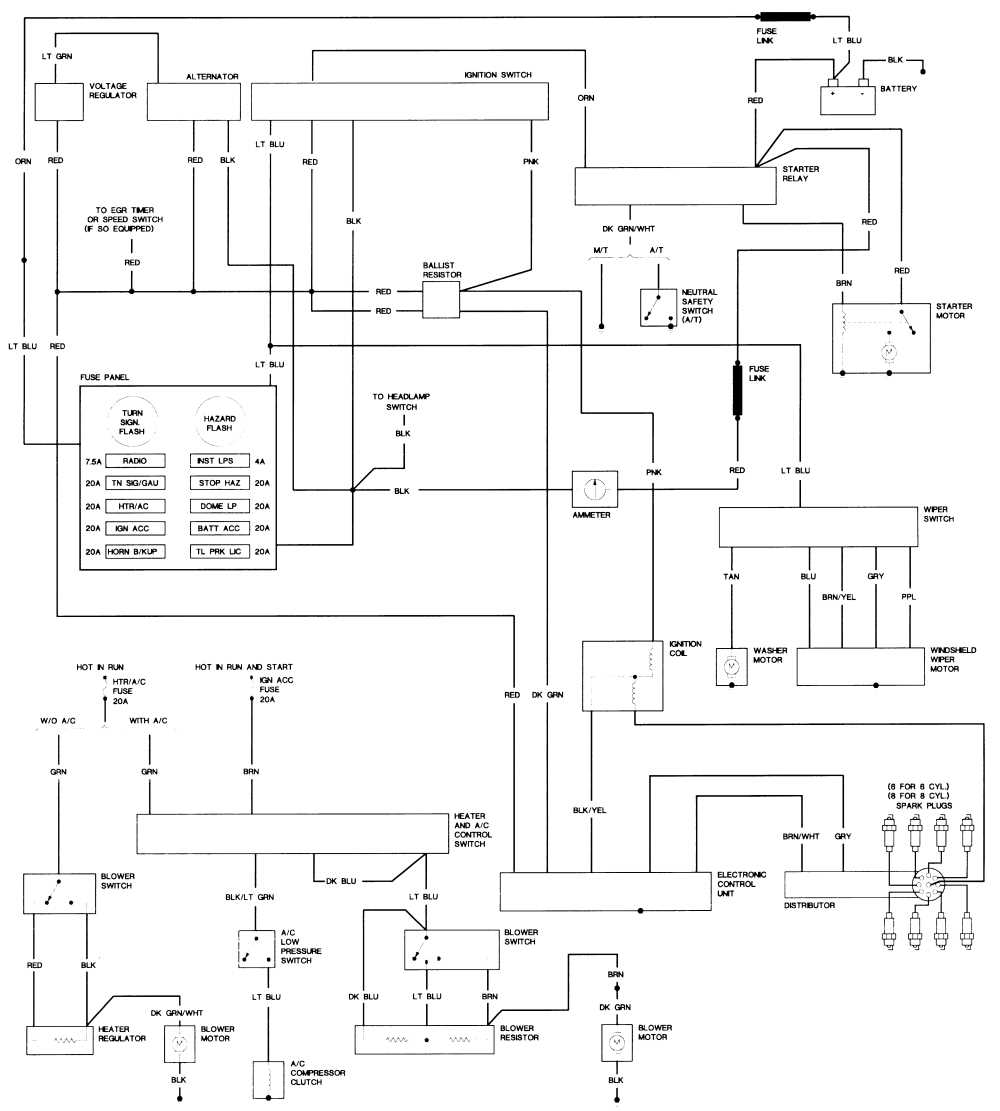

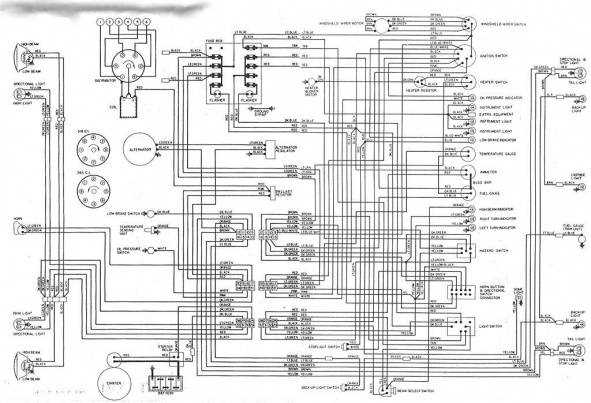

Electrical Schematic for Classic Pickup Models: Hands-On Approach
Start by tracing the main fuse block located under the dashboard on the driver’s side. Label each fuse with its amperage and circuit description–ignition, headlights, or charging system–using a colored marker system. Red for critical circuits, blue for secondary, and green for auxiliary. This prevents mismatches when replacing blown units.
Disconnect the battery negative terminal before probing any circuits. Use a multimeter set to continuity mode to verify connections between the alternator output, voltage regulator, and starter solenoid. Typical voltage readings at the battery posts should show 13.8–14.4 volts with the engine running; deviations below 13.2 indicate a failing alternator or loose belt.
Troubleshooting Common Faults
- Flickering headlights often point to corroded battery terminals–clean with a wire brush and apply dielectric grease.
- Non-start conditions frequently stem from a faulty starter relay. Swap it with the identical horn relay fuse (usually 20A) to test.
- Check the ballast resistor bypass wire if the engine cranks but won’t fire–this wire (typically pink) should measure 0.5 ohms.
Harness connectors near the firewall often harbor hidden corrosion. Separate each connector, apply contact cleaner, and reconnect with a twisting motion to break oxide layers. Replace any terminal exhibiting green or white deposits–these disrupt signal flow.
For turn signal malfunctions, inspect the flasher relay mounted on the steering column bracket. A silent relay (no clicking) requires replacement; standard three-prong automotive flashers fit universally. Always match load amperage (typically 8–10 amps) to avoid premature failure.
Finding Primary Electrical Bundle Links Beneath the Instrument Panel

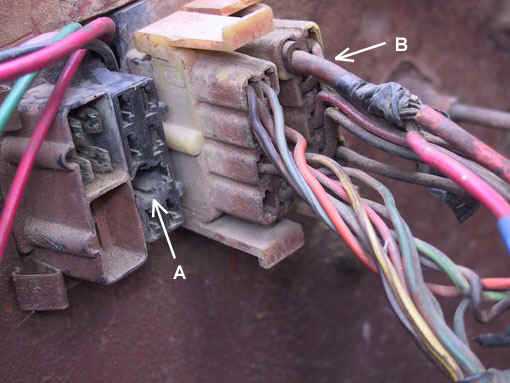

Start by removing the lower dash cover–typically secured with three 7mm bolts or plastic clips near the pedals. Once detached, you’ll expose the firewall bulkhead connector cluster: a 12-way rectangular plug (black/white), a smaller 4-way plug (blue/white), and two single-pin terminals (fusible links). Trace the main loom from the driver’s side A-pillar downward; it branches into color-coded sub-harnesses feeding the ignition switch, light control module, and HVAC controls.
- Locate the ignition harness: red wire (constant 12V), yellow wire (start solenoid), and pink wire (accessory feed).
- Check the lighting harness: dark green (headlight switch), brown/white (parking lights), and light blue (turn signals).
- For HVAC systems, identify the tan/black (blower motor) and purple/white (resistor pack) leads.
Key Troubleshooting Points
Inspect the bulkhead grommet for frayed insulation where the harness exits the cabin–this is a common failure point. Use a multimeter to verify voltage at the fusible links under the hood before assuming dash-side faults. Disconnect the battery before probing any connectors to prevent accidental shorts.
Decoding Color Codes for Ignition and Charging System Wires
Start by locating the primary ignition feed wire–typically a red with white stripe (RW)–connected to the ignition coil’s positive terminal. This conductor delivers voltage from the ignition switch when the key is turned to the “ON” or “START” position. Verify its path: it should bypass the ballast resistor (if equipped) and connect directly to the coil’s “BAT” terminal. A dark green with yellow stripe (DGY) wire often denotes the tachometer signal; trace it to ensure it links to the distributor’s negative terminal or electronic control module. For charging systems, the alternator’s output is usually a thick brown wire (BRN)–confirm it terminates at the battery’s positive post via a fusible link. Use a multimeter to test for 13.5–14.5 volts at this point with the engine running.
Common Wire Functions and Testing Methods
| Color Code | Function | Testing Procedure |
|---|---|---|
| Red with Black Stripe (RBK) | Ignition switch output (accessory feed) | Check for 12V at wire when key is in “ACC” or “ON” position. |
| Yellow with Black Stripe (YBK) | Voltage regulator sense wire | Measure 12V with engine off; should match battery voltage. |
| Light Blue (LT BLU) | Starter solenoid control | Verify 12V pulse when key is turned to “START.” |
| Black with White Stripe (BWK) | Ground (chassis or engine block) | Test continuity to bare metal; resistance should be near 0 ohms. |
For alternator field excitation, look for a white with dark blue stripe (WDB) wire from the voltage regulator to the alternator’s “F” terminal. If voltage is absent here, the regulator may be faulty. Always disconnect the battery’s negative terminal before probing wires to prevent short circuits. If corrosion is present–common in black (BLK) ground wires–clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
Locating Fusible Links and Critical Overcurrent Safeguards
Begin inspection at the battery positive terminal–fusible links often integrate here as the first line of defense. On vintage models of this era, these links resemble short lengths of heavier-gauge cable with a segment of thinner wire encased in insulation; this segment melts under excessive current. Trace the main power feed toward the firewall; you’ll typically find a second link near the starter solenoid or alternator junction. Mark each location with tape or a label to distinguish them from standard wiring–mistaking them for ground straps or sensor leads can lead to accidental bypass during repairs.
Examine the bulkhead connector where cables penetrate the engine bay; this junction frequently conceals additional protective elements. Fusible links may terminate inside dedicated terminals or spade connectors that snap into a firewall-mounted fuse block. Probe suspect wires with a multimeter after disconnecting the battery–resistance above 0.2 ohms across a five-inch segment usually indicates a compromised link. Never assume wiring color codes are consistent; verify circuits against a physical tracing rather than relying on manual diagrams alone.
Isolate the charging circuit by disconnecting the alternator output lead at the regulator. A fusible link often sits between the alternator and voltage regulator, sized to rupture at 40–60 amps–blown links here manifest as melted insulation or a brittle copper core. Check the headlight circuit near the dimmer switch; older designs occasionally embed overcurrent protection within the switch assembly itself. Use calipers to measure wire gauge; fusible links typically step down to 18–20 AWG from the primary 10–12 AWG feed wires.
Inspect the instrument cluster harness connector for inline protection–some dash circuits incorporate pigtail links disguised as regular wiring. Remove the cluster lens to access these; corrosion at the fuse panel often masks failed links. Test continuity by bridging suspect wires with a jumper harness rated for 15 amps while monitoring voltage drop at the farthest device (e.g., fuel gauge sender). A sudden 0.3V drop across a reseated connection confirms marginal protection that requires replacement.
Replace corroded or suspect links with modern fusible wire kits rather than soldering a temporary fix. Strip back insulation on damaged sections, clean terminals with a wire brush, and crimp new links per OEM length specifications–using a single 12-inch segment where the original divided into staggered lengths invites cascading failures. Secure new links away from exhaust manifolds with nylon zip ties and high-temperature loom; routing near moving components risks abrasion-induced shorts. Label each repair on both ends to simplify future diagnostics.
Validate all critical safeguards before re-energizing the system–connect an ammeter in series with the battery negative terminal and monitor for parasitic draw exceeding 50 milliamps across all circuits. If current spikes coincide with accessory activation (e.g., blower motor, turn signals), traces often indicate missed fusible links or bypassed protection. Document every safeguard location, including wire gauge transitions and terminal types, on a single laminated reference card kept with the vehicle’s logbook–preventing repeat failures depends on precise tracking.
