Start with a precision potentiometer rated for at least 10 kΩ. Connect its outer terminals to a stable 5V reference source–use a dedicated voltage regulator if power fluctuations exceed 2%. The wiper output should feed into an operational amplifier configured as a unity-gain buffer to prevent loading errors. Avoid passive voltage dividers; they introduce nonlinearity under dynamic loads.
For signal filtration, place a 100 nF ceramic capacitor across the amplifier’s input and ground. This suppresses high-frequency noise from hydraulic actuators or electromagnetic interference. Ensure the capacitor’s voltage rating exceeds supply voltage by 50% minimum. Daisy-chain a 10 kΩ resistor in series with the output to limit current spikes during transient events.
Interface the conditioned signal to a microcontroller ADC with at least 10-bit resolution. Use shielded twisted-pair wiring if cable runs exceed 1 meter–ground the shield at a single point near the sensor. Calibrate the system by anchoring the zero position mechanically, then adjust the sensor’s offset via software trim pots or firmware lookup tables. Recheck linearity at 10° increments; deviations above 0.5% require redesign.
Power the circuit with a dedicated LDO instead of shared rails. Input capacitance should be 22 µF tantalum, output 4.7 µF ceramic. Include a reverse-polarity protection diode–schottky for low voltage drop–on the input line. Monitor supply current; typical draw should not exceed 30 mA during operation.
Helm Position Feedback Schematic Guide

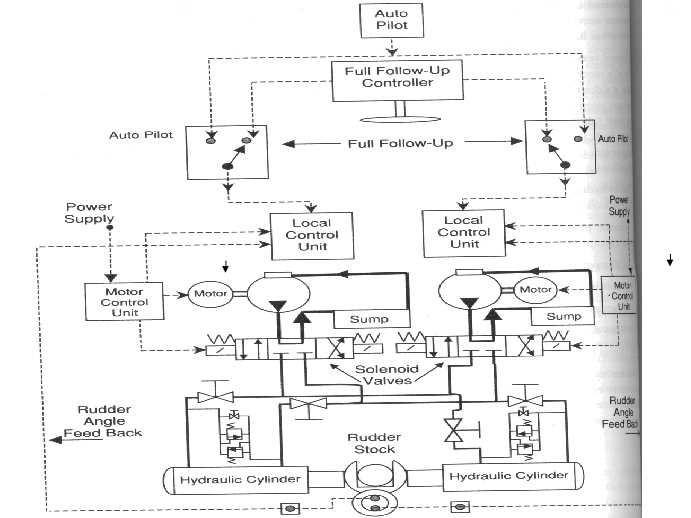

Begin with a precision rotary encoder like the Bourns EMS22A series, mounted directly on the steering shaft. This model offers 10-bit resolution over 360° rotation, ensuring ±0.1° accuracy–a critical margin for small vessel control. Connect the encoder’s A/B channels to a differential line receiver such as the AM26LS32 to reject noise from power fluctuations or electromagnetic interference along the wire run. Keep cable lengths under 10 meters; beyond that, reduce to RS-485 signaling.
Power the encoder with a regulated 5V DC supply from an isolated source–avoid tapping into the general vessel bus. Add a 100nF ceramic capacitor between the encoder’s VCC and GND, placed within 2mm of the device pins. A schottky diode like the 1N5817 across the supply prevents reverse voltage spikes during shutdowns, which can corrupt encoder memory or scramble readings.
Signal Processing Requirements
| Component | Function | Recommended Model | Voltage Tolerance |
|---|---|---|---|
| Microcontroller | Decodes quadrature pulses | STM32F303 | 3.3V logic, 5V-tolerant inputs |
| Optocoupler | Isolates feedback from control signals | VO2630 | 3.75kV RMS isolation |
| Voltage Regulator | 5V supply for encoder | TPS7A4701 | ±1% accuracy, 1A output |
Route encoder signals through separate twisted-pair cables, color-coded: red/green for positive, black/white for ground. Terminate each pair with 120Ω resistors at the microcontroller end to match cable impedance. Avoid adjacent power lines; if unavoidable, increase shield coverage to 90% and ground the shield only at the microcontroller side to prevent ground loops.
Implement a quadrature counting algorithm in the microcontroller firmware, accounting for direction reversals. The STM32F303’s built-in timer peripherals can track ±40,000 counts per rotation without external logic. Filter jitter in code: discard readings that change by fewer than 3 counts between samples (approximately 0.3°), as these typically result from vibration rather than genuine helm movement.
Calibration and Safety Interlocks
Install a zero-reference switch–a simple microswitch–mounted so a cam on the steering shaft triggers it at dead-ahead position. This switch feeds into an interrupt pin on the microcontroller, resetting the encoder count to zero on activation. Calibrate this switch alignment during installation: with the helm centered, ensure the switch activates within ±0.5° of true center to avoid drift in feedback.
Add a hardware watchdog timer using the TPS3823-33 chip, set to 10 seconds. If the microcontroller fails to toggle a dedicated output pin within this window, the watchdog cuts power to downstream actuators–preventing a stuck feedback signal from causing uncontrolled maneuvering. Wire the watchdog’s reset line to a GPIO pin configured for 1Hz toggle in firmware.
Test the entire feedback path under simulated load: rotate the helm at 30°/second and verify the displayed position updates within 50ms, with no missed steps. Introduce a 10V spike on adjacent power lines and confirm encoder accuracy remains within ±0.2°. Document these test results, including ambient temperature and humidity, as baseline metrics for future troubleshooting.
Critical Elements for Steering Position Sensor Construction
Prioritize a precision potentiometer with a resistance range matching the vessel’s helm rotation limits (typically 10kΩ–100kΩ). Verify linearity within ±1% across the full sweep to prevent false readings during extreme turns. Marine-grade potentiometers with gold-plated contacts resist corrosion in high-humidity environments.
Integrate a stable reference voltage source (e.g., 5V DC regulator) to eliminate fluctuations caused by alternator load dumps or battery voltage sag. Use a low-dropout (LDO) regulator with thermal shutdown to protect against overheating during prolonged reversals. Decouple the input and output with 10µF tantalum capacitors to filter transient spikes.
A microcontroller with analog-to-digital conversion (ADC) resolution of at least 10 bits ensures granular position tracking–1° resolution requires 9–10 bits for 360° spans. Select units with internal voltage reference to maintain accuracy independent of supply variations. Optical isolation via Hall-effect sensors or solid-state relays prevents ground loops in mixed AC/DC systems.
Mandatory protection includes transient voltage suppression (TVS) diodes across signal lines to absorb voltage surges from inductive loads (e.g., autopilot solenoids). Encase the entire assembly in conformal coating to guard against salt spray ingress. Mount the sensor directly on the helm shaft via a splined coupling to avoid backlash-induced errors.
Wiring Synchro Transmitter and Display Unit Links

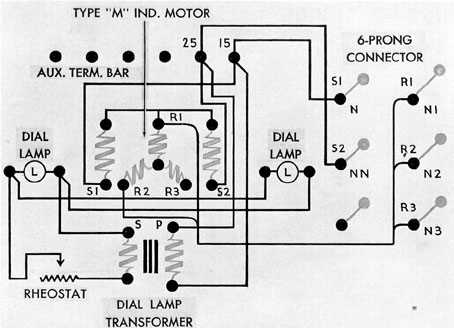

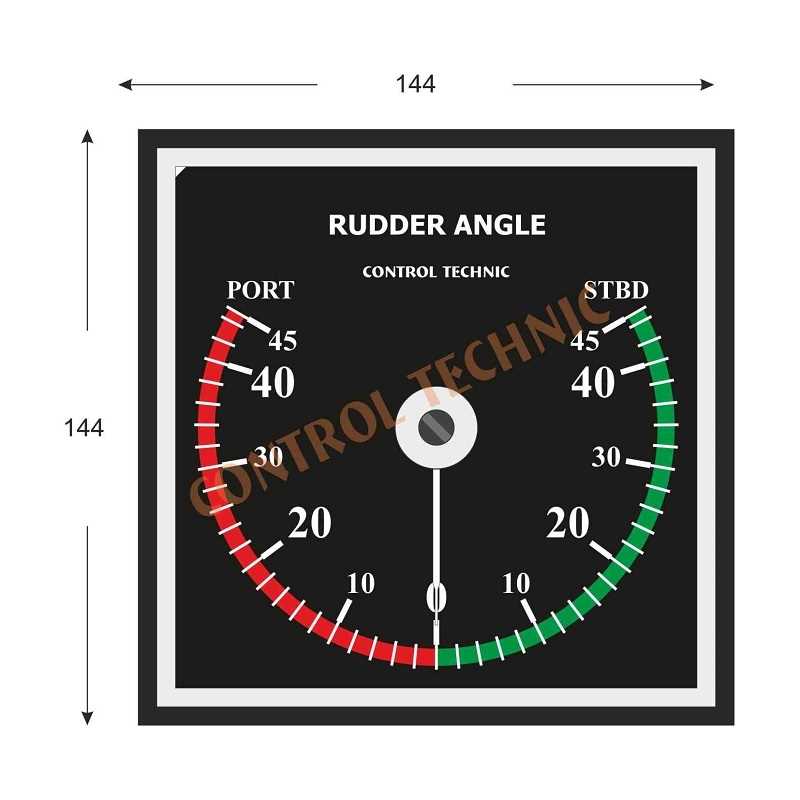

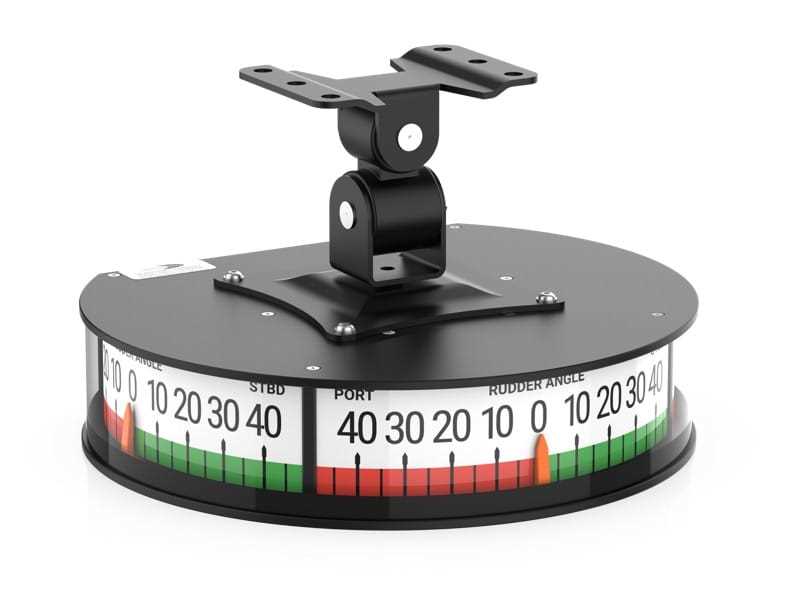

Connect the synchro transmitter’s stator leads–marked R1, R2, and R3–to the matching terminals on the remote display in the exact sequence listed. Swap any pair, and the system will invert the feedback, causing false readings. Verify continuity with a multimeter set to 200Ω; mismatched resistance above 0.5Ω indicates a broken wire or corroded terminal. Tin each joint before crimping to prevent oxidation.
Follow this wiring order:
- R1 → S1
- R2 → S2
- R3 → S3
Deviation risks 180° error. Use shielded twisted pair cable for runs exceeding 5 m; terminate the shield at the display chassis only to avoid ground loops. For synchronous systems, supply 115V 400Hz to the rotor leads–use color-coded wires (red-positive, black-negative) and fuse at 0.5A.
Troubleshooting Misalignments
If the display responds sluggishly or jumps, inspect the slip rings for wear. Clean with isopropyl alcohol and a lint-free cloth; lubricate with 0.2g of MIL-PRF-7808 oil. Check rotor excitation voltage at the transmitter–nominal 90V AC; values below 85V indicate a weak transformer or shorted rotor winding. Confirm phase alignment with an oscilloscope: exciter and stator signals must maintain 120° separation.
Critical Termination Tips
Secure all connections with heat-shrink tubing rated for 125°C. Avoid solder alone–use gold-plated crimp terminals conforming to MIL-DTL-22520. Label each run at both ends with durable polyester tags, noting the wire gauge (typically 20 AWG) and function. For installations prone to vibration, strain-relieve cables every 30 cm using nylon clamps anchored to structural members.
Power Supply Requirements and Stabilization Methods
Use a regulated 12V DC source with a minimum current rating of 500mA for reliable transducer operation. Linear regulators like the LM7812 tolerate input voltages up to 35V while maintaining 12V ±2% output under load variations between 100mA and 450mA. Switching regulators (e.g., LM2596) achieve 85-90% efficiency with input ranges of 4.5-40V but require a 22µH inductor and a 330µF output capacitor to suppress ripple below 50mVpp at 10kHz.
Stabilization demands attention to transient response and thermal drift. For linear supplies:
- Mount the LM7812 on a heatsink with thermal resistance ≤15°C/W if ambient temperatures exceed 40°C.
- Add a 0.1µF ceramic capacitor at the regulator’s input and a 10µF tantalum capacitor at the output to prevent oscillations.
- Use a 1N4007 diode in reverse across the input/output to protect against inductive loads.
For switching supplies:
- Keep the diode (e.g., 1N5822) and inductor traces wide (≥2mm) to minimize resistive losses.
- Place the input capacitor within 2cm of the IC and use a ground plane to reduce EMI.
- Add a ferrite bead (600Ω at 100MHz) in series with the input if noise coupling occurs.
Voltage Sag Mitigation
During heavy transient loads (e.g., stepper motor activation), use a bulk capacitor bank:
- Two 470µF electrolytic capacitors in parallel for 12V systems, mounted ≤5cm from the load.
- ESR ≤0.2Ω per capacitor to ensure
For critical components, deploy a supercapacitor (e.g., 1F/5.5V) with a charge controller (e.g., MCP73831) for backup power during brownouts. Test sag recovery with a 1kΩ load pulsed at 5Hz to verify stability.
