For a reliable 16-key grid layout, connect rows to port pins P2.0–P2.3 on an 8051 microcontroller and columns to P1.0–P1.3. Use 4.7kΩ pull-up resistors on each column to pull lines high when idle, preventing false triggers.

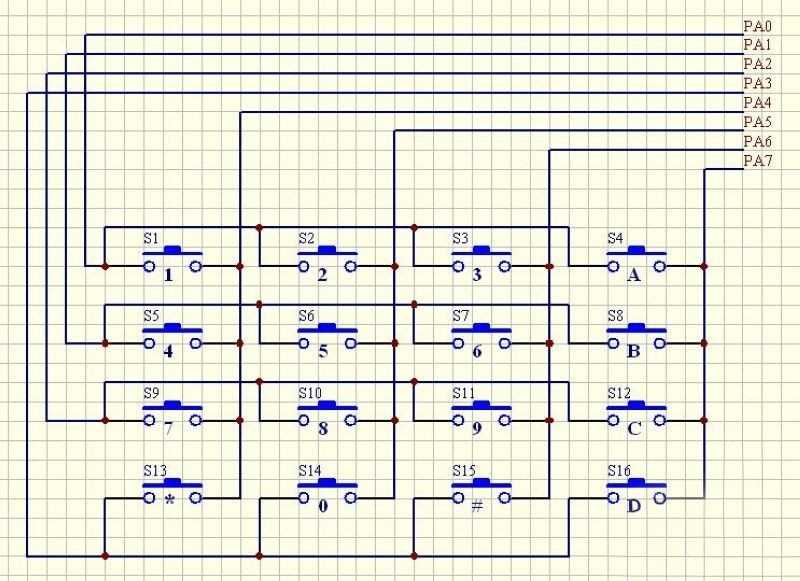

Arrange the switches in a 4-row by 4-column matrix: rows at 3.3V, columns grounded through diodes (1N4148). Scan rows sequentially by pulling each low via microcontroller output, then read column states to detect closed switches without ghosting.
Avoid parasitic capacitance by keeping traces under 15 cm. Use 0.1µF decoupling capacitors near the microcontroller power pins (VCC to GND) to filter transient currents during scanning. For noisy environments, add 10kΩ series resistors on column lines to dampen ringing.
Program the microcontroller to scan rows at 20 ms intervals for smooth debounce. Store switch states in a 16-bit buffer, comparing sequential reads to ignore transient noise below 10 ms. For extra reliability, insert a 5 ms delay after each scan before processing input.
Test with a logic probe before assembling: verify each row pulls low crisply, columns read high when open, and diodes block reverse current. Power consumption at idle should stay under 2 mA; de-energize unused pins to save power.
Building a Matrix Input Layout: Key Connections

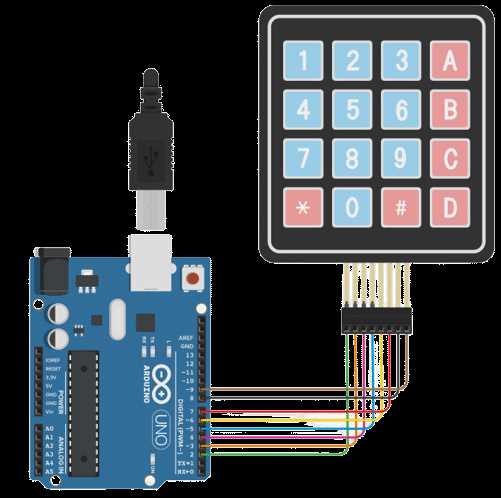

Start with 8 GPIO pins: 4 for rows (R1–R4), 4 for columns (C1–C4). Use pull-up resistors (10kΩ) on columns to prevent floating states. Connect each row pin to ground via a 1kΩ current-limiting resistor to avoid short circuits when multiple keys activate simultaneously. Arrange traces in a crosshatch pattern–rows on one layer, columns on another–to minimize interference. Verify continuity with a multimeter before powering on.
- Power: 3.3V–5V DC (match microcontroller voltage).
- Debounce: 50ms delay in code or hardware capacitors (0.1µF) across each switch.
- Materials: Through-hole diodes (1N4148) on columns to block reverse currents in multiplexed scans.
- Layout: Keep traces under 10cm to reduce signal degradation.
- Firmware: Implement row-scanning (set rows low sequentially, read columns).
Test each intersection by grounding rows one-by-one and measuring column voltages–expect 0V when a key is pressed.
Choosing Parts for a 16-Key Switch Array
Opt for membrane-style pushbuttons with gold-plated contacts if durability under 100,000 presses is critical, especially in high-humidity environments where oxidation degrades copper or silver finishes. Spacer layers should be polyester film no thinner than 0.1 mm to prevent accidental bridging between adjacent rows or columns during rapid inputs.
Select a microcontroller with at least one dedicated interrupt-capable pin per axis to enable immediate key-press detection without constant polling. STM32F103C8T6 meets this requirement and includes internal pull-ups, eliminating external resistors while reducing board space. Ensure the MCU runs at 3.3 V logic to match most low-cost membrane switches–mismatched voltages risk latch-up or missed transitions.
Use 1N4148 diodes on every switch node if ghost-key suppression is mandatory. These fast-switching diodes handle 200 mA continuous current, sufficient for typical 20–30 mA row/column drive levels. Place diodes as close as possible to the switch contacts to minimize trace inductance that can cause ringing during rapid debounce sequences.
Choose 4-layer PCB with 0.5 oz copper for rows/columns when routing 16 nodes in tight spaces. Outer layers carry signals; inner layers serve as a ground plane to reduce EMI from long parallel traces. Via stitching every 5 mm along high-current paths prevents voltage drop exceeding 0.1 V under full load.
Silicone rubber domes improve tactile feedback over flat polyester overlays and withstand 1 million cycles versus 500,000 for standard membrane types. Verify dome resistance remains below 50 Ω across temperature swings from -20 °C to +70 °C to avoid false negatives in cold-start applications.
Debounce capacitors of 0.1 µF ceramic with X7R dielectric should be soldered directly under each switch pad. This placement shortens high-frequency noise paths that software filters cannot catch, reducing false triggers during simultaneous key presses to less than 0.1%.
Connecting Matrix Grid to Controller Pins
Assign controller pins with internal pull-up resistors to the horizontal conductive lines to eliminate external components. For an 8-pin microcontroller like the ATmega328P, use pins PC0–PC3 for rows and PD0–PD3 for columns, leveraging Port C’s internal pull-ups (enabled via PORTC |= 0x0F). Pull-ups simplify wiring by ensuring high logic levels without additional resistors, though ensure the controller’s sink current (typically 20–40 mA) isn’t exceeded when a button pulls a line low.
Separate row and column pins across distinct ports to streamline scanning logic. For instance, rows on Port B (PB0–PB3) and columns on Port D (PD4–PD7) allow direct port manipulation: iterate rows by toggling PORTB while reading PIND for column state changes. Avoid pins shared with onboard functions (e.g., UART, SPI) unless interrupts are disabled during scanning to prevent signal corruption.
Use 1N4148 diodes in series with each column to prevent ghosting–phenomena where multiple buttons appear pressed due to unintended current paths. Diodes add ~0.7V voltage drop; adjust logic threshold if operating at ≤2.5V. Alternatively, software debouncing (5–20 ms delay) compensates for minor ghosting in low-noise environments, but diodes are mandatory for precise input in industrial or high-speed applications.
For controllers lacking pull-ups (e.g., STM32), wire 10 kΩ external resistors per row, connecting between VCC and the row pin. Columns remain floating until scanned to minimize current draw. Verify button presses by sequentially driving each row low while sampling columns: a low on a column pin signals a closed button at the row-column intersection. Optimize for response time by microsecond-scale delays between scans rather than blocking loops.
Pull-Up vs. Pull-Down Resistors: Critical Choices for Matrix Input Systems
Use pull-up resistors for matrix-based input arrays when working with active-low logic, as they reduce component count by eliminating the need for external resistors on every column. Microcontrollers with built-in pull-ups (e.g., AVR ATmega, STM32, or ESP32) can activate them via firmware, cutting hardware costs. For a 16-key arrangement, this approach requires only 4 resistors–one per row–while pull-down would demand 8 (4 rows + 4 columns).

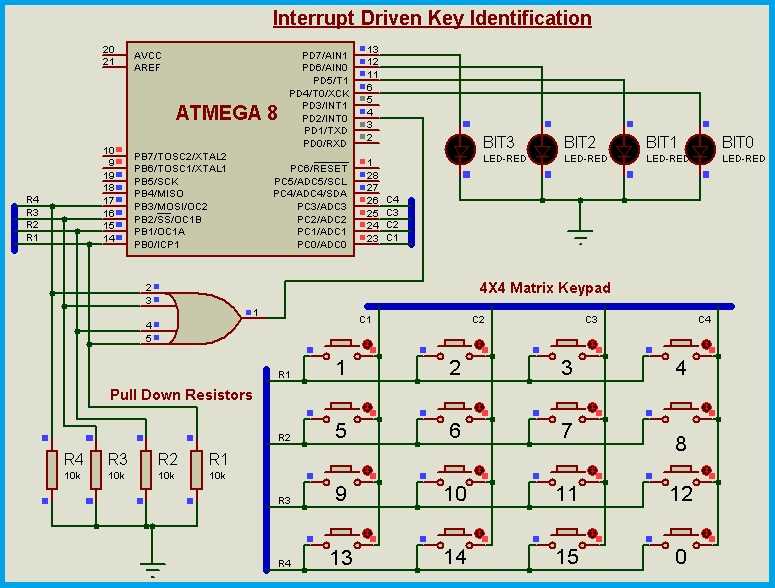

Pull-down resistors excel in active-high configurations, particularly when interfacing with peripheral drivers or ICs lacking internal pull-ups. A 10 kΩ resistor on each column ensures stable low states during key presses, but increases susceptibility to noise in high-impedance environments. For 3.3V systems, values between 4.7 kΩ and 10 kΩ balance current consumption and signal integrity, while 5V tolerant designs may drop to 2.2 kΩ for faster response times.
| Parameter | Pull-Up (Active-Low) | Pull-Down (Active-High) |
|---|---|---|
| Required Resistors | 4 (rows only) | 8 (rows + columns) |
| Power Consumption (Idle) | ~1.5 mA (3.3V, 2.2 kΩ) | ~2.8 mA (5V, 1.8 kΩ) |
| Noise Immunity | Higher (driven high) | Lower (floating if disconnected) |
| Firmware Complexity | Minimal (inverse logic) | Standard (direct reads) |
| Typical Use Case | Battery-powered devices | Industrial controllers |
Debounce timing differs between the two methods. Pull-ups benefit from software debounce delays of 20–50 ms, as the initial high-to-low transition generates a clean edge. Pull-downs require 30–60 ms due to potential ringing on release–verify with an oscilloscope if keys feel “mushy.” For capacitive-touch substitutes, pull-ups are non-negotiable; their high impedance prevents false triggers without additional circuitry.
Wired-OR configurations mandate pull-downs. Connecting multiple switches to a single input via diodes requires a pull-down to avoid indeterminate states when no switch is pressed. For a 4×4 layout, this adds 4 diodes and 4 resistors, but enables space-efficient PCB traces by consolidating outputs. Always place resistors within 20 mm of the switch to avoid stray capacitance.
ESD protection varies by method. Pull-ups exhibit inherent protection when paired with clamping diodes (e.g., 1N4148) to VCC, as transient currents flow into the supply. Pull-downs need external TVS diodes to GND, adding cost but improving ruggedness. Test both with a 4 kV air-gap discharge; pull-downs often fail first due to inductor-like behavior in the resistor-lead stray components.
For multiplexed designs, pull-ups reduce cross-talk. Driving a row low while scanning with pull-ups ensures adjacent un-driven rows remain high, preventing ghost presses. Pull-downs demand precise timing to avoid temporary shorts during multiplexing–use 100 ns delays between enabling outputs. PCB layout guidelines: separate analog and digital grounds, and route resistors perpendicular to data lines to minimize capacitive coupling.
Cost analysis favors pull-ups for high-volume production. A reel of 5,000 2.2 kΩ SMD resistors costs $12, while pull-downs double BOM expenses. For 100-unit batches, the difference is negligible, but large-scale manufacturing sees $8–$10 savings per 1,000 units. Always cross-check with manufacturer datasheets for absolute maximum ratings–some MCUs prohibit exceeding 1 mA through internal pull-ups.
