For residential or small commercial installations, a closed-loop wiring layout reduces voltage drop by providing two paths for current. Install 2.5 mm² copper conductors for the live and neutral lines, with a 1.5 mm² earth cable–this balances load capacity while meeting BS 7671 regulations. Use a 30 mA RCD at the origin to isolate faults before they trip the entire system. Verify the loop continuity with a multimeter set to resistance mode; readings above 1 Ω suggest compromised connections.
Terminal block selection matters: opt for snap-fit DIN rail types rated for 16 A per channel. Avoid twist-on connectors–they loosen under thermal cycling. Instead, crimp ferrules on stripped ends and secure them with flathead screws torqued to 1.2 Nm. Label every junction: “L1,” “N1,” “E1,” and so on, to trace faults without dismantling the entire setup.
Protect branch lines with 10 A MCBs–this aligns with the 10% derating rule for circuits under 30 m. Position switches within 1.2 m of doors; mount ceiling rose centers exactly 300 mm from walls to comply with Part M accessibility guidelines. Test insulation resistance before energizing: minimum 1 MΩ between live and earth at 500 V DC.
If integrating dimmers, select leading-edge models for incandescent loads or trailing-edge for LEDs–mismatches cause flicker or premature failure. For outdoor segments, use IP66-rated junction boxes and seal entries with heat-shrink sleeves. Document the layout in CAD software like QElectroTech, marking cable routes, breaker IDs, and load points–this accelerates future upgrades.
Closed-Loop Electrical Network Layout for Illumination
Install a 20-ampere breaker as the power source for your looped wiring setup to handle the cumulative load of multiple fixtures without voltage drop. Use 2.5 mm² (14 AWG) copper conductors for the primary loop and 1.5 mm² (16 AWG) for spurs to outlets–this balances cost and safety while meeting IEC 60364 standards. Label each junction box with alphanumeric identifiers (e.g., JB-A1, JB-B2) to simplify future maintenance and troubleshooting.
Position the loop’s origin and termination points at opposite ends of the space to ensure even power distribution; for a 20-meter corridor, place them 18 meters apart to avoid exceeding recommended conductor lengths. Integrate 6-ampere fuses or miniature circuit breakers (MCBs) at each spur connection to isolate faults without disrupting the entire loop. Test continuity between the loop’s start and end terminals using a multimeter; a reading above 0.1 ohms indicates a properly closed loop.
For LED luminaires, calculate total wattage by multiplying fixture quantity by their rated power plus 20% buffer–e.g., 12 fixtures × 15W × 1.2 = 216W. Verify compatibility with the loop’s capacity; exceedances require upsizing conductors to 4 mm² (12 AWG). Use heat-shrinkable sleeves at all splice points to protect against moisture ingress, especially in damp areas like basements or external walls.
| Component | Specification | Quantity (for 10 luminaires) |
|---|---|---|
| Primary conductor (looped path) | 2.5 mm² copper, PVC-insulated | 45 meters |
| Spur conductor (to outlets) | 1.5 mm² copper, PVC-insulated | 20 meters |
| Junction boxes | IP54-rated, 100×100×50 mm | 8 units |
| MCBs (6A) | Single-pole, type C curve | 12 units |
Essential Elements for a Closed-Loop Illumination Installation
Begin with a residual current device (RCD) rated for at least 30mA sensitivity. This safety mechanism disconnects power instantly if a fault is detected, preventing electric shocks or fires. Place it at the origin of the loop to protect the entire network of conductors.
Choose 1.5mm² cross-sectional area copper cables for standard indoor applications. These conductors handle up to 16A current, sufficient for most household fixtures. Avoid aluminum wiring–it oxidizes faster and requires larger diameters for equivalent performance. Label each end of the looped cables clearly (e.g., “L1,” “N1”) to streamline troubleshooting.
Install dual-pole switches for each branch to isolate both live and neutral lines. This prevents partial energization when servicing. For high-load areas like kitchens, use 20A-rated switches; elsewhere, 10A models suffice. Verify switch terminals are compatible with stranded wires–some require ferrule crimps to prevent loose connections.
- Circuit breaker: Select a miniature type with a trip curve matching your load (B for resistive, C for inductive). A 6A breaker protects typical LED installations; over-specify by 20% for future expansion.
- Junction boxes: Use IP54-rated enclosures in damp areas (bathrooms) and IP20 elsewhere. Space terminals to allow 5mm wire bending radius–never stuff wires tightly.
- Consumer unit: Allocate a dedicated outgoing slot for the loop system, separate from kitchen or radial systems. This simplifies fault isolation.
For outdoor segments, use armored cable (SWA) with 3-core 2.5mm² conductors. Bury it at 600mm depth with warning tape 150mm above the cable. Terminate in a weatherproof gland box, sealing all entries with twin-wall adhesive-lined heat shrink. Test insulation resistance with a 500V megger–values below 1MΩ indicate moisture ingress or damaged sheathing.

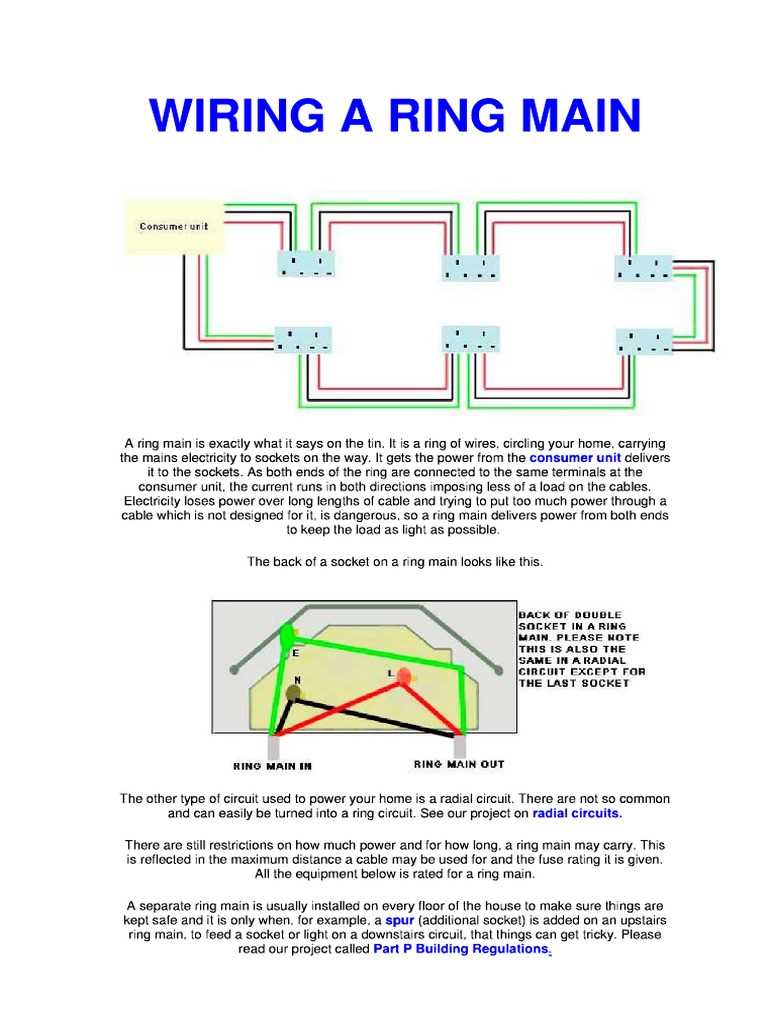

Step-by-Step Wiring Connections for a Closed-Loop Electrical Path
Begin by shutting off the power at the consumer unit using the dedicated breaker for the loop configuration. Verify absence of voltage at each terminal with a multimeter before proceeding. Strip 10mm of insulation from the ends of 2.5mm² twin-and-earth cable, ensuring no strands are damaged or splayed.

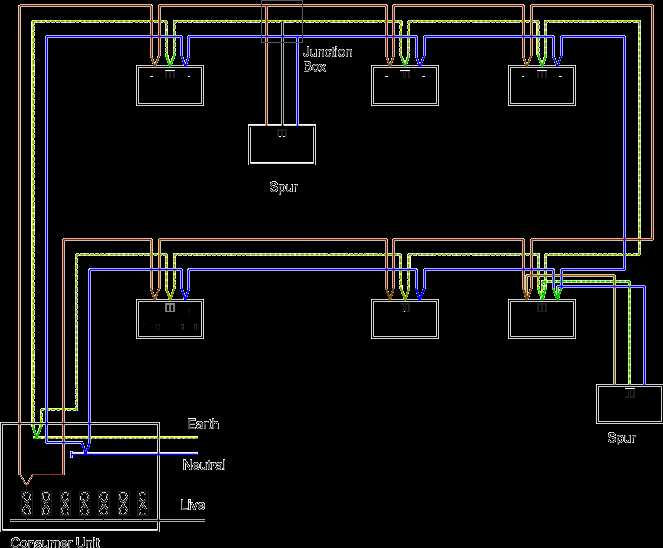

Connect the live (brown) conductor from the supply cable to the first junction box’s L terminal. Route this conductor sequentially through all outlet points in the loop, terminating it back at the consumer unit’s L terminal. Use wagoboxes or deep pattresses for connections; avoid shallow boxes to prevent overheating. Maintain consistent polarity–mismatches can trip RCDs unnecessarily.
Grounding and Neutral Continuity
Attach the earth (bare or green/yellow) conductor to the first outlet’s earth terminal, daisy-chaining it through every device in the series. Securely crimp sleeves over exposed earth connections to comply with BS 7671. Similarly, link the neutral (blue) conductor from the supply neutral bar to the first outlet, looping it through each subsequent point before returning to the neutral bar. Twist conductors around terminal screws in a clockwise direction to prevent loosening under vibration.
At each outlet, loop conductors through without cutting the cable unless splitting for a spur–preferred spurs tap from junction boxes, not outlets. For safety, label both ends of every conductor with sleeve markers indicating origin and destination. Test continuity with a low-resistance ohmmeter before energizing; readings should match cable length resistance tables.
Energize the system progressively, checking each outlet with a plug-in tester. Expect no voltage drop beyond 5% between the first and last point; higher drops indicate loose connections or undersized cable. If outlets near the end dim noticeably, recheck terminations or upgrade to 4mm² cable for runs exceeding 30 meters.
Critical Errors in Closed Loop Electrical Setup Installation
Overloading a single spur beyond 13 amperes will trip the protective device. Verify each branch tap connects to no more than one fused spur socket or one fixed appliance. Calculate total load by summing device ratings rather than assuming socket capacity.
Skipping polarity checks invites reversed live and neutral wires at outlets. Test every termination point with a multimeter before energizing–neutral-to-case voltage should read 0V, live-to-case must match supply voltage. Wrong polarity risks appliance malfunction and fire.
Improper Junction Box Sealing and Placement
Exposed junction boxes must be accessible and weatherproof if outdoors. Use IP66-rated enclosures for external taps, ensuring glands seal around incoming cables. Burying boxes beneath insulation or plaster invalidates safety inspections and increases short-circuit hazards.
Neglecting cable support brackets every 300mm causes sagging in horizontal runs. Install clips or saddles at specified intervals to prevent conductor strain under weight or thermal cycling. Sagging wires stress terminations and reduce current-carrying capacity by 15-20%.
Incorrect Fuse Rating Selection
Using 20A fuses on 16A-rated cables melts insulation before tripping. Match fuse ratings precisely to cable gauge: 1.0mm²–10A; 1.5mm²–16A; 2.5mm²–20A. Overfusing reduces overload protection and violates BS 7671 regulations.
Mixing wire gauges in a single loop drops voltage at distant outlets. Maintain uniform cross-sectional area throughout all conductors–deviations above 1mm² create hotspots during peak loads. Test voltage drop at furthest point; aim for
Disregarding RCD protection on auxiliary branches leaves users vulnerable to 30mA shocks. Install a 30mA RCD on all socket circuits, including spurs feeding external appliances. Replace failing RCDs immediately–delayed tripping indicates internal fault requiring professional replacement.
Selecting the Right Wire Thickness for a Closed-Loop Electrical Path
Begin by determining the total power consumption of all connected fittings. Sum the wattage of every luminaire, outlet, or device tied to the loop. For standard residential setups, this rarely exceeds 3,000 watts. Divide this figure by the supply voltage (typically 230V in Europe, 120V in North America) to obtain the current in amperes. A 2,500-watt load on a 230V system yields approximately 10.9A. Use the next standard breaker rating above this value–usually 13A or 16A–to avoid nuisance tripping.
- For currents under 10A: 1.5 mm² copper conductors suffice when the run length stays below 25 meters. Voltage drop remains under 2% at full load.
- 10A–16A: Upgrade to 2.5 mm² wire. Beyond 30 meters, recalculate using the formula Vdrop = (2 × L × I × ρ) / A, where L = length (m), I = current (A), ρ = resistivity (0.0172 Ω·mm²/m for copper), and A = cross-sectional area (mm²).
- Above 16A: Minimum 4 mm² wire is mandatory. For runs exceeding 50 meters, consider doubling the cross-section or installing a sub-distribution point every 30 meters.
Factor in grouping and ambient temperature. When multiple conductors are bundled in conduit or trunking, derate the current-carrying capacity by up to 30%. For instance, a 2.5 mm² cable rated for 24A in free air drops to ~16.8A when four are bundled. Consult Table 4E1A–4E2B in IEC 60364-5-52 for exact derating factors. In lofts or enclosed spaces where ambient temperatures exceed 30°C, apply additional corrections:
- 31°C–40°C: Reduce capacity by 10%.
- 41°C–50°C: Reduce by 25%.
- Above 50°C: Use heat-resistant insulation (e.g., 90°C thermoplastic) and increase wire gauge by one step.
Verify voltage drop across the longest run. Target a maximum drop of 3% at the furthest point. For a 120V system, this translates to 3.6V; for 230V, 6.9V. If calculations exceed these limits, either shorten the path, increase wire thickness, or insert a junction box at the halfway mark to split the load. Use dual 2.5 mm² conductors in parallel for exceptionally long loops (80+ meters) if splicing is impractical.
