For immediate troubleshooting or installation on a Super Duty model chassis, refer to the 7-pin connector schematic as the baseline standard. The primary circuits include ground (white), tail/running lights (brown), left turn/brake (yellow), right turn/brake (green), and auxiliary power (blue). Confirm continuity with a multimeter before proceeding–factory pre-wiring on this series often integrates inline fuses at the integrated power module (IPM) for the blue circuit, rated at 30A.
Unconventional configurations–for instance, dual battery setups or aftermarket brake controllers–require direct splicing at the frame rail junction rather than the cab-side connector. Locate the OEM harness splice point near the rear axle, identifiable by a black/white striped wire (constant 12V) and a red wire (ignition-switched). Use crimp connectors with heat shrink or solder-and-tape for corrosion resistance; avoid wire nuts in high-vibration zones.
For gooseneck or fifth-wheel adapters, the purple (reverse light) and gray (electric brake) pins become critical. Verify the gray wire terminates at the brake controller relay under the dashboard; trace it back to the IPM if signal loss occurs. Reverse polarity on the purple circuit can blow the reverse lamp relay fuse (10A), located in the central junction box (CJB)–replace with an identical rating to avoid backfeeding.
Before finalizing, load-test each circuit with a test trailer or LED probe. Cycle turn signals, brakes, and marker lights sequentially; intermittent dimming often indicates a loose ground strap at the bumper mount or corroded chassis connection. Clean contact surfaces with diesel-based deoxidizer and torque fasteners to 15–20 ft-lbs. For persistent issues, bypass the CJB entirely and run dedicated 8-gauge marine-grade cable** from the battery to the connector–this eliminates voltage drop common in long OEM runs.

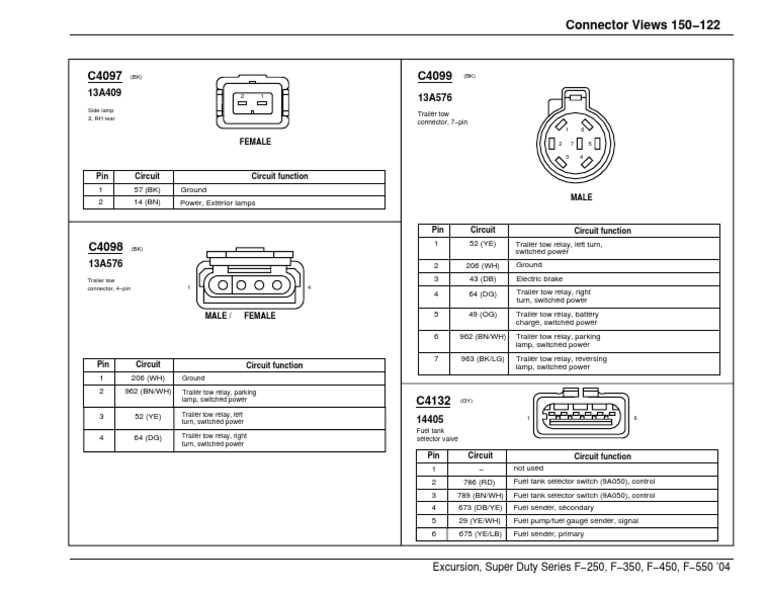

Heavy-Duty Pickup Towing Connector Schematic
Start by disconnecting the vehicle’s negative battery terminal before handling electrical connections to prevent shorts or accidental activation of circuits. The 7-pin connector on this model follows the SAE J2863 standard, which mandates specific pin assignments for consistent compatibility across aftermarket accessories.
Pin positions and functions differ from earlier iterations, so verify each terminal against the following configuration before splicing or replacing components:
| Pin Number | Cable Color | Function | Voltage (Key On) | Wire Gauge |
|---|---|---|---|---|
| 1 | White | Ground | 0V | 10 AWG |
| 2 | Brown | Running Lights | 12–14V | 14 AWG |
| 3 | Yellow | Left Turn/Brake | 12–14V (pulsing) | 14 AWG |
| 4 | Green | Right Turn/Brake | 12–14V (pulsing) | 14 AWG |
| 5 | Blue | Electric Brakes | 12V (activated) | 12 AWG |
| 6 | Red | Battery Charge | 12–14V | 10 AWG |
| 7 | Black | Auxiliary (Reverse Lights) | 12–14V | 14 AWG |
Use a multimeter to confirm each circuit’s integrity before connecting towing equipment. Probe the female side of the connector with the vehicle ignition active; readings should match the table’s voltage specifications. If discrepancies appear, inspect the fuse block under the instrument panel–fuses 24 (10A) and 40 (15A) protect lighting and brake circuits respectively.
For brake controller integration, connect the blue wire to a proportional controller via a relay to handle current draws exceeding 10A. Avoid direct splicing into the vehicle’s harness; instead, route a dedicated 12 AWG wire from the controller’s output to the connector’s pin 5 using heat-shrink tubing to prevent corrosion.
Diagnosing Common Connection Issues
If lights function intermittently, check for loose terminals inside the connector housing. Corrosion-resistant dielectric grease applied to each contact point will prevent oxidation. Ground wire (white) must terminate at the chassis near the hitch receiver; verify bolt tightness and clean any paint or rust from the mounting surface.
When adding a new connector, use crimp-style terminals rated for at least 20A and seal the connection with marine-grade adhesive-lined heat shrink. Avoid soldering near the connector’s plastic housing–excessive heat can deform the casing and compromise the seal. For vehicles equipped with factory trailer brake electronics, the blue wire includes feedback circuits; bypassing this can trigger false error codes in the onboard computer.
Decoding the 7-Way Heavy-Duty Towing Interface for Your Pickup
Start by locating the rear socket beneath the vehicle’s rear bumper–count seven terminals arranged in a circular pattern. Pin positions follow SAE J2863 standards, but verify with a multimeter before splicing into factory harnesses. The top-center pin (12V auxiliary) supplies constant battery voltage; improper connections here can drain the main power source within hours.
The upper-left terminal controls left-side marker and brake illumination. A loose or corroded connection here causes intermittent brake light failures, violating DOT regulations during night towing. Use dielectric grease on this contact to prevent oxidation in humid climates. Lower-left provides ground–secure this with an 8-gauge or thicker wire to handle up to 40 amps safely.
- Upper-right: Right turn and brake signal combined (amber lens required)
- Lower-right: Reverse lighting activation (white lens mandatory)
- Center-right: Electric trailer brake controller input (blue wire, 12-14 gauge)
Factory harnesses often include a 10-amp fuse for the center-pin auxiliary circuit–upgrade to 20 amps if powering winches or additional accessories. Avoid taping splices; use shrink tubing with adhesive lining to seal moisture ingress points. Check continuity between the brake controller pin and the vehicle’s brake switch–any resistance above 0.5 ohms indicates a fault requiring trace inspection.
Color coding differs between OEM and aftermarket kits:
- OEM: Yellow (left turn/brake), Green (right turn/brake), Brown (tail/marker)
- Aftermarket European: Black (ground), Red (aux power), Blue (brakes)
Cross-reference with the installer’s guide to prevent polarity mismatches.
For heavy loads, split the ground wire into dual paths–one to the frame, another directly to the battery negative terminal. This reduces voltage drop under max brake controller output (typically 12V at 10A). Test each circuit under load before finalizing; a 30-amp probe-style circuit tester confirms proper engagement of brake and turn signals without phantom activation.
Adjustable brake controllers require matching the blue wire’s voltage output to the trailer’s actuator rating (commonly 2-10V). Incorrect calibration causes premature wear on drum or disc systems. Install a manual override switch if hauling mixed-load configurations (e.g., boat ramp launches with uneven weight distribution).
Final step: Secure all wiring with loom tubing rated for 200°C minimum–exhaust heat melts inferior protection. Anchor loops every 18 inches to prevent chafing against suspension components. A failed inspection due to exposed wires costs more in fines than proper upfront routing.
How to Install an Electrical Connector on a Heavy-Duty Pickup
Begin by locating the vehicle’s existing harness behind the rear bumper. Remove the factory cover to expose the color-coded wires–typically seven strands for a standard setup: brown (running lights), green (right turn/brake), yellow (left turn/brake), white (ground), blue (auxiliary), red (brake feed), and black (constant power). Use a multimeter to confirm voltage on each circuit before proceeding; the brake and turn signals should read 12 volts when activated.
Trim the new connector’s cable to match the exposed length of the truck’s harness, allowing an extra two inches for slack. Strip ¼ inch of insulation from each wire end, then crimp a solderless butt connector onto both the vehicle-side and accessory-side wires. Match colors precisely–improper pairing risks circuit damage or nonfunctioning signals. Secure connections with heat-shrink tubing, applying heat until the seal tightens around the joint to prevent moisture intrusion.
Mount the connector bracket to the pre-drilled holes on the rear crossmember, using the supplied hardware. Route the harness along the existing loom, avoiding sharp edges or moving parts. Secure with zip ties every 12 inches, ensuring no tension remains on the wires. Test each function–turn signals, brake lights, and marker lamps–with a helper or by using a magnetic reflector to confirm illumination.
Reinstall the factory cover plate, verifying the connector locks into place with an audible click. Apply dielectric grease to the male and female pins before mating the halves to inhibit corrosion. If auxiliary circuits are unused, terminate the blue wire with a waterproof cap to prevent short circuits. Double-check grounds at the chassis point–corrosion or paint can impede conductivity, requiring a clean connection with a wire brush.
Solving Electrical Connection Problems in Heavy-Duty Towing Setups
Check the 7-way connector for corrosion or bent pins before testing circuits. Use a multimeter set to 20V DC to verify power at pin positions L (left turn/brake), R (right turn/brake), and N (ground). A reading below 11V indicates a faulty connection or broken wire within the harness. Replace damaged terminals rather than attempting repairs with electrical tape, as temporary fixes often fail under load.
Diagnosing Intermittent Signal Failures
- Inspect the tow vehicle’s fuse box for blown fuses–the 30A fuse for lighting circuits is a common failure point.
- Trace wires from the connector to the rear tail light assembly, looking for chafing against sharp edges or insulation damage.
- Test brake and turn signals with a helper while engaging the pedal/lever–flickering lights suggest a poor ground connection.
Ground issues typically stem from the main battery-to-chassis connection or a loose mounting screw at the tow hitch. Clean corrosion from grounding points using a wire brush and apply dielectric grease to prevent future oxidation.
For dual-battery systems, ensure the auxiliary power feed (pin H in standard configurations) maintains consistent voltage during engine cranking. A voltage drop below 10.5V here can cause trailer brakes to engage erratically. Upgrade to heavier-gauge wiring if towing high-current loads, as factory-installed 14-gauge wires may overheat with prolonged use.
- Disconnect the tow vehicle’s negative battery terminal before servicing electrical components.
- Label all connectors with masking tape to avoid miswiring during reassembly.
- Use crimp connectors with heat-shrink tubing–solder-only joints fatigue under vibration.
- Verify all circuit functions with the engine running to account for alternator output variations.
