For embedded devices requiring fail-safe recovery, implement a hardware-triggered reboot path using a momentary pushbutton connected to a debounce network. A 10 kΩ pull-up resistor tied to VCC ensures a stable high state, while the button pulls the line low when pressed. Add a 0.1 µF ceramic capacitor directly across the contacts to eliminate contact bounce–critical for accurate edge detection. The signal should feed into an interrupt-capable pin of the microcontroller or a dedicated watchdog timer input if available.
In power-sensitive designs, avoid latching circuits that consume standby current. Instead, use a monostable pulse generator built with a 555 timer in one-shot mode: connect the trigger to the debounced button, tie threshold and discharge pins together with a 1 µF timing capacitor, and pull the reset output to the processor’s initiation pin via a 100 Ω resistor. This configuration guarantees a clean 200 ms pulse regardless of how long the button is held, preventing accidental retriggering.
For systems running on voltages below 3.3 V, replace the 555 with a low-power CMOS variant like the TLC555 or a Schmitt trigger inverter (e.g., 74HC14) configured as a pulse extender. A 22 µF electrolytic capacitor and 1 MΩ resistor on the inverter’s input create a 1-second delay window–enough to ensure a full reboot without risking brownout conditions. Always place the timer components as close as possible to the reboot pin to minimize noise susceptibility.
To verify functionality, probe the initiation pin with an oscilloscope during button press: the waveform should show a crisp falling edge followed by a single, well-defined pulse. If multiple edges appear, increase the debounce capacitor to 0.22 µF or add a second-stage RC filter (10 kΩ + 1 µF) between the button and the timer. Never rely solely on software debouncing–hardware redundancy eliminates race conditions during initialization.
Designing a Reliable Reboot Mechanism for Hardware Systems
Implement a momentary push-button connected between the microcontroller’s initialization pin and ground, using a 10 kΩ pull-up resistor to VCC. This ensures a clean, noise-resistant signal when activated, preventing false triggers from voltage fluctuations or EMI. A 0.1 µF ceramic capacitor in parallel with the button suppresses bounce effects, stabilizing the input pulse duration to a minimum of 200 ms for predictable state change detection.
For power-cycled devices, integrate a dedicated IC like the MAX811 or TPS3823, which combines voltage monitoring with a manual override input. Configure the IC’s threshold to 4.65 V for 5 V systems or 2.93 V for 3.3 V rails, triggering a controlled restart if supply dips below critical levels. Connect the IC’s output to the processor’s boot pin through a 1 kΩ series resistor to isolate potential short circuits during transient events.
Test the assembly by monitoring the reboot sequence with a logic analyzer set to 1 MHz sampling–verify the pulse shape, absence of ringing, and consistent timing. For battery-powered setups, add a MOSFET (e.g., 2N7000) to disconnect non-critical loads during the restart phase, preserving 20 µA standby current. Document the exact component values, including tolerance ratings (e.g., ±5% for resistors), to ensure replication across production units.
Key Elements for Hardwired Restart Mechanism Construction
Select a pushbutton rated for at least 250 mA continuous current and 50 VDC maximum voltage to handle momentary surges without arcing. Tactile models with a 4.5 mm travel distance prevent accidental engagement while ensuring reliable contact closure under vibration.
Integrate a pull-up resistor between 4.7 kΩ and 10 kΩ to maintain logic high on the control line, minimizing false triggers from electromagnetic interference. For 3.3 V systems, use 4.7 kΩ; for 5 V systems, 6.8 kΩ or 10 kΩ optimizes power consumption while preserving signal integrity.
Signal Conditioning Requirements
| Component | Recommended Value | Function | Tolerance |
|---|---|---|---|
| Debounce capacitor | 0.1 µF | Filers mechanical bounce | ±10% |
| Series resistor | 220 Ω | Current-limiting for ESD protection | ±5% |
| Schottky diode | BAT54 | Clamps negative transients | – |
Avoid ceramic capacitors below 0.01 µF for debounce as they insufficiently smooth sub-millisecond transitions. Polyester or X7R dielectric types offer stable capacitance across -40°C to +85°C operating ranges, critical for industrial environments.
Connect the button output to a Schmitt-trigger inverter (e.g., 74HC14) to convert noisy edges into clean digital pulses. This stage eliminates intermediate voltage levels that could confuse microcontroller firmware, especially during brownout conditions where supply voltage may sag to 2.7 V.
For systems requiring failsafe operation, add a dedicated hardware timer (e.g., LTC6994) to force a system restart if the button remains pressed beyond 8 seconds. Configure the timer’s threshold voltage divider to trip at 75% of the nominal supply, ensuring consistent behavior across temperature variations.
How to Wire a Momentary Trigger Reboot Mechanism
Start by selecting a normally open push-control with a 12mm mounting diameter and a contact rating of at least 50mA at 24VDC to ensure longevity under voltage spikes. Position it within 10cm of the microcontroller’s hardware restart pin or the power management IC’s dedicated line–exceeding this distance may introduce signal degradation or unwanted capacitance.

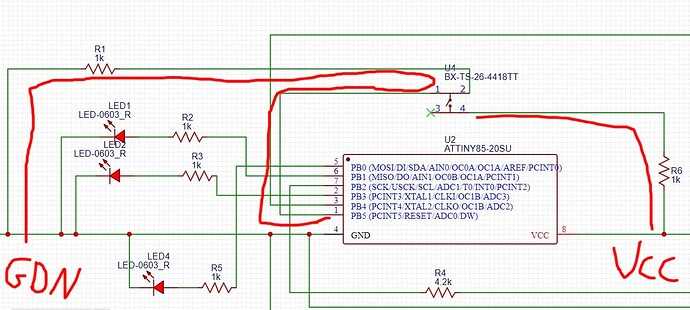

Use a 1kΩ pull-up resistor between the controller’s interrupt line and the positive supply rail (3.3V or 5V, matching the logic level). Connect the push-control’s common terminal to the interrupt line, while the normally open terminal links to ground. This configuration ensures a clean low pulse when activated, avoiding false triggers caused by floating inputs. For noise-sensitive applications, add a 0.1µF ceramic capacitor in parallel with the resistor to filter transient spikes.
Key Connections and Precautions
- Verify the controller’s maximum input voltage tolerance–some pins accept only 3.3V, and applying 5V directly can damage the IC.
- For dual-power systems (e.g., main supply + backup battery), isolate the trigger signal using a Schottky diode (e.g., 1N5817) to prevent backfeeding.
- Avoid routing the signal wire near high-current traces (e.g., motor drivers, relays) to minimize inductive coupling.
- Test the pulse width with an oscilloscope–ideal durations range between 50ms and 200ms for most hardware. Overly short pulses may not register; longer pulses risk stressing the controller.

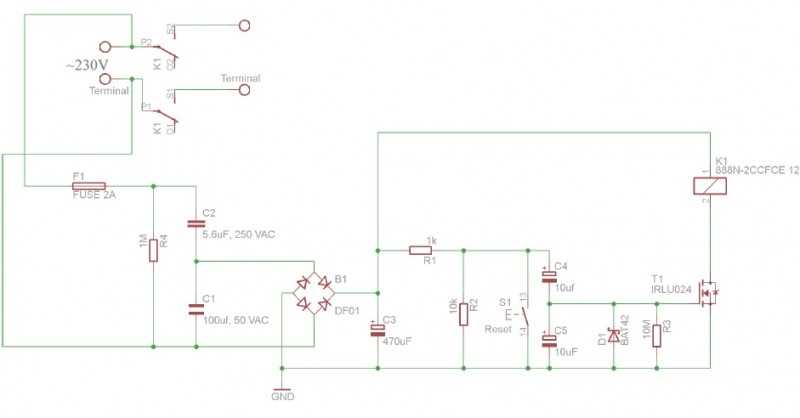

For systems requiring a hard system restart (e.g., stalled firmware), pair the trigger with a latching relay or a solid-state equivalent. Wire the push-control’s output to the relay coil, then route the relay’s contacts to bridge the power supply momentarily. Include a flyback diode (1N4007) across the coil to dissipate voltage spikes when the field collapses. This approach ensures a full power cycle, not just a software interrupt.
Label every connection with heat-shrink tubing or printed wire markers, noting voltage levels and component values. Document the pinout in the project’s schematic legend, including the push-control’s model number and the resistor/capacitor tolerances (±5%). For prototypes, placeholder with a breadboard, but transition to soldered joints or a PCB for reliability–breadboard connections degrade below -5°C or above 60°C and introduce intermittent faults.
Debouncing Techniques for Stable Initialization Pulses
Integrate a Schmidt trigger inverter like the 74HC14 with a 10 kΩ pull-up resistor to filter noisy transitions. Its hysteresis (typically 0.8V–2.4V for TTL-compatible levels) eliminates false triggers from mechanical contacts, ensuring a clean edge for microcontroller interrupts.
For hardware-based solutions, use an RC network with values R=10 kΩ and C=1 µF to introduce a 10 ms delay. This dampens bounce durations common in pushbuttons (typically 5–50 ms). Pair the capacitor with a 1N4148 diode to discharge rapidly, preventing cumulative charge buildup.
Software debouncing demands precise timing. Sample the input pin in a tight loop with a 20 ms interval–long enough to avoid false positives but short enough for responsiveness. Confirm stable state by reading three consecutive identical values before acting. Avoid delays longer than 50 ms to prevent missed legitimate pulses.
For critical applications, combine both approaches: the RC network for preliminary filtering, then software validation. Log edge timestamps to detect anomalies–A single transition within 2 ms likely indicates bounce, while consistent gaps confirm intentional activation.
Power Supply Considerations in Auxiliary Control Signal Arrangements
Place dedicated decoupling capacitors–values between 0.1 µF and 1 µF–adjacent to every voltage regulator and load point on the board. Ensure these components connect directly to the power plane or main rail with traces no longer than 5 mm to suppress high-frequency transients that disrupt signal integrity during state transitions.
Use separate voltage rails for logic and peripheral interfaces. A ripple tolerance of ≤50 mV peak-to-peak on the primary supply prevents erratic behavior stemming from coupled disturbances. Measure with an oscilloscope at full load current, accounting for worst-case switching scenarios of connected modules.
Implement ferrite beads rated for at least 100 MHz impedance on power lines feeding noise-sensitive sections. These components attenuate conducted emissions from high-current drivers, reducing ground bounce effects during rapid edge transitions. Position beads immediately after the decoupling capacitors to optimize their filtering bandwidth.
Select voltage regulators with built-in thermal shutdown and overcurrent protection. Devices with less than 2% line regulation reduce susceptibility to input variations that propagate as glitches through the system. Verify dropout voltage under maximum load to prevent brownout conditions that corrupt initialization sequences.
Ground loops must be avoided by consolidating analog and digital returns into a single low-impedance return path, typically through a star topology at the power supply’s negative terminal. Trace separation of ≥3 mm between differing return paths minimizes cross-talk that corrupts delicate timing signals.
Test voltage stability under transient conditions by simulating rapid load changes–current slew rates exceeding 1 A/µs–while monitoring rail voltages. A compensation network using a 1–10 Ω series resistor and 10–100 nF capacitor on the regulator’s feedback pin enhances stability during these events.
Review power delivery network impedance across the operational frequency spectrum; target values below 10 mΩ from DC to 100 MHz ensure consistent energy distribution. Copper thickness, via count, and plane geometry directly influence this impedance–optimize these factors to prevent droop during peak demand cycles.
