Start by locating the gray 14-pin connector beneath the dashboard on the driver’s side–this is the primary interface for the General Electronic Module (GEM). Pin assignments follow a consistent pattern: pins 1–7 handle lighting controls (headlamps, marker lamps, and interior illumination), while pins 8–14 manage accessories like power windows, door locks, and the rear wiper. Verify continuity with a multimeter before disconnecting any wires to prevent accidental shorts.
For the body control network, trace the black/yellow wire from the GEM to the fuse block–this carries power for critical functions. If accessories fail, inspect the 20-amp fuse (position #27) and the relay cluster near the steering column. Corrosion at the fuse panel terminals is a frequent culprit; clean with a wire brush and apply dielectric grease.
Sensor circuits require precise voltage checks: the ambient temperature sensor operates at 5V reference, while the vehicle speed sensor outputs a pulsed signal between 0.5V–4.5V. Use an oscilloscope to confirm waveform integrity. For intermittent faults, probe the yellow/red wire at the GEM connector–voltage spikes here often indicate a failing alternator diode trio or grounding issue at the left fender bolt.
Replacement modules must be programmed with original vehicle parameters; generic units lack calibrated thresholds for features like autolamp delay or chime warnings. Aftermarket harnesses labeled “plug-and-play” frequently omit the serial data link (pin 14, purple/white wire), leading to communication errors with the instrument cluster. Always cross-reference pinouts with a factory repair manual–aftermarket diagrams often invert signal and ground wires.
Electrical Schematic Guide for 1999-2001 Compact Pickup Central Control Unit
Locate the central control unit behind the driver-side kick panel–remove three 8mm bolts to access. Disconnect the 72-pin connector by squeezing the retaining clips before pulling straight out; twisting can fracture internal pins.
Pin assignments for critical circuits:
- Pins 1-8: Left-hand power window motor (red/blue stripe = motor up, red/black stripe = motor down)
- Pins 9-16: Right-hand door actuators (yellow/light green = lock, yellow/brown = unlock)
- Pins 17-24: Headlight switch input (white wire = low beam, dark green = high beam)
- Pins 25-32: Courtesy lamp delay (gray/red = timed feed, black = ground)
- Pins 33-40: Rear defrost relay control (orange/pink = relay coil)
Check suspect circuits with a multimeter: set to 20 VDC and probe connector with ignition ON. Expected readings:
- Battery feed (pin 41, orange wire): 12.6 V ± 0.2 V
- B+ to case ground: < 0.1 Ω
- Headlight switch input (pin 19): > 11 V when switch engaged
- Door lock actuators: 8-10 Ω between yellow/light green and black wires
Diagnosing Intermittent Failures
Flickering dash lights typically indicate a failing ground (G101) near the brake pedal bracket. Clean contact surface with 400-grit sandpaper and apply dielectric grease after securing the 12mm bolt. For intermittent window operation, probe window switch pins 2 (light blue) and 5 (purple/white) while cycling the switch–voltage fluctuation above 0.3 V suggests corroded switch contacts.
Critical fuse ratings and locations in the under-dash fuse box:
- Fuse #7 (15A): Courtesy lamps, radio memory
- Fuse #13 (20A): High beam circuit
- Fuse #18 (10A): Power door locks
- Fuse #22 (30A): Heated rear window
Aftermarket alarm installations must splice into the gray/red wire at pin 30 for proper courtesy lamp delay Programming–never use T-taps; solder and heat-shrink all connections. Replace the 72-pin connector if terminal corrosion exceeds 20% of contact surface.
Reassembly Sequence
Route wiring harness through rubber grommet at the firewall without kinks. Align connector keyway and push until retaining clips click. Torque kick panel bolts to 11-14 Nm. Test all circuits with scan tool before reattaching trim panels to avoid rework.

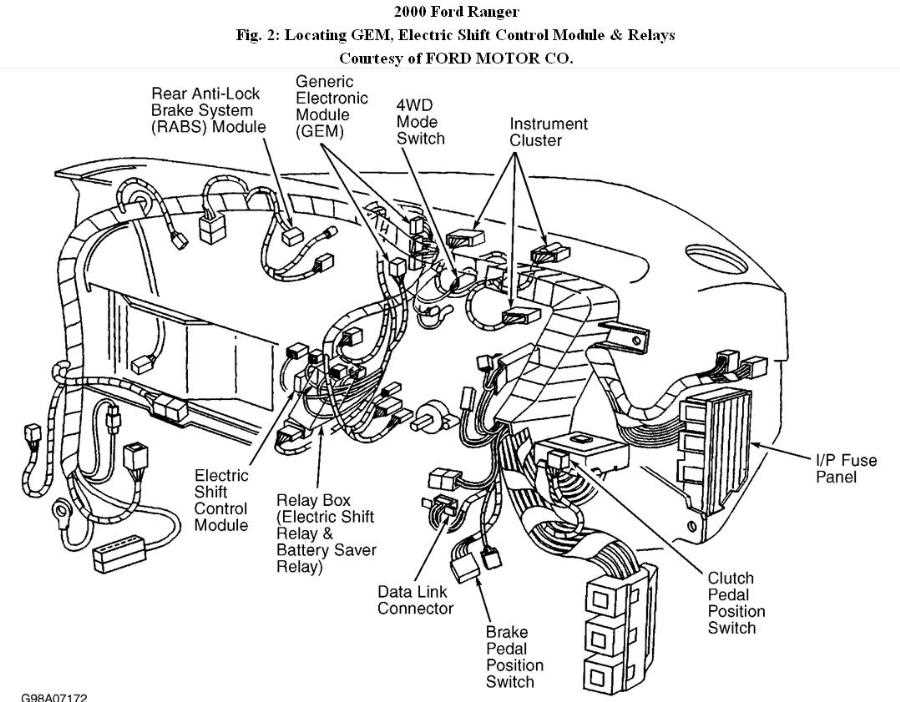

Finding the Central Control Unit in a Late-Model Compact Pickup
Access the fuse panel beneath the left side of the dashboard to reveal the electronic brain governing body functions. The black rectangular box measures approximately 6x4x2 inches and sits above the brake pedal assembly, secured by a single 10mm bolt. Remove the lower dash trim by pulling outward at the sides–no tools needed–to expose the wiring harness connectors. The main plug features 32 pins in two rows; label each wire before disconnecting to avoid mix-ups during reinstallation. Note the presence of corrosion on terminals–common in high-humidity climates–clean with electrical contact spray before handling.
Verification Steps Before Removal
Check for power at pins 1 (ground), 14 (constant 12V), and 28 (switched ignition) using a multimeter. Pin 14 should read battery voltage regardless of key position; pin 28 only when the key is in the ON position. If readings are inconsistent, trace the red/yellow (constant) and red (switched) wires back to their origin–SJB relay or fuse #22 (15A)–before proceeding. The unit’s rear often collects dust; gentle compressed air cleaning prevents debris from entering the vehicle’s electrical system during replacement.
Identifying Critical Harness Interfaces for the Control Unit
Locate the primary 13-pin connector (often labeled CJ1 or CJ2) near the driver-side fuse panel–this handles power distribution, ignition inputs, and communication lines for body functions. Pin assignments follow this pattern: pins 1-4 manage ground and battery feed, 5-8 control lighting circuits (headlamps, turn signals), while 9-13 handle door ajar switches and wiper relays. Verify continuity with a multimeter at 200Ω range; readings above 5Ω indicate corrosion or broken strands requiring immediate repair.
Inspect the smaller 6-pin plug (frequently marked CJ3) beneath the dash, which links sensors to the processor. Pin 1 delivers 12V reference voltage from the ignition, pin 2 monitors the neutral safety switch, and pins 3-6 interface with vehicle speed, fuel pump relay, and HVAC actuators. Cross-reference harness colors with factory documentation: orange-striped wires signal constant power, purple-striped indicate switched 12V, and light blue denote ground paths–any deviation suggests incorrect routing or faulty splices.
Check the unterminated 8-wire cluster near the passenger kick panel–this connects external components like the alarm system and remote keyless entry. Red wires carry activation signals, black serve as chassis ground, yellow feed backup power, and brown manage data transmission. Probe each terminal with a test light at engine-off and engine-on states; inconsistent illumination reveals voltage drops, typically caused by oxidized connectors or undersized wiring–replace damaged sections with 16-gauge automotive-grade cable.
Step-by-Step Circuit Pinout Guide for the Central Control Unit
Begin by locating the main fuse box under the driver-side dash panel. Remove the protective cover to expose the 18-pin connector labeled “CCU-Primary.” Verify power delivery using a multimeter: pin 1 (red/green stripe) should read 12V with the ignition off, while pins 2, 3, and 4 (black/orange, black/yellow, black/purple) must show continuous ground. Failure at this stage indicates a disrupted main power relay or corroded ground points near the firewall.
Proceed to the secondary 24-pin connector behind the instrument cluster. Route a temporary jumper wire from pin 5 (blue/white stripe) to pin 7 (gray/red stripe)–this bypasses the anti-theft sensor for testing. If the engine cranks but stalls, focus on the fuel pump relay signal at pin 9 (pink/black stripe). A faulty reading (below 10V) confirms a severed connection to the inertia switch under the passenger kick panel.
| Connector | Pin | Wire Color | Function | Expected Voltage |
|---|---|---|---|---|
| Primary (18-pin) | 1 | Red/Green | Battery Feed | 12V |
| 6 | Brown/White | Ignition Input | 0V/12V | |
| 12 | Dark Blue/Orange | Courtesy Lamp Output | 0V/12V (triggered) | |
| Secondary (24-pin) | 5 | Blue/White | Starter Relay Control | 0V/9V |
| 14 | Light Green/Red | Tachometer Signal | Pulsing 0-5V |
Trace the rear harness bundle along the driver-side rocker panel. At the midway junction, isolate the 6-wire subgroup–the tan connector here carries dashboard illumination signals. Probe pin B (violet/light blue) while cycling the headlight switch; a stable 12V reading confirms intact relay activation, whereas erratic voltage suggests a short in the tail lamp circuit near the rear bulkhead.
For relay-controlled outputs, swap the original flasher unit with a solid-state 390Ω resistor. This isolates whether click-speed erraticism stems from the central unit or a failing turn-signal relay. Check continuity between pin 11 (dark green/white) and ground–resistance should measure below 0.5Ω. Exceeding this threshold necessitates replacing the chassis ground strap near the left rear wheel well.
Final validation requires a bi-directional scan tool emulating BCM commands. Inject a 5V square wave at pin 18 (white/black) while monitoring the data bus. If the tool fails to register CAN communication, reflow solder joints on the PCB pad for the multiplex interface chip–cold solder cracks here mimic catastrophic failure symptoms.
Solving Electrical Control Unit Connection Problems
Inspect the fuse panel beneath the dash on the driver’s side first–common failures in circuits 15, 27, and 46 mimic communication faults. Use a multimeter set to continuity mode: probe the fuse clips while wiggling the harness near the steering column; intermittent drops below 0.2 ohms indicate a broken conductor or cold solder joint. Replace the 10A fuse with a known-good spare before proceeding; corrosion on the fuse clips often causes false negatives.
Examine the ground points:
- G102 (behind the left kick panel) – remove paint around the bolt hole before reattaching.
- G201 (near the brake booster) – clean with a wire brush and apply dielectric grease to prevent future oxidation.
- Verify resistance between each ground and chassis: values above 0.5 ohms require re-crimping of terminal ends.
Trace the pink/light blue stripe wire from pin 24 of the central control box to the instrument cluster. Locate chafing near the firewall grommet; slice open the insulation sleeve and solder any exposed strands. Heat-shrink the repair to avoid moisture ingress. If the issue persists, back-probe pin 24 with a test light while cycling the ignition–flickering indicates an internal processor failure rather than a harness break.
Disconnect the vehicle’s 12-way connector at the rear of the fuse box; inspect for bent pins or greenish residue. Apply contact cleaner to each terminal and exercise the connector three times before reconnecting. For intermittent accessories (door locks, dome light), force a state change via the OBD-II port using mode 0x22 PID 0x0110–failure to toggle confirms a corrupted firmware image, necessitating a replacement unit.
Check parasitic drain with an ammeter in series: above 50 mA suggests a stuck relay or leaking capacitor. Pull relays one at a time to isolate the culprit. For dome-light delays exceeding ten seconds, replace the timing capacitor on the logic board–marked C1, 470 μF, 25 V–soldering directly to the pads restores instant response.
