Begin with a 2.4 GHz radio transceiver module–NRF24L01 or CC2500–as the foundation. These components handle signal transmission between the handheld unit and the chassis, requiring minimal additional parts: a 100 nF decoupling capacitor directly across the module’s power pins and a 3.3V linear regulator (AMS1117) if the power source exceeds 4.2V. Avoid servos rated above 6V; opt for MG90S micro servos with metal gears for durability.
Use a PWM-enabled microcontroller–STM32F103C8T6 (“Blue Pill”) or ATmega328P–for real-time motor and servo control. Allocate four GPIO pins for an H-bridge driver (L298N or TB6612FNG) to manage the main drive motor’s direction and speed. Include flyback diodes (1N4007) across the motor terminals to suppress voltage spikes. For power distribution, separate the logic and motor circuits with a Schottky diode (1N5817) to prevent backflow.
For the power supply, a 2S LiPo battery (7.4V) delivers adequate runtime; add a balancing charger with over-discharge protection. Place a 100 µF electrolytic capacitor near the motor driver to smooth current draw. Use 10 kΩ pull-down resistors on all signal lines to prevent floating inputs. If integrating a brushless system, pair an ESC (30A) with a hall-effect sensor for closed-loop control.
Printed traces should be 2 mm wide for motor paths and 0.5 mm for logic signals. Ground planes reduce noise; stitch the chassis to the PCB’s ground plane with multiple vias. For debugging, include test pads for each signal line–oscilloscope probes fit 1.5 mm diameter pads. Finalize the layout with a multilayer PCB (4 layers minimum) to separate analog, digital, and power layers.
Building a Wireless Toy Vehicle Circuit Guide

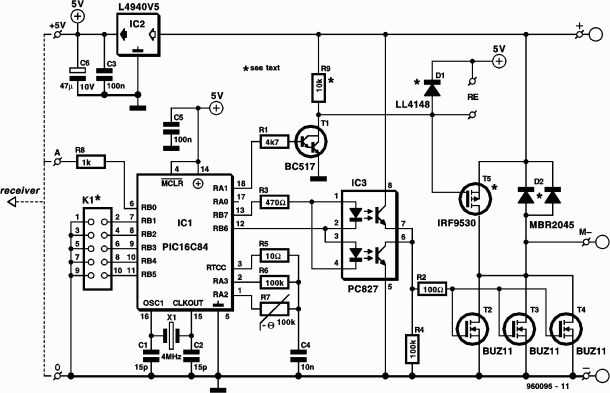

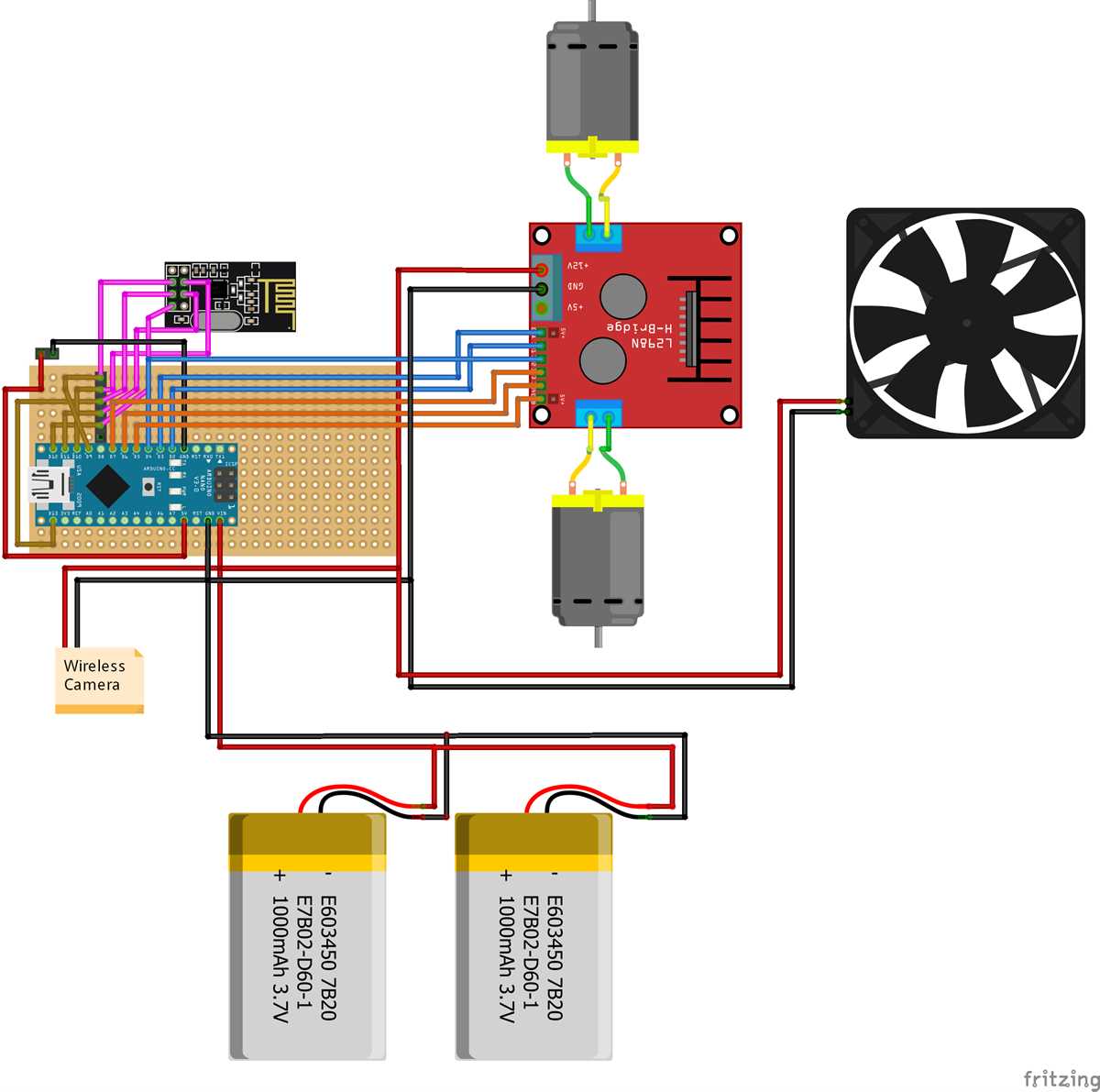

Start by connecting the motor driver (like L298N or DRV8833) directly to the battery pack–4 AA cells (6V) for brushed motors or a 2S LiPo (7.4V) for brushless setups. Ensure polarity matches: positive (+) to VCC, negative (-) to GND. The driver’s input pins (IN1, IN2 for L298N) must link to a microcontroller (Arduino Nano, ESP8266, or STM32) with jumper wires no longer than 15 cm to minimize voltage drop. For brushless ESCs, skip the driver and wire the ESC’s signal pin to the MCU’s PWM-capable output (e.g., pin 5 for Arduino).
- Power budget: 500mA–2A per motor (check datasheets; 9V motors pull ~1.5A under load).
- Decoupling capacitors (0.1µF ceramic + 10µF electrolytic) between driver VCC/GND prevent brownouts.
- Radio receiver (2.4GHz NRF24L01 or 433MHz ASK) needs 3.3V from a linear regulator (LD1117V33) if the MCU lacks onboard 3.3V.
Avoid common mistakes: solder motor wires directly to the driver (use JST-XH connectors for modularity), omit flyback diodes (1N4007 for brushed motors protects against voltage spikes), or ignore ground loops (star-grounding minimizes interference). For dual-motor designs, mirror the left/right motor driver channels but swap IN1/IN2 signals to reverse direction. Test each motor independently before routing wires through the chassis–clip zip-ties flush to avoid snagging drivetrain components.
For advanced configurations, add sensors: ultrasonic HC-SR04 (5V power, trigger/echo to MCU) for collision avoidance, or an MPU6050 gyroscope (SCL/SDA to I2C pins) for stability control. Use Fritzing or KiCad to document the layout–export PNGs with net labels (e.g., “MOTOR_LEFT+”) to avoid miswiring. Upload firmware last: calibrate PWM ranges (0–255 for Arduino) via serial monitor, ensuring 100% throttle doesn’t exceed motor specs. Store the project file (.fzz or .kicad_pcb) with revision notes (e.g., “v1.2: Added 100nF bypass cap on MCU VCC”).
Key Components to Include in an RC Vehicle Circuit Layout
Prioritize a microcontroller at the core of your control system. Opt for an ESP32 or Arduino Nano for their balance of processing power and GPIO flexibility. These boards handle PWM signals for motor control, sensor inputs, and wireless communication without latency issues. Ensure the selected unit supports dual-core operation if threading tasks like obstacle detection and telemetry transmission are required.
Integrate MOSFET drivers for each motor to manage high-current demands efficiently. Use IRFZ44N or IRLZ44N transistors, pairing them with 1N4007 diodes to suppress voltage spikes. For brushed variants, include a H-bridge circuit (e.g., L298N) to enable bidirectional rotation; for brushless setups, a 3-phase driver like the DRV8302 is mandatory.
Include voltage regulation modules to power subsystems reliably. A LM2596 buck converter steps down the main battery voltage (e.g., 7.4V LiPo) to 5V for servos and sensors. Add a TL431 shunt regulator for analog circuits requiring stable reference voltages. Calculate power dissipation for each regulator–excessive heat may necessitate additional heat sinks or switching to low-dropout alternatives like the LM1117.
Incorporate wireless modules for remote operation and data logging. A nRF24L01+ transceiver provides low-latency 2.4GHz communication, while a HC-05 Bluetooth module enables smartphone control. For long-range setups, use a LoRa E32 (433MHz) with directional antennas. Ensure all wireless components share a common ground plane to avoid interference.
Embed feedback sensors to refine performance. Quadrature encoders on motors (AS5600) track rotation, while MPU6050 IMU modules monitor tilt and acceleration. For obstacle avoidance, integrate ultrasonic sensors (HC-SR04) or laser rangefinders (TF-Luna). Route sensor wires in twisted pairs to minimize noise, and use ferrite beads on power lines.
Design the power distribution layout to prevent voltage sag. Use thick gauge silicone wire (14–18 AWG) for battery connections and solder joints reinforced with heat-shrink tubing. Include a XT60 or Deans connector for easy battery swaps, and fuse each major branch circuit with 5A–15A automotive fuses. Separate digital and analog ground planes to reduce signal cross-talk.
Add safety features as mandatory components. A thermal cutoff switch (KSD9700) halts operation if motors overheat. Implement a low-voltage cutoff circuit (e.g., MAX8211) to prevent LiPo battery damage. For debugging, include LED status indicators and a serial port header for real-time telemetry output. Test all safety circuits under load before final assembly.
Step-by-Step Wiring Guide for Brushless DC Motor Integration
Select a 30A ESC rated for at least 20% more than your motor’s peak current draw. Match the ESC’s voltage range to your power source–3S LiPo (11.1V) for 2200KV motors, 4S (14.8V) for 1800KV. Verify compatibility with the motor’s pole count (typically 12N14P or 14N12P) using the manufacturer’s specs.
Connect the motor’s three phase wires (U/V/W) to the ESC’s labeled outputs without twisting. Use 14AWG silicone wire for currents under 40A, upgrading to 12AWG for higher loads. Secure connections with 3.5mm bullet connectors or direct soldering for permanent setups, ensuring polarity–swap any two wires to reverse rotation if needed.
| Motor KV | ESC Current Rating (A) | Wire Gauge (AWG) |
|---|---|---|
| 1800-2200 | 30-40 | 14 |
| 2600-3500 | 50-60 | 12 |
| 4000+ | 80+ | 10 |
Attach the ESC’s power input to the battery with XT60 connectors, observing polarity–red to positive, black to negative. For 4S LiPo, add a 10A fuse between the battery and ESC to prevent fire hazards. Route wires away from moving parts and heat sources, using zip ties to secure them every 10cm.
Link the ESC’s signal wire (white or orange) to the microcontroller’s PWM pin. Configure the pulse width range to 1000-2000μs in the firmware, with 1500μs as the neutral point. Test throttle response with a servo tester before finalizing the connection to avoid sudden acceleration.
Ground the ESC’s signal ground (black or brown) to the microcontroller’s common ground. Isolate signal wires from power lines using twisted pairs to reduce noise. For long runs (>30cm), add a 100nF ceramic capacitor between the signal and ground near the ESC to filter interference.
Calibrate the ESC by powering it with full throttle (2000μs), then lowering to neutral (1500μs) within 2 seconds. Listen for a confirmation beep–three short tones indicate success. Repeat if the motor hesitates or jerks, ensuring the battery is fully charged during calibration.
Mount the motor with a 2mm aluminum spacer to prevent bearing damage from shaft misalignment. Use locktite on all screws to prevent vibration loosening. Verify rotation direction before final assembly–counterclockwise from the shaft end confirms correct wiring. Test at 20% throttle for 30 seconds to check for overheating before full operation.
How to Select and Position the Electronic Speed Controller (ESC)
Choose an ESC with a current rating at least 20% higher than the peak draw of your powertrain. A 30A unit suffices for 540-sized brushed motors, while brushless setups demand 60-120A depending on KV and battery voltage–consult the motor’s datasheet for exact figures. Opt for waterproof models if operating in damp conditions; silicone-sealed enclosures prevent short circuits from moisture ingress.
Verify the ESC’s input voltage range matches your battery. A 2S LiPo (7.4V) requires a controller supporting 5-9V, while 6S (22.2V) needs 18-25V tolerance. Overvoltage risks overheating and permanent failure–check the thermal cut-off threshold, typically 80-100°C, to avoid shutdowns during prolonged loads.
Position the ESC near the motor to minimize power loss through connectors or lengthy wires. Use 12-14 AWG silicone wires for brushed setups, 10-12 AWG for brushless, ensuring solder joints or high-current connectors (XT60/Deans) handle the load without resistance buildup. Avoid routing signal wires parallel to high-current paths to reduce EMI interference.
Mount the ESC on a flat, non-conductive surface–aluminum chassis work if grounded, but plastic or carbon fiber is safer. Leave 5mm clearance around the unit for airflow; forced cooling (small fan) extends lifespan under sustained 70%+ throttle. Secure with double-sided tape or nylon screws–metal fasteners risk shorting traces if misaligned.
For crawlers:
- Prioritize low-speed torque adjustability; 1-5% PWM ramp-up avoids jerky acceleration.
- Forward/reverse switching without brake delay prevents drivetrain shock–test with a servo tester.
- Voltage cutoff at 3.2V per cell prevents LiPo damage; 3.4V for hobby-grade builds.
For racing:
- Program braking force to 30-50% of forward power to prevent flip-overs on sharp turns.
- Enable active freewheeling to reduce drain at neutral; extends runtime by 15-20%.
- Use a BEC with at least 3A output if driving servos–5A for high-torque steering units.
Test the ESC with a multimeter before installation. Probe the signal pin (usually white) for 1-2ms pulses at 50Hz. Connect a spare servo to confirm direction; reverse the leads if controls are inverted. For brushed units, check the motor’s direction before soldering–swapping any two wires reverses rotation.
Update firmware if the ESC supports it. Brushless ESCs benefit from timing adjustments (0-30°); start at 5° for general use, 15-20° for high-speed runs. Store configuration profiles for different tracks–aggressive settings for straightaways, conservative for technical sections. Keep a log of temperatures under load; 60°C at half throttle indicates proper cooling, 90°C requires intervention.
