Begin by reviewing the NF C 15-100 standard, which governs these configurations. Each connection point must adhere to specified wire gauges: 1.5 mm² for fixed fixtures and 2.5 mm² for outlets with switches. Verify junction boxes are IP44-rated indoors and IP55 outdoors to prevent corrosion.
Split-phase systems use dual 16A breakers for balanced loads, while single-phase setups require a 30 mA RCCB for protection. Label every terminal block–phase (red), neutral (blue), and earth (green/yellow)–to avoid miswiring during maintenance.
For dimmable switches, install trailing-edge units compatible with LED regulations. The minimum clearance behind drywall for conduits is 60 mm, and horizontal runs must slope downward toward the distribution panel to prevent moisture buildup.
Trace incoming supply lines from the meter: a dedicated 6A fuse protects lighting loops, while sockets draw separate 20A circuits. Replace all twist-on connectors with crimp terminals rated for 90°C; solder joints violate local safety codes.
Standard Wiring Practices in Residential Installations
Begin by mapping power sources to distribution boards using 1.5 mm² conductors for general-purpose feeds, rated at 16A. Wall switches should connect via 2.5 mm² cables to handle inrush currents from LED fixtures, preventing voltage drop over lengths exceeding 30 meters. Ground wires must run parallel to live conductors in 20 mm conduits for compliance with NF C 15-100, avoiding loops near inductance-sensitive devices. Use RCBOs (30 mA) instead of MCBs for circuits feeding wet areas–they trip within 40 ms under fault conditions, reducing electrocution risk.
Component Selection for Efficiency
Opt for 230V-rated dimmers with trailing-edge technology for electronic transformers; leading-edge models create audible noise in magnetic ballasts. For outdoor setups, seal junction boxes with IP66-rated glands and apply dielectric grease to terminals before installing brass connectors–corrosion accelerates resistance buildup by 0.2 ohms/year in coastal regions. Label each breaker with load type (e.g., “Garage: 2x 50W HID”) and test continuity with a multimeter set to 200 Ω; anything above 1 Ω indicates damaged connections or undersized wire gauges.
Critical Elements of Residential Wiring Schemes in France
Install a differential breaker rated at 30 mA on all branch lines–this is non-negotiable for safety compliance. Choose between Type AC (for resistive loads) or Type A (for rectified currents) based on connected appliances, not cost alone. Position the breaker immediately after the main disconnect to ensure full protection coverage.
Use 1.5 mm² copper conductors for general-purpose branches, but upsize to 2.5 mm² where load exceeds 16 A or run length surpasses 50 m to prevent voltage drop. Insist on rigid conduits (ICTA or ICTL) for all embedded runs; flexible conduits are only permitted for short final drops under 3 m. Label every conductor at both ends with indelible ink: live (black/red), neutral (blue), ground (green-yellow), switch feeds (brown/black).
- Branch wiring must originate from a dedicated distribution board, not split from existing outlets.
- Surface-mounted runs above 2 m height require containment with a minimum IP4X rating.
- Isolate all fixed lamps behind a separate 10 A breaker to simplify maintenance without disrupting sockets.

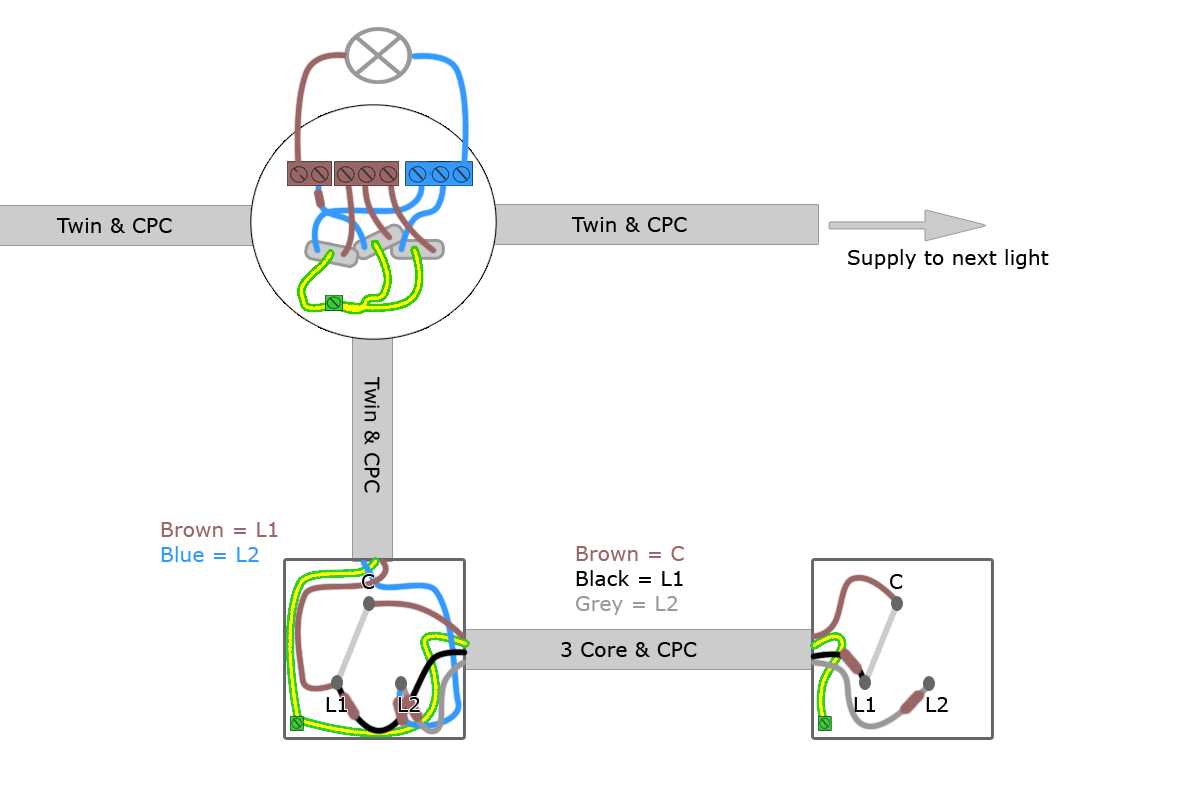

Select dual-function switches (va-et-vient) for corridors and stairwells. Wire the common terminal to the live feed, then alternate the return paths between L1 and L2–never daisy-chain more than three switches in series. For dimmable installations, verify compatibility between the dimmer (leading-edge or trailing-edge) and LED drivers; mismatched pairs cause flicker or premature failure.
Ground all metal fixtures and junction boxes by bonding the ground conductor directly to the earth terminal, not through a separate conductor. Test continuity between the earth pin of a socket and the main ground busbar–readings should not exceed 0.5 Ω. Perform this check after every modification and annually thereafter, even if no visible work has been done.
European Power Layout: Sequential Installation Guide
Shut off the main supply at the distribution board before handling any conductors. Verify zero voltage with a multimeter across active, neutral, and earth terminals–readings must show 0 V AC. Failure to confirm de-energization risks severe shock or arcing.
Prepare materials: 2.5 mm² H07V-R copper cables (red for phase, blue for return, yellow-green for safety ground), 16 A two-pole breakers, 10 mm² earth bonding cables, and insulated crimp connectors. Use IP44-rated junction boxes for outdoor segments or wet zones.
- Mount the distribution board on a non-flammable surface, minimum 1.2 m above floor level, with 150 mm clearance on all sides.
- Route cables through 20 mm conduit or surface-mounted trunking; avoid direct burial without armored sheathing.
- Terminate protective earth first–connect to the main grounding bar before attaching phase or return wires.
For a typical 230 V 16 A branch:
- Strip 10 mm of insulation from each cable end; twist strands clockwise and crimp with a ring terminal.
- Secure phase (red) to the breaker’s upper terminal, return (blue) to the neutral bar.
- Attach earth (yellow-green) to the grounding bar via a dedicated link.
- Tighten all terminals to 2.5 Nm torque–loose connections generate heat and can trip RCDs.
Test continuity between earth and exposed metal parts of fixed appliances before energizing. Resistance must not exceed 0.1 Ω. If readings fluctuate, inspect bonding clamps and cable integrity.
When installing switches or outlets:
- Align front plates vertically–no horizontal misalignment beyond 2 mm.
- For dimmers, verify compatibility with LED loads; mismatch causes flickering or burnout.
Use shallow back boxes (max 35 mm depth) in plasterboard walls to prevent structural damage.
Label every breaker, cable, and junction box with indelible markers–include circuit purpose (e.g., “Kitchen outlets”) and conductor cross-section. Archive layout sketches in A3 format near the main panel for future reference.
Re-energize the board gradually, one branch at a time. Observe for unusual humming, tripping, or thermal anomalies. If any occur, deactivate immediately and recheck connections against a wiring schematic using phase rotation and polarity tests.
Key Graphical Representations in Electrical Schematics
Always begin by identifying the power source symbols–these dictate the entire layout. A single horizontal line with a perpendicular short line at one end indicates a direct current (DC) supply, while a wavy line denotes alternating current (AC). For precise voltage labeling, French standards often place the value adjacent to the symbol, such as 230V or 12V, omitting unnecessary units like “V” in repetitive notations. Misinterpreting these leads to incorrect connections or equipment damage.
Switch symbols vary by function but share a base structure: a break in the conductor line. A manual switch is shown as two lines with a gap and a connecting arc; momentary types add a small circle to the arc. Two-way switches include a diagonal slash across the gap, while timed variants append a clock face symbol. Always verify the connection points–French schematics frequently mirror these horizontally, unlike some international conventions where orientation might differ.
Conductor and Component Markings
| Symbol | Component | Critical Notes |
|---|---|---|
──── |
Single conductor | No annotations; additional lines beneath indicate bundled cables (e.g., ═══ for 3-core) |
──□── |
Resistor | Value in ohms (Ω) placed inside the square; non-standard shapes may denote variable types |
──⏚── |
Ground | Three descending lines; longer lines signal deeper earth reference |
──○── |
Lamp/bulb | Wattage or lumen output often listed nearby; filled circle denotes LED variants |
Relays and contactors use rectangles with internal lines representing coil and contact states. A relay coil is a single rectangle with a diagonal line; normally open (NO) contacts are parallel lines with a gap, while normally closed (NC) add a perpendicular line bridging the gap. French schematics sometimes merge these into a single symbol with dashed connections to their actuating coil–trace these meticulously to avoid confusion with parallel switches.
Protective devices like fuses and circuit breakers share a common symbol: a rectangle with one diagonal line. Fuses add a cross (×) inside the rectangle, while breakers may include an arc extinguishing element (a small half-circle). Always cross-reference these with manufacturer datasheets–French standards often assume familiarity with specific part numbers, omitting explicit ratings on the schematic itself.
Unconventional but Frequent Symbols
Avoid overlooking auxiliary annotations. Dashed boxes group related components, often with reference numbers like Q1 or KM3 linked to a bill of materials. Arrows perpendicular to conductors indicate flow direction for DC; for AC, these signify phase sequence in polyphase systems. Dotted lines represent shielding or secondary control connections–treat these as non-current-carrying paths unless labeled otherwise.
Key Variations in Domestic Electrical Installation Norms Across Regions
Start by verifying the voltage rating on device labels before connecting them to a supply. Continental regulating bodies mandate 230V at 50Hz, while overseas counterparts often use 120V or 240V at 60Hz. This discrepancy directly affects appliance compatibility and safety protocols. A voltage converter rated for continuous duty is non-negotiable when integrating imported equipment into local setups.
Neutral and protective earth conductors follow distinct color schemes. In most European jurisdictions, blue identifies the neutral line, whereas green-yellow striped cables denote earth. North American installations swap these, assigning white to neutral and green to earth. Swapping these by mistake will trip residual current devices instantly, so double-check connections before powering a new branch.
Residual current device sensitivity thresholds differ markedly. Regional safety codes enforce 30mA tripping limits for household circuits, while other standards allow 100mA or even no mandatory cutoff. Lower thresholds increase user safety but demand higher-quality wiring insulation and moisture protection. If retrofitting an older installation, upgrade to Type A RCDs to cover both AC and pulsating DC faults, which standard Type AC units miss.
Socket outlet configurations showcase deliberate divergence. Shuko, BS 1363, and NEMA 5-15 plugs each require dedicated sockets; mixing them risks arcing or short circuits. Adaptors must comply with EN 50075 minimum dimensions and IEC 60884 mechanical strength tests. Avoid surge-protected multi-outlet strips not rated for the local voltage–internal MOVs designed for 120V will fail catastrophically on 230V.
Cable cross-sectional area minimums scale with circuit breaker ratings. A 16A breaker in a local setup needs 2.5mm² copper conductor, while overseas codes might permit 1.5mm². Using undersized wire creates hotspots, accelerates insulation degradation, and violates thermal derating curves in IEC 60364. For circuits exceeding 10m, consult derating tables to prevent overheating.
Terminal block types vary in clamping mechanism reliability. Spring-cage terminals per DIN 46277 offer consistent contact pressure, unlike screw terminals prone to loose connections under thermal cycling. Use torque-controlled drivers set to manufacturer specifications–over-tightening damages threads and reduces conductivity. Always lubricate aluminum conductors with antioxidant compound to prevent oxide formation that raises contact resistance over time.
