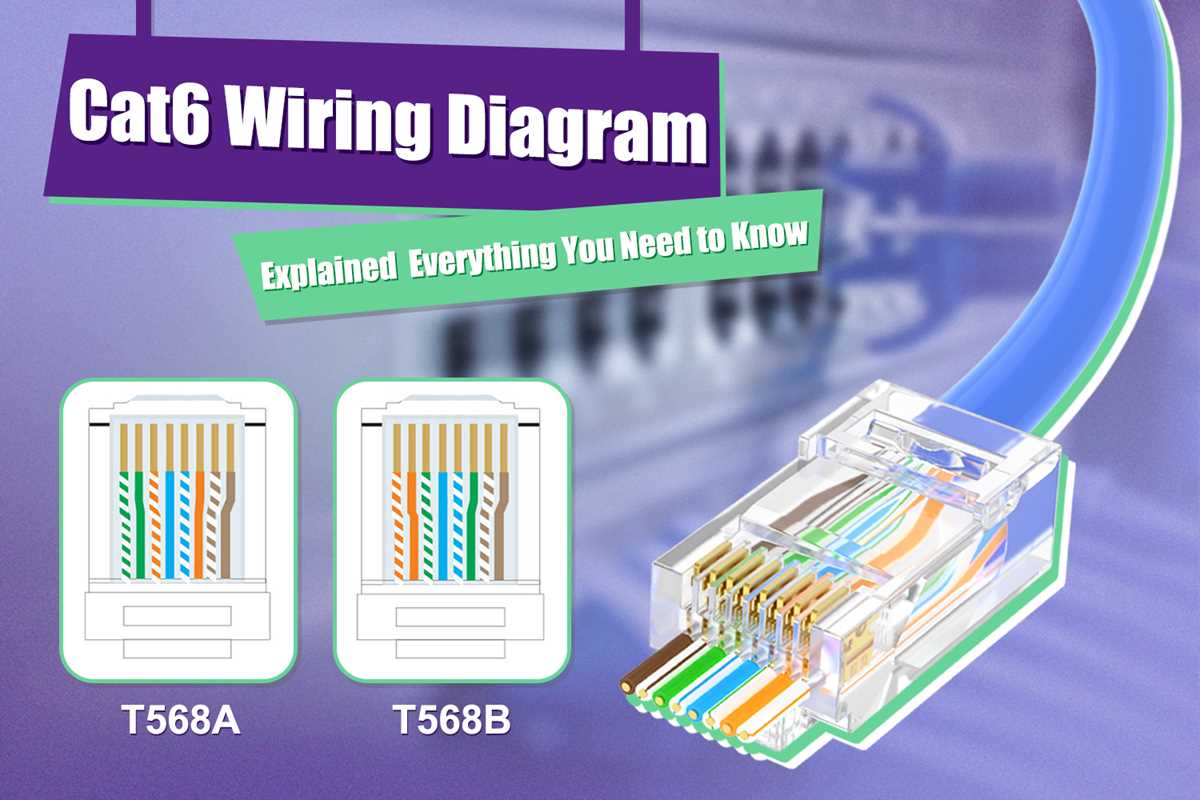

Use the T568B wiring scheme for all connections to ensure compatibility with existing infrastructure. Pin assignments must follow: orange-white (1), orange (2), green-white (3), blue (4), blue-white (5), green (6), brown-white (7), brown (8). Deviations from this layout risk signal interference or equipment damage, particularly when supplying voltage through pairs 4-5 and 7-8.
For gigabit-speed deployments, pairs 1-2 and 3-6 carry data, while pairs 4-5 and 7-8 handle power transfer. Maintain twists in all pairs up to the termination point–untwisting beyond 13 mm causes crosstalk exceeding -30 dB. Use solid 23 AWG conductors for runs under 90 meters; stranded cables introduce 20% higher resistance per meter.
Connect power sources with at least 15.4 W capability for Type 1 compatibility. Verify voltage at the endpoint–acceptable range is 44-57 V DC. Use shielded twisted pair cables in high-noise environments (e.g., near fluorescent lighting) to prevent packet loss above 10^-6. Ground the shield at the power source only; floating shields act as antennas.
Test continuity and polarity before energizing. Reverse polarity on pairs 4-5 or 7-8 destroys connected devices. Use a cable analyzer to confirm ≤ 20 Ω loop resistance for 60 W applications. Avoid parallel runs with AC power cables–maintain 30 cm separation to prevent capacitive coupling.

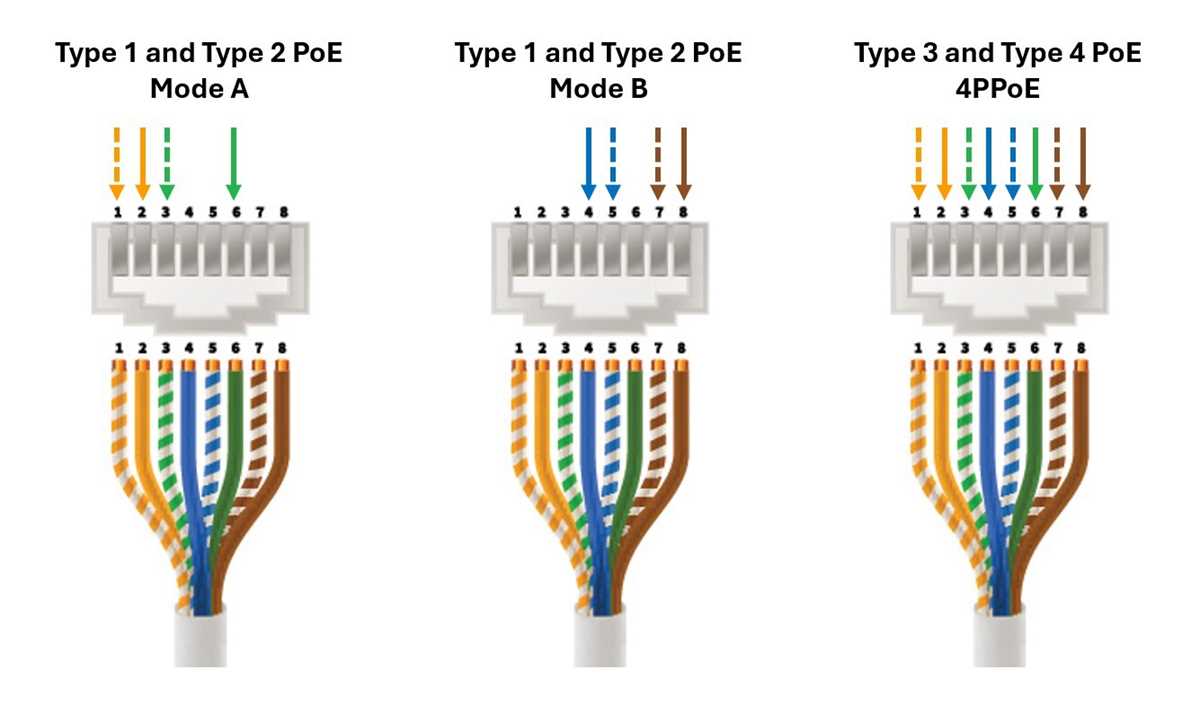

Network Power Delivery Over Twisted-Pair Cables
For IEEE 802.3at (Type 2) compliance, use the phantom power approach on pairs 1/2 and 3/6. These transmit data and deliver DC voltage simultaneously–48V (+/- 1V) at the power sourcing equipment (PSE). Verify polarities: orange pair carries positive, green pair carries negative. Exceeding 30W risks overheating; always match cable gauge to device specs–24 AWG handles up to 25.5W, while 23 AWG supports 30W.
Strip 1.5 cm of jacket, untwist pairs no farther than 12 mm to prevent crosstalk. Terminate using the T568B standard: pinout 1-white/orange, 2-orange, 3-white/green, 4-blue, 5-white/blue, 6-green, 7-white/brown, 8-brown. Avoid splicing; use solid core RJ45 connectors rated for at least 600 MHz. Shielded FTP cables reduce interference in industrial environments but require grounding at both ends.

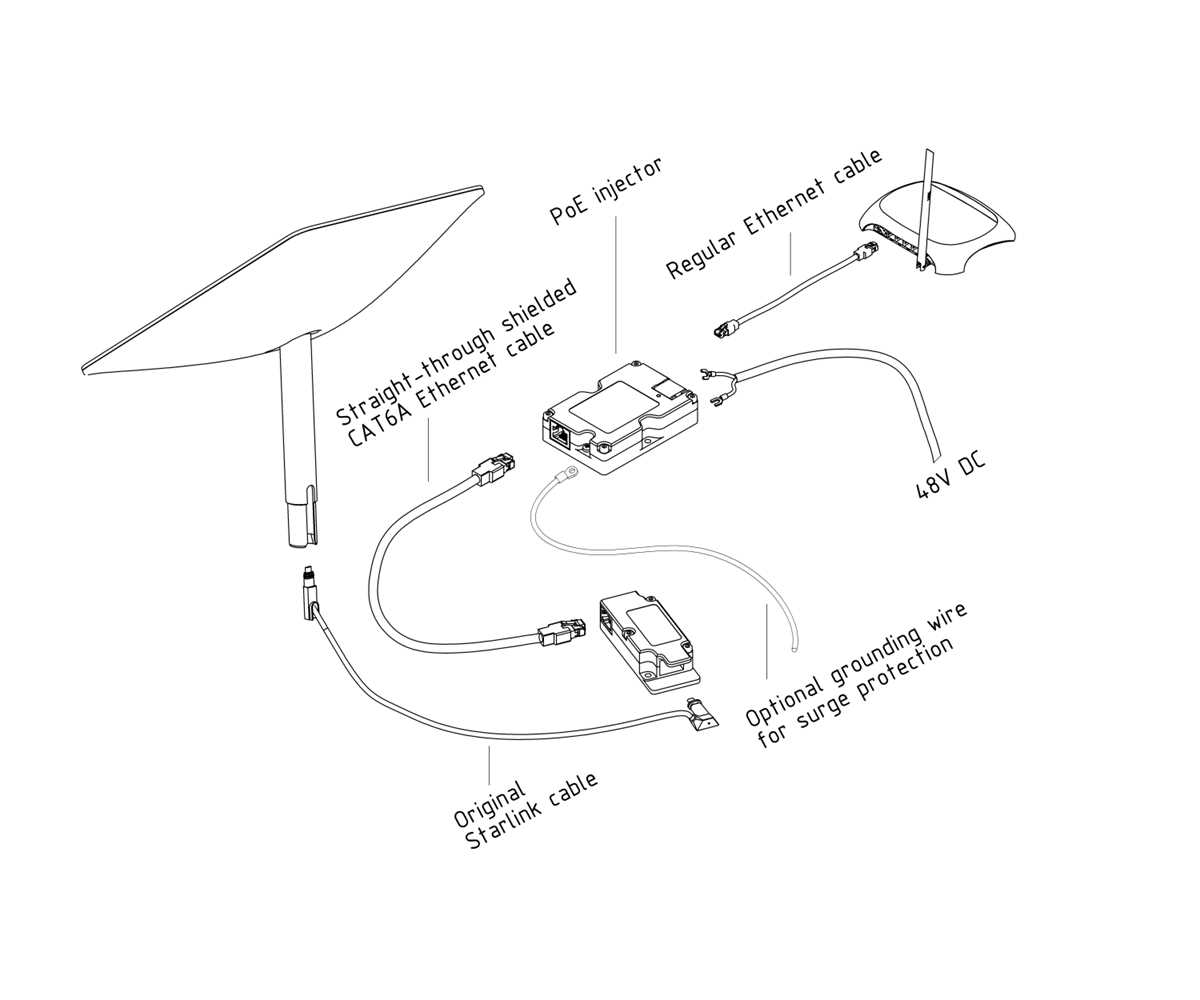

Test continuity and polarity with a midspan power injector tester before deployment. Devices like Axis cameras or Ubiquiti access points draw 12-24W; budget 20% overhead for voltage drop over 90 m runs. Replace patch cords every 2 years–they degrade faster under load.
How to Identify Power-over-Ethernet-Ready Network Gear
Check for the “IEEE 802.3af/at/bt” marking on cable jackets, device labels, or connector housings–older or non-compliant variants lack this imprint. Verify conductor gauge: 23-24 AWG stranded copper pairs support up to 90W, while thinner 28 AWG solid wire drops under 30W. Examine connector bodies for gold-plated contacts (minimum 50μin plating), absence indicates oxidation risks under sustained DC loads.
- Look for “UL Listed” or “TIA/EIA-568” certification logos–counterfeit gear often skips compliance testing.
- Test DC resistance: inject 48V using a calibrated injector, measure across pairs 1/2 (+) and 3/6 (−); values above 12.5Ω per 100m signal unsuitable pairs.
- Avoid CCA (copper-clad aluminum) wire–it fails under 60°C PoE+ heat limits.
- Pin retention force: compliant RJ45 plugs withstand 80N pull tests; weaker retention causes intermittent power loss.
Step-by-Step Guide to Configuring Gigabit Ethernet Cables for Power Delivery
Begin by verifying the cable’s internal structure matches T568B wiring standards–pins 1 and 2 (orange-white, orange) must carry data, while pins 4 and 5 (blue, blue-white) serve as power pairs in midspan injectors. Use a continuity tester to confirm no shorts exist between conductors, as even minor resistance reduces voltage efficiency. For 802.3at (30W) or higher, ensure the copper gauge is 24 AWG or thicker–thinner wires increase heat dissipation, degrading performance over 100 meters.
Pinout and Termination Checklist
| Connector Pin | T568B Color | Function | Voltage Range (V) |
|---|---|---|---|
| 1 | Orange-White | Transmit (+) | 2.8–57 |
| 2 | Orange | Transmit (−) | 2.8–57 |
| 4 | Blue | Power (+) | 44–57 |
| 5 | Blue-White | Power (−) | 0 |
Strip the outer jacket 1.5 inches to expose twisted pairs, maintaining twists within 0.5 inches of the termination point–loose twists introduce crosstalk. Crimp connectors using a ratcheting tool with 60 lbs of force; inadequate pressure causes intermittent power loss. For outdoor deployments, apply gel-filled connectors to prevent oxidation, especially in humid or saline environments.
Test the link with a power sourcing equipment (PSE) simulator before connecting devices. Measure voltage drop under load–acceptable loss is ≤0.1V per 10 meters for 57V systems. Replace cables showing >3% voltage sag, as splices or kinks increase resistance. Label both ends with gauge and power rating to simplify future diagnostics.
Frequent Errors in Network Cable Installation for Power Delivery and Prevention Strategies
Use solid copper conductors rated for at least 24 AWG rather than copper-clad aluminum or thinner gauges. Thicker, pure copper cores reduce resistance and heat buildup under load, preventing voltage drop that degrades device performance. Measure cable resistance with a multimeter–exceeding 20 ohms per 100 meters signals potential failure. Replace any cable showing higher readings immediately.
Avoid excessive untwisting of wire pairs beyond 13 mm at termination points. Excessive untwisting disrupts impedance, causing signal reflection and crosstalk. Use a punch-down tool with a built-in cutter to trim excess length precisely, maintaining pair integrity. Check terminations with a cable certifier to confirm compliance with TIA/EIA-568 standards.
Do not bundle cables too tightly when running multiple lines. Over-compression increases heat retention, especially under sustained current, accelerating insulation degradation. Keep bundles under 50 cables and maintain a 5 cm gap between each group. Use Velcro straps instead of zip ties to avoid pressure points that crush internal conductors.
Terminate all eight conductors correctly, even if only four are required for data. Power delivery systems leverage all pairs, and leaving any unterminated creates impedance mismatches, leading to overheating and signal loss. Verify pinouts with a T568A or T568B diagram–mixing standards causes connectivity issues. A continuity tester ensures all wires are properly seated before powering on.
Environmental and Mechanical Considerations
Do not route cables near high-voltage sources or fluorescent lighting. Induced noise from these sources disrupts signal integrity. Maintain a minimum 30 cm separation from power lines rated above 24V AC. Shielded twisted pair (STP) reduces interference but requires proper grounding–connect the drain wire to a verified earth point to avoid static buildup.
Inspect connectors for damaged latches or exposed contacts before installation. A compromised connector increases insertion loss and risks short circuits. Use boots rated for the cable’s outer diameter to prevent strain; mismatched sizes cause gradual wear at the plug-jacket junction. Replace any connector showing cracks or misalignment–cheaper connectors often fail under sustained load, causing intermittent network drops or power loss.
Essential Gear for Terminating High-Speed Ethernet Cables
Begin with a premium crimping tool designed for 8P8C connectors, ensuring it supports 24-26 AWG conductors. Avoid generic crimpers–opt for models with precision dies to prevent incomplete termination, which degrades signal integrity. Check for ratcheting mechanisms to guarantee consistent pressure during insertion.
- Stripping tool with adjustable depth for jacket removal (17–22 mm). Avoid blade-type strippers; prefer models with rotating blades to minimize nicking twisted pairs.
- Punch-down tool (110-type) with 45° or 90° blade for keystone jacks. Ensure it includes a built-in impact mechanism to handle solid copper conductors without manual force.
- Cable tester with TDR (Time Domain Reflectometer) function to detect impedance mismatches, split pairs, and crossed wires. Basic continuity testers won’t suffice for twisted-pair verification.
- Shielded terminators if handling S/FTP or U/FTP variants–foil cutters are mandatory to avoid grounding shorts.
Inspection scope with 10–20x magnification is critical for identifying microscopic defects like improperly seated pins, bent contacts, or incomplete crimps. Low-cost handheld scopes lack the resolution needed for gigabit-grade checks. Pair this with a flashlight outputting 100+ lumens at a narrow beam angle to highlight reflective surfaces.
For outdoor or industrial termination, use gel-filled connectors with IP67+ ratings. Standard RJ45 boots won’t protect against moisture ingress–verify the gel’s dielectric strength matches the system’s voltage requirements (typically 50 V for power-over-data). Heat-shrink tubing (polyolefin, 4:1 ratio) serves as secondary protection for splices.
- Solid copper conductors (minimum 23 AWG) for backbone runs; stranded (26 AWG) for patch cords. Avoid CCA (Copper-Clad Aluminum) due to higher resistance and signal attenuation.
- Category-rated plugs and jacks certified for 500 MHz bandwidth. Look for gold-plated contacts (50+ microinches) to prevent oxidation–cheaper tin-plated variants degrade after 6–12 months.
- Snagless boots to protect latches during installation–ensure they’re compatible with slim-profile connectors if working in dense panel environments.
Anti-static wrist straps and mats are non-negotiable for terminating shielded variants. Ground the work surface to a common point with less than 1 Ω resistance. Keep a dedicated multimeter nearby to verify continuity between shields on both ends–discontinuities create EMI antennas. For final validation, use a Fluke DTX series certifier or equivalent to measure insertion loss, crosstalk, and return loss against TIA/EIA standards.
