Start with the firewall bulkhead connector–this is where the main circuit bundle splits into individual branches. Identify the two largest gauge wires (typically red and purple) as the battery feed and alternator exciter line. Trace the red lead directly to the starter solenoid, ensuring no more than 6 inches of exposed wire near the exhaust manifold. The purple wire must pass through the voltage regulator before looping back to the alternator’s “R” terminal. Any corrosion here will cause intermittent charging failures.
Locate the distributor’s primary ignition wire (often purple with a yellow stripe) and confirm it routes through the coil’s positive terminal. The negative side requires a spliced connection to the tachometer or electronic rev limiter if installed. Ignore factory schematics that show a direct ground–modern solid-state ignition systems demand a dedicated return path. Use 14-gauge wire here, even if the original spec calls for 16-gauge, to prevent voltage drop at high RPM.
The carburetor’s solenoid wiring demands special attention. The green wire controls the electric choke, while the yellow lead triggers the idle speed solenoid. Both must connect to the ignition-switched circuit–never directly to the battery. Install a 20-amp inline fuse within 12 inches of the solenoid to protect the circuit from backfeed during sudden voltage spikes. The ground for these components should attach to the intake manifold, not the valve cover, to avoid false signals from oil pressure fluctuations.
For emission-controlled models, the thermal vacuum switch and exhaust gas recirculation valve share a three-wire harness. The white wire carries manifold vacuum, the black wire grounds through the engine block, and the red/green striped wire activates the solenoid. Route these wires away from exhaust components–heat degradation is the primary cause of intermittent emission system failures. Clip-in terminals are mandatory; solder and shrink tube alone will not withstand vibration.
Verify all chassis grounds meet at a single bus bar mounted to the driver-side frame rail. Original designs used the battery negative post as a secondary ground, but this creates voltage differential issues with modern 12-volt accessories. Remove the factory paint at ground contact points and apply dielectric grease to prevent oxidation. Test resistance with a multimeter–any reading above 0.2 ohms indicates a weak connection that will cause erratic sensor readings.
Restoring Original Electrical Pathways for a Classic Muscle Car’s Powerplant
Begin by locating the main bulkhead connector near the firewall on the driver’s side–a critical junction where primary circuits split toward sensors, ignition components, and charging systems. Trace each branch before disconnecting anything, using a multimeter set to continuity mode to verify connections against factory schematics.
Label every terminal with masking tape and a fine-tip marker, noting colors and gauge of conductors. Factory bundles often use 16-gauge wire for high-current paths like starter solenoid circuits and 18-gauge for accessory feeds–deviations may indicate previous modifications or faults.
Inspect the loom for brittle insulation, especially around exhaust manifolds or sharp edges. Replace damaged segments with cross-linked polyethylene wire, matching original strand counts (typically 19 strands for 16-gauge) to maintain conductivity without overheating.
Focus on the ignition switch feed: a pink wire delivers 12V to the coil via a ballast resistor during normal operation, switching to full voltage during cranking. Confirm this behavior with a test light–flickering or dim output suggests a failing resistor or corroded connections.
Check the temperature sender circuit–a purple wire with a white stripe–grounded through the cylinder head. Resistance should drop as coolant heats; erratic readings often stem from a faulty sender or deteriorating loom segment near the thermostat housing.
Pay special attention to the generator’s field and output circuits. Original systems used a two-wire alternator setup: a brown wire with yellow stripe excites the field, while a plain brown wire carries output. Reverse polarity during installation can fry voltage regulators.
Verify all grounds, particularly the braided strap between the block and firewall. Corrosion here mimics dead battery symptoms. Clean mating surfaces to bare metal, apply dielectric grease, and torque to 10-12 ft-lbs to prevent voltage drops.
Document every splice, especially aftermarket additions like tachometer feeds or electric fan triggers. Use solder and heat-shrink tubing rather than crimp connectors–vibration loosens factory-style quick-disconnects over time, causing intermittent faults that frustrate diagnosis.
Matching the Right Electrical Bundle for Your Classic Muscle Car’s Powerplant
Begin by locating the original part number stamped on the existing loom–typically found near the firewall or distributor connections. For big-block variants (396/427), GM’s group 1113903 corresponds to the primary assembly, while small-block models (307/327/350) use 1113902. Verify the configuration against the casting number on the intake manifold; reproduction bundles often mislabel these, leading to mismatched sensor plugs or fuse panel feeds.
Check the color-coding sequence before installation: original equipment uses purple for ignition, orange for alternator output, and dark green for starter solenoid. Aftermarket suppliers frequently invert yellow and brown lines for fuel pump circuits, causing voltage drops or parasitic draws. Probe the harness with a multimeter–resistance between the voltage regulator plug and ground should not exceed 0.5 ohms; anything higher indicates corroded terminals requiring pigtail replacement.
Confirm the loom’s length matches your vehicle’s layout. Big-block setups include an 18-inch extension for the oil pressure sender, absent in small-block kits. Measure from the firewall grommet to the distributor–the stock bundle tapers from 1.25″ at the bulkhead to 0.75″ at the coil, whereas universal replacements often maintain consistent diameter, causing tight bends near the firewall.
Replace plastic sheathing immediately if brittle or cracked; OEM polyethylene degrades after 25 years, exposing wires to abrasion from valve covers or exhaust manifolds. Route the bundle above the exhaust crossover–aftermarket looms routed under it suffer heat damage within 500 miles. Secure with OEM-style loom clamps every 6 inches; nylon zip ties compress insulation over time, leading to short circuits beneath the dash.
Step-by-Step Guide to Decoding Your Muscle Car’s Electrical Blueprint

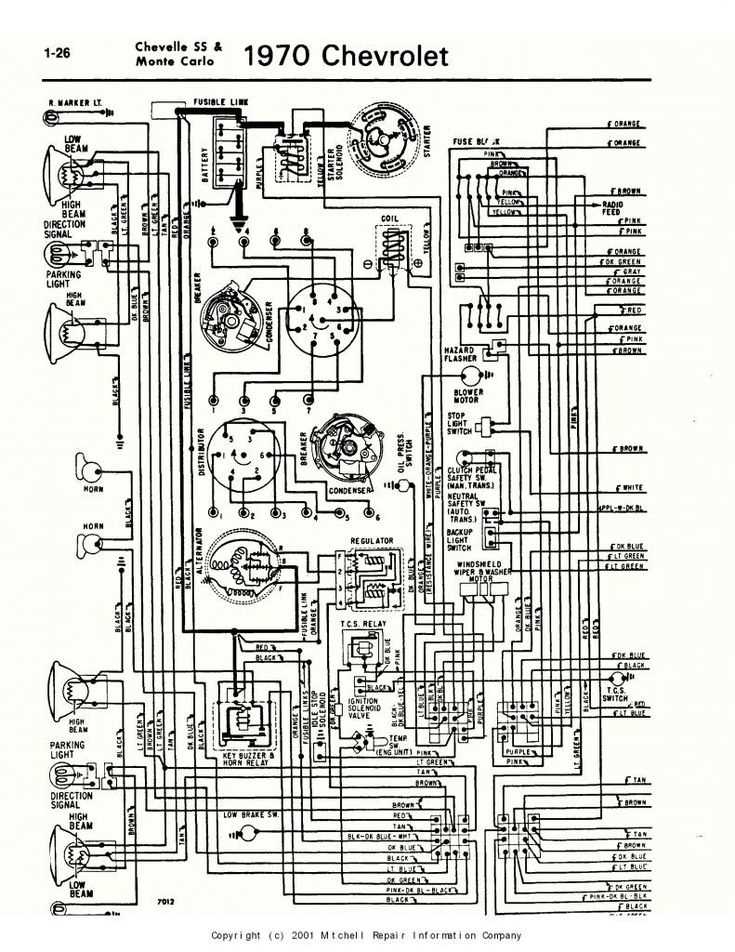

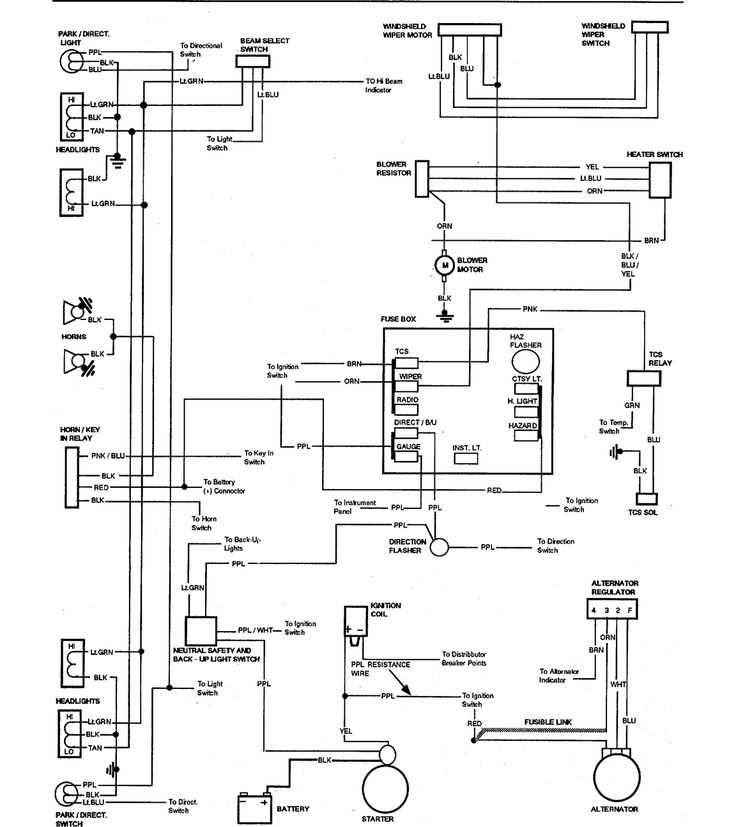

Locate the color-coded legend in the upper-right corner of the schematic–this is your master key. Each wire is labeled with two identifiers: a solid or striped primary hue (e.g., purple, green/yellow) and an alphanumeric tag (S101, IGN2). Cross-reference these tags with the accompanying legend to confirm function: “B+” signifies battery voltage, “ST” the starter solenoid circuit, and “ALT” the alternator field excitation line. Use a multimeter set to continuity mode to verify paths–touch one probe to the wire’s terminal on the schematic and the other to the corresponding connector pin under the hood. A beep confirms integrity; silence reveals breaks or misrouting.
Critical Junction Points and Fault-Prone Circuits
| Component | Wire Tag | Color (U.S. Standard) | Common Failure Points |
|---|---|---|---|
| Ignition Coil (+) | IGN1 | Red with yellow stripe | Ballast resistor, fusible link at firewall |
| Distributor (Tach Signal) | TACH | Brown with white stripe | Connector oxidation at HEI module |
| Alternator Excitation | ALT-F | Dark green with orange stripe | Voltage regulator plug, chassis ground |
| Starter Solenoid | ST-S | Purple | Battery cable terminal, neutral safety switch |
Trace circuits from left to right, noting splices–small circles with numbers (e.g., “S201”) indicate joining points. For splices, split the harness at the firewall bulkhead connector: passenger-side pins carry charging system outputs, driver-side pins handle accessory feeds. If voltage drops below 12.4V at the battery during cranking, test the purple/white alternator feed at the voltage regulator first–corrosion here mimics a bad alternator. For intermittent spark issues, follow the brown/white “RPM” wire from the distributor’s “TACH” terminal directly to the coil’s negative post, bypassing the ballast resistor with a jumper to isolate resistance faults.
Critical Errors to Sidestep During Muscle Car Electrical System Upgrades
Neglecting terminal corrosion checks before installation guarantees premature failure. Factory-supplied connectors on vintage powertrain looms often develop surface oxidation, especially copper-based terminals that darken over decades. Use a digital multimeter set to continuity mode: probe between terminal and wire strands. Readings above 0.5 ohms indicate hidden resistance. Clean with 400-grit emery cloth followed by electrical contact cleaner–never sandpaper, which leaves conductive residue.
- Skipping loom routing diagrams leads to wire chafing against exhaust manifolds or sharp edges. Pre-measure clearances: 2 inches for steel surfaces, 3 inches for aluminum components.
- Reusing original loom mounts instead of replacing brittle rubber grommets accelerates insulation cracking. Install new nylon strain reliefs at bulkhead pass-throughs.
- Mismatching circuit breaker ratings–factory-spec 25-amp types must match exact fuse values listed in original schematics to prevent fuel pump relay overheating.
