Start by identifying the demarcation point–the junction box where the provider’s line meets your home’s internal setup. This is usually a small plastic or metal enclosure mounted on an exterior wall or basement. If troubleshooting, disconnect the internal wiring first: unplug the modular jack or terminal block connecting your device to isolate external issues. Most modern installations use RJ11 connectors, but older systems may have screw terminals with color-coded wires: red/green for primary line, black/yellow for secondary.
For extensions, split the signal using a bridge clip or passive coupler–avoid daisy-chaining more than three handsets to prevent signal degradation. If static or faint audio persists, measure voltage at the modular jack with a multimeter. A fully functional active line should read ~48V DC (on-hook) or ~6-12V DC (off-hook). Voltages below 20V indicate a fault in the external drop or corroded terminals. Check the network interface device (NID) outdoors; if sealed, request provider access–never bypass a protected module, as it violates safety codes.
Replace aging wiring with CAT5 or higher for interference resistance. When routing cables, maintain at least 12 inches separation from AC power lines to avoid hum. Strip only ¼ inch of insulation to prevent shorts; tin copper strands if using soldered connections. For VoIP adapters, prioritize a direct link from the router–avoid shared switches to minimize latency. If using a fax machine, disable error correction mode to preserve compatibility with analog infrastructure.
Test each segment methodically: plug a working handset directly into the NID to confirm provider signal, then progress inward. If wall jacks are inoperative, remove faceplates and inspect for loose connections–screw terminals should be tight, with no exposed copper. For older homes, verify continuity with a tone generator and probe; watch for false positives caused by abandoned but energized wiring. Always discharge capacitors before handling bare wires; residual current can linger even after disconnecting power.
Understanding Communication Line Schematics
Start by identifying the color code standards for residential or office connections. For North American setups, the TIA/EIA-568 standard applies: tip and ring pairs follow a consistent pattern:
- Green/White (Tip) and Green (Ring) – Line 1
- Orange/White (Tip) and Orange (Ring) – Line 2
- Blue/White (Tip) and Blue (Ring) – Line 3
- Brown/White (Tip) and Brown (Ring) – Line 4
Verify these colors against the terminal block or jack; mismatches cause cross-talk or dead circuits.
For older installations, such as those using RJ11 connectors, only the center two pins (3 and 4) carry the primary signal. If expanding to RJ14 or RJ25, additional pairs utilize pins 2/5 and 1/6. Ensure the modular plug’s pins align with the cable’s stripped conductors–misalignment disrupts conductivity.
Use a multimeter to test continuity before terminating connections. Set the meter to 200Ω and probe each conductor pair. A reading of 0Ω to 2Ω confirms intact wiring; anything higher indicates breaks. For polarity checks, measure DC voltage between tip and ring–expect 48V for standard POTS lines. Lower values suggest improper grounding or line faults.
When splicing cables, avoid twisting conductors directly. Instead, use solder sleeves or IDC (insulation displacement connectors) for reliable joins. For outdoor runs, apply gel-filled splice enclosures to prevent moisture ingress. Shielded twisted pair (STP) minimizes interference in environments with high electromagnetic noise, like near power lines or industrial equipment.
Label every junction box, patch panel, and wall plate. Use heat-shrink tubing or color-coded tags to distinguish lines. For complex networks, document each segment with a spreadsheet or schematic software, noting:
- Cable lengths
- Termination points
- Pair assignments
- Voltage/test readings
Missing labels lead to troubleshooting delays during outages.
For VoIP or hybrid systems, prioritize Cat5e or Cat6 cables over traditional copper. These support both voice and data, simplifying infrastructure. Connectors like RJ45 should follow the T568A or T568B pinout–consistency prevents signal degradation. Always terminate with a crimp tool rated for solid-core wire; improper crimps create intermittent faults.
Fundamental Elements of a Telecommunication Circuit Layout
Install a 66 block or 110 punch-down panel as the backbone of any voice network. These terminals handle analog and digital transmissions by distributing signals from the service provider to individual handsets. A 66 block supports up to 25-pair cables while the 110 panel accommodates higher densities–opt for the latter when working with Cat5 or fiber hybrids. Secure connections with T568A or T568B pinouts: T568A delivers compatibility with legacy systems, whereas T568B aligns with modern Ethernet standards. Verify continuity with a tone generator after termination to prevent cross-talk or attenuation.
Core Modules and Their Signal Paths
| Module | Signal Type | Pair Count | Max Distance (ft) |
|---|---|---|---|
| Network Interface Device | RJ-11 POTS | 1-2 | 18,000 |
| DSL Filter | ADSL/VDSL | 1 | 12,000 |
| VoIP Gateway | RJ-45 Ethernet | 4 | 330 |
Route every conductor through surge protectors rated for at least 600V; transient voltage spikes degrade call clarity and damage handset electronics. Ground the protector’s metallic shield to a copper rod driven 8 ft below grade to comply with NEC Article 800. Separate voice cables from power lines by 12 inches in horizontal runs and 3 inches vertically to minimize electromagnetic interference.
Test every circuit segment with a multimeter calibrated for low-voltage DC resistance; values exceeding 10 Ω per 100 ft indicate corroded contacts or undersized gauge. Replace worn jacks with gold-plated connectors to ensure oxidation-resistant terminations–standard copper degrades within 12 months in humid environments. Label each pair from the demarcation point to the endpoint using heat-shrink tubing or printed tags, following a numeric sequence that matches the service provider’s demarcation schematic.
How to Install a Basic Telecommunication Outlet
Gather these tools before starting: a flat-head screwdriver, wire strippers, needle-nose pliers, a voltage tester, and a single-line telecom jack. Verify power is off at the circuit breaker to avoid accidental shocks–use the voltage tester on the cables you’ll handle.
Identify the cable entering your workspace: standard indoor communication lines use a twisted pair, typically solid red (ring) and green (tip). If present, older setups may include a yellow or black lead, which remains unused in single-line setups. Strip ½ inch of insulation from each conductor, exposing the copper beneath without nicking or damaging the strands.
Screw the jack’s mounting bracket into the wall box or surface, ensuring it sits flush and secure. Insert the red conductor into the jack’s terminal marked “R” or “RR,” twisting clockwise around the screw post before tightening–repeat with green into “T” or “TT.” Apply firm pressure; loose connections cause intermittent signal drops.
Fold excess wire neatly behind the jack, avoiding sharp edges that could pierce insulation. Snap the cover plate onto the jack, aligning screw holes. Recheck terminal tightness–vibrations from installation can loosen screws. Restore power at the breaker and attach a corded device to confirm dial tone or service activation.
For multi-pair cables (e.g., Cat3 or Cat5), ignore unused pairs–they remain untouched in single-line configurations. If diagnosing static or no service, revisit each connection: confirm insulation is fully removed, conductors are untarnished, and screws press wire firmly against metal contacts without crushing.
Label the installed outlet with its purpose (e.g., “Desk line”) using a small sticker on the cover plate. Document the color code used (red/green) in a maintenance log for future reference–consistency prevents errors during upgrades or troubleshooting.

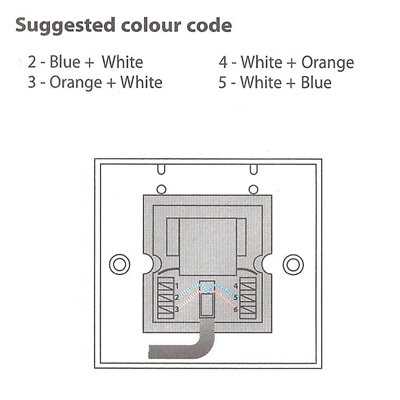

Color Coding Standards for Telecommunication Lines: US vs International Variations
For US-based landline installations, follow the TIA/EIA-568 standard: conductor pairs use tip/ring colors in this order–white-blue/blue, white-orange/orange, white-green/green, white-brown/brown, white-slate/slate. Solid colors mark the ring (negative) side; striped cables signify the tip (positive). Always terminate RJ-11 connections with the center pair (blue) first. Mistakes here often cause line polarity errors, particularly with older equipment using dial pulse signaling.
International setups frequently adopt the ITU-T K.27 guideline, shifting to a simplified single-color scheme: red (ring), black (tip), yellow (ground), and green (secondary). European installations often favor solid red/black pairs for primary lines, reserving green/yellow for emergency circuits, critical in systems requiring dedicated safety connections. Verify local deviations–some regions layer additional colors for secondary pairs or customize hues to meet specific carrier requirements.
How to Verify and Diagnose Communication Line Issues
Check dial tone immediately using an analog handset. Connect the device directly to the network termination point (NTP) or primary jack, bypassing all intermediary splits or extensions. If no tone is present, the fault lies in the service provider’s infrastructure or the primary connection point. Test with a known functional handset to rule out terminal equipment failure. Note that modern VoIP systems may produce a distinct dial tone–verify expected behavior against your provider’s guidelines.
Measure voltage across the line pair using a multimeter. Standard analog lines should register between 48V and 52V DC when idle. A reading below 20V indicates a short circuit or excessive load; an open circuit reads near 0V. VoIP and digital lines may show negligible voltage–consult manufacturer specifications. Record measurements at each access point to trace voltage drop along the path. Replace any damaged patch cables or connectors exhibiting abnormal resistance.
Use a butt set for live testing. Clip the device onto the line pair at the demarcation point, distribution panel, and endpoint jack sequentially. Listen for noise, static, or crosstalk–signs of interference or poor shielding. If speech is audible but distorted, inspect for oxidization on connectors or incorrect termination. Digital lines require specialized testers for protocol analysis; basic tone tests may not detect packet loss or jitter issues.
Isolate the fault domain systematically:
- Disconnect all terminal equipment and test the bare line.
- Reconnect devices one by one, testing after each addition.
- Trace cables visually, checking for pinch points, kinks, or rodent damage.
- Verify compliance with twist ratio and pair coloring standards–T568A/B for data, USOC for voice.
- Inspect punch-down blocks for loose wires or incorrect bridging clips.
Test for foreign voltage or ground faults. Connect one multimeter probe to the line pair and the other to a known ground (e.g., metal conduit, building ground rod). A reading above 3V AC or DC suggests interference from power lines or improper grounding. Isolate circuits by disconnecting inverters, surge suppressors, or adjacent electrical wiring. For PoE systems, verify inline power delivery matches device requirements–underpower causes intermittent failures.
Document findings using a standardized template. Record:
- Test location and timestamp.
- Measured voltage/current values.
- Equipment used (model, calibration date).
- Observed symptoms (noise, silence, distortion).
- Environmental factors (humidity, EMI sources).
- Corrective actions taken and outcomes.
Share logs with service providers or technicians–precise data accelerates resolution for external faults. For persistent issues, replace suspect components with known-good replacements before escalating to advanced diagnostics.
