Begin by locating the toner delivery subsystem in the upper-left quadrant of any standard optical imaging unit blueprint. This section–typically marked with rectangular voltage regulators and a motorized drum assembly–operates at 35–45VDC with peak currents reaching 1.2A during transfer cycles. Identify the high-voltage corona grid (often labeled “HV” on boards), positioned near the transfer roller; misalignment here by more than 0.3mm causes ghosting on A4 output.
Trace the laser scanning unit (LSU) connections: a ribbon cable links the polygon motor (spinning at 22,000 RPM ±2%) to the main controller via I²C/SPI lines. Check for dry joints on the fθ lens mounting points–oxidation here degrades resolution below 600 DPI. Replace the beam detect sensor if the start-of-scan pulse width exceeds 1.8µs, as this leads to skewed margin placement.
Focus on the DC power distribution: the 5V rail powers logic ICs (Toshiba TMP91P series), while the 24V rail drives the pickup rollers and solenoids. Use a thermal camera to verify the fuser assembly reaches 165°C (±5°) within 45 seconds; slower warm-up confirms a failing halogen heater or damaged thermistor. Bypass the OPC drum grounding path only if resistance exceeds 0.5Ω, as improper grounding accelerates toner breakdown.
Examine the paper path microswitches: the registration sensor (Omron EE-SX1041) must toggle within 10ms of media detection–delays here trigger paper jams. For duplex units, ensure the flip solenoid (operating at 24VDC) releases the media cleanly; sticktion in this mechanism reduces throughput by 30% per 10,000 sheets. Replace the separation pad if wear exceeds 0.2mm–visible grooves cause misfeeds.
Verify the engine controller firmware version via the diagnostic menu: hold Cancel + Go during boot to access. Units shipping with builds older than 2022-03 lack toner density calibration patches, leading to inconsistent grayscale output. Update via USB flash using a raw .bin file, never through network ports–packet corruption during OTA updates bricks 3/10 controllers.
Key Components in a Modern Imaging Device Blueprint
Begin by locating the photoreceptor drum–typically a cylindrical component coated in organic photoconductive material. Its surface should maintain a uniform charge distribution before exposure; inconsistencies here cause streaks or blank spots. Measure the drum’s voltage bias using a multimeter set to DC; optimal values range between -600V and -900V depending on manufacturer specifications. Replace the drum if resistance exceeds 2MΩ or if visual scratches appear.
Next, examine the toner cartridge assembly. Check the magnetic roller’s rotation speed–it should match the drum’s RPM within ±5% to prevent uneven toner transfer. Clean the developer blade with isopropyl alcohol (99%) if toner clumps form; avoid compressed air as it can damage internal seals. Verify the hopper’s agitation mechanism: a faulty agitator results in patchy prints. Use an oscilloscope to confirm the agitator’s 120Hz signal pattern matches the service manual.
Inspect the charging corona wire or charge roller. For corona-based systems, measure wire tension–it must not sag below 0.5mm from the drum surface. Corona wires degrade after 20,000 pages; replace if discoloration or oxidization occurs. For charge rollers, check resistance–standard values are 100kΩ to 500kΩ. Clean with a lint-free cloth dampened with distilled water; solvents dissolve the roller’s conductive layer.
The optical scanning unit requires precise alignment. Remove the cover and check the polygon mirror’s rotation–it spins at 20,000–40,000 RPM and must be vibration-free. Use a laser alignment tool to verify beam focus; misalignment causes blurry edges. If the mirror is dirty, wipe with acetone (for glass mirrors) or use a fiber optic brush (for plastic). Replace the entire scanning unit if the motor bearings emit grinding noises, as internal repairs are cost-prohibitive.
Examine the transfer belt or roller. For belt-based systems, check tension–it should deflect 2–3mm under light pressure. Clean the belt with a dry microfiber cloth; solvents degrade the belt’s coating. For roller-based transfers, measure resistance–ideal values are 1–10MΩ. Replace if the roller surface cracks or becomes tacky. Ensure the secondary transfer nip pressure is uniform; uneven pressure causes ghosting or incomplete toner fusion.
Test the fuser assembly’s temperature control. Use a non-contact infrared thermometer to verify the upper roller reaches 180–220°C within 30 seconds of power-on. Replace the thermistor if readings fluctuate by ±10°C. Check the fuser film for wrinkles or burns; replace it if damage exceeds 1mm in width. Lubricate the pressure roller bearings with high-temperature silicone grease if squeaking occurs.
Evaluate the electronic control board’s signal integrity. Probe the motor driver IC outputs with an oscilloscope–stepper motors should receive 24V pulses at 1–2kHz. Check the high-voltage power supply; output should be -500V to -2000V for the transfer roller. Replace capacitors (22μF/35V) if bulging occurs. Update firmware only if print defects correlate with known bug fixes in release notes.
For maintenance, follow this sequence:
- Remove toner debris from the paper path using a vacuum with a HEPA filter.
- Calibrate density settings via the service menu–use a gray-scale test page to verify.
- Reset the drum counter post-replacement to avoid premature component failure.
- Check gear engagement; misaligned gears strip teeth under load.
- Store spare parts (drums, belts) in ESD bags at 40–60% humidity.
Critical Elements in an Electro-Optic Reproduction Device Circuit Design
Ensure the high-voltage power supply subunit delivers consistent 5–7 kV to the corona wire assembly, as fluctuations above ±2% introduce unpredictable electrostatic artifacts. A feedback loop with a precision resistor divider (0.1% tolerance) stabilizes output, reducing premature toner adhesion.
Position the fuser’s halogen lamp control board at least 30 mm from the paper path to prevent thermal coupling; excessive heat degrades nearby MOSFET drivers. Use ceramic capacitors (X7R dielectric) near switching regulators to filter transients generated during the 20–50 kHz PWM cycles, as electrolytic types fail within 18 months at 180°C ambient.
The rotating drum’s surface potential sensor–a capacitive probe–must be shielded with a grounded copper mesh to block interference from the 4 kW peak discharge pulses of the transfer roller. Misalignment by 0.5 mm causes a 12% drop in charge uniformity, detectable only via oscilloscope traces during calibration.
Integrate a stepper motor controller IC with
The formatter board’s memory subsystem requires staggered timing for DRAM and flash–access latencies must synchronize within ±10 ns to prevent firmware corruption during POST. Use a 128-bit bus with ECC for configuration tables, as single-bit errors in halftone matrices propagate visibly under 10% toner saturation.
Ground the chassis via a dedicated star point to the power inlet, separating analog and digital grounds; shared paths create 100 mV offsets in the ADC readings of the density sensor. Ferrite beads on USB and Ethernet lines suppress EMI from the 60 kHz switching supply, critical for compliance with IEC 62368-1 Class B.
Replace generic flyback diodes with ultrafast recovery types (trr
Implement solder mask-defined pads for the main logic board’s BGA packages; non-solder mask-defined pads increase bridge risks by 40% during reflow. Thermal vias under the CPU must connect to an internal layer with ≥2 oz copper to dissipate 15 W without overheating adjacent DDR3L traces.
How Toner Cartridge Mechanics Sync with Device Electronics
Ensure the drum unit’s OPC (organic photoconductor) layer thickness matches the high-voltage power supply’s output–typically 3–7 µm for standard cartridges–to prevent premature wear or incomplete charge transfer. The primary charge roller (PCR) applies a DC bias of -600V to -1000V, while the developer roller maintains -200V to -400V; deviations beyond ±10% disrupt toner adhesion. Replace the PCR if resistance exceeds 100kΩ or if microscopic grooves (>5µm depth) appear, as this alters electrostatic field uniformity. Clean the transfer roller with isopropyl alcohol (90%+ concentration) every 5,000 cycles to remove fused toner residue, which impedes the 1,500V–2,500V transfer voltage.
Critical Interface Points
| Component | Electrical Requirement | Mechanical Tolerance | Failure Mode |
|---|---|---|---|
| Developer Roller | -250V (±30V) | ±0.05mm radial runout | Uneven toner distribution |
| Charge Roller | -800V (±50V) | ±0.1mm nip pressure | Background noise |
| Fuser Assembly | AC 120V (laminate), DC 24V (heat control) | 0.3mm–0.5mm nip width | Cold offset or wrap jams |
Calibrate the toner density sensor (usually a reflective IR pair) by adjusting the reference voltage in 0.1V increments until the output signal stabilizes between 2.5V–3.3V at 50% toner coverage. For monochrome units, the drive gear train’s nylon gears must mesh with

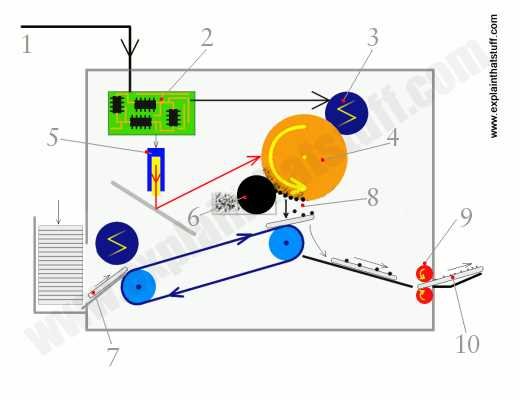

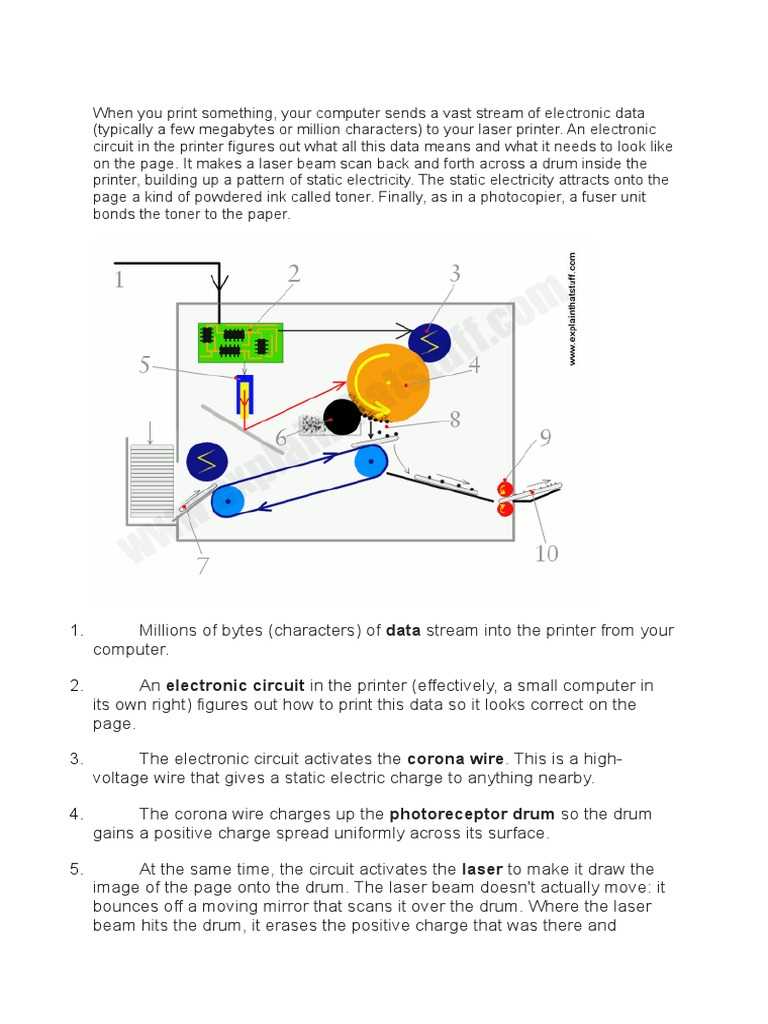

Step-by-Step Signal Flow from Data Input to Printed Output
Begin by verifying the interface connection–USB 2.0, Ethernet, or Wi-Fi Direct–ensuring a stable 12 Mbps (USB) or 100 Mbps (network) data rate to prevent buffering. The raster image processor (RIP) converts incoming PCL6 or PostScript into a 600–2400 DPI bitmap matrix, applying halftoning algorithms for tonal gradients. Monochrome devices use 1-bit depth; color models layer CMYK separations via lookup tables (LUTs) with dithering to mitigate banding in mid-tones. Errors here manifest as jagged edges or incorrect gamma–adjust RIP settings to match the media type (glossy, matte, or recycled).
Charge and Expose Sequence
The primary corona wire applies a –600V uniform charge to the photoreceptor drum, maintained at ±10V tolerance via grid-controlled voltage. A polygon mirror rotating at 20,000–40,000 RPM scans the bitmap in 8.3μs intervals per dot row, modulating a 780nm NIR diode laser to discharge select areas to –100V. Alignment drift beyond ±0.1mm causes ghosting–calibrate the beam detect sensor quarterly. For color units, four drums or a single rotating belt execute this process sequentially, requiring precise registration (±15μm) to avoid chromatic aberration at high contrast edges.
Toner Transfer and Fusing
Developer rollers biased at –350V attract charged toner particles (6–10μm diameter) to drum-discharged areas, with a magnetic brush ensuring even distribution and preventing clumping. The transfer roller, operating at +1kV, lifts toner onto paper via electrostatic attraction, while a static eliminator reduces residual charge to
Exit rollers eject media at 22 ppm (A4, simplex), with duplex jobs requiring a 180° paper flip and second pass through the same path. Sensors–paper, toner level, and temperature–relay status via I2C bus to the main controller, which halts operations if anomalies exceed thresholds (e.g., >5% toner density variance). Post-print, a cleaning blade removes residual toner and a discharge lamp resets the drum surface to –50V for the next cycle. For high-volume environments, replace consumables at OEM-recommended intervals (drum: 15k pages, fuser: 50k) to sustain 1% or lower defect rates.
