Start with a TEC1-12706 module–its 127 thermocouples handle up to 6A at 15.4V. Connect the hot side to a 40mm copper heatsink with thermal paste (0.5°C/W or less). Forced convection (120mm fan at 50CFM) cuts thermal resistance by 40% compared to passive cooling. Power input must be current-limited: 4A for continuous use, 6A for bursts under 30 seconds. Exceeding these values degrades efficiency–lifespan drops from 20,000 to 5,000 cycles.
Use a buck converter (e.g., LM2596) to regulate voltage. The module’s ΔT peaks at 70°C when powered at 12V with a 5°C ambient. Above 80°C on the hot side, performance collapses–add a 70°C thermal cutoff switch (KSD301) to prevent overheating. For polarity, mark the red wire (+) and black wire (-) before connecting. Reversing polarity flips cooling to heating–useful for dual-mode systems but risky without safeguards.
Wire a NTC thermistor (10kΩ, β=3950) to the cold side for feedback. Use a PID controller (e.g., Arduino + MOSFET) to maintain ±0.5°C precision. A 1000µF capacitor across the module’s terminals smooths current spikes–skipping this step introduces EMF interference, reducing efficiency by 8-12%. For redundancy, add a flyback diode (1N4007) in parallel, cathode to +V, to protect against inductive surges when powering down.
Test with a multimeter before sealing the setup. Measure resistance across the module (typically 2-3Ω)–values outside this range indicate damage. Log ΔT against power input at 1V increments to identify the peak efficiency point (usually 6-8V for most setups). Hydraulic or liquid cooling can extend ΔT to 90°C but increases complexity–reserve for systems requiring sub-zero temperatures.
Isolate the cold side with polyurethane foam (R-value ≥ 6). Avoid metal-to-metal contact to prevent condensation–use a 3mm silicone gasket between the module and cooling plate. For battery-powered systems, swap the buck converter for a synchronous buck (e.g., TPS563201) to improve efficiency from 85% to 94%. Lithium batteries degrade below -10°C; add a balancing charger (BQ24195) with temperature compensation to avoid thermal runaway.
Thermal Electric Module Assembly: Hands-On Setup Guide
Begin with a 12V power source rated for at least 6A–undersized supplies risk thermal shutdown. Verify module dimensions match your cooling block; common sizes range from 20×20mm to 60×60mm. Mount the device between two aluminum heat spreaders (minimum 3mm thickness) using Arctic MX-6 paste–avoid generic compounds with thermal conductivity below 8 W/m·K.
- Polarity matters: the red wire connects to the + terminal, black to ground. Reverse connection will heat instead of cool.
- Calculate heat load: Q = I²R + Q_hot_side. For a TEC1-12706, expect ~60W heat dissipation at max current.
- Fan selection: pair with a 40×40mm DC fan (0.15A or higher) for passive coolers, or 80×80mm (0.5A+) for overclocked setups.

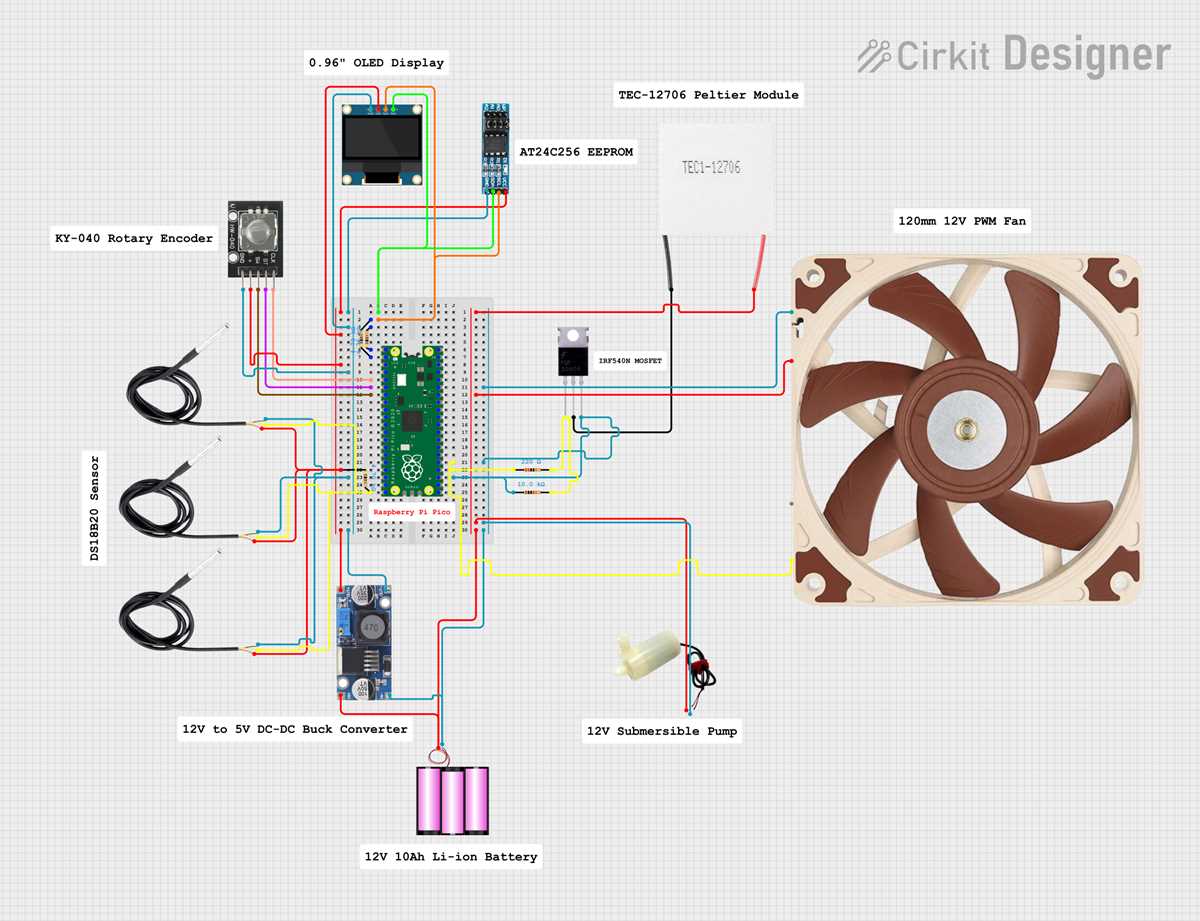

Wire the control stage with an N-channel MOSFET (IRLB8743 recommended) driven by a PWM signal (1kHz–10kHz). Add a 10kΩ pull-down resistor to prevent floating gates. Test with a 50% duty cycle before fine-tuning with a multimeter–target 4–6V at the module terminals for stable ΔT.
Common Pitfalls
- Condensation: apply conformal coating (e.g., MG Chemicals 422B) to exposed traces if operating below dew point.
- Thermal runaway: implement a 10kΩ NTC thermistor (Vishay NTCLE100E3) on the cold side for feedback.
- Fatigue cracks: secure modules with M3 screws torqued to 0.5Nm–avoid overtightening.
Monitor performance with a dual-channel thermocouple logger (resolution ≥0.1°C). For 30×30mm modules, expect a 20–25°C gradient under ideal conditions (ambient 25°C, 50% PWM). Replace thermal interface material every 2,000 hours of operation–degradation reduces efficiency by 15–20% annually.
Basic Components for a DIY Thermoelectric Cooling Assembly
Select a TEC module with at least 60 W cooling capacity for small-scale projects. Opt for models with a Qmax rating between 50–90 W and ΔTmax above 65 °C under vacuum conditions. Verify the module’s ceramic substrate thickness–0.8 mm plates provide better thermal transfer than 0.5 mm variants while maintaining mechanical stability.
Pair the module with a heat sink measuring 120×120×40 mm or larger. Copper cores outperform aluminum by 20–30% in thermal conductivity, though anodized aluminum fins with a 0.3 mm gap configuration optimize airflow without increasing fan RPM. Ensure the base is lapped to a flatness tolerance under 10 µm to eliminate air gaps.
Power Supply Specifications
Use a 12 V DC power source delivering 5–8 A for sustained performance. Switching regulators maintain efficiency above 85% at full load, whereas linear supplies waste energy as heat. Add a 10,000 µF capacitor across the input to smooth current spikes, preventing premature degradation of the thermoelectric pair.
Integrate a PWM controller with 1–10 kHz frequency range to prevent low-frequency resonance in the module. A microcontroller with a PID algorithm stabilizes temperature within ±0.2 °C, avoiding overshoot during thermal cycling. Avoid fixed-voltage buck converters–they lack precise current control under dynamic heat loads.
Mount the assembly with thermal interface material containing metal particles (e.g., aluminum oxide or boron nitride) at a 0.1 mm bond line thickness. Budget 5 g of compound per 50 cm² surface area–excess paste reduces conductivity. Secure components using M4 screws torqued to 0.5 Nm to prevent ceramic fracturing.
Include a 120 mm PWM fan with 70 CFM airflow and static pressure above 2.5 mmH₂O for heat sink optimization. Brushless DC motors last 50,000+ hours, unlike sleeve bearings, which fail under high-temperature operation. Position the fan 10 mm above the fins for laminar flow distribution.
Step-by-Step Assembly Guide for Thermoelectric Cooling Unit to a DC Source
Select a power source with output matching the thermoelectric element’s specifications. Most units require 12V DC at 6–12A; confirm the exact rating on the element’s datasheet. Use a regulated bench supply or a 12V lead-acid battery for stable current delivery.
Solder two 16 AWG silicone wires directly to the thermoelectric unit’s tabs. Red wire goes to the marked positive pad, black to the negative. Apply flux, then 60/40 solder; a 30 W iron prevents overheating. Inspect joints for cold solder–reweld immediately if resistance exceeds 0.1 Ω.
Install a heat sink on the hot side with thermal paste (0.5 mm bead, Arctic MX-6). Secure with M3 screws torqued to 2 Nm; uneven pressure reduces efficiency by up to 22%. Attach a 120 mm fan rated 0.35 A or higher–undervolted fans stall under 8V.
| Component | Specification | Quantity |
|---|---|---|
| 12 VDC supply | ≥ 8 A continuous | 1 |
| Heat sink | Aluminum, 50 × 50 × 30 mm fins | 1 |
| Thermal interface | 0.5 mm application thickness | Tube |
Wire the fan in parallel with the thermoelectric element: red fan lead to the same positive supply terminal, black to common ground. Insert an inline 10 A fuse within 15 cm of the positive connection to prevent shorts from destroying the element.
Apply power incrementally–start at 4 V, monitor current draw (expected: 1.8–2.2 A), then ramp to 12 V. Hot side temperature should stabilize below 65 °C; above this threshold, loop a 10 kΩ NTC thermistor to a 555 timer circuit that cuts power at 70 °C.
Heat Sink Selection and Thermal Paste Application for Optimal Performance
Choose an aluminum or copper heat sink with a surface area at least 30% larger than the thermoelectric module’s footprint. For passive cooling, prioritize fin density: 8–12 fins per inch for natural convection, 15–20 for forced airflow. Copper offers 2x the thermal conductivity of aluminum (400 W/m·K vs. 200 W/m·K) but weighs 3x more–balance material properties with system constraints. Heat sinks with embedded heat pipes can reduce thermal resistance by 15–25% in high-delta-T scenarios but add cost.
Thermal Interface Material: Critical Specifications
Apply 0.05–0.1 mm of thermal paste with a thermal conductivity ≥ 4 W/m·K. Ceramic-based compounds (e.g., Arctic MX-6) perform reliably up to 200°C; metal-based pastes (e.g., Thermal Grizzly Kryonaut) achieve 12.5 W/m·K but risk electrical conductivity. Avoid silver-based pastes if exposed traces are present. For reworkable bonds, use phase-change pads (e.g., Bergquist TF8) with a 0.25 mm thickness tolerance–these eliminate pump-out but require precise mechanical alignment to prevent voids.
Clean mounting surfaces with isopropyl alcohol (≥ 90% concentration) and lint-free wipes to remove oxidation. Apply paste using the “grain-of-rice” method for small surfaces (
Mounting Pressure and Validation
Torque mounting screws to 0.2–0.3 Nm for M3 hardware; use Bellville washers to maintain consistent pressure across thermal cycles. Uneven pressure creates hotspots–thermal imaging should show ≤ 2°C variance across the module’s surface. For active cooling, ensure airflow velocity ≥ 3 m/s at the heat sink’s base; below this threshold, thermal resistance increases non-linearly. Test with a thermocouple at the farthest fin: ΔT between module and ambient should stabilize within 10 minutes under full load.
Replace thermal paste every 12–18 months under continuous operation; degradation starts at ~80°C, accelerating capacitance loss by 0.3% per 10°C above this threshold. For high-vibration environments, use epoxy-based adhesives (e.g., Master Bond EP21TCHT-1) with a shear strength ≥ 15 MPa–these add 3–5°C to ΔT but prevent delamination. Monitor with a PID controller: persistent ΔT drift > 5°C indicates interface failure.
