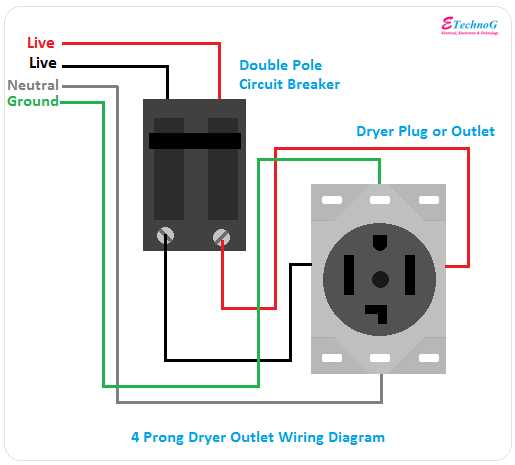

Begin by identifying the terminal assignments before attaching any wires. A standard four-terminal configuration follows this layout: the upper slot carries the neutral (white wire), the left slot delivers 120V power (black or red wire), the right slot supplies an additional 120V line (red or black wire), and the lower slot grounds the connection (green or bare copper). Verify the voltage rating on the device–most appliances use a 240V setup with split 120V legs–before proceeding to avoid damaging the equipment or creating a safety hazard.
Strip the insulation back no more than ½ inch on each conductor to prevent exposed copper from contacting adjacent terminals. Use a torque screwdriver to tighten terminal screws to the manufacturer’s specified inch-pounds–typically between 12 and 15 in-lbs for residential applications. Loose connections generate heat and can melt the housing, while overtightening risks breaking the terminal block or stripping the threads.
Match the wire gauge to the circuit breaker rating: 12 AWG for 20-amp circuits and 10 AWG for 30-amp circuits. Reversing neutral and ground wires will trip GFCI breakers instantly, and swapping a hot wire with neutral can energize the appliance chassis. Always test continuity with a multimeter set to ohms before energizing the circuit–resistance between hot terminals should read near zero, and infinite resistance between hot and ground confirms proper isolation.
Secure the cable clamp within 12 inches of the connector housing to prevent strain on the terminals. Route wires in a straight line from the clamp to the terminals, avoiding sharp bends that can stress the copper strands over time. If the installation requires a junction box, use one rated for the ampacity of the circuit–the box volume in cubic inches must exceed the sum of the conductor volumes to comply with NEC 314.16.
Label the breaker panel to reflect the new connection: mark both the circuit number and the connected device to simplify future troubleshooting. For 240V appliances like dryers or ranges, attach a dual-pole breaker that matches the wire gauge and device rating. Failure to do so can overload the circuit and lead to nuisance tripping or, in worst cases, a fire hazard.
How to Connect a 4-Pin Connector: Step-by-Step Installation
Start by verifying the appliance’s voltage and amperage requirements against the connector’s rating–most standard 4-terminal cables support 240V at 30A or 50A. Mismatches will cause overheating or equipment failure. Check the label on the back of your device or the manufacturer’s specifications before proceeding.
Identify each wire’s function using a multimeter or color-coding guide. In North American configurations, the terminals follow this pattern:
- Green: Ground (safety earth)
- Red or Black: Hot (live L1)
- Orange or Brown: Hot (live L2)
- White or Gray: Neutral (return path)
Cut power at the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm all lines are dead. Strip insulation from the wires to expose ½ inch of bare copper–excessive stripping increases short-circuit risk, while insufficient exposure prevents secure connections.
Secure wires to the connector in this order: ground first, followed by neutral, then live terminals. Tighten screws firmly but avoid overtightening, which can strip threads or crush wire strands. For stranded wire, twist strands clockwise before inserting into terminal screws to maintain integrity.
Seal connections with electrical tape or heat-shrink tubing to prevent accidental contact. Wrap each terminal individually, overlapping layers to cover exposed metal completely. For outdoor installations, apply dielectric grease to terminals before securing wire nuts to inhibit corrosion.
Test the installation with a circuit tester by plugging in the appliance and switching the breaker on. Verify:
- Ground continuity (tester should read 0V between ground and neutral)
- Correct voltage (220-240V between live terminals)
- Device operation (appliance powers on without tripping the breaker)
If the circuit trips immediately, recheck connections for reversed wires or loose terminals. For intermittent failures, inspect for damaged cables or worn contact points–replace the entire assembly if insulation is cracked or prongs show pitting. Store spare connectors indoors in a dry, temperature-controlled environment to prevent premature degradation.
Identifying the Terminals on a 4-Pin Connector
Examine the color codes first–each conductor in a standard four-terminal connector follows a consistent scheme. The green wire always grounds the circuit, linking to the metal chassis or earth post. The white cable, often neutral, completes the return path for current. Pair these with the black and red wires, which carry the live voltage, typically 120V or 240V depending on the appliance. Verify polarity with a multimeter if labels are missing or faded.
Trace the origin of each lead back to the device’s internal components. The green terminal attaches to a screw or clip near the housing base, while the white connects to a wider blade or post marked “N” or “Neutral.” The black and red terminals, identifiable by their narrower profile, correspond to “L1” and “L2” or “Hot” labels. Confirm by matching the connector’s blade shapes–ground slots are U-shaped, neutral slots wider, and live slots narrower.
Check voltage between terminals before handling. With the power disconnected, resistance tests reveal continuity–ground should show near-zero ohms to the frame. Between neutral and live wires, expect infinite resistance; across live terminals, readings vary by system (120V single-phase or 240V split-phase). Use an outlet tester for quick validation if the connection is already installed.
Mark each terminal with tape or shrink tubing if bare wires lack color differentiation. Early identification prevents reversed polarity, a common cause of malfunction or hazard. Document the wiring order with photographs before disassembly–reference images help during reassembly, especially for complex or non-standard equipment.
Inspect the socket or appliance side for matching labels. Industrial or high-amperage units often use numbered posts (1–4) instead of colors; consult the manual for exact positioning. For NEMA 14-50 or similar configurations, terminals follow a clockwise sequence: ground, neutral, live (L1), live (L2). Reversing L1 and L2 disrupts voltage balancing in sensitive devices.
Replace damaged connectors immediately–frayed insulation or corroded contacts compromise safety. Crimp or solder new leads properly, ensuring no loose strands touch adjacent terminals. Secure the housing tightly to avoid strain on internal connections. Test under load by measuring voltage drops across each terminal pair; excessive fluctuation indicates faulty installation.
Step-by-Step Conductor Attachment for a 4-Terminal Connector
Ensure the power source is disconnected before handling the terminals. Examine the appliance’s cable closely–identify the green (or bare) grounding conductor first, as improper placement risks electrical shock or equipment damage.
Strip ½ inch of insulation from each wire using wire strippers, avoiding nicks to the metal strands. Twist each exposed end tightly clockwise to prevent fraying, which can cause loose connections and overheating.
Terminal Assignment Order
- Green/bare wire – Attach to the larger, U-shaped terminal (ground). Secure with a screwdriver, applying firm torque–12-15 inch-pounds–to prevent loosening under vibration.
- Black wire – Connect to the brass-colored terminal (hot, L1). Trim excess length to avoid contact with other conductors.
- Red wire – Fasten to the remaining brass terminal (hot, L2). Ensure no stray strands touch the grounding screw.
- White wire – Link to the silver-colored terminal (neutral). Double-check strain relief clamp tightness to prevent pulling during use.
Inspect each attachment point for exposed copper exceeding 1/16 inch, recutting if necessary. Wrap color-coded electrical tape around terminals to reinforce insulation, especially in high-moisture environments.
Polarity Verification
- Set a multimeter to AC voltage (200V+ range).
- Touch probes to black and white conductors–reading should match the appliance’s voltage rating (e.g., 240V for large tools, 120V for standard devices).
- Measure between red and white conductors; verify identical voltage.
- Test ground integrity by probing black or red to ground–zero volts indicates proper grounding.
Reassemble the connector housing, pressing halves together until they snap securely. Avoid overtightening screws, which can crack the casing. Store unused tools in dry conditions to prevent terminal corrosion.
For 30-amp circuits, confirm the appliance’s rating plate matches the conductor gauge (10 AWG minimum). Replace any damaged cables immediately–frayed insulation or heat-discolored terminals signal impending failure.
Test the setup under load by running the appliance for 10 minutes, checking for abnormal heat at the connector or appliance inlet. Disconnect and re-tighten terminals if warmth exceeds ambient by 20°C.
Color Coding Standards for 4-Pin Electrical Connections
Always terminate the green or green/yellow striped conductor to the grounding terminal–never repurpose it for neutral or live circuits. In North American setups, adhere to the NEC and UL color conventions: black (L1/hot), red (L2/hot), white (neutral), and green (ground). For IEC-compliant installations outside the U.S., follow these equivalents: brown (L1), black (L2), blue (neutral), and green/yellow (protective earth). Deviations violate safety certifications and risk equipment damage or fire.
| Region | L1 Phase | L2 Phase | Neutral | Ground/Earth |
|---|---|---|---|---|
| North America (NEC/UL) | Black | Red | White | Green |
| Europe (IEC 60204) | Brown | Black | Blue | Green/yellow stripe |
| Australia/NZ (AS/NZS 3000) | Red | White or gray | Black | Green/yellow |
| Japan (JIS C 0602) | Black | Red | White | Green |
Label each conductor at both ends with heat-shrink tubing or permanent marker for inspectors or future maintenance–ambiguity causes hazardous errors. Use a non-contact voltage tester to verify termination sequence before energizing; even minor miswirings can trip breakers or create lethal shock paths across improperly mated terminals.
