Begin by isolating the primary power source: a 12-volt DC battery with a minimum cold-cranking amps rating of 450. Verify the integrity of the main fuse–typically a 30-amp blade-type–positioned within two inches of the battery terminal. Failure here disrupts all downstream circuits, particularly the ignition coil and solenoid.
Trace the red conductor from the fuse directly to the ignition switch. This path carries the full voltage load; any corrosion or fraying near the switch housing requires immediate replacement. Use 10-gauge copper wire for this segment–aluminum or undersized conductors cause voltage drops, leading to inconsistent starter engagement.
The solenoid receives a secondary signal via a thin purple wire from the ignition switch. Measure resistance across the solenoid contacts: readings above 0.5 ohms indicate internal wear. Replace the unit if the plunger fails to retract smoothly–binding here reduces current flow to the starter motor by up to 30%.
Ground circuits demand equal scrutiny. The engine block must connect to the battery’s negative terminal via a 6-gauge braided cable. Secure the connection with a stainless-steel bolt, tightened to 12 foot-pounds. Paint, rust, or loose fittings introduce resistance; clean surfaces with a wire brush and apply dielectric grease to prevent oxidation.
Relays for auxiliary systems (lights, PTO) operate on a parallel 15-amp circuit. Check each relay’s continuity: a functional unit produces a distinct click when energized. Swap relays if clicking is absent–they are identical and interchangeable, but mismatched amperage ratings risk overheating. Store spares in the cab to avoid downtime.
Sensors (oil pressure, temperature) connect through thin, color-coded leads. The oil sender wire (usually gray) should show 12 volts when the engine runs; zero voltage suggests a broken wire or failed sender. Probe the wire at the gauge to isolate the fault. Replace senders if readings fluctuate erratically–they degrade internally without external signs.
For systems lacking a printed layout, sketch connections on graph paper, noting wire colors, gauge, and termination points. Use a multimeter to confirm connectivity before reassembling. Avoid relying on memory–misrouted wires can create shorts or backfeed, damaging sensitive components.

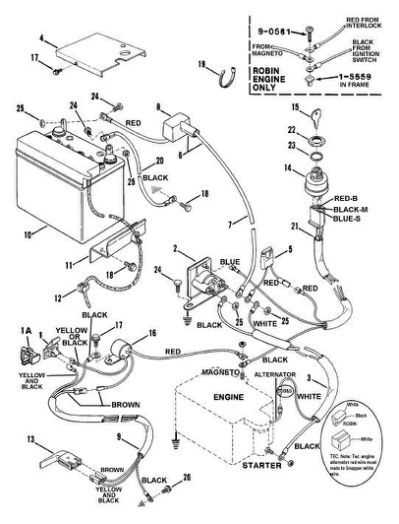

Vintage Equipment Electrical Schematics: Troubleshooting Legacy Models
Begin by verifying the voltage regulator’s continuity–use a multimeter on the 20-ohm range to test the field coil resistance. Values below 2.5 ohms or above 4.5 ohms indicate a shorted or open coil, respectively. Replace the regulator if readings fall outside this range, as degraded insulation in older systems often causes inconsistent charging.
Check the ignition switch bypass circuit by probing the purple (P) and yellow (Y) terminals on the solenoid while engaging the starter. A voltage drop exceeding 0.5V signals corroded connections or a failing solenoid. Clean terminals with a wire brush and apply dielectric grease to prevent oxidation. If issues persist:
- Inspect the starter relay for pitted contacts–replace if voltage drops below 10V during cranking.
- Test the armature for grounded windings using a growler tool; resistance should exceed 500 ohms to frame ground.
- Examine the flywheel keyway for wear–misalignment of 0.010″ or more disrupts timing and damages the magneto.
Key Component Checks
- Condenser: Discharge fully before testing capacitance; values below 0.18–0.25 μF require replacement.
- Breaker Points: Measure gap at 0.020″ ±0.002″ using a feeler gauge. Pitted contacts necessitate sanding with 400-grit paper, followed by solvent cleaning.
- Stator Coils: Check for opens with an ohmmeter–phase-to-phase readings should match within 10%. Deviations point to internal short circuits.
For intermittent no-start conditions, focus on the safety interlock circuit. The seat switch, brake pedal switch, and PTO lever must close simultaneously–bypass temporarily with a jumper wire to isolate the fault. If the engine starts, replace the faulty switch. Always disconnect the spark plug lead before testing to prevent accidental engagement.
Finding the Right Electrical Schematic for Your Snapper Equipment

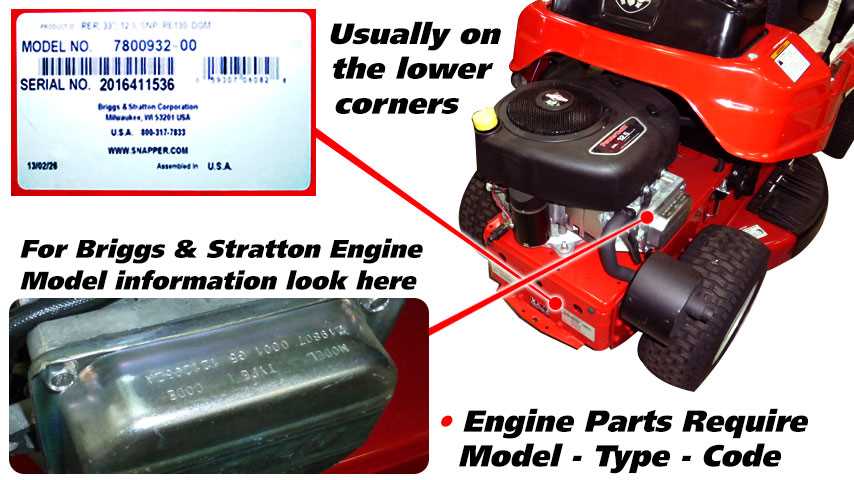

Start by identifying the exact model number of your machine–located on a metal plate beneath the seat, near the engine, or on the rear frame. This alphanumeric code (e.g., *2691318*, *3010518*) determines compatibility with electrical layouts. Generic schematics often mislead; manufacturers update circuits between production years, even within the same series.
Visit the official support portal for verified documentation. Search the model number followed by *”service manual PDF”*–dealer sites frequently host the most accurate files. Avoid third-party forums unless the source is a certified technician; unofficial uploads may omit revisions or include errors from mislabeled versions. For machines produced post-2010, check for a *”smart controller”* variant; earlier models use simpler relays.
Key Components to Verify in Schematics
Critical connections include ignition coils (marked *IGN*), starter solenoid (*SOL*), safety switches (*PTO*, *Brake*, *Seat*), and battery terminals. Cross-reference wire colors (e.g., *Orange-Yellow stripe* for 12V power) with the physical harness–discrepancies signal either a revised layout or a damaged document. For hydrostatic transmissions, confirm the *charge circuit* path; incorrect wiring risks pump failure.
If the manual lacks a schematic, use the *”exploded parts view”* to trace circuits. Each component (e.g., *alternator*, *fuse block*) links to a numbered wire in the parts breakdown. Measure voltages at key points–starter relay input should read 12V during ignition–to isolate faults not visible in diagrams. For tractors with attachments (e.g., snow blowers), ensure the *auxiliary power* circuit (*Red wire*) isn’t overloaded.
Online archives like *ManualsLib* index older schematics, but filter results by production year. Machines built in 2005-2015 often share layouts; pre-2000 models diverge significantly (e.g., *Magneto ignition* vs. *electronic*). If the document is incomplete, contact a service center with the serial number–some OEMs provide redacted schematics under warranty claims.
Red Flags in Corrupted Diagrams
Discrepancies between the schematic and harness include mismatched connector pins (*3-pin* vs. *4-pin*), absent ground points (*Black wires*), or reversed polarity warnings (*Reverse Key* circuits). Replace any diagram showing generic *”14 AWG”* labels–modern builds use *12 AWG* for high-drain sections like the *starter motor*. For diesels, verify the *glow plug* sequence; incorrect timing damages injectors.
Store a printed copy in a sealed bag near the machine. Digital files can become inaccessible due to site updates or dead links. Label critical junctions (e.g., *F1 fuse output*) directly on the schematic for quick troubleshooting. Avoid relying solely on memory–even identical-looking models may use different relays or sensor configurations.
Locating Critical Elements in Riding Mower Electrical Blueprints
Start by isolating the ignition module–typically a rectangular block labeled “IGN” or “IGNITION” near the engine housing. Trace its terminals to verify connections: one leads to the starter solenoid, another to the battery positive, and a third often grounds to the frame. If corrosion is present on these contact points, clean with 400-grit sandpaper and apply dielectric grease to prevent future oxidation. Mistakes here mimic faulty solenoids; measure voltage drop across terminals with a multimeter–any reading above 0.2V indicates resistance requiring replacement of the module or wiring harness segment.

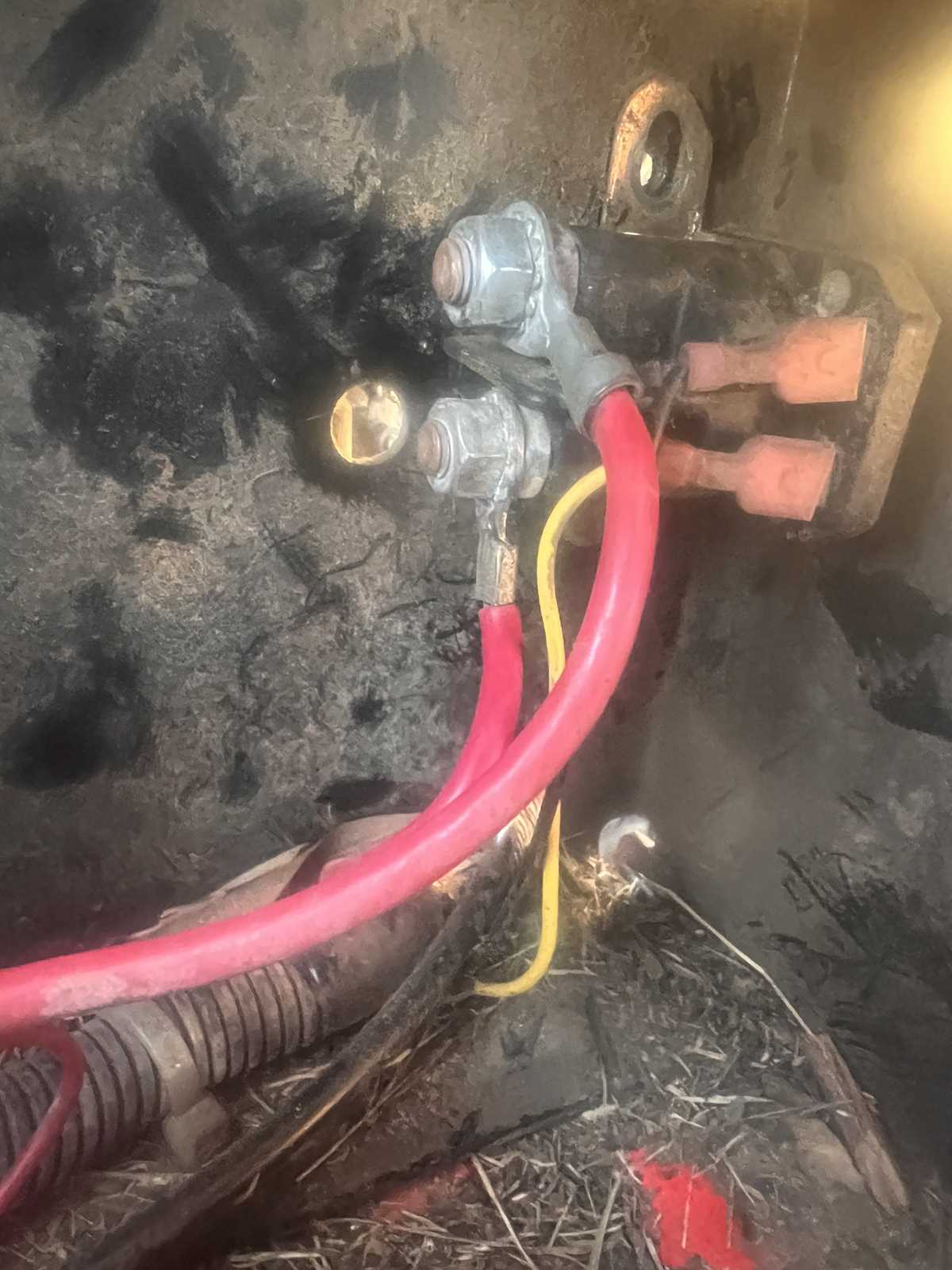

- Starter solenoid: Mounted adjacent to the battery, identifiable by two thick cables (battery lead and starter motor connection) and two thin wires (ignition switch input and safety interlock). Verify continuity between the thin terminals when the key turns–absence signals a faulty solenoid or relay. Replace if voltage is present but no click occurs during ignition attempts.
- Safety switches: Three primary types exist–seat, brake pedal, and PTO engagement. Test each with a continuity tester:
- Seat switch: Should open when unoccupied (no continuity).
- Brake switch: Must close (show continuity) when pedal is depressed.
- PTO switch: Disengaged when lever is in “off” position (continuity).
Faulty switches prevent starting–bypass temporarily by jumpering terminals to confirm diagnosis before replacement.
- Voltage regulator: Integrated into alternator assembly, gauged by battery charging rate. At 2500 RPM, healthy output ranges 13.8–14.5V. Readings below 13.2V necessitate regulator or stator testing–use an ohmmeter between stator coils (resistance should be 0.2–2.0 ohms). High resistance confirms stator failure.
Label harness connectors with masking tape before disassembly–most blueprints omit wire colors post-1995 models, relying on pin positions instead. For example:
- White/red stripe (commonly 16 AWG) carries ignition signal from switch.
- Green (14 AWG) grounds lighting circuits–test for chassis short circuits using a 12V test light between wire and negative terminal.
- Yellow (12 AWG) supplies power to accessories; intermittent failures here often stem from frayed insulation at steering column bends.
Use a dedicated relay tester (set to 12V DC) for accessories like headlights–if relay clicks but component remains off, suspect corroded ground connections (clean with baking soda slurry, rinse with distilled water).
