Ground loops disrupt sensitive equipment, and stray currents degrade performance. A properly arranged separation device eliminates these issues by breaking direct conductive paths between input and output stages. The core principle–galvanic decoupling–relies on electromagnetic induction rather than shared conductors. For 230V mains applications, the minimal workable setup requires primary and secondary coils wound around the same magnetic core, each equipped with dedicated terminals. Copper wire gauge must match expected load currents; 1.5 mm² handles 10A continuous, while 2.5 mm² supports 16A.
Start with a toroidal core–ferrite or silicon steel–whose cross-sectional area determines power handling. Measure winding turns using the formula N = (V × 104) / (4.44 × f × B × A), where V is RMS voltage, f is 50Hz, B is flux density (typically 1.1T for steel), and A is core area in cm². Secure leads with soldered connections and insulate each layer with Mylar tape rated for 600V. Add electrostatic shields–single-turn grounded copper foils–between windings to suppress noise coupling above 1MHz.
Connect primary terminals to mains via a double-pole breaker sized for 125% of maximum load. Terminate secondary leads to a dedicated outlet or fused distribution block. Include snubber networks (100nF X2-rated capacitors) across both coils to clamp voltage spikes. Verify insulation resistance exceeding 500MΩ at 500VDC before energizing. Test leakage current below 2mA under full load; values above indicate compromised dielectric integrity requiring rework.
For medical or lab instrumentation, incorporate reinforced insulation meeting IEC 60601 safety standards. Use triple-insulated wire for windings, and ground the enclosure separately from circuit common. Seal the assembly in a grounded metal housing with electromagnetic interference gaskets. Label all terminals clearly–primary L/N/PE and secondary L/N with directional arrows–to prevent miswiring.
Galvanic Separator Schematic Breakdown

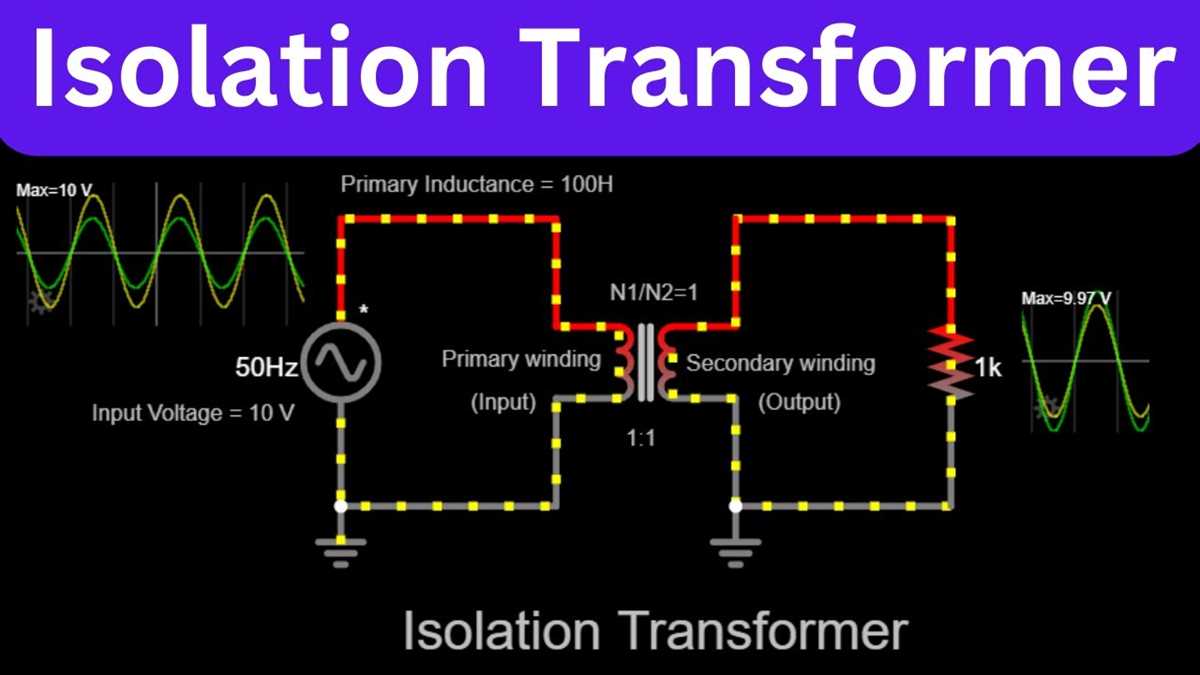

Begin by selecting a dual-coil core with a 1:1 turns ratio to maintain signal fidelity while eliminating ground loops. Ferrite or laminated silicon steel cores minimize eddy current losses at frequencies above 50 Hz–critical for audio or medical equipment where noise interference corrupts precision measurements. Avoid toroidal cores if space is constrained; E-I laminations offer better magnetic coupling in compact designs.
Wire primary and secondary sides with AWG 18 or thicker if currents exceed 5A to prevent overheating. Enamel-coated copper wire resists short circuits, but verify insulation withstands at least 1,500V RMS to meet international safety standards (IEC 61558). Twist paired leads to cancel electromagnetic interference–this reduces stray capacitance that degrades high-frequency performance.
Key Component Placement

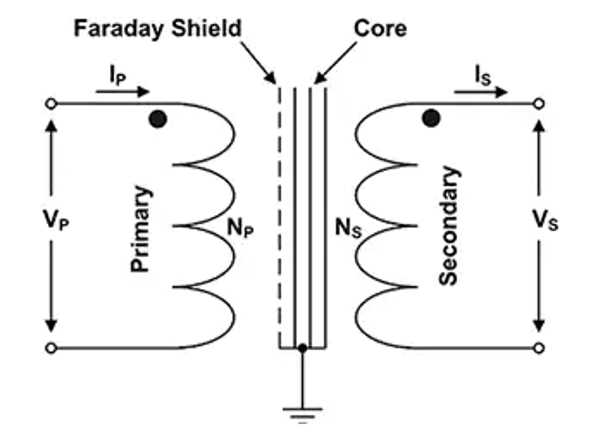

Position electrostatic shields between windings using thin copper foil connected to earth ground. This barrier diverts transient spikes to ground rather than coupling them to the output. Ensure the shield overlaps by at least 1 cm but doesn’t form a shorted turn–this compromises efficiency. For sensitive applications like oscilloscopes, add a Faraday cage around the assembly using perforated metal.
Incorporate a varistor rated for 130% of the peak input voltage across the input terminals to clamp surges before they reach the coils. For AC mains applications, fuse each coil separately–1A slow-blow for control circuits, 5A for power supplies–to isolate faults. Test insulation resistance with a 500V megohmmeter; values below 100MΩ indicate compromised dielectric integrity.
Use a grounded three-prong plug for the input and a floating two-prong output to prevent ground loops in downstream devices. If grounding the secondary side is unavoidable, bond it to the chassis earth via a 1kΩ resistor to limit fault currents without degrading isolation. For variable loads, add a 0.1μF X2-rated capacitor across the output to suppress high-frequency noise generated by switching converters.
Validate the assembly with a hipot tester at 3,000V AC for 60 seconds–no breakdown should occur. Measure leakage current with a microammeter; values above 0.5mA suggest insufficient isolation. Finalize by encasing the unit in UL 94 V-0 flame-retardant plastic to prevent arcing in high-voltage environments.
Step-by-Step Guide to Sketching a Basic Separation Coil Wiring Layout
Begin with a vertical rectangle representing the core–use two parallel lines spaced 20–30mm apart, extending 80–100mm in height. Mark the primary and secondary sides clearly, noting the left as input and right as output for consistency. Label the top edge of each side with “+” and the bottom with “–” to establish polarity before adding connections.
Draw the input winding as a series of tight loops inside the left rectangle. Keep coils equidistant, spacing them 3–5mm apart, with 4–6 turns for clarity. Use arrowheads at both ends of the winding to indicate current direction, pointing inward at the top and outward at the bottom to denote standard flow convention.
- Primary coil: Start 15mm from the top, loop clockwise.
- Secondary coil: Mirror primary, offset 10mm horizontally to avoid overlap.
- Leave 5mm gaps between turns for annotations.
Add the output winding on the right side, matching the primary’s structure but with opposite polarity markings. Ensure the loops align vertically with those on the input side–misalignment complicates trace-reading during troubleshooting. Extend a horizontal line from each terminal outward by 15–20mm to prepare for external linkages.
Annotating Key Components
- Core material: Write “Ferrite” or “Silicon Steel” beneath the rectangle, centered.
- Turns ratio: Near each winding, note “1:1” or specify values like “220V:12V”.
- Ground symbol: Place a triangle 10mm below the bottom line, connect via a short wire.
- Terminal labels: “L” (input live), “N” (input neutral), “V+” (output positive), “V–” (output ground).
Sketch input/output connections using straight lines with 45° bends where curves would obscure clarity. Maintain 10mm spacing between parallel wires to prevent visual merging. Use thicker lines (0.5mm) for power paths, thinner (0.2mm) for auxiliary points like ground returns.
Final Checks Before Finalizing
Verify that winding directions oppose each other–input clockwise, output counterclockwise–to ensure proper magnetic isolation. Add a rectangular shield around the core, dashed and offset by 5mm all sides, to denote electrostatic screening. Include a small “50/60Hz” label near the primary winding to specify operating frequency.
For digitized schematics, export using vector formats (SVG) at 300dpi resolution. Print templates should use 80gsm paper for ink stability–avoid glossy surfaces that cause smudging. Store original sketches in archival sleeves to preserve fine details.
Test readability by covering each section sequentially–remaining elements should still convey full functionality without ambiguity. Adjust line weights dynamically: heavier for high-voltage paths, lighter for signal grounds.
Key Components Needed for a Galvanic Separator Setup
Select a core made of grain-oriented silicon steel for minimal eddy current losses; toroidal or EI laminations with a saturation point above 1.8 T are preferred for most 50/60 Hz installations.
Primary and secondary windings must be wound with magnet wire of at least 1.5× the expected current density. Use triple-insulated wire (Class F or H) on the secondary side if the unit will be enclosed near heat-generating loads; verify insulation resistance with a 1,000 V megohmmeter before energizing.
- Thermal cutoff switches rated 2–5 °C above maximum ambient, placed between winding layers.
- Snubber networks across each winding: 2.2 µF X2-rated capacitor paired with 10 Ω 1 W resistor.
- MOVs with 10–20 % higher clamping voltage than the nominal line voltage on both input and output.
Shielding requires a single copper foil wrap between windings, grounded at one end only to prevent circulating currents; foil thickness should match the cross-sectional area of the wire used for the primary.
Enclosure selection depends on ingress protection:
- IP20 metal box for indoor installations;
- IP67 NEMA 4X polycarbonate cases if the unit will be mounted outdoors or in damp environments.
Include a zinc-plated chassis ground lug connected to the enclosure with a 2 AWG stranded conductor for fault current return.
Fuse or circuit breaker sizing: primary protection at 125 % of full-load current; secondary protection at 110 % of the downstream load’s maximum inrush current. Time-delay fuses reduce nuisance tripping during motor starts.
Label the input/output terminals with 3M Scotchcal or equivalent vinyl decals specifying voltage, current, and phase marking; use contrasting colors (red/black for AC hot, white/green for neutral/ground) to minimize wiring errors during commissioning.
Step-by-Step Wiring Guide for 1:1 Galvanic Barriers
Begin by verifying the primary and secondary windings share identical voltage ratings–mismatches risk overheating or failure. Strip 5mm of insulation from each lead, using wire gauges matching the device’s load capacity (e.g., 1.5mm² for 10A). Connect the power source’s live and neutral wires to the input terminals, ensuring polarity alignment; swap leads if the secondary output reverses phase. Secure connections with solder or crimp connectors rated for at least 20% above peak current to prevent resistive losses.
Mount the core in a grounded metal enclosure, spacing it 20mm from adjacent components to minimize stray capacitance. Use shielded cables for input/output if noise suppression is critical; terminate shields to the chassis at a single point to avoid ground loops. For safety, wire a 10mA residual current device inline with the primary–this trips faster than fuses in fault conditions. Test continuity with a multimeter at each step, confirming 1MΩ to ground.
Before energizing, clamp a split-core ammeter around the input leads and verify no-load current stays below 3% of rated value (e.g.,
