Start with identifying the power source on your vehicle’s fuse box. Use a multimeter to test for 12V constant and switched 12V circuits. A fuse tap rated at 10A is ideal for tapping into the existing system without overloading it. Avoid using the headlight or brake light circuits–these can cause flickering under load.

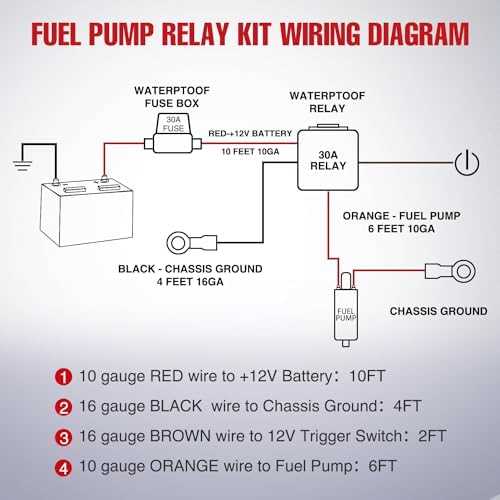

Run a dedicated 14-gauge wire from the fuse tap to the relay’s 85 terminal. Ground the 86 terminal directly to the chassis using a ring terminal and a 10mm bolt, ensuring the contact point is free of paint or corrosion. Connect the 30 terminal to the battery via an inline fuse holder (20A fuse). Route the 87 terminal to the auxiliary lights through a waterproof connector, keeping the wire away from sharp edges or moving parts.
For momentary activation, use a normally open (NO) push-button rated for 12V DC. Wire the button between the switched 12V source and the 85 terminal of the relay. For latching control, install a double-pole double-throw (DPDT) toggle–this allows separate on/off states without relying on the ignition cycle. Test the relay coil resistance (should be 60–120 ohms) before finalizing connections.
Secure all connections with heat-shrink tubing or dielectric grease to prevent oxidation. Label each wire at both ends using a label maker or masking tape. Use a relay socket for easier maintenance–this eliminates the need to splice directly into the relay. Verify functionality by checking voltage at the light terminals with the system active; readings should match the battery voltage (12.6–14.4V).
Installation Schematic for Auxiliary Light Control Units
Begin by disconnecting the vehicle’s battery terminal to prevent short circuits during setup. Identify the power source–typically a fuse box or relay–and confirm its amperage rating matches the auxiliary lights (minimum 15A for standard LED bars). Use a multimeter to verify voltage at the source: 12V DC is required for consistent performance.
Route the positive lead from the control module to the power source, securing connections with heat-shrink tubing or dielectric grease to prevent corrosion. Ground the module to the vehicle’s chassis using a dedicated bolt or a clean, unpainted metal surface; avoid shared grounds to reduce interference.
For a single-channel setup, connect the output terminal of the module directly to the light assembly’s positive wire. Multi-channel modules require each output terminal to be paired with a separate light cluster–label wires during routing to avoid mismatches. Use 14-gauge wire for runs under 10 feet; opt for 12-gauge for longer distances to minimize voltage drop.
Integrate a relay if the module lacks built-in overload protection. Connect the relay’s coil to the module’s output, the switched contact to the lights, and the common contact to a fused power source. This isolates high-current loads and extends component lifespan. Refer to the table below for relay pin configurations:
| Pin | Connection | Wire Gauge |
|---|---|---|
| 85 | Module output (trigger) | 18-20 AWG |
| 86 | Ground | 18-20 AWG |
| 30 | Fused power source | 14-12 AWG |
| 87 | Light assembly positive | 14-12 AWG |
Mount the control unit in a dry, ventilated area away from engine heat or moving parts. Secure it with adhesive or brackets to prevent vibration damage. Test the installation by reconnecting the battery and cycling the unit through each function–momentary, latched, and strobe modes should activate without delay or flickering.
For CAN bus-compatible vehicles, splice the module’s data wire into the OBD-II port or a dedicated ECU connector to enable integrated controls. Use a T-tap connector for non-destructive splicing, ensuring the data line remains polarity-correct (refer to the vehicle’s wiring diagram for CAN high/low designations).
Adjust the module’s sensitivity if triggering via remote or app-based controls. Most units feature a trim pot for fine-tuning signal responsiveness–rotate it clockwise to increase sensitivity, counterclockwise to reduce false triggers. Consult the user manual for voltage thresholds (e.g., 0.5V–4.5V for analog inputs).
Finalize installation by securing all wires with zip ties or conduit, maintaining a 1-inch clearance from exhaust components. Recheck connections with the multimeter, verifying continuity and absence of stray voltage. Reconnect the battery and perform a full functionality test under load, monitoring for abnormal heat or dimming–either indicates a short or insufficient wire gauge.
Tools and Materials for Auxiliary Control Unit Integration
Start with a multimeter (10A DC range minimum) to verify circuit integrity before connection–cheap units risk false readings under 0.5A loads. Add a 14-16 AWG crimper with insulated butt connectors; generic pliers deform terminals, causing voltage drops. For high-current setups (>20A), use a thermal wire stripper to prevent nicked strands that overheat under load. Include heat-shrink tubing (3:1 shrink ratio) in 3/8″ and 1/2″ diameters–adhesive-lined variants seal moisture better than standard types. A ratcheting cable cutter ensures flush cuts on duplex wires, reducing fraying that interferes with terminal fitment.
Key Components Checklist
- 4-position relay (Bosch 0 332 019 150) with 30A contacts–aftermarket relays often lack corrosion-resistant coatings
- 5mm fork terminals (tinned copper, not aluminum) for warranty-safe connections
- Dielectric grease (Dow Corning 4) applied sparingly to connector faces–excess migrates into relay sockets
- 18-gauge fused link (5A rating) for control circuits–standard fuses melt at 75% of rated current
- Digital torque driver (0.5–3 Nm range) for M5 terminals–overtorquing cracks relay bases
- LED test light (polarity-sensitive) to diagnose ground loops without loading circuits
- Adhesive-backed loom tubing (3/8″ split) for brittle wires near exhaust manifolds
Skip solder on automotive terminals–SAC305 alloy crystallizes under vibration, forming brittle joints. For ground points, use star washers (not split-ring) between copper terminals and chassis paint–surface prep with 80-grit emery eliminates oxidation resistance spikes. Store components in static-shielded bags if working near ECUs; plastic bins attract dust that increases contact resistance over time.

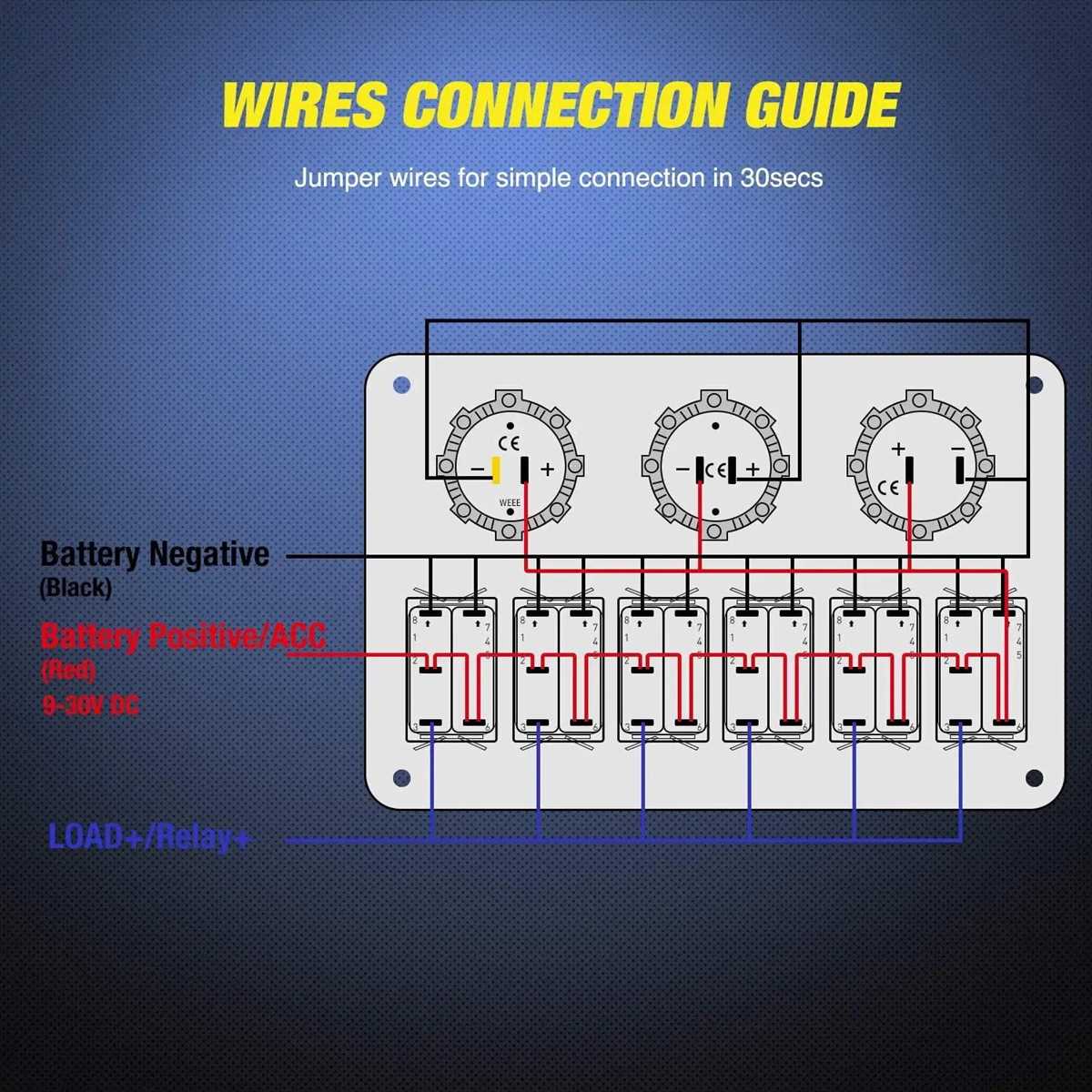

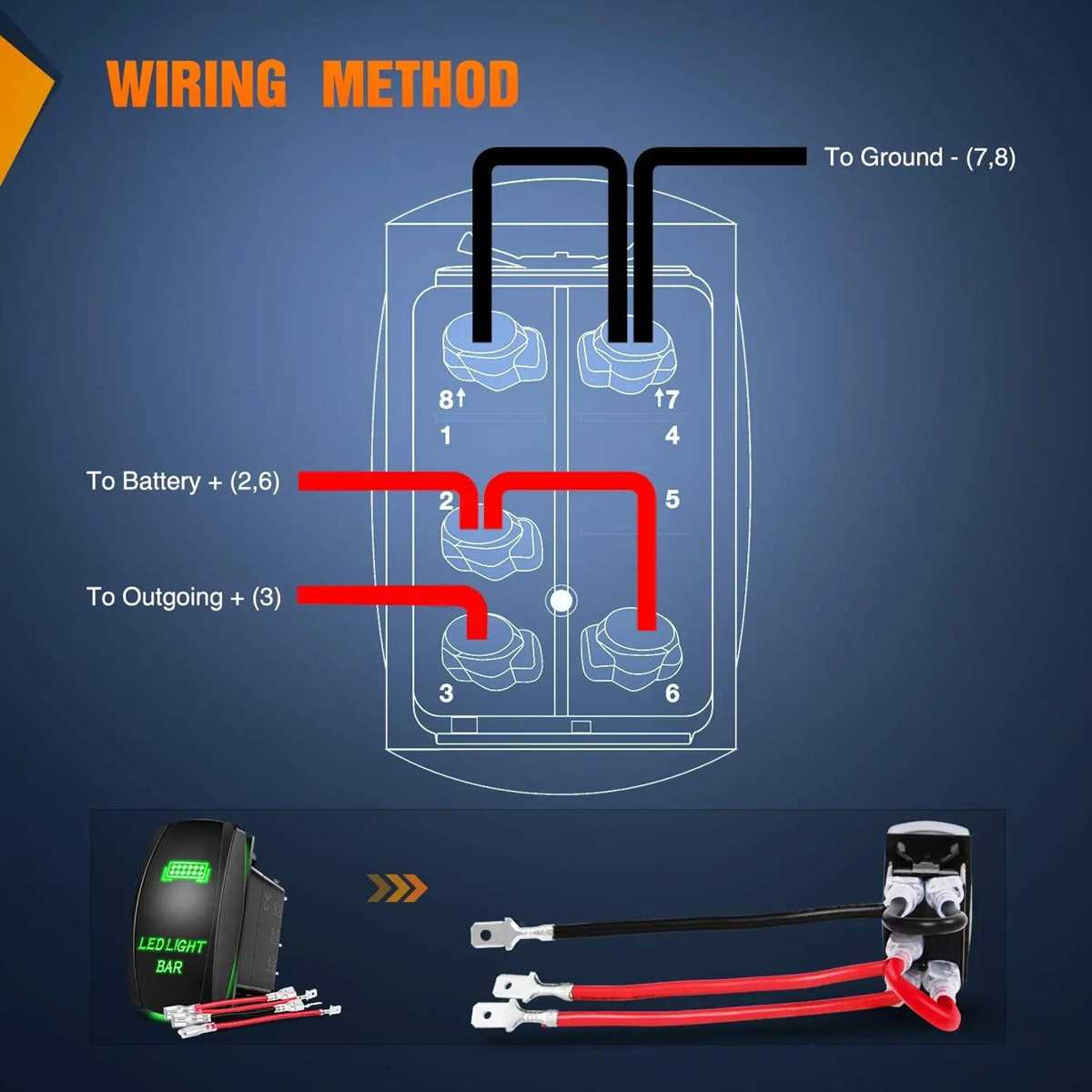

Installing a Single-Function Rocker Control: A Practical Guide
Disconnect the vehicle’s battery before handling any electrical connections to prevent shorts or accidental activation. Identify the positive (usually red or yellow) and ground (black) wires from the accessory–confirm polarity with a multimeter if labels are unclear. Trim excess wire length to avoid clutter, leaving 6–8 inches of slack for secure terminations.
Key Connections
- Power Input: Splice the red wire from the accessory to the ignition-switched 12V source (e.g., fuse tap or auxiliary circuit) using a butt connector or solder joint. Avoid tapping directly into high-load circuits like headlights.
- Ground: Connect the black wire to a clean, unpainted metal surface on the chassis. Scrape away corrosion or primer first–poor grounding causes erratic operation.
- Output: Attach the load wire (often blue or white) to the accessory’s positive terminal, ensuring a tight fit to prevent voltage drop. Use heat-shrink tubing over all splices to shield against moisture.
Mount the toggle in a secure location, testing for proper alignment and clearance. Reconnect the battery and verify functionality: the device should activate only when the ignition is on, with no flickering or overheating. If issues arise, recheck splices for exposed copper or reversed polarity–common culprits in frequent failures.
Pairing a Dual-Control Panel with Separate Output Paths
For independent activation of two distinct loads using a single dual-toggle unit, link each terminal cluster to its dedicated power source and corresponding accessory. The left cluster connects to the primary 12V line with the common post (typically labeled “COM”) joined to the positive lead, while the normally open (NO) and normally closed (NC) posts interface with the intended device–use NO for momentary triggering or NC for latching operation. Repeat this for the right cluster, ensuring no cross-connection between circuits to prevent feedback or unintended shorts. Secure each joint with heat-shrink tubing or dielectric grease to guard against corrosion, particularly in off-road or marine setups.
Verify polarity before finalizing connections; reverse polarity may damage integrated LEDs or micro-relays in certain models. Test continuity with a multimeter after assembly–disconnect the battery first–to confirm each path activates only its designated load. If using auxiliary lighting or high-draw equipment, incorporate a relay between the panel and the load to avoid overloading the internal contacts (most dual-toggles handle up to 20A per side, but consult the spec sheet for exact limits).
Solving Faults in Auxiliary Control Installations
Start by verifying power delivery at the fuse block with a multimeter–readings should match the vehicle’s battery voltage (typically 12-14.5V). If absent, trace the positive lead back to its origin, checking for corroded terminals or broken strands. Crimp connectors properly; soldering alone risks cold joints under vibration.
Test the relay coil resistance–standard values range between 70-120 ohms. Out-of-spec readings indicate a faulty unit requiring replacement rather than rewiring. For solid-state variants, ensure the trigger signal reaches 8V min; some factory ECUs output weaker pulses, necessitating a relay-based boost circuit.
Inspect ground paths for paint contamination or loose mounting–scratch test bare metal if voltage drop exceeds 0.2V. Common mistake: attaching grounds near high-current components like starters, where transient spikes corrupt delicate electronics. Relocate to chassis points with star washers.
Intermittent Failures
Flickering outputs often stem from inadequate gage size–consult the manufacturer’s current specs (e.g., 20A requires 14AWG, 40A demands 10AWG). Heat-shrink tubing alone isn’t sufficient; use adhesive-lined for moisture resistance in engine bays or undercarriages.
Check for induced noise by temporarily disconnecting nearby inductive loads (fans, pumps). Shield twisted pairs if signal wires run parallel to power cables exceeding 6″ in length. Ferrite cores on both ends mitigate RF interference.
For CAN-based configurations, confirm termination resistors (120Ω) exist at bus ends. Missing or mismatched values cause sporadic dropouts–measure network resistance between CAN high and low (should read ~60Ω combined).
Mechanical Stress Points
Secure all junctions with spiral wrap rather than electrical tape, which degrades at 85°C. Rocker-style toggles rated below IP67 require sealed boots; expose internals to water ingress if omitted. Mount actives in vertical orientation to prevent condensation pooling.
