For a GM 4-pin electrical generator setup, begin by identifying the battery-positive terminal on the unit–marked with a “+” symbol or red insulation. Connect this terminal directly to the vehicle’s battery positive post using 10-gauge cable or thicker; resistance at this connection will reduce output efficiency by up to 20%. Next, locate the excitation terminal (typically labeled “F” or “Field”), which requires a switched ignition feed from the vehicle’s fuse box–link this to a 10A fuse-protected circuit to prevent uncontrolled voltage spikes.
The sensing terminal (often marked “S” or “Sense”) must attach to the battery positive post via a separate 12-gauge cable. This line ensures the generator adjusts output based on true system voltage, compensating for voltage drop across long cable runs. Ignoring this step can result in overcharging (above 14.8V) or undercharging (below 13.2V), both of which shorten battery lifespan. Ground the final terminal (“G” or “Ground”) to the engine block using a minimum 8-gauge braided strap; corroded or undersized grounds introduce noise and erratic performance.
Test connections with a multimeter before energizing the system. Probe between the excitation and ground terminals–resistance should read between 3.5 and 6 ohms; values outside this range indicate faulty internal windings. Verify sensing line voltage matches battery voltage within 0.2V; discrepancies point to incorrect routing or corroded terminals. For aftermarket installations, bypass the voltage regulator if present–GM 4-pin units integrate this function internally, and external regulators create feedback loops that disrupt stable operation.
Use heat-shrink tubing on all exposed crimp connectors to prevent moisture ingress, which corrodes contacts within 50 operating hours in humid climates. Mount the generator pulley within 1/4 inch of belt alignment tolerances; misalignment accelerates bearing wear and reduces output by 15% at 3,000 RPM. If retrofitting to a non-GM vehicle, confirm the pulley ratio (typically 2.2:1 to 2.8:1)–incorrect ratios cause either insufficient charging at idle or destructive overspeed at highway speeds.
GM 4-Pin Voltage Regulator Connection Guide
Locate the battery positive terminal on the GM power generator. This post is marked with a 12V symbol or a red plastic cover–attach the heavy-gauge output cable here. Use a minimum 8 AWG conductor for units rated above 80 amps to prevent overheating. Secure the ring terminal with a stainless-steel bolt torqued to 8-10 ft-lbs.
Identify the excitation control pin–the smaller post labeled “F” or “Field.” Connect a 14-16 AWG conductor from this terminal to the ignition switch’s dedicated output port. Ensure the circuit breaker is rated at 10 amps minimum; fuse protection alone is insufficient for inductive loads.
- Ground reference: Attach the case-mounted stud to the engine block or chassis using a braided strap. Avoid relying on bolted joints–clean mating surfaces with a wire brush and apply dielectric grease to prevent corrosion.
- Charge sensing: Route the thin-gauge voltage sense lead directly to the battery’s positive terminal. Do not splice into the main power cable–a dedicated path ensures accurate regulator feedback.
- Rotor coil isolation: Verify the field circuit is ungrounded at rest. Probe between ground and the excitation pin with a multimeter; readings above 0.5V indicate a short requiring disassembly.
Test the completed setup with a load bank. Energize the system and monitor output at 2,000 RPM–expect 13.8-14.4V with no accessory load. Deviations exceeding 0.3V suggest miswiring or a faulty bridge rectifier.
For all Delphi or Valeo units built after 2005, include a transient suppression diode across the field coil. Install a 1N4004 device with cathode toward the excitation terminal to absorb voltage spikes when the ignition is cycled. Omission risks regulator failure within 500 operating hours.
- Strip conductors to expose 5/16″ of copper.
- Crimp terminals using a ratcheting tool–avoid pliers.
- Heatshrink each joint with adhesive-lined tubing.
- Label all connections with heat-resistant sleeves.
- Recheck torque after 50 miles of operation.
GM 4-Pin Charging System Pin Configuration
Identify the battery exciter lead–marked 1 on GM units–as the critical signal wire requiring a direct 12V supply from the ignition switch or a relay. This terminal, often IGN or R, activates the voltage regulator and must connect through a 5A fuse to prevent surge damage. Without this power source, the rotor field fails to energize, leaving the stator coils inactive regardless of engine speed.
Locate the stator output post (2 or BAT) at the rear of the generator housing; this delivers rectified current to the vehicle’s electrical bus. Ensure cable gauge matches system demand–typically 8–6 AWG for most V8 applications–to avoid voltage drop under load. Secure this connection with a crimp terminal treated with dielectric grease to block corrosion, particularly in wet environments.
Verify ground integrity by tracing the regulator’s chassis return (labeled 3 or GND) to its mounting point. Scrape paint or rust from the contact surface to maintain a resistance below 0.5 ohms. For dual-voltage models, the fourth terminal (4 or F) monitors field strength and must link to the ECM if equipped–misrouting this can erratically trigger diagnostic codes P0621 or P0622.
Step-by-Step Electrical Connection Guide for GM 4-Terminal Charging Unit
Begin by disconnecting the battery’s negative terminal to eliminate voltage hazards before handling the power source. Locate the charging unit’s four terminals: battery output (B+), ignition exciter (I), voltage regulator sense (S), and ground (G). Use a multimeter to confirm the ignition exciter circuit reads 12V+ when the engine is cranked, ensuring the electrical flow is active before proceeding. Strip 1/4 inch of insulation from each conductor, avoiding exposed strands beyond the terminal crimp zone to prevent short circuits.
| Terminal | Function | Recommended Gauge | Connection Point |
|---|---|---|---|
| B+ | Direct power delivery to battery | 4 AWG | Battery positive post via fusible link (150A max) |
| I | Ignition-controlled excitation | 12 AWG | Ignition switch ACC or RUN position |
| S | System voltage sensing | 14 AWG | Battery positive post or distribution block |
| G | Common return path | 8 AWG | Clean chassis ground or engine block |
Crimp ring terminals to each conductor using a hydraulic crimper rated for copper–soldering is discouraged due to vibration-induced fatigue risks. Secure the B+ terminal first, followed by the ignition exciter and sense circuits, tightening each with an 8mm socket to 12 ft-lbs torque. Attach the ground last, ensuring the mounting surface is bare metal with no corrosion–sand if necessary. Reconnect the battery’s negative terminal and start the engine, verifying a 13.8–14.4V reading at the B+ post with a voltmeter under load (headlights, blower fan). If voltage drops below 13.5V, inspect the ground path and ignition exciter connection for resistance.
Common Mistakes When Connecting a GM 4-Terminal Charging System
Reverse the battery sense lead and ignition input without verifying polarity–this instantly damages the voltage regulator. The screw-terminal marked “1” or “F” must connect to the ignition switch, while “2” or “S” requires direct battery voltage for accurate sensing. Swapping them causes erratic output or complete failure.
Avoid grounding the excitation terminal directly. Unlike earlier models, GM’s 4-terminal setup relies on an internal field circuit controlled by the ECU or ignition switch. Jumping it to chassis ground forces maximum output, overheating the stator and reducing lifespan by 60% in under 50 hours of runtime.
Common errors when routing cables:
- Running the battery sense line parallel to high-current cables, picking up EMI that skews voltage readings by ±0.7V.
- Using untreated copper lugs, which corrode within months in high-vibration engines like the LS-series, increasing resistance by 0.3Ω.
- Neglecting to crimp the ring terminal properly–solder-only joints fracture at the neck under load.
Ignoring Wire Gauge Specifications
The charging circuit’s ignition input (terminal 1) requires 14 AWG minimum, while the battery sense (terminal 2) needs 16 AWG. Undersizing causes voltage drops exceeding 0.5V at 13.8V output, triggering premature voltage regulation cutoff. Chrysler-style 12-gauge connectors, often mistakenly used, compound the issue by loosening over time due to thermal cycling.
Over-tightening mounting bolts distorts the diode plate. GM specifies 25-30 in-lbs; exceeding this cracks the epoxy encapsulation, exposing the rectifier bridge to moisture. Symptoms include intermittent spiking (visible on a scope as 18V+ surges every 3-5 seconds) and eventual catastrophic failure of the bridge.
Failures from overlooked details:
- Skipping the 10A fuse on the battery sense line–shorts to ground melt the harness insulation in 90 seconds.
- Assuming factory connectors fit all GM variants; 2007+ Vortec engines use a different pin spacing, requiring adapter pigtails or custom terminals.
- Not testing the charging system under load (headlights + A/C) before finalizing connections–hidden defects surface only at 80%+ capacity.
Tools and Materials Needed for GM Charging System Installation
Start with a multimeter (digital preferred) rated for 20V DC minimum to verify voltage at the battery and regulator connections. Ensure it has a low-impedance mode for accurate readings on low-resistance circuits. A crimping tool with ratcheting action (like Klein Tools 1005CR) is critical for secure terminal attachment–avoid generic pliers that can deform connectors. Include heat-shrink tubing in sizes 3/16″, 1/4″, and 3/8″ with a dual-wall adhesive lining for moisture resistance, not basic vinyl sleeves.
Specialized Components

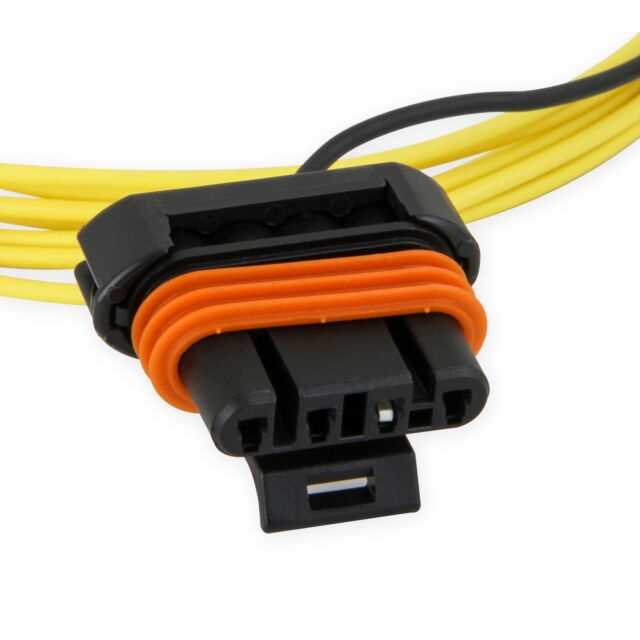

Marine-grade tinned copper wire (6 AWG for main power, 10 AWG for sensing/excitation) resists corrosion better than standard automotive wire–specify UL 1426 for saltwater environments. ANL fuse holder with a 100A fuse protects the main feed; position it within 7 inches of the battery terminal. For GM’s integral voltage regulator models, procure a delco-style plug connector (pigtail 12162252) with gold-plated terminals to prevent oxidation. Dielectric grease (Permatex 22058) applied to connections after torquing prevents galvanic corrosion.
In addition to standard 10mm and 13mm sockets, use a flex-head ratchet (Snap-on FHR200) for tight engine bay access. Wire strippers with a 10-14 AWG notch (IDEAL T-STRIP) remove insulation cleanly without nicking strands. A terminal disconnect tool (GM 94714458) prevents damage when removing factory connectors. For post-installation verification, a load tester (ETT 101-000180) confirms output under 50% of rated amperage–do not rely solely on no-load voltage readings.
