Start with a low-noise first stage using a JFET or bipolar transistor in a common-emitter configuration to preserve signal integrity. Set the input impedance at 50 kΩ for compatibility with most sensors, ensuring minimal loading. Bias the transistor for class-A operation with a collector current of 1–2 mA to maintain linearity while preventing thermal drift.
For the intermediate stages, cascade two or three voltage-gain blocks with RC coupling. Use a voltage divider between stages to stabilize DC levels–target 4–6 V at each node to avoid saturation. Employ Miller compensation if bandwidth exceeds 1 MHz; place a 10–50 pF capacitor across the feedback resistor to prevent high-frequency oscillations.
In the output section, match the load impedance with a complementary symmetry pair (e.g., NPN/PNP). Drive currents up to 500 mA using a current-limiting resistor of 1–2 Ω in series with the emitter. For higher power, incorporate a Darlington arrangement or MOSFET driver, but ensure the heatsink can dissipate at least 5 W.
Grounding is critical: route input and output references through a star point to avoid ground loops. Decouple each stage with 0.1 µF ceramic capacitors at the supply pins. Test stability with a square wave before final assembly–ringing above 10% amplitude indicates a need for revised compensation.
For variable gain, insert a potentiometer in the feedback loop of the second stage, but keep the total resistance below 50 kΩ to avoid noise pickup. Document each stage’s frequency response with a Bode plot; expect -3 dB roll-off at 10 Hz for low-end decoupling and 10 MHz for high-frequency limits.
Designing Cascaded Signal Boosters: Key Schematic Considerations
Start with impedance matching between consecutive gain blocks to prevent signal reflection and power loss. Use a common-emitter configuration for the initial stage paired with a 2N3904 transistor (hfe ≥ 100) to achieve ~30dB voltage gain while maintaining stability. Place a 0.1µF coupling capacitor between stages to block DC offset–values below 0.01µF introduce high-pass rolloff at ~20Hz, distorting low-frequency content in audio applications. For RF designs, swap electrolytics with ceramic capacitors (X7R dielectric) rated at least 2× the supply voltage to avoid microphonic noise.
Bias the second gain stage using a voltage divider with resistors in the 10kΩ–100kΩ range–lower values drain current, raising noise; higher values risk drift from leakage currents. Insert a 1kΩ emitter resistor bypassed by a 100µF capacitor to stabilize gain while preserving AC response. For wideband applications (>10MHz), reduce resistor values by 50% and compensate with ferrite beads on supply rails to suppress parasitic oscillations. Avoid cascading more than three stages without local feedback; phase shifts accumulate, turning amplifiers into oscillators.
Heat dissipation dictates component spacing–TO-92 packages require ≥3mm clearance, while DPAK variants need copper pours under the tab connected to thermal vias. Power transistors (>1W) mandate heatsinks with θJA ≤ 25°C/W; calculate junction temperature rise using PD × θJA. For battery-powered designs, implement a rail-splitter (e.g., TL071 op-amp) at the midpoint to halve the required voltage while maintaining symmetric swing. Always decouple supply pins with a 10µF tantalum close to the IC, backed by a 0.1µF bypass capacitor within 2mm–the delay between components swells transient response.
Ground loops sabotage performance–use a star grounding scheme with dedicated return paths for high-current outputs and sensitive input stages. PCB traces carrying >100mA must be ≥1mm wide; power rails narrower than 0.5mm introduce voltage drops exceeding 50mV/A. For differential signals, route pairs with matched lengths (±2mm) and 10mils spacing to control crosstalk. Validate layouts with a LCR meter–traces longer than λ/10 at the highest operating frequency (λ = 3×108/f) behave as antennas. Test prototypes with a function generator injecting a 1kHz sine wave; if THD exceeds 0.1%, replace resistors with 1% tolerance metal films and capacitors with NP0 ceramics.

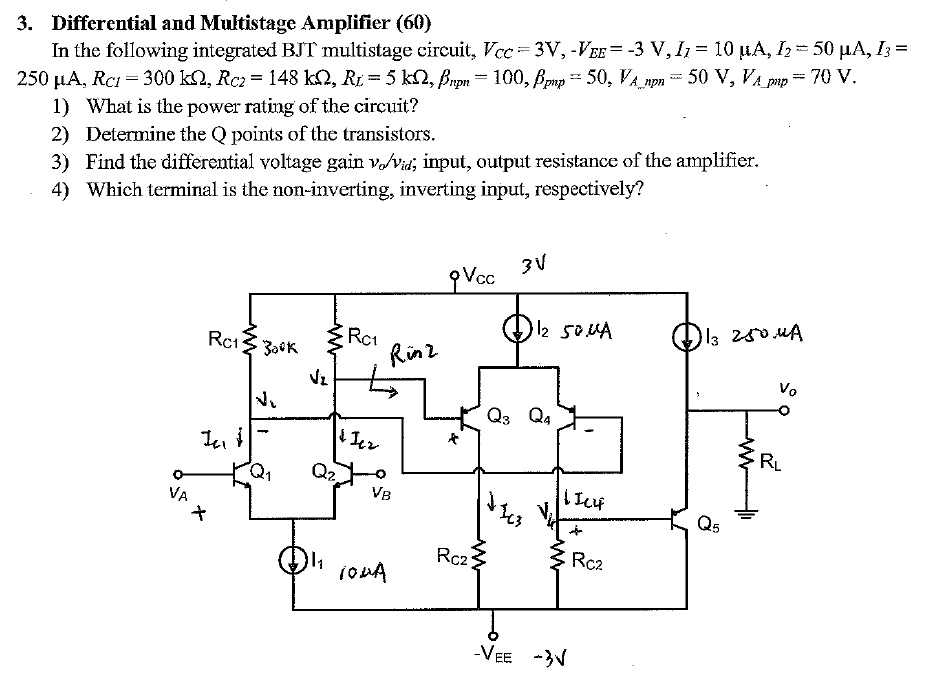

Critical Elements and Their Functions in Cascading Signal Boosters
Select active devices with gain-bandwidth products exceeding 10x the target output frequency to prevent high-frequency roll-off. Bipolar junction transistors (BJTs) like the 2N3904 offer low noise for pre-gain stages, while enhanced-mode MOSFETs (e.g., IRLZ44N) handle higher power in later sections. Match transistor configurations to stage requirements: common-emitter for voltage gain, common-collector for current buffering, and common-base for impedance transformation in RF chains.
- Coupling capacitors: Use values between 1μF–100μF for audio ranges, scaling inversely with frequency (1nF–100nF for RF). Polypropylene types reduce distortion below 0.01%; electrolytics suffice for budget designs if ESR
- Bias resistors: Calculate for 1/10th of collector/drain current to minimize thermal drift. Include small-ballast resistors (10Ω–50Ω) in emitter/source paths to stabilize against beta variations.
- Load resistors: Size for 50% of supply voltage across the device at quiescent current. In Class A stages, higher values increase gain but reduce swing; balance with transformer coupling for impedance matching.
- Feedback networks: Apply 20%–40% of output to input via resistors (1kΩ–100kΩ) or RC networks. Local feedback improves linearity but global feedback over >3 stages risks oscillations–use SPICE to verify phase margins.
Implement power supply decoupling with a 10μF tantalum capacitor in parallel with a 0.1μF ceramic per stage, placed within 1cm of the active device. For PCB layouts, route high-current traces (width ≥ 2.5mm/A) on inner layers to avoid crosstalk, separating analog and digital grounds at a single star point. Test prototypes with a network analyzer to confirm

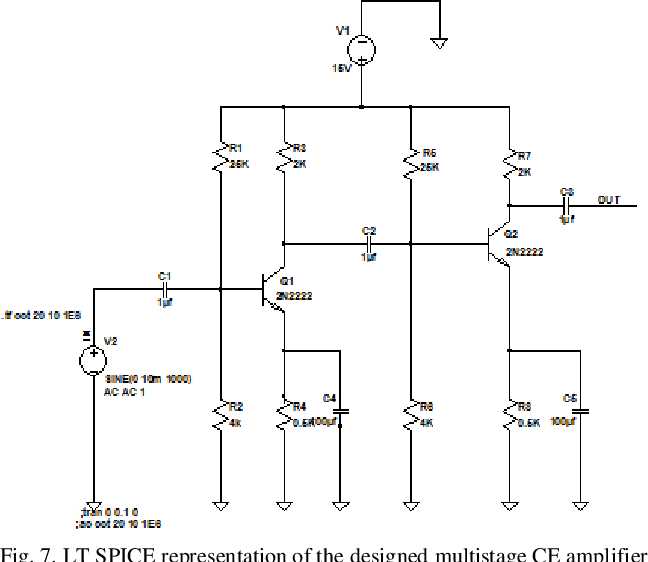

Building a Two-Stage BJT Cascade: Practical Assembly Guide
Begin by selecting 2N3904 transistors for both stages–opt for matched pairs if phase coherence matters. First-stage biasing requires a 4.7 kΩ collector resistor and a 10 kΩ base resistor; the latter should parallel a 100 nF coupling capacitor to isolate DC while passing the signal. Ground the emitter via a 1 kΩ resistor bypassed with a 47 μF electrolytic to stabilize gain without distorting low frequencies.
For the second stage, increase the collector load to 2.2 kΩ to handle higher output current demands. Use a 4.7 kΩ base resistor here, again shunted by a 100 nF cap to block DC. The emitter resistor drops to 470 Ω, bypassed with 100 μF to allow higher gain while maintaining thermal stability. Calculate midpoint voltage: target VCE ≈ 6V for both transistors to avoid clipping.
Interstage coupling demands careful impedance matching. Connect the first stage’s collector to the second stage’s base via a 10 μF electrolytic capacitor–polarity must align with signal flow (positive terminal toward the base). Include a 10 kΩ resistor to ground at the second stage’s base to prevent floating potentials and ensure predictable biasing. Verify DC conditions with a multimeter before applying input signals.
| Stage | Collector Resistor | Emitter Resistor | Bypass Capacitor | Coupling Capacitor |
|---|---|---|---|---|
| First | 4.7 kΩ | 1 kΩ | 47 μF | 100 nF |
| Second | 2.2 kΩ | 470 Ω | 100 μF | 10 μF |
Power supply decoupling is non-negotiable. Place a 100 μF electrolytic and a 0.1 μF ceramic capacitor in parallel directly at the +12V rail and ground for each stage. This suppresses noise and prevents oscillations. If layout constraints exist, prioritize shorter traces for these components–avoid loops exceeding 1 cm2 to minimize inductive pickup.
Input signal conditioning starts with a 1 kΩ potentiometer as a voltage divider to fine-tune amplitude. Shield the connection from the source to the first stage’s base with coaxial cable if the lead exceeds 10 cm. For output, use a 1 μF coupling capacitor to isolate the load, paired with a 1 kΩ resistor to ground to prevent reflections if driving high-impedance loads.
Test under load. Drive the first stage with a 1 kHz sine wave at 10 mVpp; measure second-stage output with an oscilloscope. Expect ≈ 1Vpp with <1% THD if components are within ±5% tolerance. Reject layouts where ground paths share current return traces–use a star topology to prevent common-impedance coupling.
Thermal management dictates stability. If ambient temperature exceeds 50°C, derate transistor power by 20% or add a 5°C/W heatsink. For precision applications, replace 2N3904 with BC547B for lower noise (<2 dB NF at 1 kHz) or SS9014 for higher current capacity (100 mA). Avoid Darlington pairs–parasitic capacitances degrade high-frequency response.
Final calibration involves trimming the first-stage emitter resistor. Replace the 1 kΩ fixed resistor with a 2 kΩ potentiometer and adjust until IC reaches 1 mA (measured via VE ≈ 1V). Lock the setting with a same-value metal-film resistor to ensure long-term stability. Document all adjustments–tolerances tighter than ±1% are rarely justified but ±10% risks inconsistent performance.

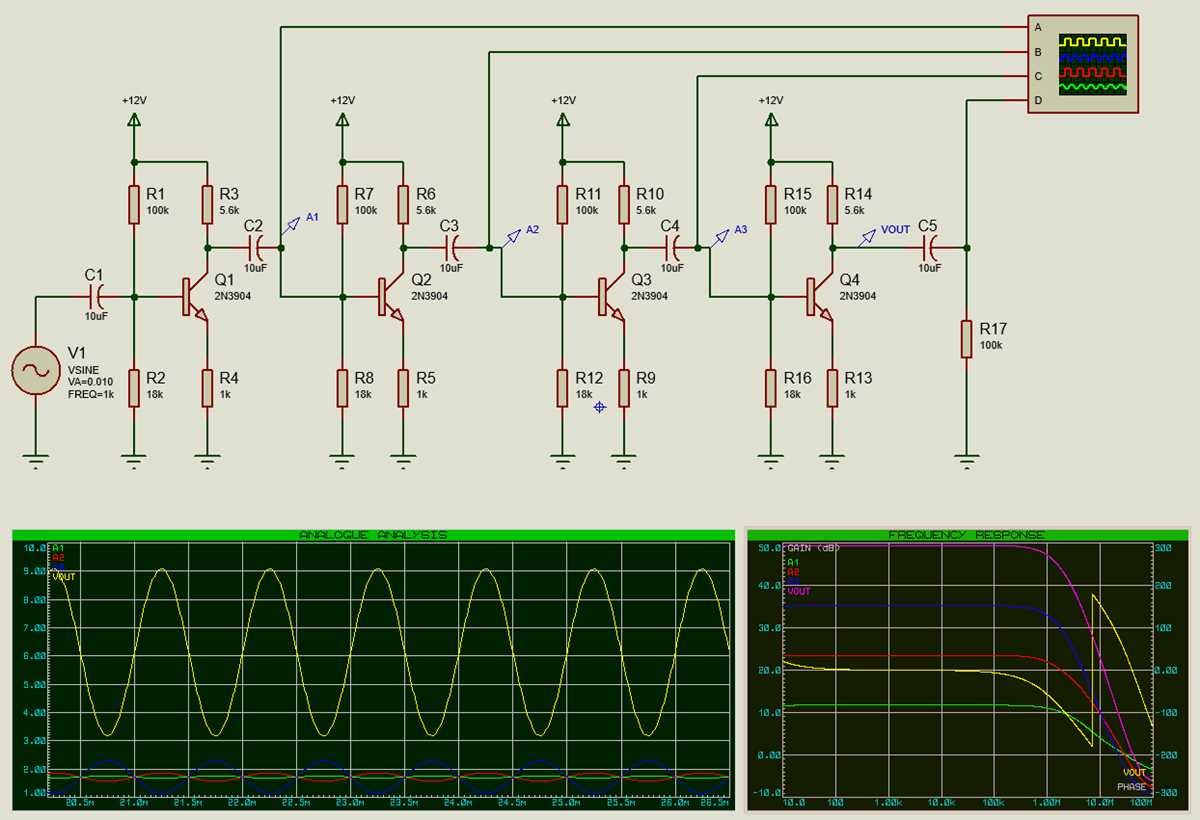

Optimizing Signal Propagation Through Stage Coupling
Use the decade rule for initial gain distribution: assign 10–20 dB per block, then adjust via SPICE simulation. For bipolar junction stages, maintain collector currents within 1–5 mA to balance noise and linearity; JFET inputs demand 0.5–2 mA for optimal transconductance. Voltage dividers between blocks should target impedance ratios below 1:10–exceeding this threshold introduces phase shifts at frequencies above 1 MHz.
Match source impedance to the following block’s input by scaling resistor values inversely with stage gain. A common-emitter pre-amp outputting 15 dB with 1 kΩ output impedance pairs best with a subsequent stage having 10 kΩ input impedance, minimizing signal attenuation. Capacitive coupling values follow fc = 1/(2πRC); for midband response at 20 Hz, use 10 µF between 1 kΩ stages or 47 µF between 50 Ω drivers.
Verify inter-stage networks with transient analysis: apply a 1 Vpp, 1 kHz sine wave, measure settling time. Peaking under 2 µs confirms proper damping; ring durations longer than 5 µs indicate critical mismatch. For discrete MOSFET cascades, gate resistors below 1 MΩ prevent oscillation while preserving bandwidth–sub-100 kΩ risks slew-rate degradation at 100 MHz signals.
