Locate the main ignition switch leads first–typically labeled B (battery), M (magneto), and G (ground). Cross-reference the color codes printed on the harness: red for battery input, black for ground, and purple for magneto output. If the engine fails to crank, trace these three wires backward from the switch to the starter solenoid, ensuring continuity with a multimeter (0.5 ohms or less between points).
Check the safety interlock circuit next. Verify the seat switch (common failure point) by disconnecting its connector and bridging the terminals with a jumper wire. If the engine starts, replace the switch. The PTO switch and brake pedal interlock follow the same logic–test each component individually before assuming wiring faults. Use the existing schematic to identify splice points where voltage drops often occur.
Focus on the charging system if the battery drains quickly. The alternator output wire (usually yellow) should measure 13.8–14.4 volts at idle when probed at the voltage regulator connector. If reading low, inspect the stator coil resistance (0.2–0.5 ohms for most models). Corrosion at the rectifier or loose mounting bolts can mimic stator failure–clean contacts with dielectric grease after testing.
For lighting circuits, note that the headlight relay coil draws power from the accessory bus (fused at 10A). If lights flicker, bypass the relay temporarily to isolate whether the issue lies in the relay, switch, or wiring. Always disconnect the battery negative terminal before servicing connectors to prevent short circuits during diagnostics.
Document modifications in pencil directly on the schematic if splicing repairs are made. Use heat-shrink tubing and solder for permanent fixes–crimp connectors alone fail under vibration. Store the updated schematic with the machine’s manual for future reference.

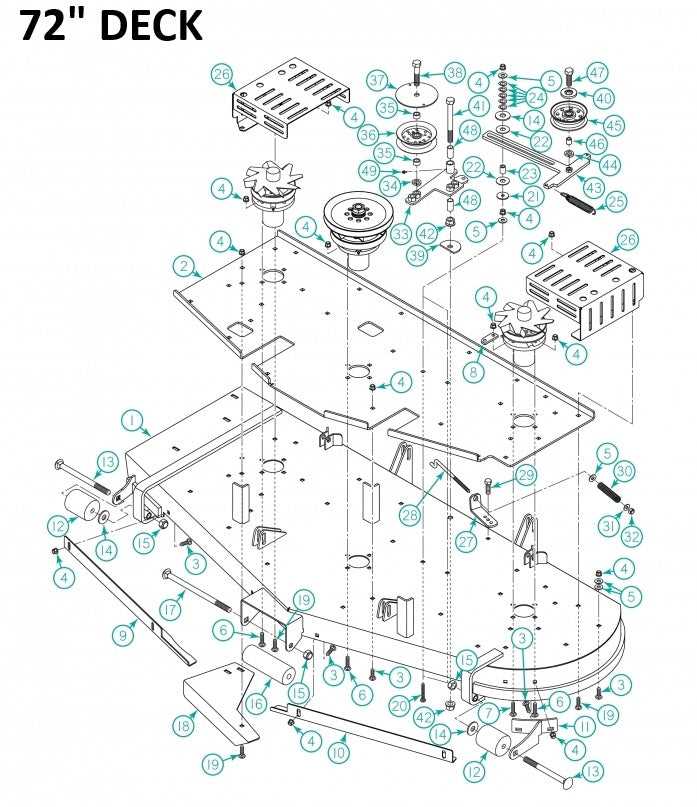

Electrical Schematic Guide for Zero-Turn Mowers
Start by locating the primary power distribution module beneath the operator’s seat–it houses the main fuse block and relais. Verify the 30-amp fuse protecting the ignition circuit before proceeding; a blown fuse often mimics starter failure. If resistance exceeds 0.2 ohms at the battery terminals, clean connections with a wire brush and apply dielectric grease to prevent future corrosion.
Trace the red cable from the solenoid to terminal “B” on the starter motor–this carries battery voltage directly. A loose or frayed cable here will cause intermittent engagement. Use a multimeter set to 20V DC: readings below 12.4V during cranking indicate a weak battery or faulty alternator. Replace the battery if hydrometer tests show specific gravity under 1.225 in any cell.
Examine the hour meter circuit: it shares ground with the key switch via a yellow striped wire. If the meter fails to register runtime, check for continuity between the meter’s “+” terminal and the ignition switch’s “I” post. Resistance above 0.5 ohms suggests a broken wire or corroded splice–repair with a soldered butt connector.
| Component | Wire Gauge | Standard Color Code |
|---|---|---|
| Battery to Starter | 6 AWG | Red |
| Ground Cable | 6 AWG | Black |
| Ignition Switch Output | 14 AWG | Yellow/Red stripe |
| Safety Interlock Loop | 18 AWG | Brown |
Safety switches on seat and deck operate in series–any open circuit halts engine function. Probe each switch with a continuity tester: seat switch should close when compressed, deck switch when engaged. Bypass temporarily for testing only; never operate without functional safety circuits.
Alternator output must maintain 13.8–14.2V at 1500 RPM. A reading below 13.5V under load indicates worn brushes or defective rectifier. To test, disconnect the voltage regulator connector and measure resistance between terminals “F” and “D+”–values outside 5-20 ohms signal regulator failure.
LED headlights draw 0.3A each; persistent dimming or flicker usually stems from poor ground at the lamp housing. Ensure the white ground wire terminates at a bare metal chassis point, not painted or powder-coated surfaces. Secure with a star washer to maintain low-resistance contact.
Key Electrical System Elements in Zero-Turn Mowers
Begin by identifying the primary power distribution block beneath the operator’s seat–this rectangular housing integrates the fuse panel, ignition relay, and main circuit breaker, typically secured with a snap-fit cover. Trace the heavy-gauge cables (often marked #4 or #6 AWG) from the battery terminals to this block; these supply the starter solenoid and accessory circuits directly. On models with hour meters, the meter’s signal wire (purple or yellow) connects to the ignition switch output, while its ground reference attaches to the engine’s mounting stud–verify continuity here before troubleshooting dash gauges.
Critical Subassemblies
- Starter solenoid: Mounted adjacent to the engine’s hydraulic pump, this cylindrical relay has two large posts (for battery and starter motor) and two small tabs (ignition activation and optional safety interlock). Measure 12V across the small terminals during cranking attempts; inconsistencies suggest a faulty relay or corroded connections.

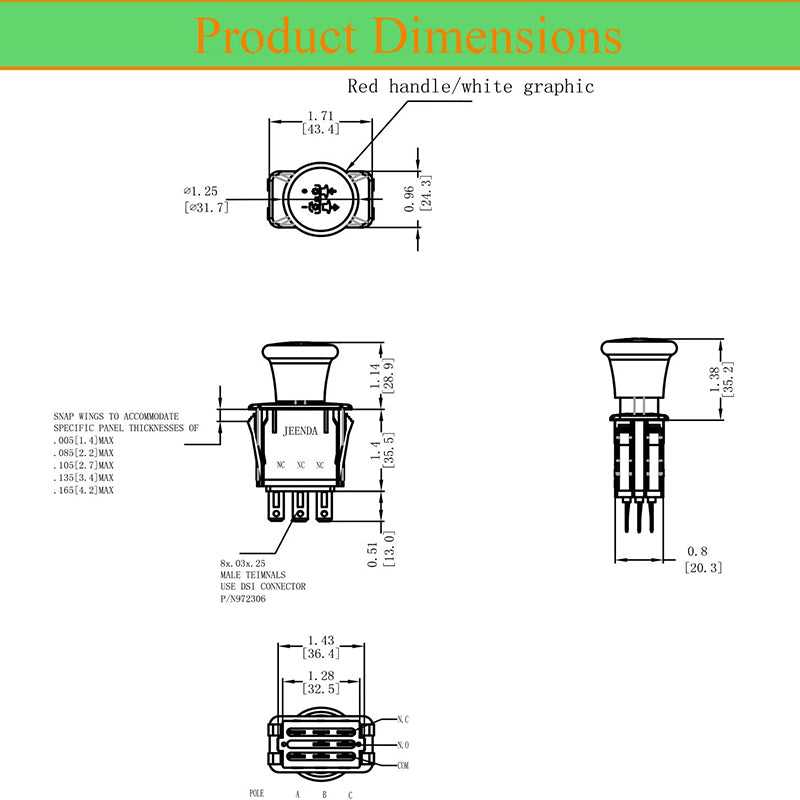

- Deck engagement switch: Located under the PTO lever near the floorboard, this microswitch (normally open) closes when the lever is pulled. The accompanying diode assembly (black housing with dual spade terminals) suppresses voltage spikes–bypass testing involves jumpering the switch terminals while observing blade activation.
- Engine control module: Positioned on the engine’s rear shroud, this ECU manages fuel injection and ignition timing via a 6-pin connector. Pinouts are: 1/ground, 2/12V constant, 3/ignition signal, 4/fuel pump relay, 5/RPM sensor, 6/throttle position sensor. Use a scan tool on the OBD-II port (if equipped) or backprobe pins with a multimeter during startup for proper voltage transitions.
Inspect the harness routing against the chassis–flexible conduit sections should bypass sharp edges, and tie-wraps securing bundles to frame rails prevent chafing. For intermittent faults, wiggle-test connectors while monitoring relevant subcircuits (e.g., blade engagement voltage at the deck switch) to isolate loose terminals or broken insulation.
Step-by-Step Guide to Interpreting an Equipment Circuit Blueprint
Locate the power source symbols first–these typically include a battery icon or direct labels like “12V” or “24V” near the edge of the layout. Trace the thickest lines outward from these points, as they represent the main current paths supplying energy to the entire system. Note any fusible links or breakers marked along these routes, indicated by zigzag lines or rectangles with diagonal cuts.
Identify switches and relays next, following their dashed or thin solid lines to connected components. Look for labels such as “IGN” (ignition), “PTO” (power take-off), or “STRTR” (starter) adjacent to toggle symbols. Cross-reference these with color codes (e.g., “R” for red, “BLK” for black) printed along the conductors, ensuring you match wire colors between the schematic and physical harnesses.
Decoding Component Clusters
Examine modules encased in dashed rectangles, which often denote multi-pin connectors or integrated control units. Inside these boxes, pin numbers (e.g., “A3,” “B7”) correspond to terminal positions on the actual plug–verify continuity using a multimeter across the specified pins while the system is off. For motors and solenoids, track the path back to their controlling switches; a circular arrow near a coil symbol indicates a magnetic actuator.
Find ground points early–they appear as downward triangles or lines terminating at a chassis symbol. Ensure these paths connect directly to the equipment’s frame; loose or corroded grounds commonly cause intermittent failures. Use an ohmmeter to test resistance from the ground terminal of any solenoid or light assembly back to the battery’s negative post–values above 0.5 ohms warrant cleaning or replacement of the connection.
Troubleshooting with the Layout
Isolate faults by segmenting the diagram: disable non-essential circuits using the ignition switch positions shown (e.g., “ACC,” “RUN”). When a specific function fails, follow its dedicated circuit from power source to load, checking for voltage drops at each junction. A drop exceeding 0.2V between test points suggests a corroded terminal or undersized wire–correct by crimping a new connector and sealing it with dielectric grease.
Document modifications directly on the schematic using a contrasting pen–note wire gauge changes (e.g., “10 AWG → 14 AWG”), alternate fuse ratings, or added diodes near inductive loads (marked by a diagonal bar). Compare updated sections against manufacturer bulletins for retrofits; discrepancies in relay coil resistances (typically 50–120 ohms) often signal internal wear requiring unit replacement.
Diagnosing Frequent Electrical Faults in Compact Utility Equipment
Inspect the main power distribution block first–corrosion on terminals is the leading cause of intermittent failures. Use a multimeter set to 20V DC to verify voltage output from the battery; readings below 12.4V indicate sulfation or a failing alternator. Clean connectors with a wire brush and apply dielectric grease to prevent oxidation.
Check the ignition switch for loose connections by probing the starter solenoid circuit. A clicking sound without engine turnover suggests faulty relay contacts or insufficient current. Replace the relay if resistance exceeds 0.2 ohms between terminals 85 and 86 under load.
Trace the ground path from the engine block to the frame. A single loose or rusted mounting bolt can disrupt multiple circuits, including fuel pumps and sensors. Scrape paint off contact points to bare metal and secure with star washers for optimal conductivity.
Examine the fuse panel for blown 10A or 15A fuses linked to lighting or hydraulic controls. Replace with identical amperage to avoid overheating–using higher-rated fuses risks melting wire insulation. Label each fuse position with a marker to streamline future diagnostics.
Test the voltage regulator by monitoring battery voltage at idle and under throttle. Output should stabilize between 13.8V and 14.5V; fluctuations point to a faulty regulator or damaged rotor windings. Swap with a known-good unit if readings deviate.
Inspect the PTO clutch wiring for abrasions near moving components. Chafed wires contacting rotating parts cause shorts and erratic blade engagement. Secure cables with zip ties at 12-inch intervals and reroute away from sharp edges.
Verify sensor circuits using a scan tool. Erratic readings from the oil pressure sender often stem from incorrect resistance values–manufacturers specify 240-330 ohms at operating temperature. Bypass the sender temporarily to confirm if the issue lies with the sensor or the control module.
Address parasitic drains by disconnecting the negative battery terminal and placing an ammeter in series. Current draw above 50mA indicates a stuck relay or aftermarket accessory siphoning power. Remove accessories one by one to isolate the culprit.
