Start by identifying the exact phase sequence required for your rotary machine–single-phase setups need a run capacitor sized between 50–100 µF per kW, while three-phase units demand matching line voltages (±5% tolerance) to avoid torque imbalance. Label each conductor with heat-shrink sleeves: L1, L2, L3 for incoming supply, U, V, W for stator terminals (or T1–T3 if delta-wound). Neutrals and grounding wires never share a junction; ground terminals must connect to a dedicated busbar rated for 25% above peak phase current.
For 220–240V split-phase configurations, place the start switch in series with the auxiliary winding–use a centrifugal switch if under 1.5 kW, otherwise a solid-state relay with 30 ms dropout delay. Confirm capacitance values against the machine’s nameplate: a ±10% deviation risks overheating within 45 minutes of continuous load. Three-phase reversals require only two-line swaps; mark swapped lines with contrasting tape to prevent reverse rotation errors downstream.
Test insulation resistance before energizing: minimum 5 MΩ at 500V DC for windings under 1000V. Terminate shielded cables with 360° grounding clamps to prevent RF interference–braided shields should connect at both ends only if cable length exceeds 10 meters. Daisy-chaining protective earth violates NEC 250.122; run a separate conductor from each drive component back to the panel’s PE bar.
Encoder feedback loops need twisted-pair wiring with 15 meters). Always corroborate inverter DC bus voltage before connecting: expect 1.35× line voltage for full-wave bridge rectifiers; deviations signal faulty diodes or improper source impedance.
Soft starters demand progressive ramp times: 5 seconds for centrifugal pumps (inertia
How to Properly Link Electrical Drive Components

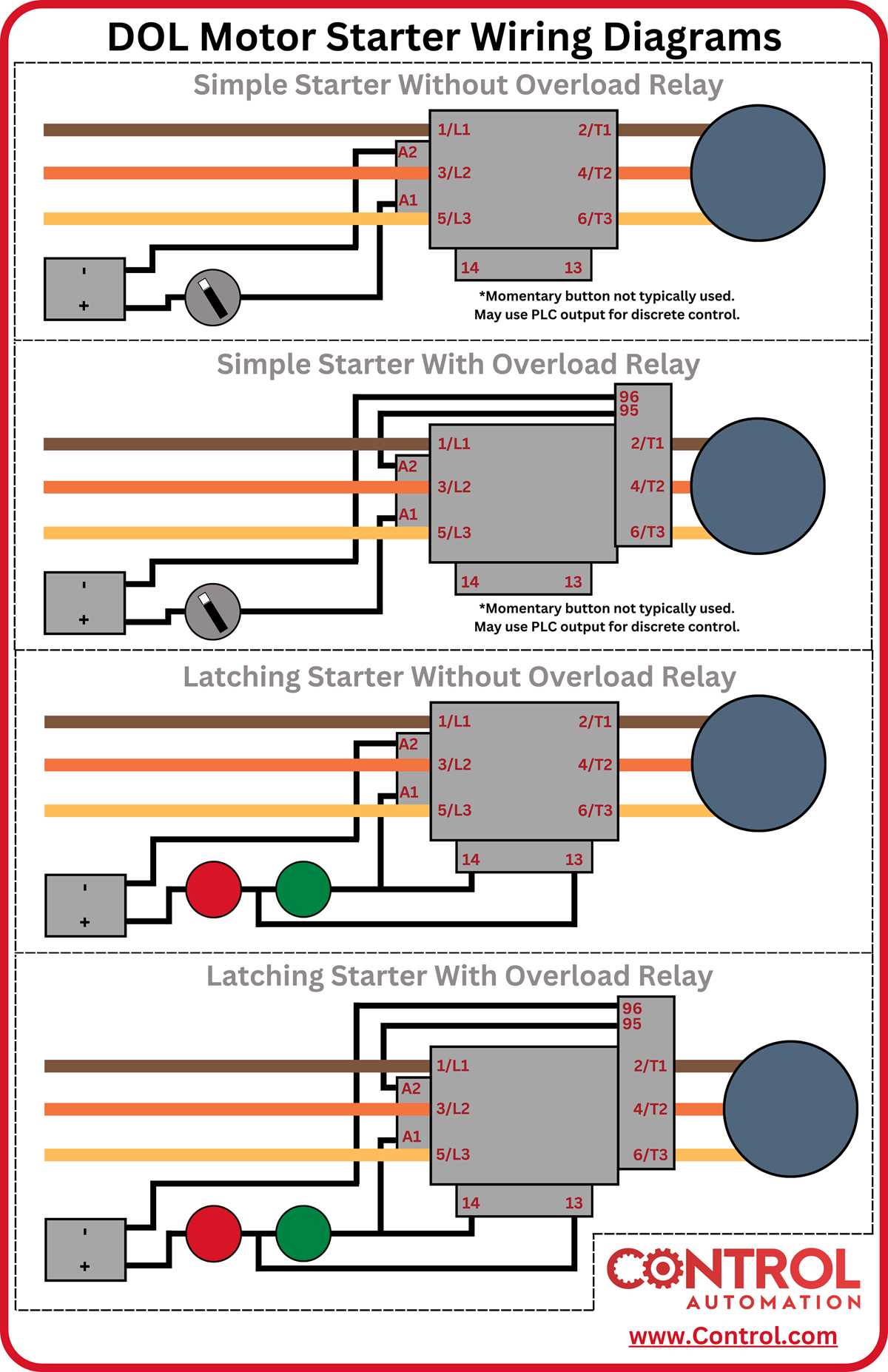

Begin by identifying the leads on your rotary mechanism–most three-phase setups include U, V, W terminals, while single-phase units have L, N, and often a grounding point. For direct-on-line starting, connect L1, L2, L3 (or their equivalents) to the corresponding mains lines for three-phase; for single-phase, link the live input to L and neutral to N. Always confirm polarity and phase order with a multimeter before energizing–reversed sequences can cause overheating or failure. Ground the housing securely using a dedicated conductor to prevent interference and ensure safety.
Key Configurations for Common Drive Systems
- Star (Y) arrangement: Join U2, V2, W2 together; connect U1, V1, W1 to the power source. Ideal for lower starting currents but reduces torque at startup.
- Delta (Δ) layout: Link U1 to V2, V1 to W2, W1 to U2; attach the primary lines to these junctions. Delivers full torque but draws higher inrush current.
- Capacitor-run (single-phase): Place the auxiliary winding with a series capacitor between the start and run terminals. Adjust capacitor value based on load–typically 20-50 µF for fractional horsepower units.
Avoid mixing conductor sizes–use at least 1.5 mm² copper for fractional loads up to 1 kW and 2.5 mm² for 1-2 kW. For variable frequency drives (VFDs), follow manufacturer guidelines on shielding: twisted pairs for control signals, and separate cable routing for power and feedback loops to minimize noise. Label every terminal and cable with heat-shrink sleeves or permanent tags to simplify troubleshooting. Use crimp connectors or ferrules on stripped ends–never tin wires with solder alone, as it can loosen under thermal cycling.
- Test insulation resistance before first power-up–target >1 MΩ between windings and ground. Use a 500V megger for industrial units.
- Check for mechanical binding by rotating the shaft manually–smooth motion indicates proper bearing alignment.
- Verify thermal protection settings: bimetallic overloads should trip within 1-2 minutes at 120% rated current.
- For reversing setups, install a double-throw switch with auxiliary contacts to prevent short circuits during direction changes.
- Document final layout with photographs and notes–include cable lengths, colors, and terminal numbers for future reference.
Step-by-Step Guide to Identifying Drive Terminals and Markings
Locate the nameplate affixed to the equipment housing–usually on the side or rear. Scan for alphanumeric codes like U1, V1, W1 or 1, 2, 3 paired with L1, L2, L3. These denote phase inputs for three-phase units, while single-phase variants show L (line) and N (neutral) with optional PE (earth). Record the exact sequence; swapping even one pair can reverse rotation or damage components.
Use a multimeter set to continuity mode to trace internal linkages. Probe each terminal while manually turning the shaft–audible clicks confirm stator windings. For dual-voltage models (e.g., 230V/400V), additional labels like T1–T12 appear; consult the technical manual for bridging configurations. If markings are eroded, look for color-coded leads–standard IEC schemes use black (phase), blue (neutral), green/yellow (ground).
Key Labeling Systems Across Manufacturers
- IEC/EN: U, V, W for line terminals; 1, 2, 3 for delta/wye switches.
- NEMA: T1–T3 (start), T4–T6 (run); high legs marked as T7–T9.
- JIS: R, S, T (phases), U, V, W (output); separate BR (brake) terminals.
- Custom heavy-duty: Alphanumeric sequences like MA, MB, MC or A+, A-, B+, B- for servo variants.
For star-delta starters, identify six terminals: three for the star (S1–S3) and three for the delta (D1–D3). Measure resistance between pairs–S1–S2 should show identical values to D1–D2, while S3–D3 often bridges internally. Wire gauge mismatch (e.g., 2.5mm² for phases, 1.5mm² for neutrals) hints at terminal roles.
- Disconnect power and discharge capacitors with a 10kΩ resistor.
- Note physical terminal positions–some units rotate labels 90° clockwise.
- Check for embossed numbers beneath paint; use a flashlight at a 45° angle.
- Compare findings with the schematic–most vendors embed file numbers (e.g., XYZ-12345) on the nameplate.
- Cross-reference with thermal overload relays; their markings (e.g., 95/96) mirror the main terminals.
If terminal blocks are corroded, clean with contact cleaner and fine sandpaper (400 grit). Replace loose screws with torque-rated M4/M5 equivalents (specified in Nm: typically 1.2–1.5Nm). For encoder-fed drives, locate the Hall sensor outputs–usually labeled H1–H3–and verify 5V/12V supply lines before reconnection.
Single-Phase Drive Assembly: Capacitor and Control Circuit Setup
Select a run capacitor rated for 1.5–2 times the drive’s full-load current if the nameplate specifies a capacitor value below 50 µF. For 120V circuits, choose a capacitor with a 250VAC minimum voltage rating; 230V circuits require 400VAC or higher. Mismatched voltage ratings lead to premature failure or bulging during startup surges.
Connect the auxiliary winding to the capacitor’s terminals first, then route the main winding directly to the power supply. Use 14 AWG copper wire for currents under 10A, upgrading to 12 AWG for 10–15A loads. Twist the wires before inserting them into terminal blocks to prevent vibration-induced loosening–especially critical in compressors or pumps.
Switch Configuration for Start and Run Circuits
| Switch Type | Current Handling | Terminal Arrangement | Recommended Wire Gauge |
|---|---|---|---|
| Centrifugal | 1.5x FLA | COM, NO, NC | 16–14 AWG |
| Solid-State Relay | 2x FLA | Input/Output | 14 AWG |
| Manual Toggle | 1.25x FLA | ON/OFF | 12 AWG |
Mount the start switch within 12 inches of the drive’s housing to minimize voltage drop. Centrifugal switches must disengage at 75–80% of synchronous speed–check with a tachometer during initial testing. If the switch remains closed after speed stabilization, replace it immediately to avoid auxiliary winding burnout.
For dual-capacitor setups (start and run), isolate the start capacitor with a potential relay or current-sensitive switch rated for 18–22A peak. Connect the common terminal of the relay to the auxiliary winding, then join the normally open contact to the start capacitor. Terminate the run capacitor directly to the auxiliary winding’s remaining lead–never bridge the two capacitors together, as this creates a phase imbalance and reduces torque by 30–40%.
Ground the drive’s frame using a dedicated 10 AWG green wire connected to a grounding rod or busbar. Verify capacitance values with a multimeter after 60 seconds of operation; readings should match nameplate specifications ±5%. If deviation exceeds 10%, test the capacitor’s ESR (equivalent series resistance) with an LCR meter–values above 0.5Ω indicate internal degradation.
Three-Phase Electrical Assembly: Star Versus Delta Layouts
Use a star (Y) configuration for high-voltage scenarios requiring reduced current draw during startup. This arrangement connects one terminal of each phase coil to a common neutral point, slashing line current by 57.7% compared to its counterpart. Ideal for equipment like large pumps or compressors where soft starts prevent grid disturbances–voltage across each coil equals line voltage divided by √3. Verify voltage ratings on nameplates; a 400V system in star delivers 230V per coil, ensuring compatibility with European industrial standards.
Delta (Δ) suits continuous low-voltage operation, delivering full line voltage across each winding. This layout eliminates neutral dependency, making it predominant in North American 240V/480V setups–current splits unevenly across phases without a shared reference. Calculate impedance carefully; mismatched coils risk circulating currents, overheating, or torque loss. For machines exceeding 10HP, add thermal overload relays branch-side to mitigate phase imbalance risks.
Transition between star and delta via a starting switch for high-inertia loads. Engage star at 0 RPM to limit inrush, then shift to delta once near synchronous speed–timing matters: premature switch causes 6–8× nominal current spikes. Use a timer relay calibrated to motor acceleration (typically 2–15 seconds), ensuring seamless torque handoff. Avoid open transitions; arc flash from disconnected phases violates NFPA 70E safety margins.
Select winding material based on configuration demands: star tolerates thinner wire due to lower current, while delta requires heavier gauge to handle 73% higher coil currents. Test insulation resistance pre-installation–star windings need ≥1 MΩ at 500V DC, delta ≥2 MΩ. For variable-frequency drives, confirm carrier frequency aligns with star/ delta impedance; 4 kHz suits star, whereas delta requires 2–3 kHz to prevent eddy-current losses.
Label terminals clearly: designate L1/L2/L3 for supply, U1/U2/V1/V2/W1/W2 for coils. Star marks neutral N, delta loops U2 to V1, V2 to W1, W2 to U1. Install bi-metallic overloads rated at 115% of full-load amperage–star absorbs 33% less, delta demands higher trip settings. Grounding rules differ: star bonds neutral, delta bonds a separate phase to prevent third-harmonic distortion in unbalanced loads.
