To replace or upgrade your car’s audio receiver, locate the harness behind the dashboard–the OEM connector uses a 20-pin plug. Pinouts include power (constant 12V at pin 8, switched 12V at pin 10), ground (pin 4), speaker outputs (front left at pins 2/3, front right at pins 13/14, rear left at pins 1/16, rear right at pins 6/7), and illumination (pin 9). Use a multimeter to verify voltages before connecting aftermarket components.
Step-by-step integration: Disconnect the battery before handling wires. Match the aftermarket harness color codes to the factory pins–yellow (battery), red (accessory), black (ground), and paired colors for speakers (gray/white for front left, purple/white for rear right, etc.). Twist and solder connections, then insulate with heat-shrink tubing. Secure the new unit in the dash bracket; test functionality by checking fade/balance controls before reassembling trim panels.
Factory antennas use a coaxial connector (usually black, pin 5 for signal, pin 15 for ground). If upgrading to a satellite-ready headunit, install a signal amplifier (inline, 12V) between the receiver and antenna. For steering-wheel controls, wire an adapter module (Metra ASWC-1 or equivalent) to the auxiliary input pins (11 and 12). Avoid tapping into the CAN bus unless the adapter supports the vehicle’s protocol.
Common pitfalls: Incorrect grounding causes whine/hum–ensure the ground connects directly to chassis metal, not plastic. Reversed speaker wires create out-of-phase audio; verify polarity during testing. If the display dims when the headlights turn on, relocate the illumination wire (pin 9) to a constant 12V source. Keep the meter on-hand to troubleshoot voltage drops–any reading below 11.5V at the receiver indicates a weak ground or corroded connection.
Automotive Audio System Connector Guide for 2003 Compact SUV
Locate the vehicle’s audio harness behind the factory stereo unit–black 10-pin connector on the right, brown 12-pin on the left. Pin assignments:
- Black connector (power/speakers):
- Pin 1 (yellow wire): constant +12V (battery)
- Pin 2 (green/black): right rear speaker (+)
- Pin 3 (green): right rear speaker (-)
- Pin 4 (gray/black): right front speaker (+)
- Pin 5 (gray): right front speaker (-)
- Pin 6 (pink): ignition switch +12V
- Pin 7 (blue/white): antenna trigger
- Pin 8 (black): chassis ground
- Pin 9 (blue): amplifier remote
- Pin 10 (green/white): left rear speaker (+)
- Pin 1 (white/black): left front speaker (+)
- Pin 2 (white): left front speaker (-)
- Pin 3 (purple/black): left rear speaker (-)
- Pins 4–6: unused or illumination
- Pin 7 (orange/white): dimmer control
- Pins 8–12: reserved for steer-wheel controls
Disconnect the negative battery terminal before interfacing. Match wire gauge–factory harness uses 18 AWG; downsize to 20 AWG may cause voltage drop under 50W RMS loads. For aftermarket head units requiring higher amperage, splice in 14 AWG inline fuse (15A max) on constant power line. Test speaker polarity with 1kHz tone before final connections–reversed leads reduce midbass output by 3dB.
Decoding Wire Colors and Connections in the Audio System Harness
Locate the 10-pin connector behind the stereo unit–black plastic with two rows of terminals. Pin 1 is the upper left position when facing the harness; count sequentially right then down. The first five wires handle primary power and speaker outputs:
- White (solid): +12V constant power (battery feed), fused at 10A. Verify voltage with a multimeter before connecting aftermarket amplifiers.
- Yellow: +12V switched power (ignition-controlled). Test by turning the key to ACC; should read ~11.8V with minimal drop under load.
- Black (solid): Ground. Attach directly to chassis metal using a 12-gauge ring terminal; avoid factory paint for secure grounding.
- Gray (solid) and Gray/Black: Front right speaker (+/-). Gray carries positive, Gray/Black the negative return. Cross polarity tests reveal a 4-6Ω impedance on a 20W test tone.
- White/Black (striped): Front left speaker (-), paired with White (striped) for positive. Typical resistance matches the right channel.
The remaining five wires serve rear speakers and illumination:
- Green (solid) and Green/Black: Rear right speaker pair. Green is positive; check continuity with a 9V battery–speaker cone should push outward momentarily.
- Purple (solid) and Purple/Black: Rear left speaker. Purple positive; same test applies. Both channels share an 8-ohm nominal load.
- Orange (solid): Illumination wire. Powers dimmer-controlled backlighting at 12V when headlights are active. Expect ~5-8V drop in low-beam mode.
- Blue (solid, thicker gauge): Antenna trigger/output. Feeds 12V to power motorized antennas; some aftermarket units require this for amplifier remote turn-on.
- Pink/Blue (striped): Mute control for integrated phone systems (rare in base models). Leave unconnected unless interfacing with OEM Bluetooth modules.
Label every wire with masking tape before disconnecting the factory harness. Misidentification risks shorting the fusible links–located behind the driver’s side kick panel–rated at 15A for accessory circuits. Use a crimp connector rated for 16-18 AWG; solder and heat-shrink all splices to prevent corrosion from moisture ingress in the dashboard cavity.
Test speaker outputs with a 1kHz sine wave at half volume before final installation. Distorted signals indicate reversed polarity; swap the corresponding +/- wires. For subwoofer integration, tap the blue wire with a 1A fuse inline–factory amplifiers draw 300-500mA on startup.
Factory harness adapter plugs (Metra 70-1721) simplify aftermarket upgrades but require verifying pin assignments–some aftermarket stereos reverse front/rear outputs. Confirm with a wiring diagram pinned to the vehicle’s year-range; discrepancies often occur in transitional model years.
Avoid using quick-connect clips for the illumination wire–dimmer circuits are sensitive to resistance changes. Hardwire instead, adding a 1N4001 diode in series if backlight flicker occurs during engine crank.
Reassembly sequence: ground first, then power leads, followed by speaker wires. Double-check antenna feed last–loose connections cause poor FM reception, mimicking amplifier failure. Tuck excess wire behind the climate controls to prevent interference with future dashboard removals.
Step-by-Step Guide to Finding the Original Audio System Harness Behind the Instrument Panel
Disconnect the negative terminal of the battery before starting. This prevents short circuits and protects internal circuits from accidental damage.
Remove the two screws securing the lower dashboard cover beneath the steering column using a 7mm socket. Slide the cover downward and set it aside. Next, remove the two screws holding the upper trim panel around the instrument cluster–these are located at the top corners and require a Phillips screwdriver.
The factory audio unit is mounted in a recessed slot above the climate controls. Gently pull the unit outward from the dashboard, applying even pressure to release the spring clips on either side. If resistance is felt, check for hidden screws or tabs that may still be engaged.

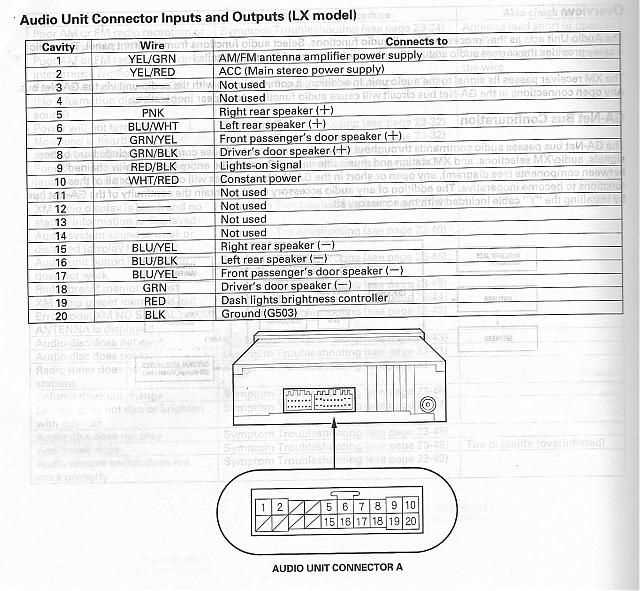

Once the unit is partially removed, tilt it forward to access the rear connectors. The primary harness plug is a 20-pin white or gray connector with a sliding lock mechanism. Depress the tab on the side of the plug and pull it away from the unit. Avoid tugging on individual wires–handle only the connector housing.
| Connector Pin | Wire Color | Function |
|---|---|---|
| 1 | Black/Yellow | Ignition-switched power |
| 4 | Red/White | Constant 12V power |
| 7 | Green/White | Front right speaker (+) |
| 14 | Blue/White | Antenna control |
If the connector is not immediately visible, trace the bundle of wires exiting the back of the audio unit. The harness often routes downward behind the climate control module, secured by a plastic clip or zip tie. Cutting the tie may be necessary–use wire cutters and replace it with a new one during reassembly.
For vehicles with an integrated amplifier, a second 8-pin or 12-pin connector will be present, typically black or dark blue. This supplies power to the amplifier and connects to the speaker wires. Disconnect it using the same method: press the tab and pull straight out.
Reinstall all components in reverse order, ensuring connectors click securely into place. Reconnect the battery last, then test the system by turning the key to the accessory position and verifying power to the unit and speakers.
How to Verify Connections with a Multimeter Before Installing Aftermarket Audio Gear
Set the multimeter to DC voltage (20V range) and ground the black probe to the vehicle’s chassis or a confirmed ground wire. Probe the 12V constant power lead–identified by its yellow sleeve–while the ignition remains off. A steady 12–14V reading confirms correct supply; fluctuating or absent voltage indicates a break or incorrect connection. Repeat for the ignition-switched lead (typically red) with the key in the ACC or ON position, ensuring the voltage drops to zero when the key is turned off.
Identify speaker wires by their resistance values: 2–8 ohms for factory loads, often 4 ohms for standard setups. Attach the multimeter probes to each speaker pair (front left positive and negative, for example). Confirm continuity by listening for a faint click or measuring the resistance directly; an open circuit reveals severed or mislabeled cables. Polarity matters–reversing leads should invert the tone during a 1kHz test signal, but amplitude must remain consistent across all channels.
Check the illumination wire (usually orange or orange/white) by simulating dashboard lights. Activate the vehicle’s parking lamps or instrument cluster dimmer while probing the wire; voltage should rise from 0V to 8–12V as brightness adjusts. Dimmer control may vary–some systems use a variable 0–5V signal instead. If readings are erratic, inspect fuse integrity or shared ground issues in the lighting circuit.
For ground verification, touch the multimeter’s red probe to the ground wire while leaving the black probe on the chassis. Zero volts confirms a solid return path; even minor resistance (above 0.1 ohms) suggests corrosion or loose terminals. Test the antenna trigger (blue/white) by manually extending the antenna or tuning to FM–voltage should spike to 12V briefly, confirming activation. If absent, verify fuse status in the integrated amplifier or standalone antenna module.
