Build a reliable single-trigger pulse generator using a 555 timer IC in its retriggerable configuration. Configure the trigger input (pin 2) with a 10 kΩ pull-up resistor to VCC and couple it to ground via a 0.1 µF capacitor for noise suppression. The output pulse duration formula is T = 1.1 × R × C, where R is the timing resistor (typically 1 kΩ to 1 MΩ) and C is the timing capacitor (1 nF to 1000 µF). For a 1-second pulse, use R = 91 kΩ and C = 10 µF–ensure C is a low-leakage type (e.g., polyester or tantalum) to maintain precision.
Stabilize the control voltage (pin 5) with a 0.01 µF bypass capacitor to ground, preventing erratic behavior from supply fluctuations. The discharge pin (7) should connect directly to the timing capacitor node; no additional components are needed unless implementing adjustable pulse width via a potentiometer. For edge-sensitive applications, add a 1N4148 diode across the timing resistor to clamp the back-EMF during capacitor discharge, shortening recovery time by ~30%.
Test the schematic with a 5 V supply using a 1 kΩ load resistor at the output (pin 3). Trigger the input with a 1 ms low pulse; the output should produce a clean, delay-free high pulse matching the calculated duration. If the pulse fails to terminate, check for floating reset (pin 4)–tie it to VCC if unused. For CMOS variants (e.g., 7555), reduce R to 10 kΩ minimum to avoid erratic operation due to lower drive current.
Integrate debouncing by placing a 1 µF capacitor between the trigger input and ground, eliminating false retriggers from mechanical switches. For high-frequency operation (>1 kHz), substitute the timing capacitor with a film type (e.g., polypropylene) to minimize dielectric absorption effects. Always decouple the power rail at the IC with a 0.1 µF ceramic capacitor, placed within 2 mm of the VCC and GND pins.
One-Shot Pulse Generator: Key Design Principles
Use a 555 timer IC in its retriggerable configuration with a 10 kΩ resistor and 100 nF capacitor to produce a stable 1 ms output pulse. Connect the trigger input to a debounced pushbutton via a 0.1 µF coupling capacitor to prevent false triggers. The threshold pin (pin 6) must tie to the discharge pin (pin 7) with a 10 µF capacitor to the ground to ensure precise timing; values beyond 47 µF degrade accuracy due to leakage current.
| Component | Value (Standard Load) | Tolerance Impact (±10%) | Alternative for High Temp |
|---|---|---|---|
| Timing Resistor | 10 kΩ | Alters pulse width by ±2% | Metal film, ±1% drift |
| Timing Capacitor | 10 µF | ±5% variation affects delay | Tantalum, 1% ESR shift |
| Output Pull-Up | 2.2 kΩ | VOH drops 0.3 V at 5 mA | 4.7 kΩ for 3.3 V logic |
For microcontroller interfacing, replace the passive timing network with a Schmitt-trigger inverter (74HC14). Feed the trigger signal through a 1 kΩ series resistor and clamp the input with a 3.3 V Zener diode to protect CMOS gates. Configure the inverter’s RC network–47 kΩ resistor and 22 nF capacitor–to generate a 1 ms pulse; switch to 220 nF for 10 ms delays. Verify rise times with an oscilloscope: target <50 ns to avoid metastability in downstream flip-flops.
Failure Modes and Mitigation
Leakage in the timing capacitor elongates pulses unpredictably; replace electrolytic types with polyester film for <1% drift. Power supply noise above 10 mVpp induces jitter–isolate the timer’s VCC with a 10 µF decoupling capacitor and 100 nF ceramic cap at the IC pins. Retriggering before pulse completion causes unstable states; insert a 1N4148 diode between trigger source and timing capacitor to block premature transitions. For battery-powered designs, reduce quiescent current by switching to a CMOS version (LMC555) and using a 1 MΩ timing resistor.
How to Choose the Right Timing Components for a One-Shot Configuration
Select a resistor-capacitor pair based on the required pulse duration. For a 555 timer in a retriggerable setup, the formula T ≈ 1.1 × R × C determines the output duration. A 10 kΩ resistor paired with a 100 µF capacitor yields roughly 1.1 seconds. Adjust values linearly–doubling the resistor or capacitor doubles the delay. Avoid electrolytic capacitors below 1 µF for precision applications; ceramic or film types offer better stability.
Key Considerations When Selecting Parts
- Temperature Coefficient: Polypropylene or NP0 ceramic capacitors maintain ±1% drift across -20°C to +85°C, critical for industrial environments. Tantalum capacitors drift ±15% over the same range, compromising repeatability.
- ESR (Equivalent Series Resistance): Low-ESR capacitors (e.g., multilayer ceramic) prevent voltage droop during discharge, ensuring consistent timing. High-ESR components (e.g., standard electrolytic) introduce errors up to 20% in short pulses.
- Voltage Rating: Choose a capacitor rated at least 1.5× the supply voltage to avoid dielectric breakdown. A 16V capacitor suffices for a 12V rail, but a 25V rating extends lifespan under transient spikes.
Test component tolerance with an oscilloscope before finalizing the design. A 5% resistor tolerance combined with a 10% capacitor tolerance can shift the pulse width by ±15%. For tighter control, use 1% resistors and match capacitor batches. Replace passive components every 5,000 hours if operating at 85°C or above–dielectric degradation accelerates timing drift.
Practical Examples for Common Use Cases
- Debouncing (20–50 ms):
- Resistor: 1 MΩ (metal film, ±1%).
- Capacitor: 22 nF (X7R ceramic, ±10%).
- Result: 24.2 ms pulse, stable across 0°C–70°C.
- Motor Delay (2–5 seconds):
- Resistor: 470 kΩ (wirewound, ±0.5%).
- Capacitor: 4.7 µF (polypropylene film, ±2%).
- Result: 2.38 seconds, ±3% drift over 10,000 cycles.
- High-Precision Timer (10 µs–1 ms):
- Resistor: 1 kΩ (thin-film, ±0.1%).
- Capacitor: 1 nF (C0G ceramic, ±1%).
- Result: 1.1 µs jitter-free output at 5V.
For variable timing, replace the fixed resistor with a potentiometer–100 kΩ linear taper provides smooth adjustment from 100 µs to 1 second with a 10 µF capacitor. Avoid logarithmic pots; their nonlinear response distorts timing resolution. When prototyping, use socketed ICs and removable components to swap parts without desoldering–this isolates failures to either the timer IC or passive elements.

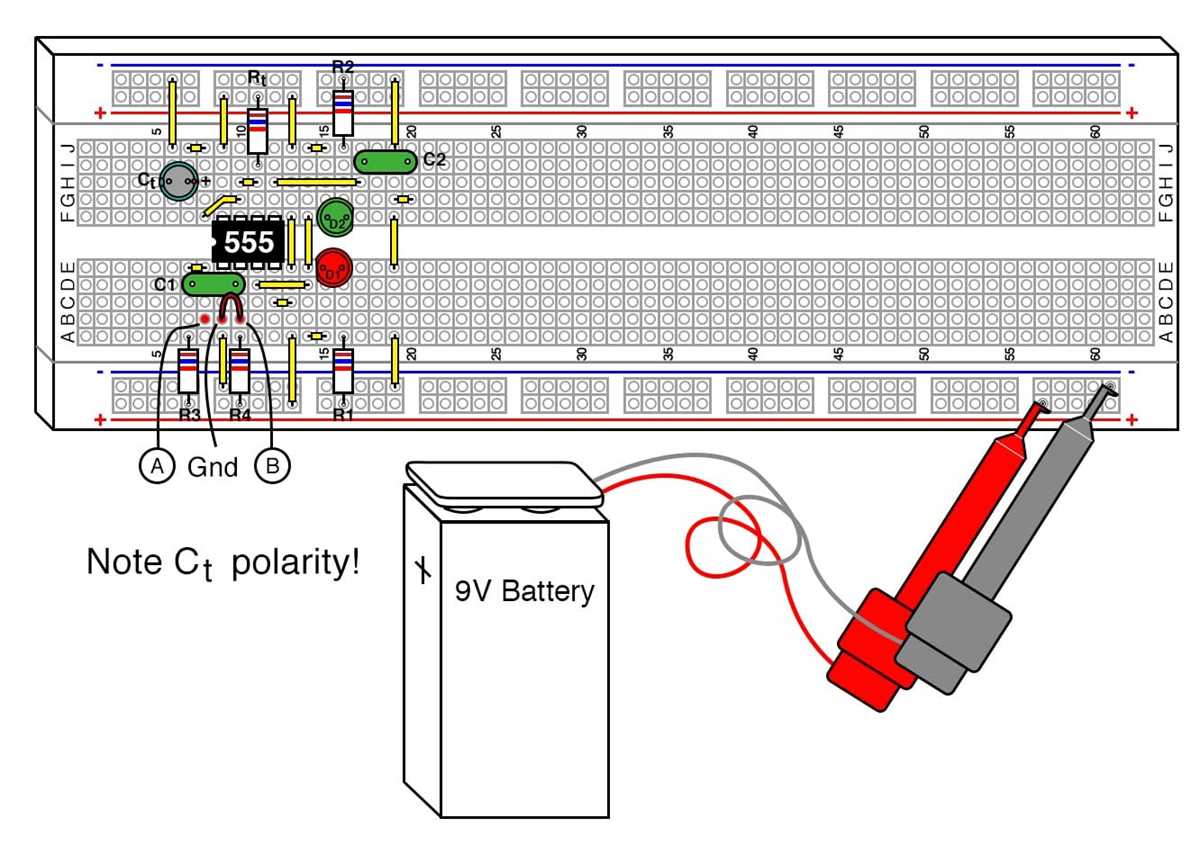

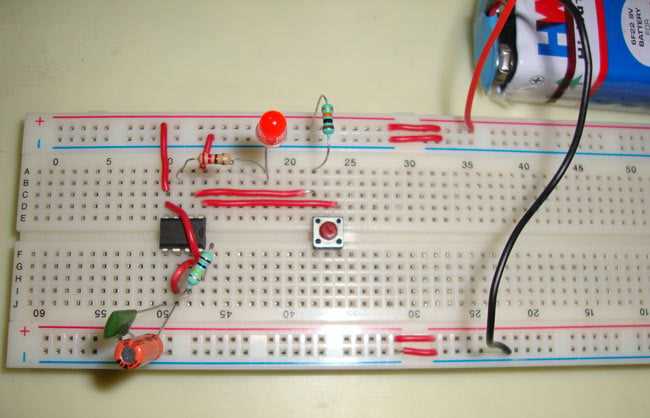

Building a 555 Timer One-Shot Pulse Generator on a Breadboard
Start by inserting the 555 IC into the center of the solderless board, straddling the central groove. Pin 1 (GND) should align with the bottom-left corner–verify this against the datasheet before powering anything. A common mistake is misorienting the chip, which can fry it instantly when voltage is applied. Use a socket if testing multiple configurations; otherwise, ensure the IC is firmly seated with all pins making solid contact.
Connect pin 8 (VCC) to the positive rail using a red jumper wire–keep the lead short to minimize noise. Pin 1 (GND) goes to the negative rail via a black wire. Add a decoupling capacitor (0.1µF ceramic) between pin 8 and pin 1, placed as close to the IC as possible. This suppresses voltage spikes that could trigger false pulses. Skip this step, and the output may behave unpredictably under load.
Trigger and Timing Components
For the one-shot pulse, attach a 10kΩ resistor from pin 2 (trigger) to VCC–this holds the input high under normal conditions. A pushbutton switch connects pin 2 to GND through a 1kΩ resistor; pressing it pulls the trigger low, starting the timing cycle. The timing interval is set by a resistor (R) between pin 7 (discharge) and VCC, and a capacitor (C) from pin 6 (threshold) to GND. Use the formula *T = 1.1 × R × C*–for example, a 100kΩ resistor and 10µF capacitor yield a ~1-second pulse. Verify component values with a multimeter before insertion.
Link pin 6 and pin 7 together–this internal connection is critical for the timing network. The output (pin 3) can drive an LED with a 330Ω current-limiting resistor; orient the LED’s cathode toward GND. Avoid overloading pin 3; it sources up to 200mA, but exceeding this risks damaging the IC. For longer intervals (minutes), use a larger capacitor (e.g., 470µF electrolytic) and a 1MΩ resistor–polarity matters, so align the capacitor’s negative terminal with GND.
Final Checks and Testing
Before applying power, scan the board for loose connections or shorts. A single-stranded wire accidentally bridging pins can cause erratic behavior. Power the setup with 5V from a regulated supply or USB–voltages above 15V will destroy the 555. Press the trigger button; the LED should illuminate for the calculated duration, then extinguish cleanly. If the pulse doesn’t reset, check for stray capacitance or a floating trigger input. For debugging, probe pin 3 with an oscilloscope to confirm a clean square wave; noise on the rise/fall edges indicates poor grounding or missing decoupling.
Determining Output Timing in One-Shot Pulse Generators Using RC Components
To compute the transient interval of a single-pulse trigger configuration, apply the formula T = k × R × C, where T denotes the duration, R represents resistance in ohms, C stands for capacitance in farads, and k is a constant specific to the active switching element–typically 0.693 for bipolar transistors or 0.8–1.1 for CMOS inverters. For example, pairing a 10 kΩ resistor with a 100 nF capacitor yields T ≈ 0.693 × 10,000 × 100 × 10-9 ≈ 0.693 ms. Select k based on datasheet values; some integrated timers (e.g., 555) use ln(3) ≈ 1.0986 instead.
- For precision, measure R and C with a multimeter–tolerance errors cascade (e.g., ±5% resistors with ±10% capacitors compound to ±15%).
- Temperature drift affects timing: ceramic capacitors shift up to 1.5%/°C; use polypropylene or polyester for stability.
- Parasitic capacitance (≈5–20 pF) from PCB traces alters T–route high-impedance nodes as short, shielded traces.
- Ground bounce or supply noise (>100 mV pp) may prematurely reset the trigger–decouple with a 0.1 µF capacitor near the power pin.
When designing for sub-millisecond pulses, reduce R below 1 kΩ to minimize leakage current effects, but ensure the charging path can source sufficient current (Icharge = Vsupply/R). For durations exceeding 1 second, increase C to avoid excessive R values that introduce thermal noise (R ≥ 1 MΩ is impractical). Verify calculations empirically: an oscilloscope with a 10× probe (≤1 pF loading) prevents timing distortion. Adjust iteratively–typical batches of components vary; prototype with at least ±20% headroom for production tolerances.
